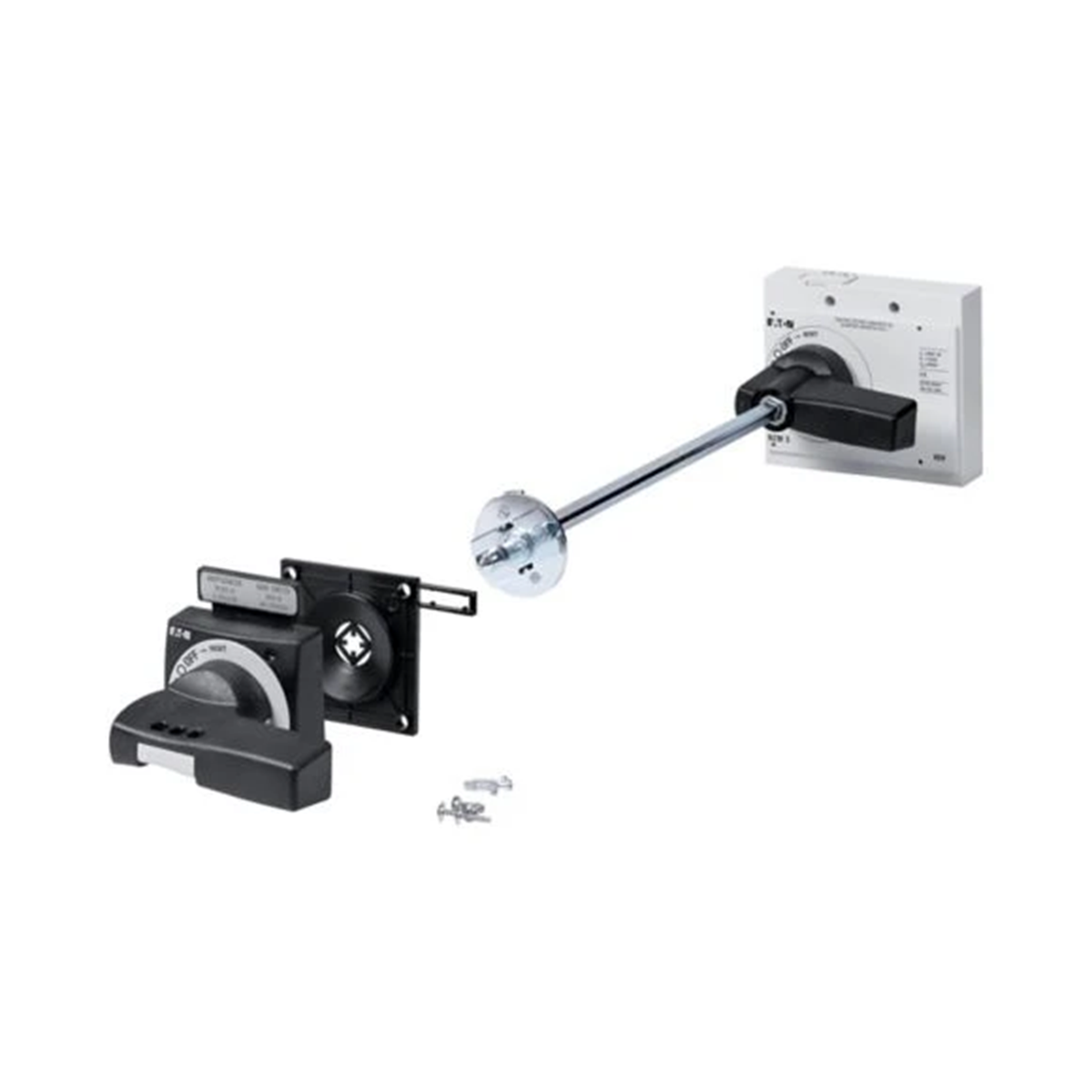

Main switch assembly, + additional handle, size 3 118988

local index:
ALA477MOEL
Catalog No:
118988
EAN code:
4015081171255
Manufacturer: EATON
Color: Black
Used to: NZM3(-4), PN3(-4), N(S)3(-4)
Price:
309,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Optional accessories for the NZM range of circuit breakers include a wide range of devices suitable for international use. Installation is flexible and easy thanks to the modular functional groups. Remarks: Door connector handle with rotary drive. Additional handle in the switch with the instruction manual, conscious action. Extension shaft NZM..-XV6 for installation depth 600mm, extension shaft NZM1/2-XV4 in NZM1 for installation depth 400mm. External warning sign/nameplate in German/English. Black and yellow warning symbol. External warning plate/information plate for hooks. For increased finger protection on the supply side IP2X, order finger protection. With a black handle connecting the door. Lockable in the 0 position on the handle with up to 3 padlocks, can also be modified in the I position. Lockable in the 0 position on the switch. With door locking. Applicable to: NZM3(-4), PN3(-4), N(S)3(-4)

Technical data

  • Color
    Black
  • Used to
    NZM3(-4), PN3(-4), N(S)3(-4)

Other technical data

  • With restart blockage
    No
  • Padlock locking
    Yes
  • Suitable for emergency stop
    No
  • Suitable for power circuit breaker
    Yes
  • Degree of protection (NEMA)
    4X, 12
  • With key lock
    No
  • Colour
    Black
  • With extension shaft
    No
  • Suitable for switch disconnector
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 2,700
Volume (m3) 0,025
Width (m) 0,250
Length (m) 0,440
Depth (m) 0,230
