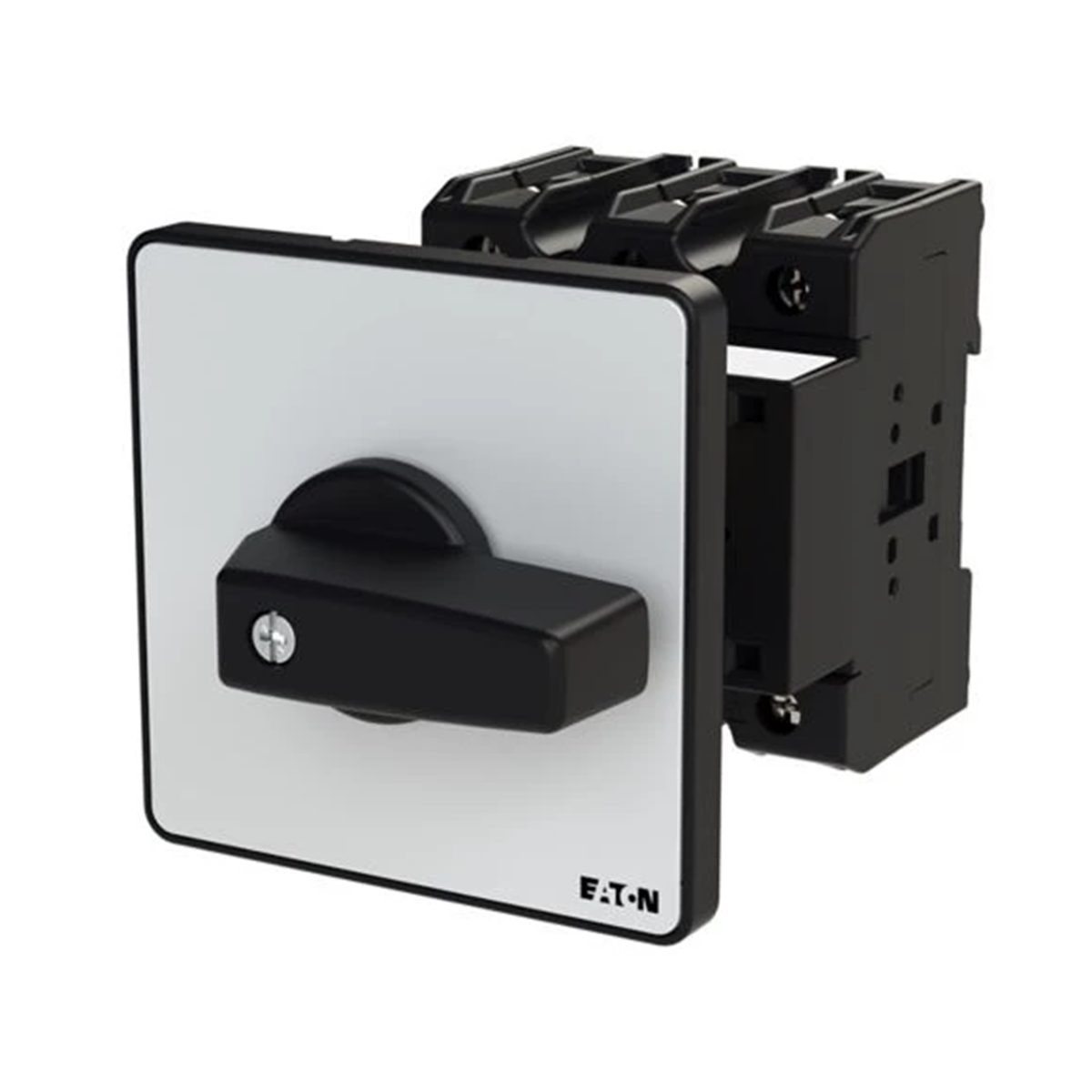

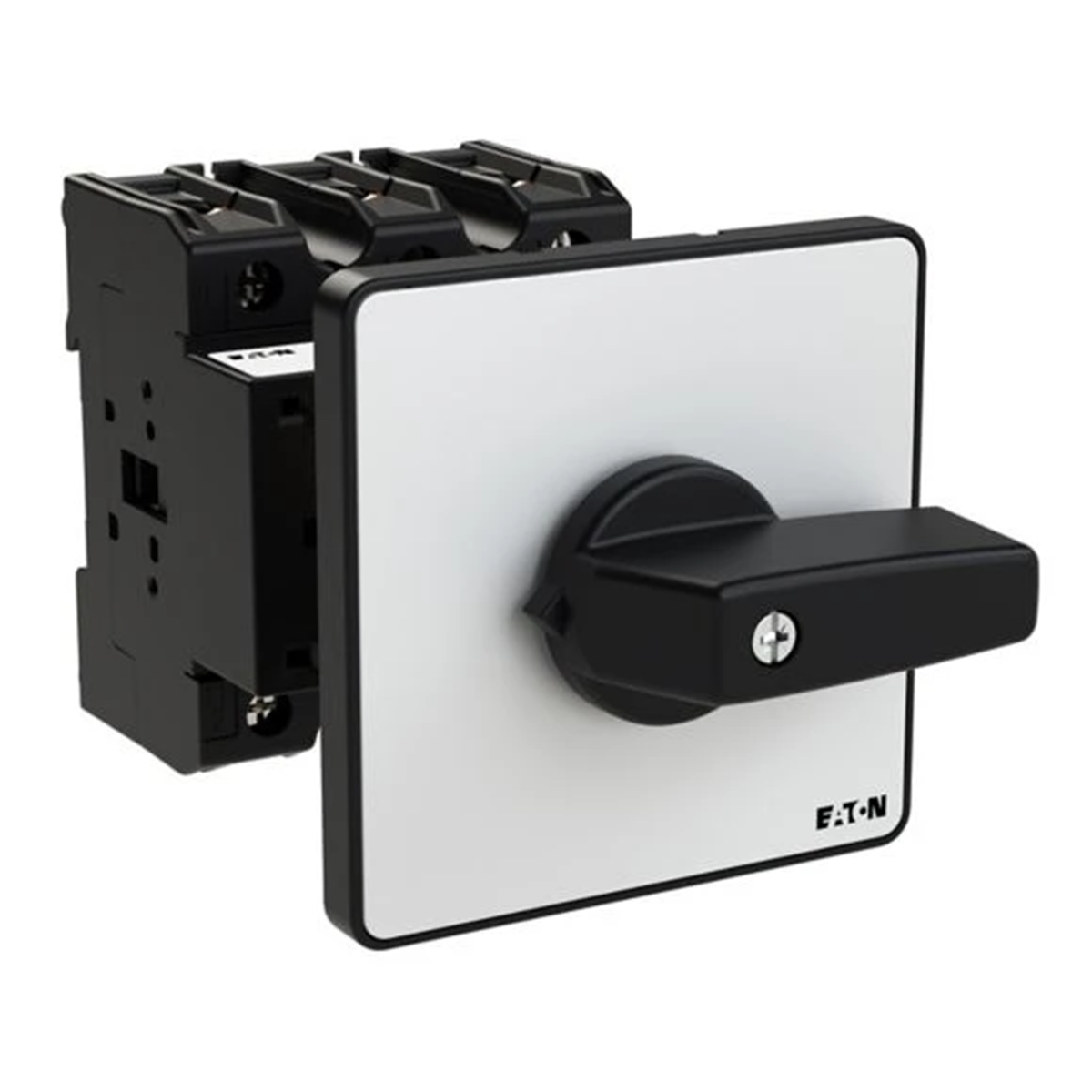

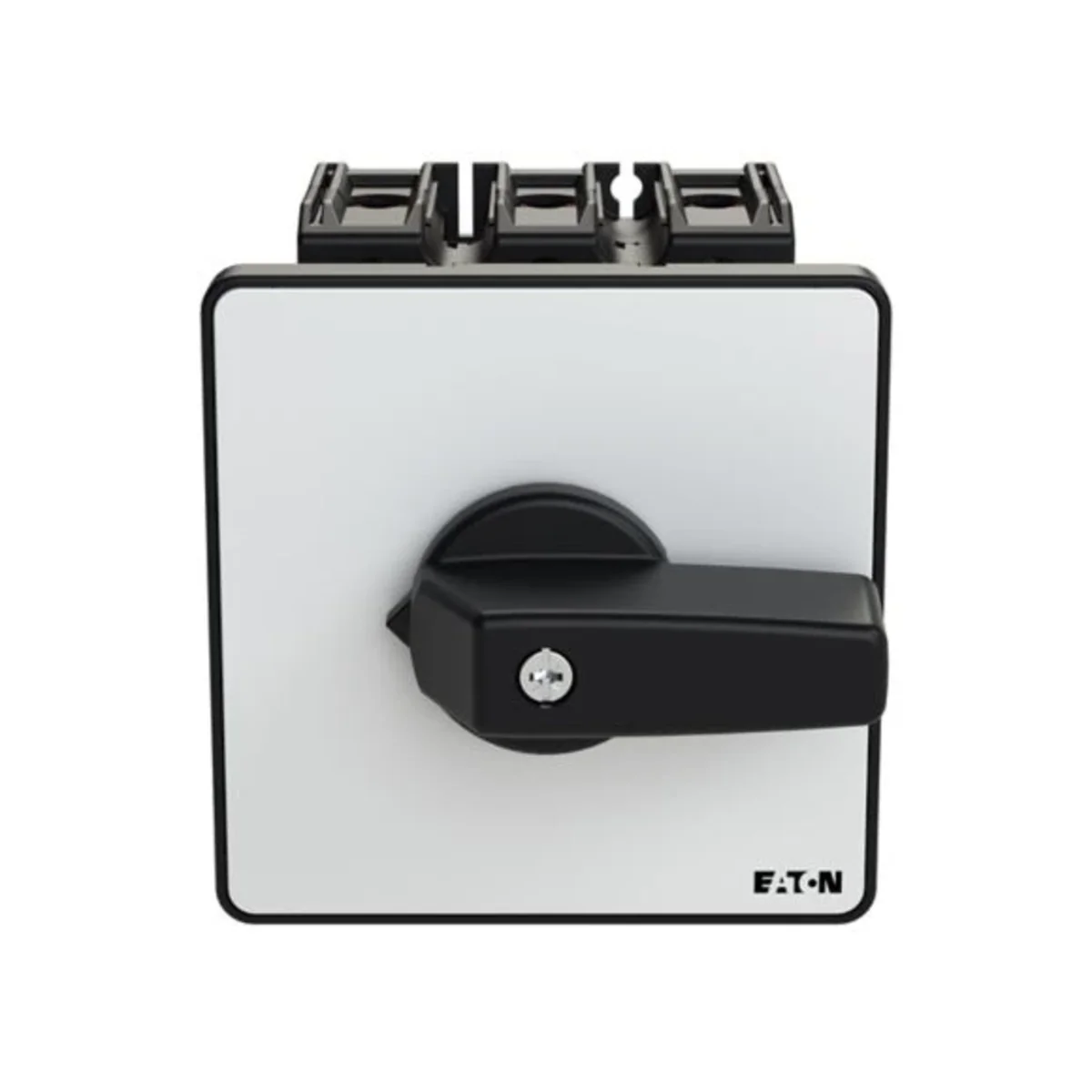

Main switch, 63A, P3-63/Z 050591
local index:
ALK143MOEL
Catalog No:
050591
EAN code:
4015080505914
Price:
108,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
On/Off switch In=63A P=37kW. With a black padlockable knob. Lockable in position 0
Technical data
-
Power [kW]37
-
Rated current [A]63
-
Main circuits3z
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated short-time withstand current lcw1.26 kA
-
Switching power at 400 V30 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V63 A
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation power at AC-23, 400 V30 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,360 | 0,409 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,083 | 0,088 |
| Length (m) | 0,103 | 0,145 |
| Depth (m) | 0,072 | 0,111 |
