Automation
Circuit breakers, disconnectors
Cam switches

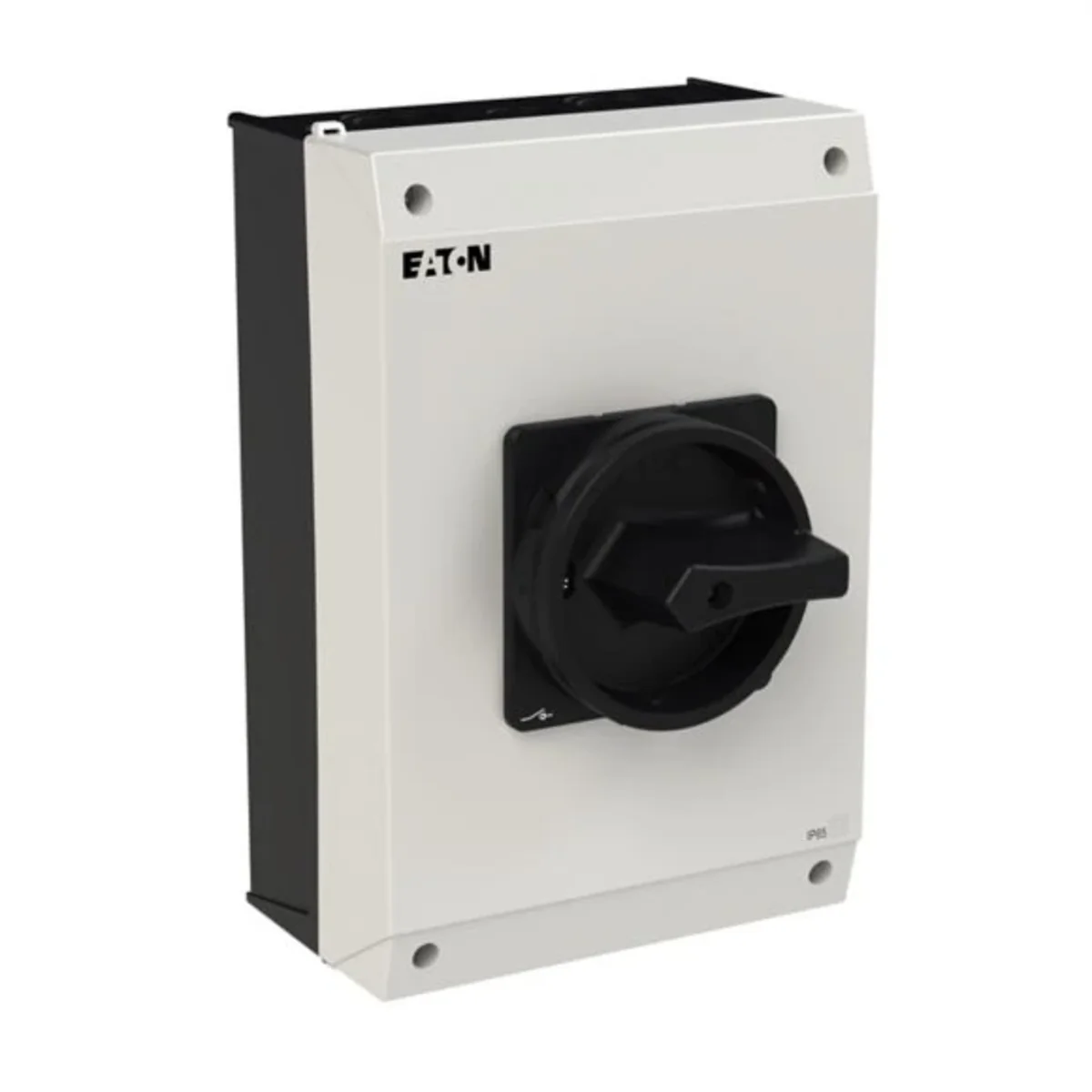

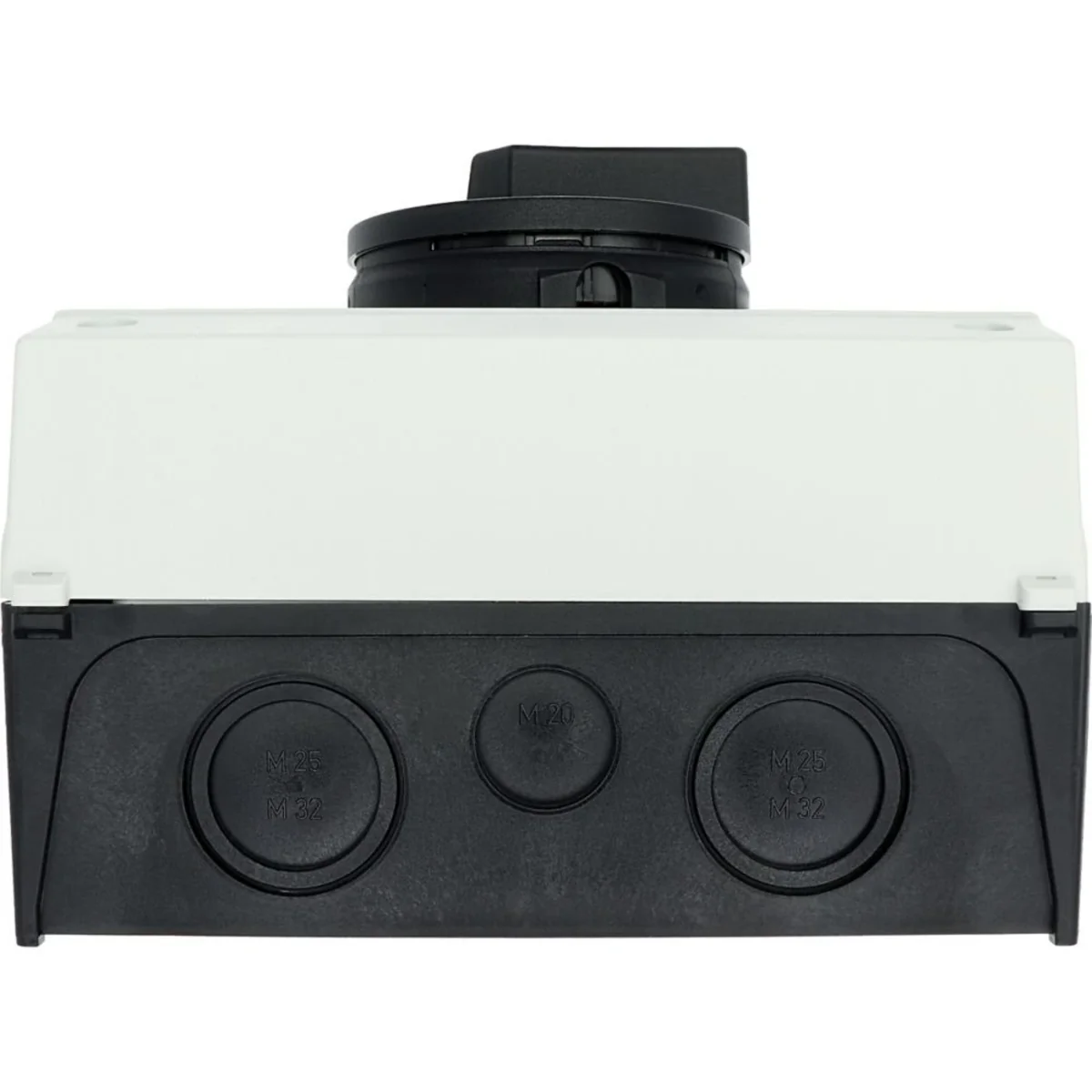

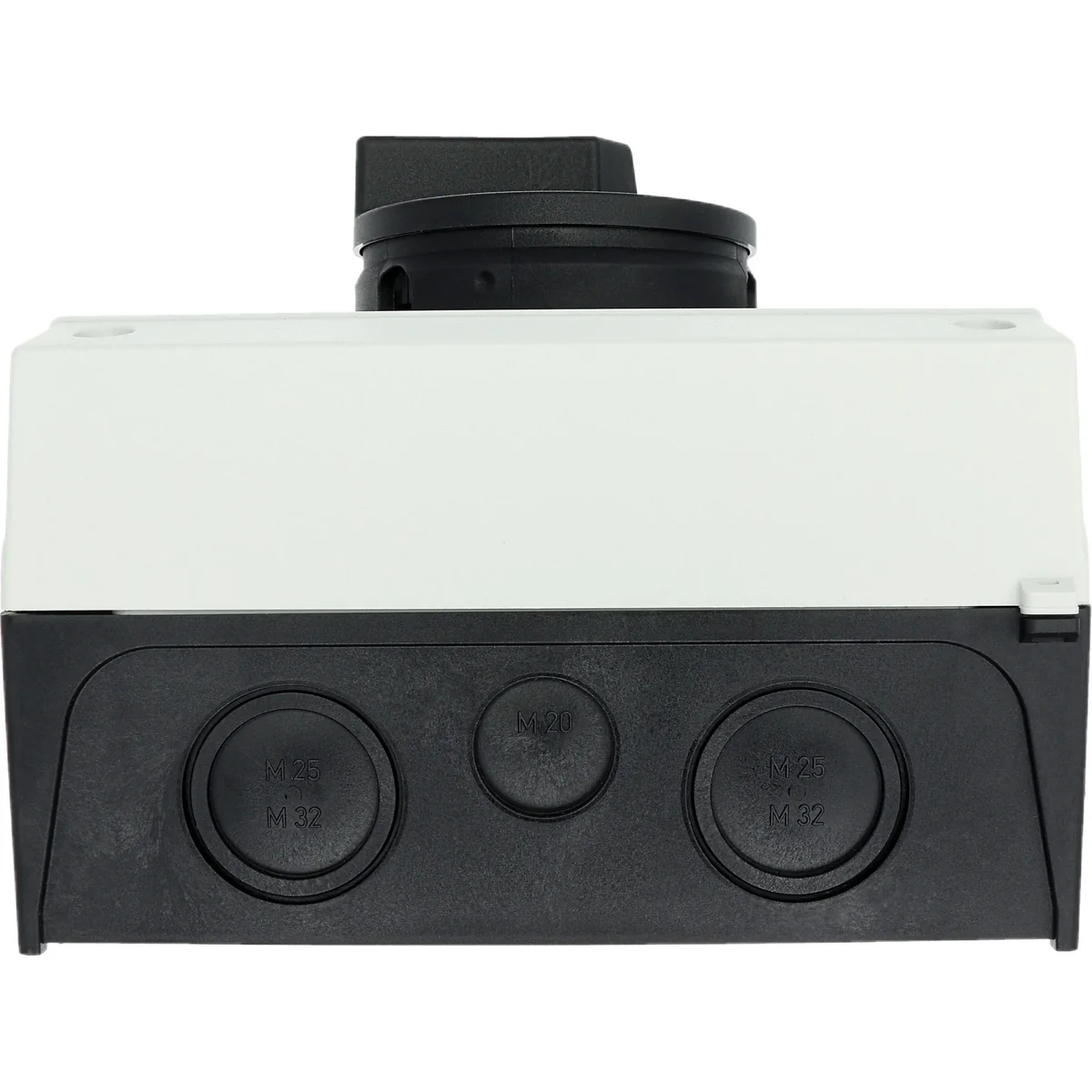

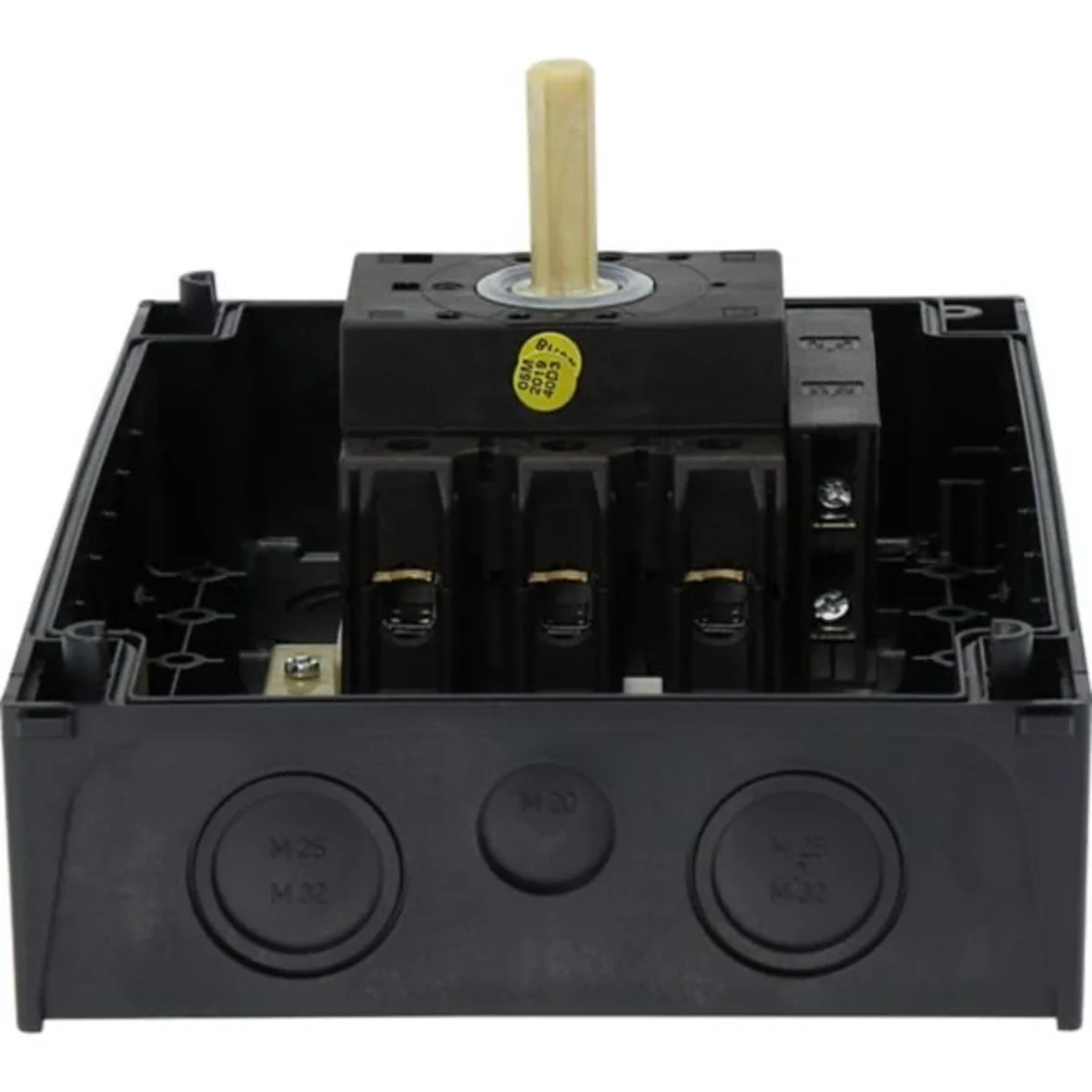

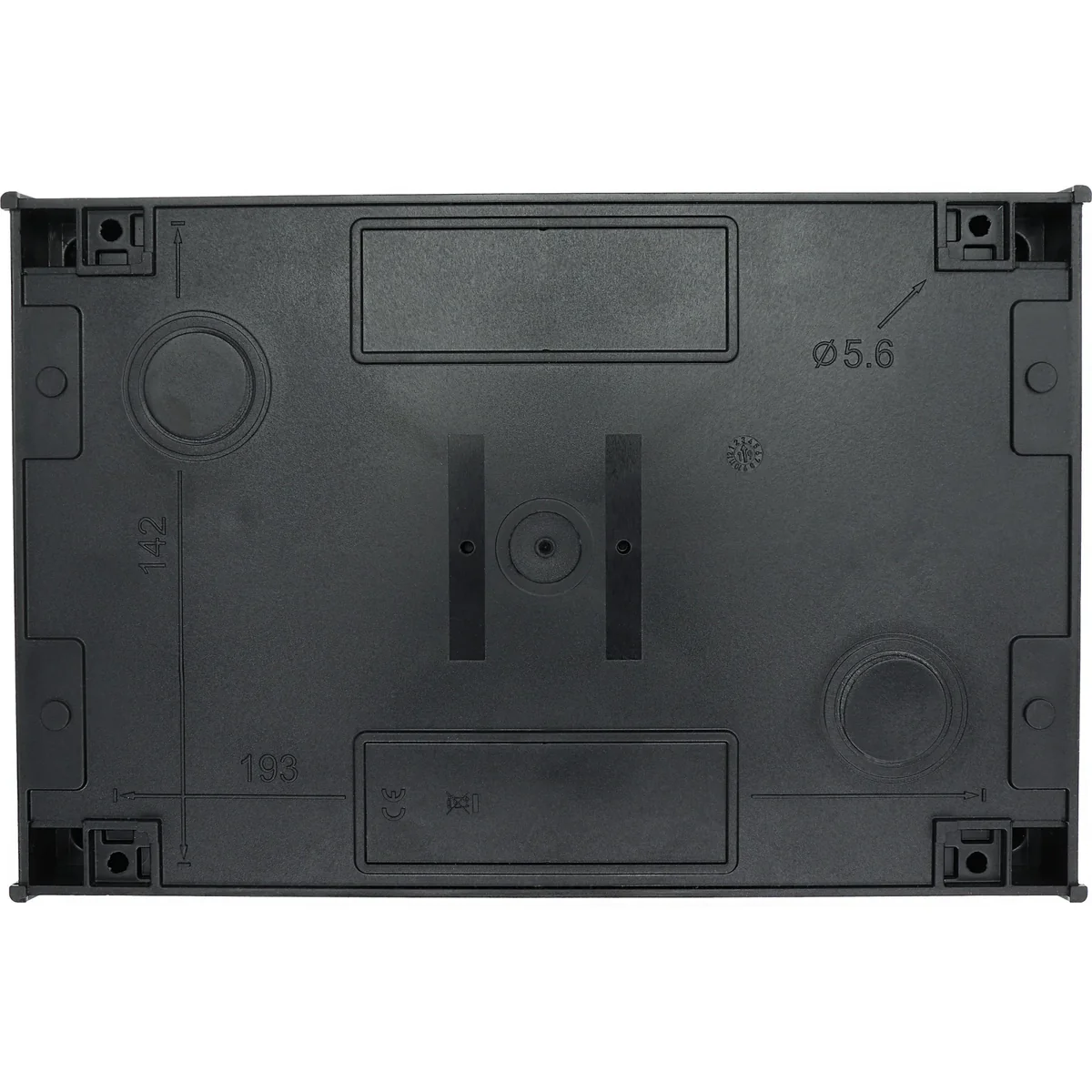

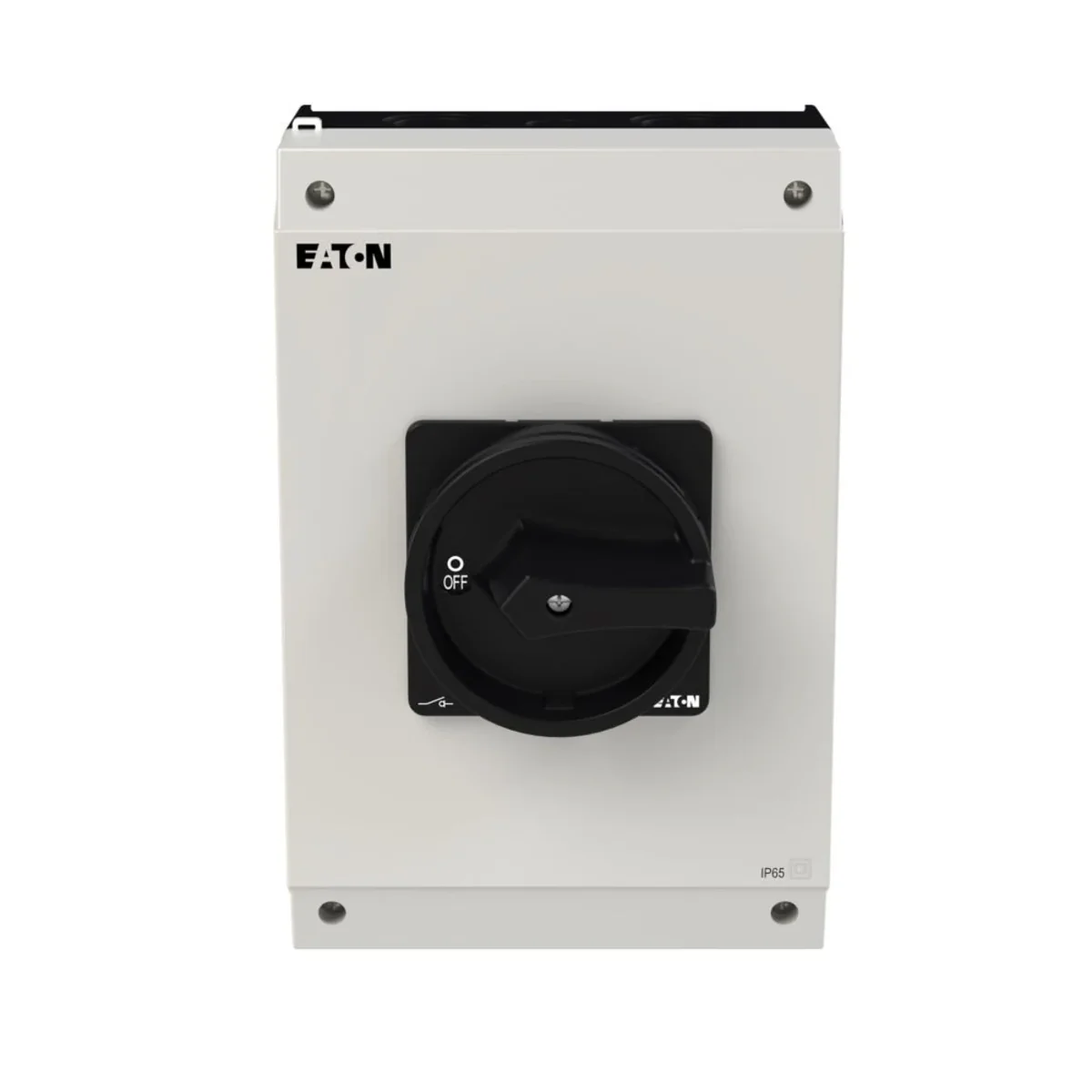

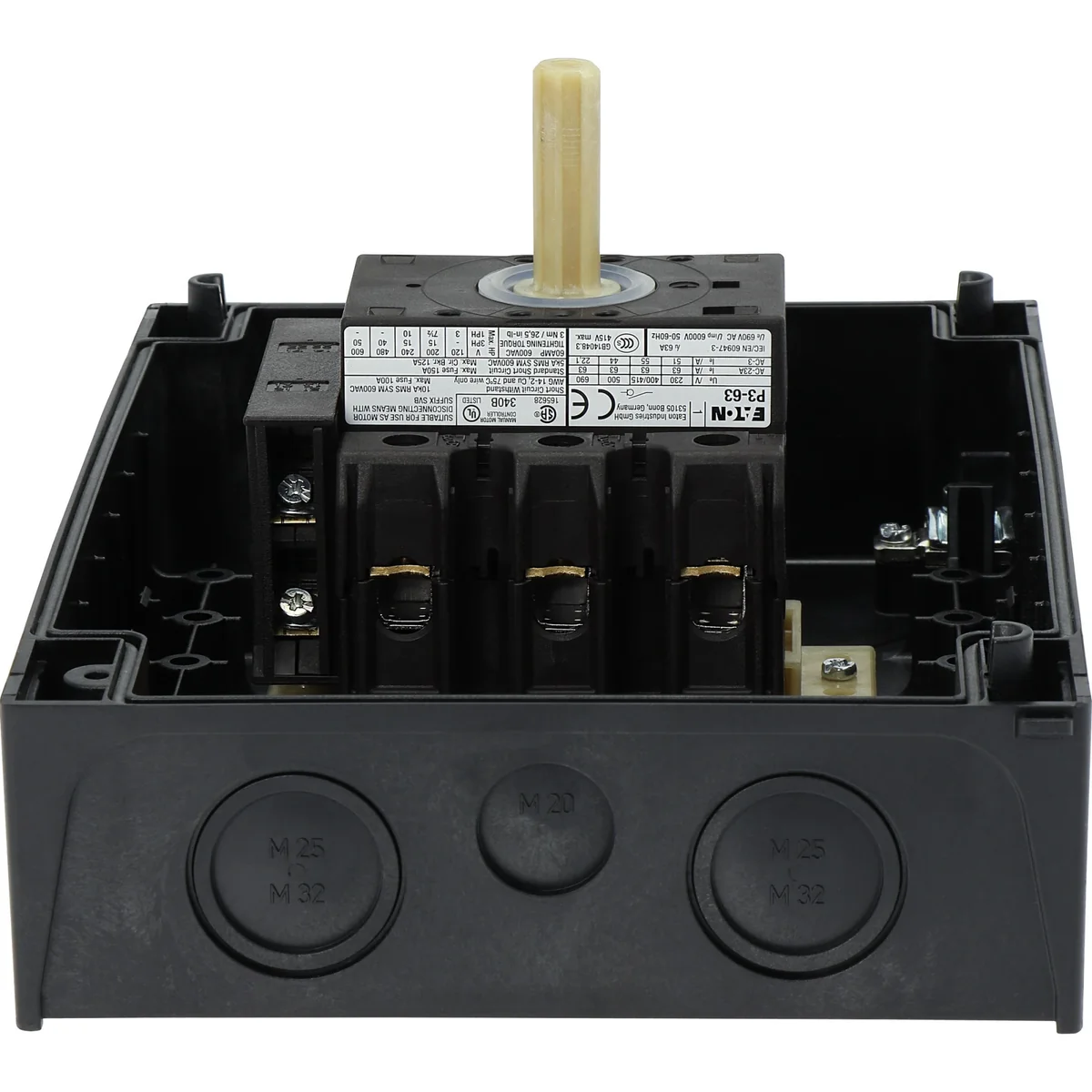

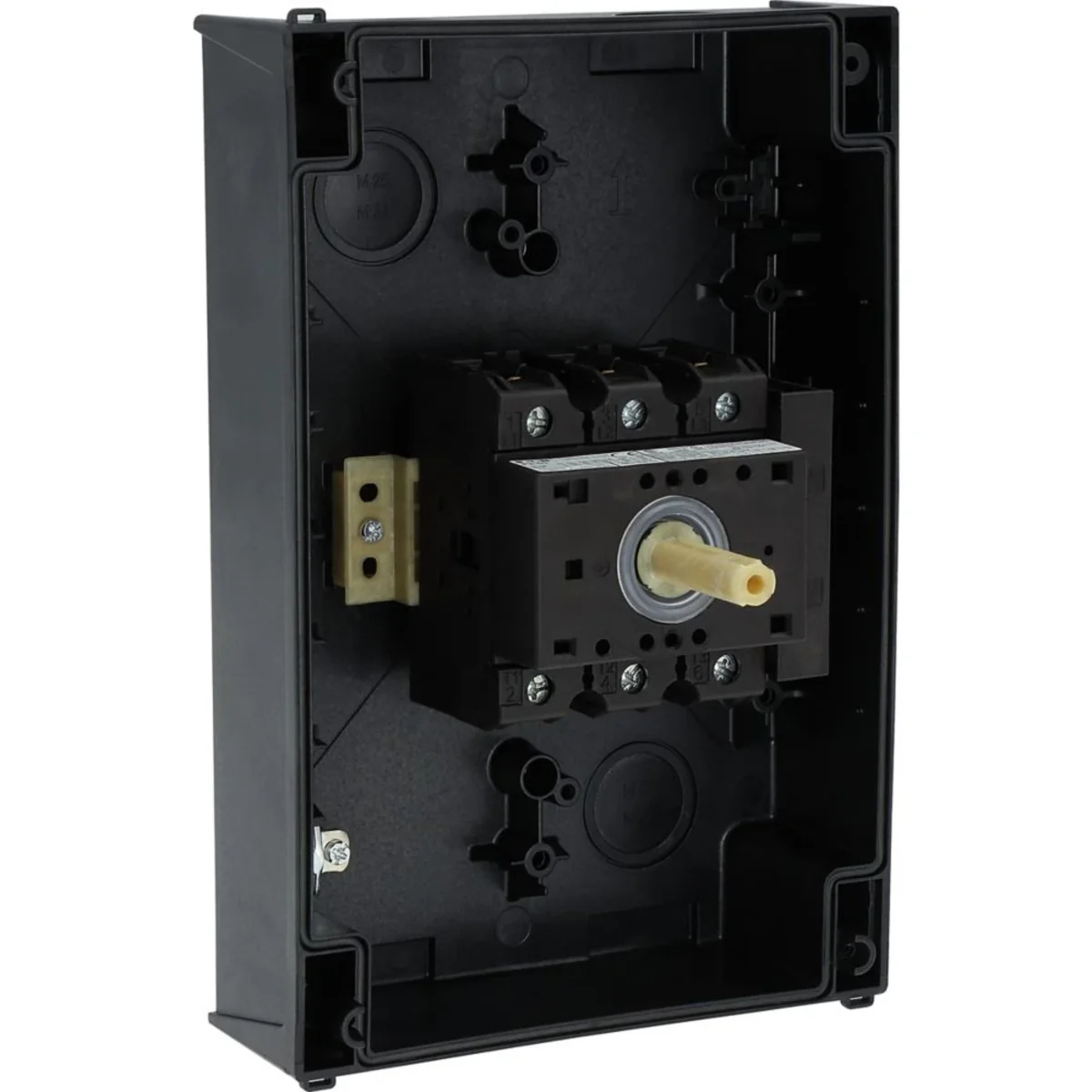

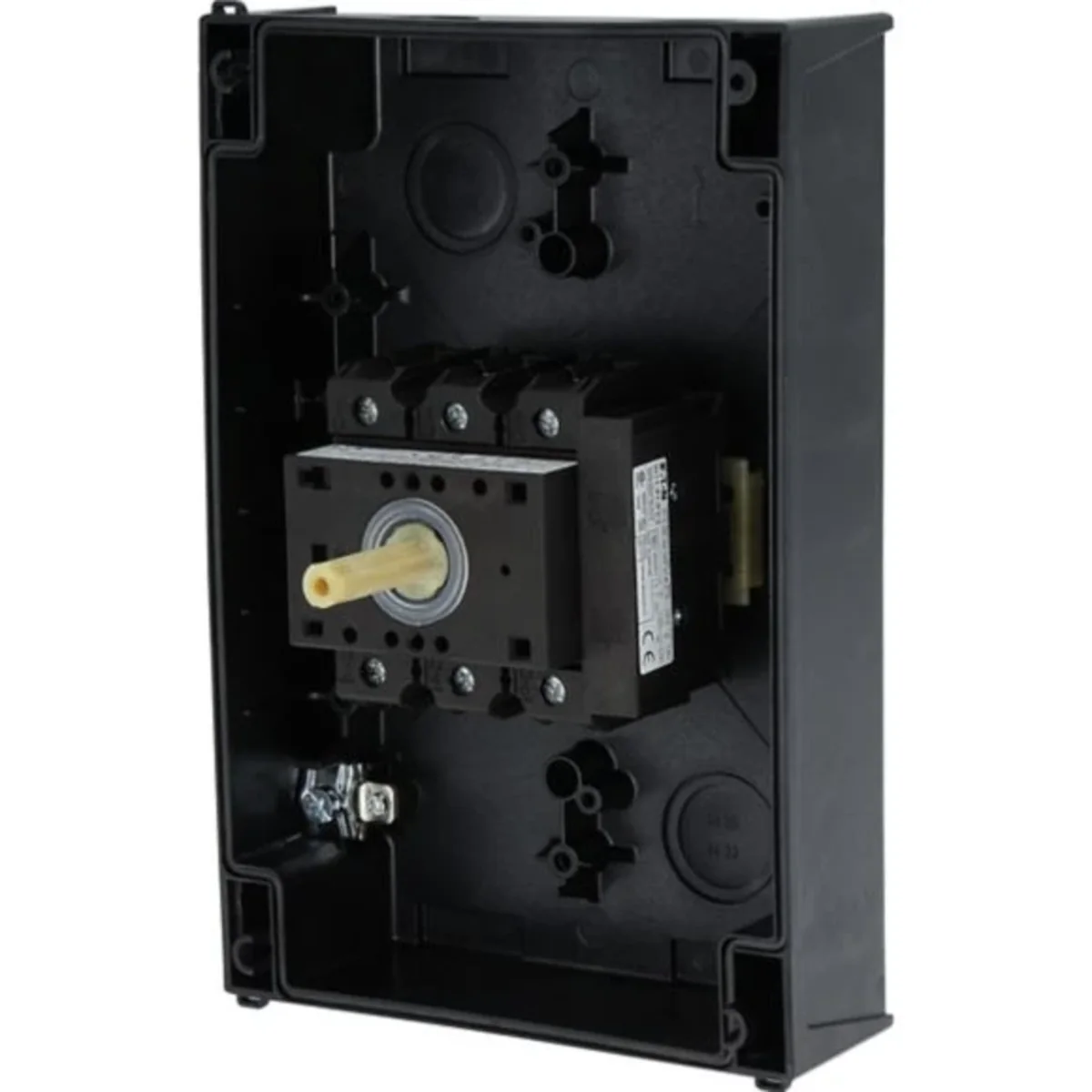

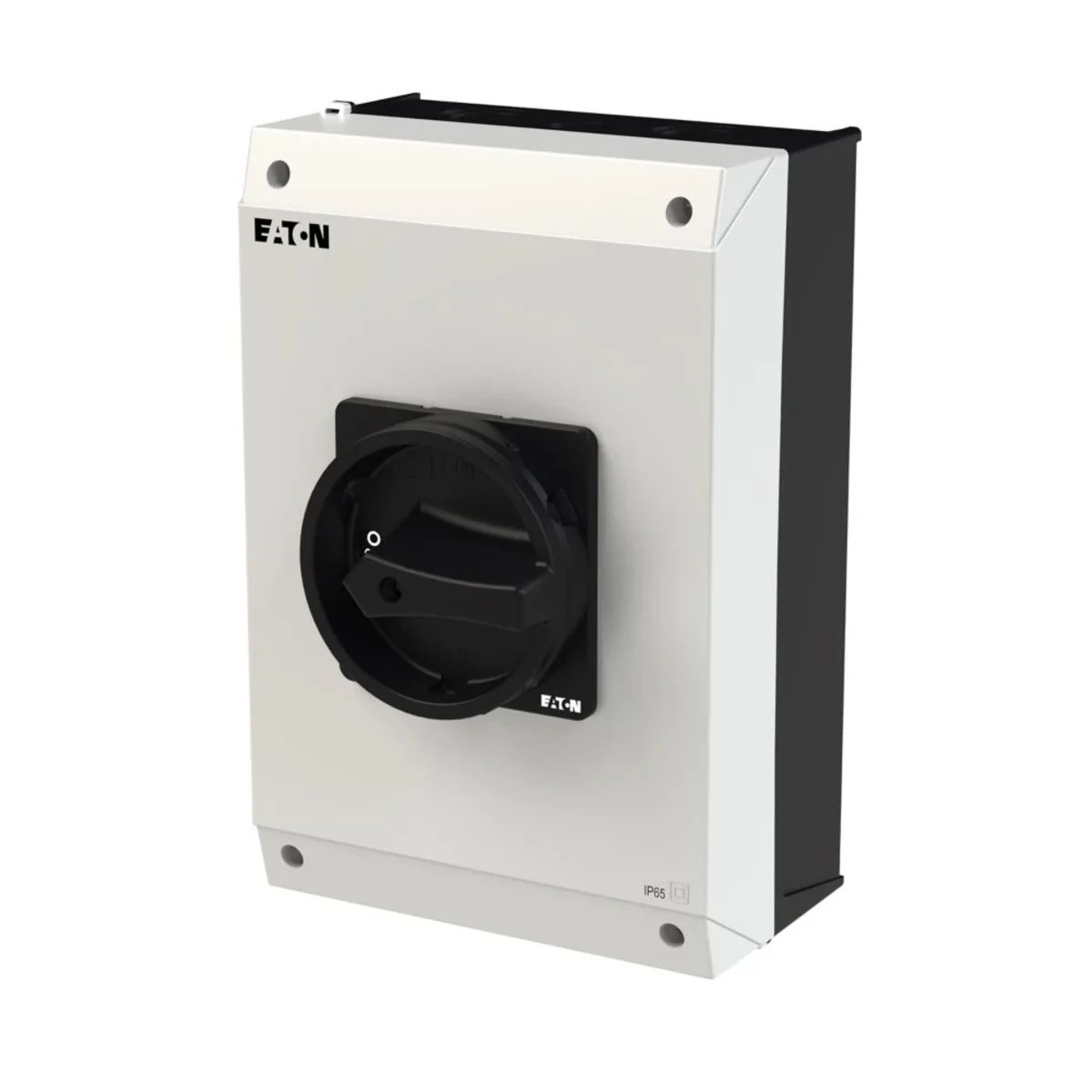

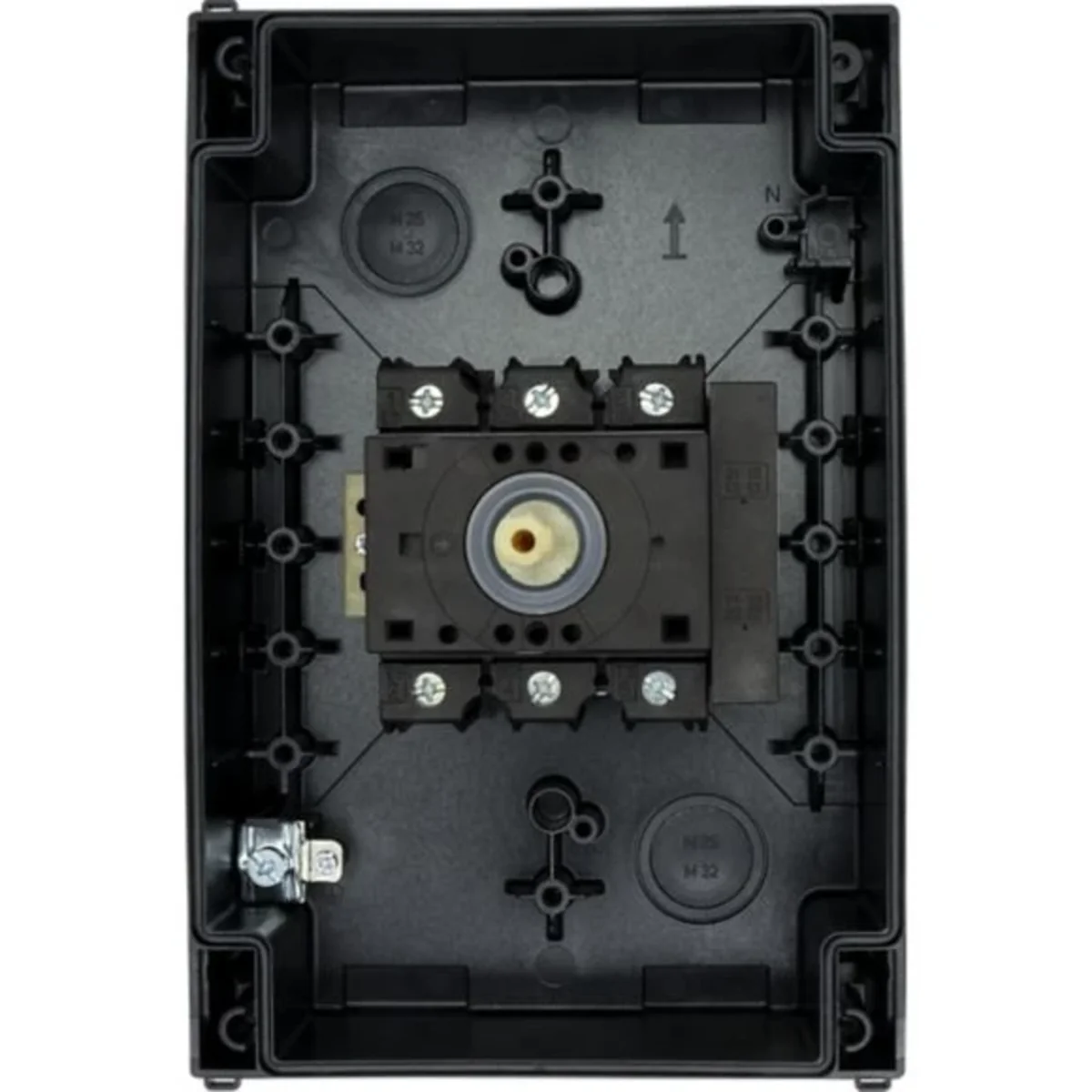

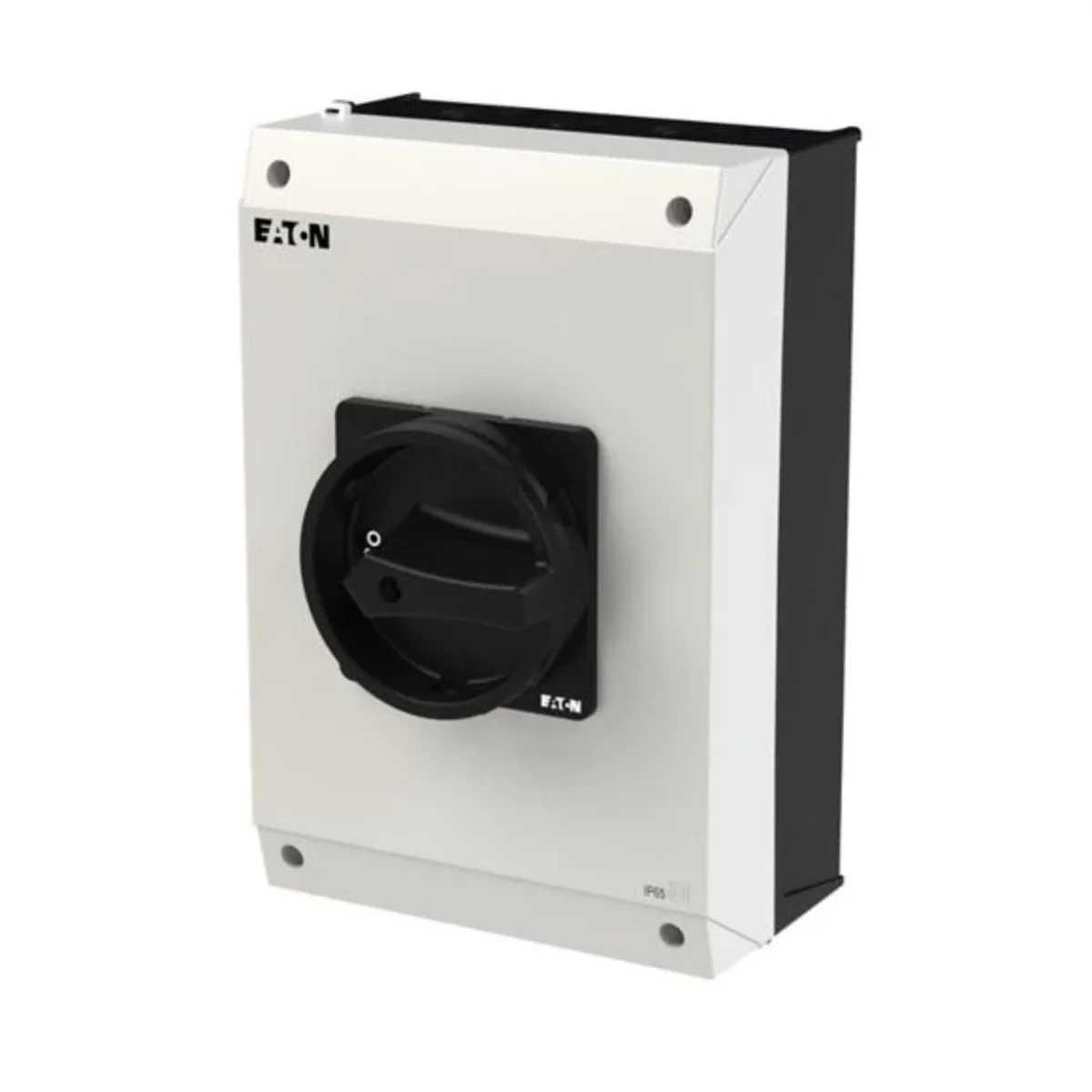

Main switch, 63A, P3-63/I4/SVB-SW/HI11 207345
local index:
ALK067MOEL
Catalog No:
207345
EAN code:
4015082073459
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
37
Main circuits:
3z
Auxiliary circuits:
1Z 1R
See full description
Price:
171,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
On/Off switch In=63A P=37kW
Technical data
Power [kW]
37
Auxiliary circuits
1Z 1R
Main circuits
3z
Rated current [A]
63
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
63 A
Rated permanent current at AC-21, 400 V
63 A
Rated short-time withstand current lcw
1.26 kA
Switching power at 400 V
30 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
1
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
Yes
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation power at AC-23, 400 V
30 kW
Conditioned rated short-circuit current Iq
4 kA
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
No
Colour control element
Black
Interlockable
Yes
Degree of protection (IP), front side
IP65

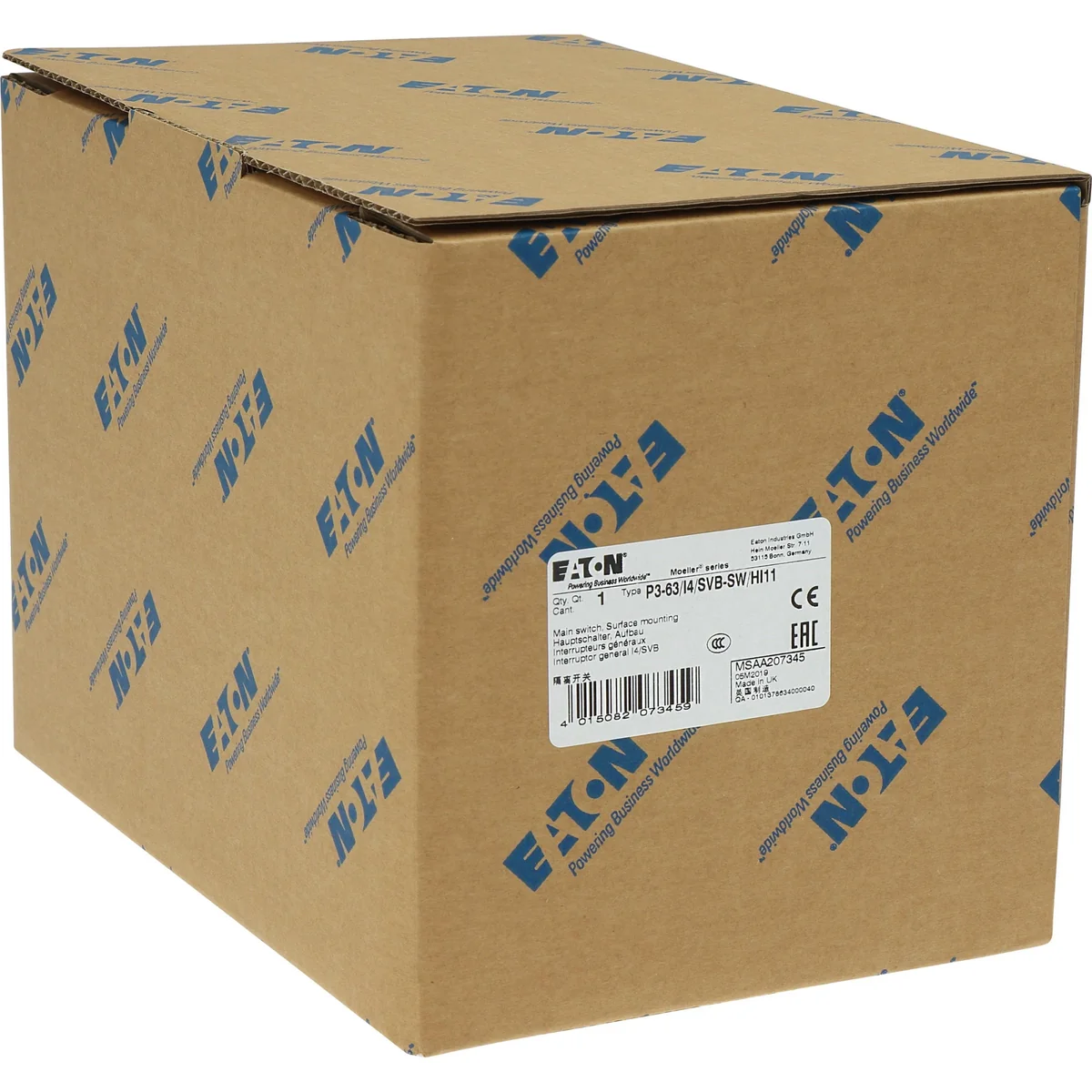

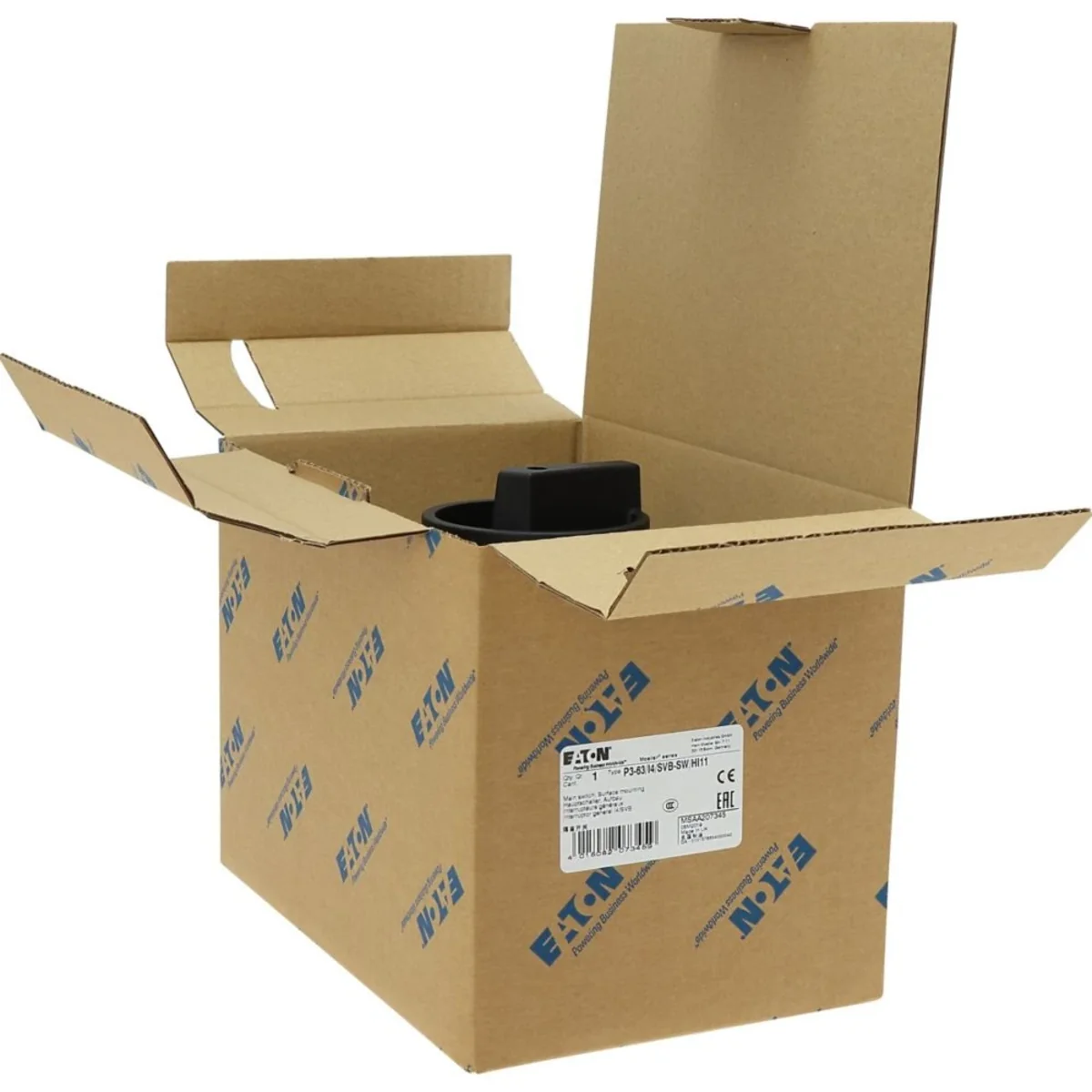

Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
1,154
Volume (m3)
0,008
Width (m)
0,170
Length (m)
0,255
Depth (m)
0,180
