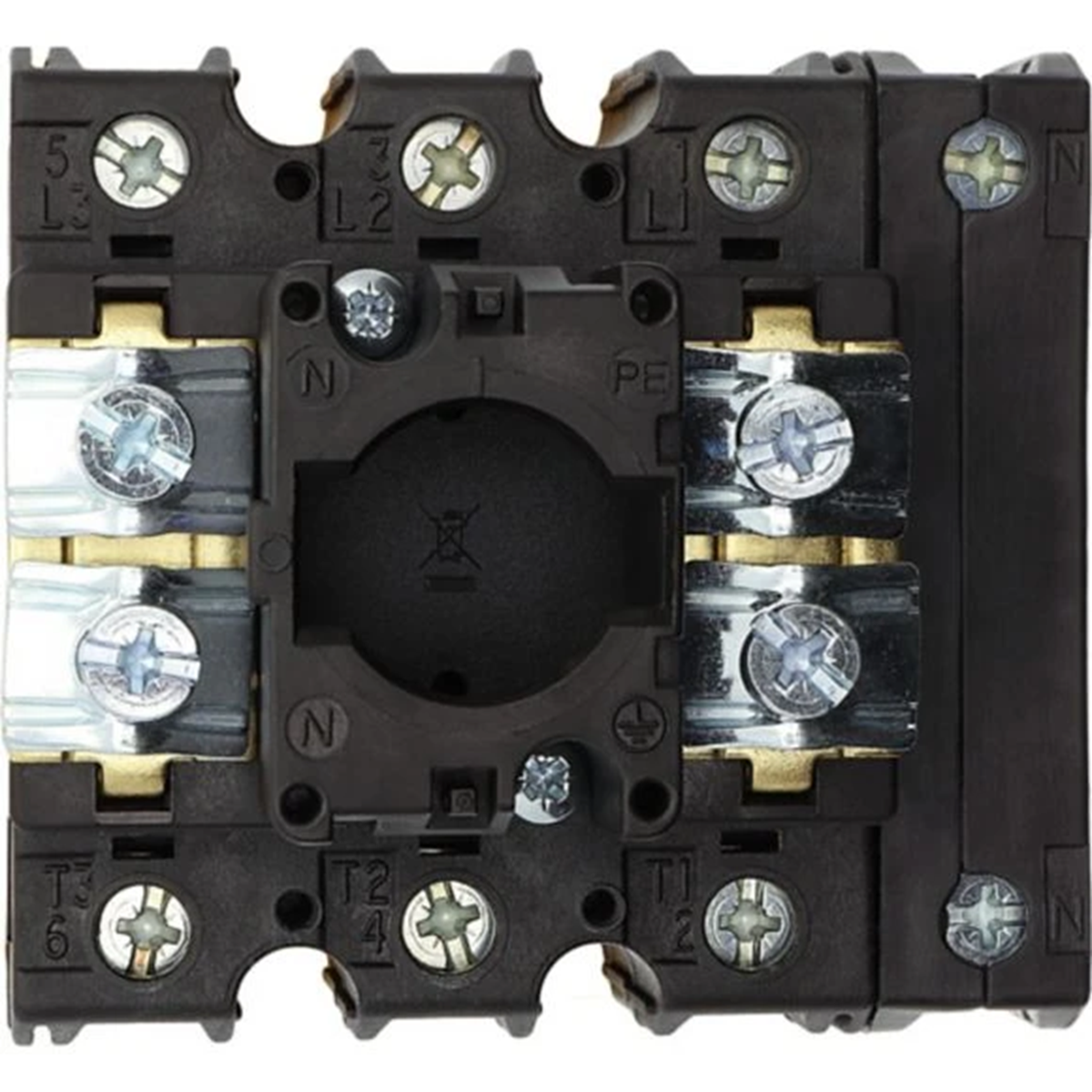

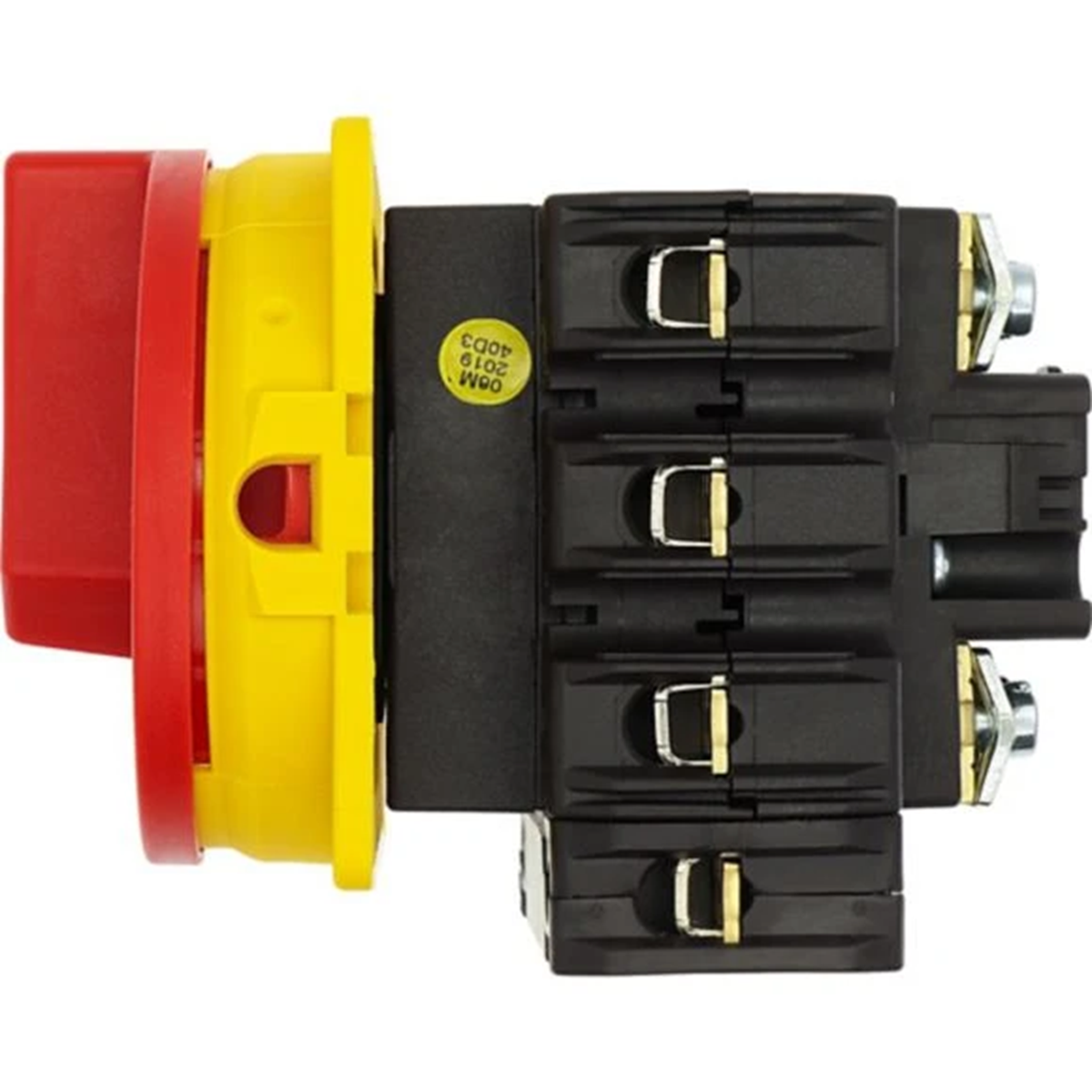

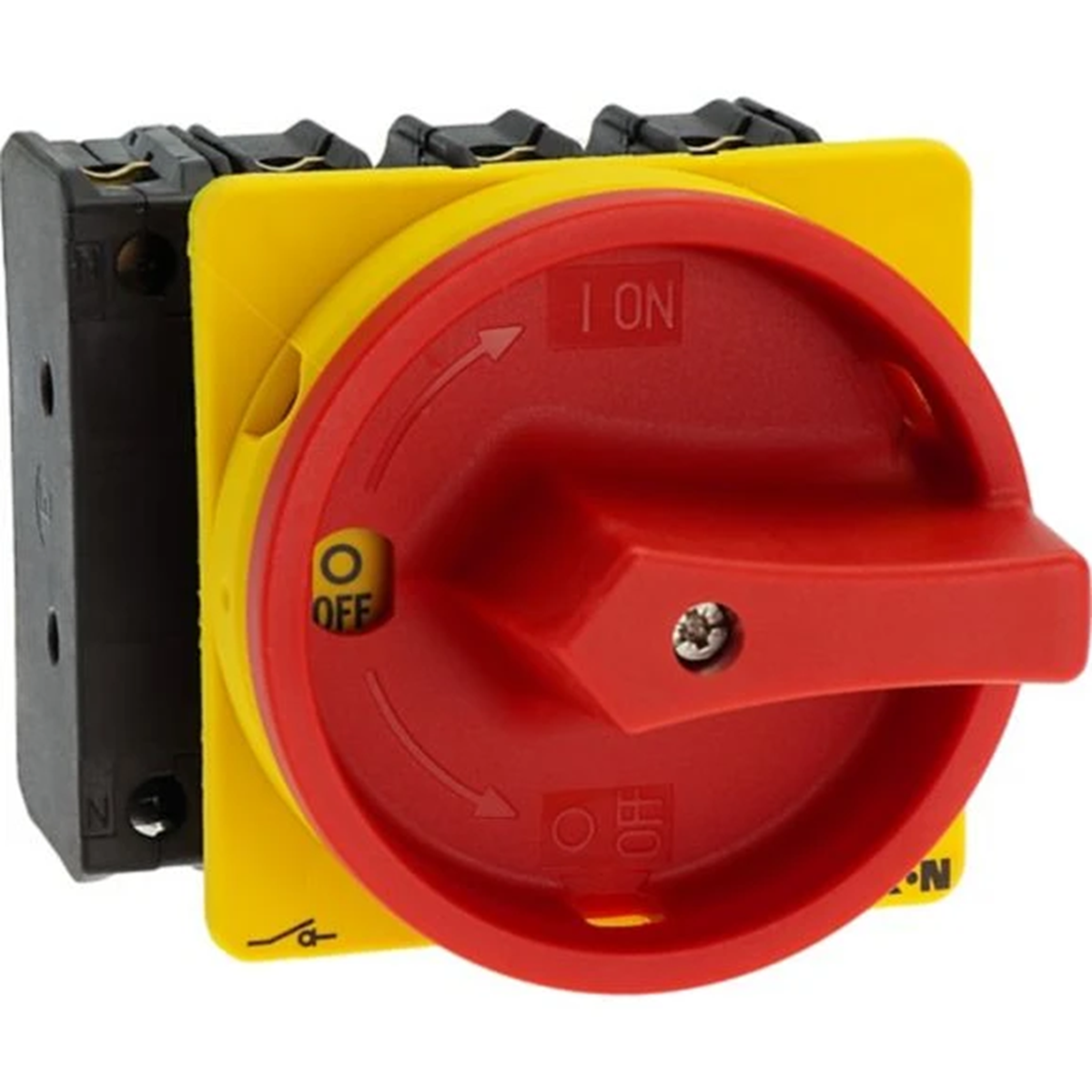

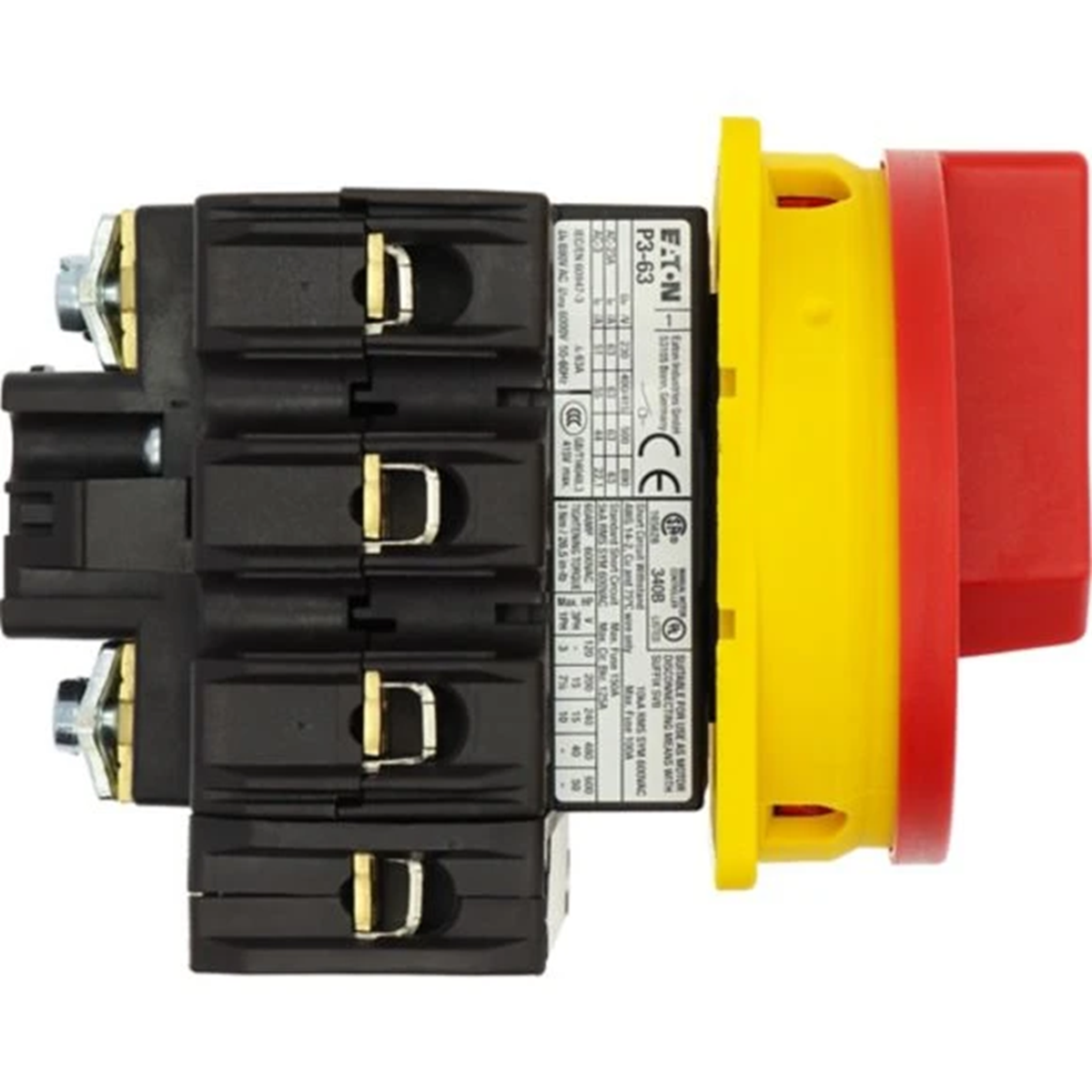

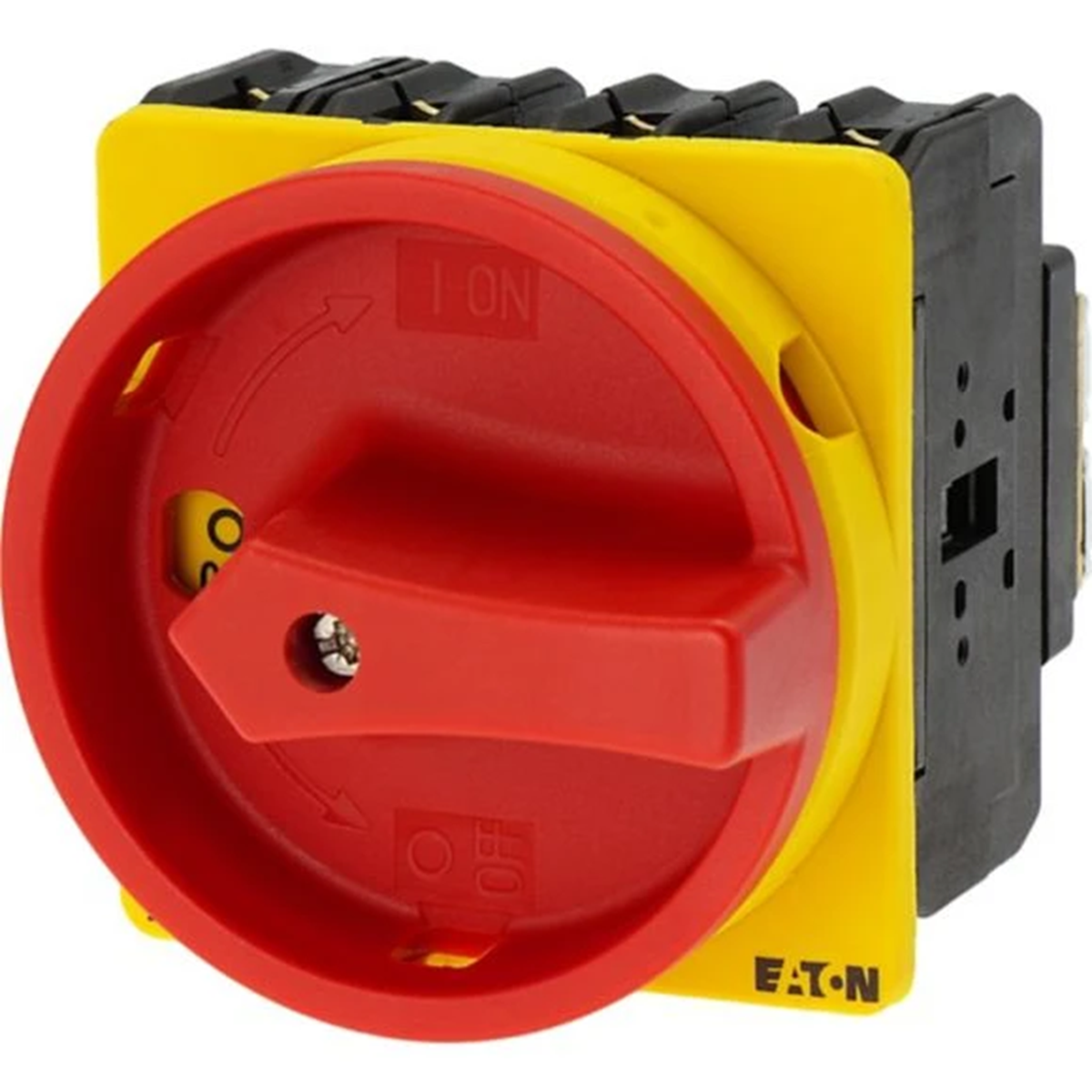

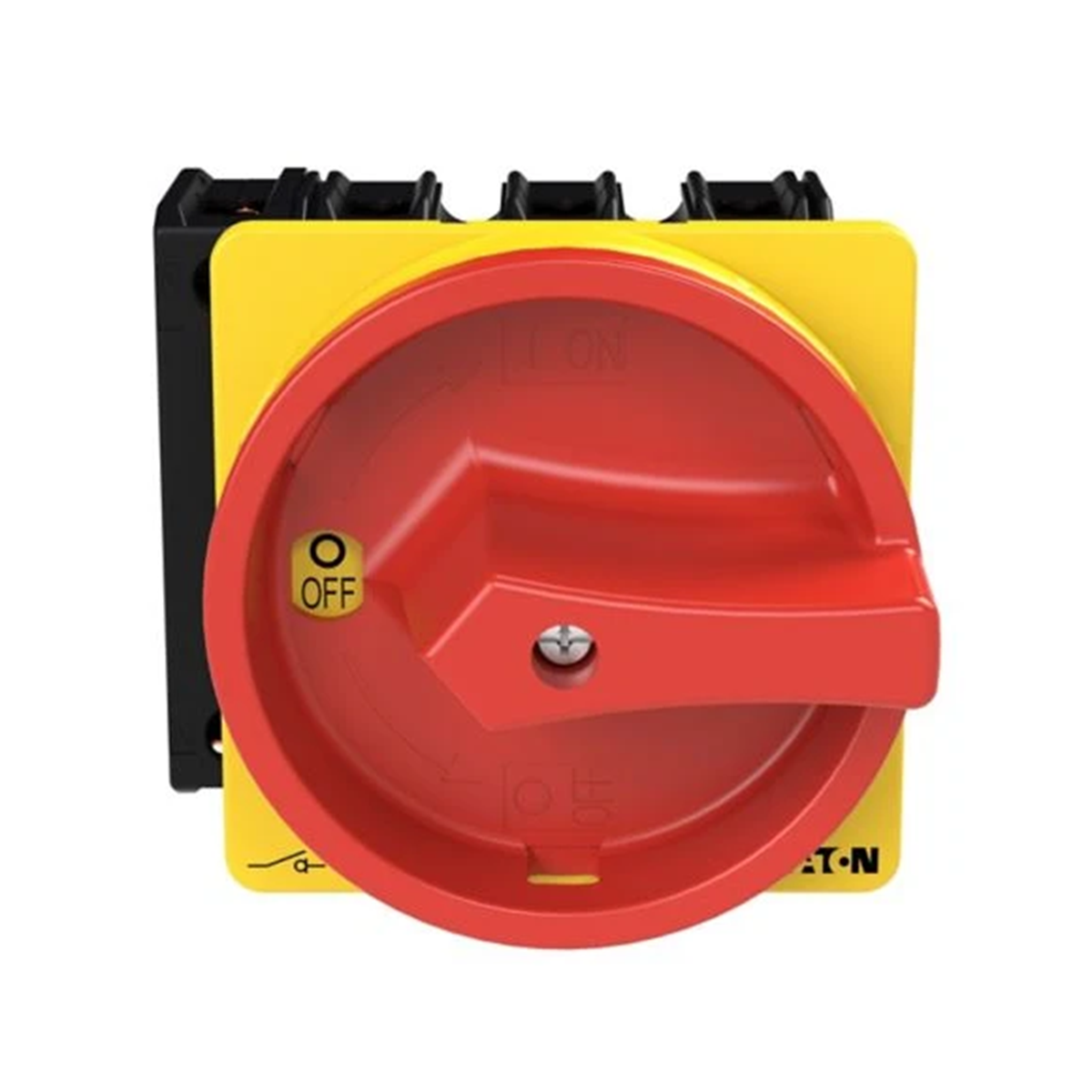

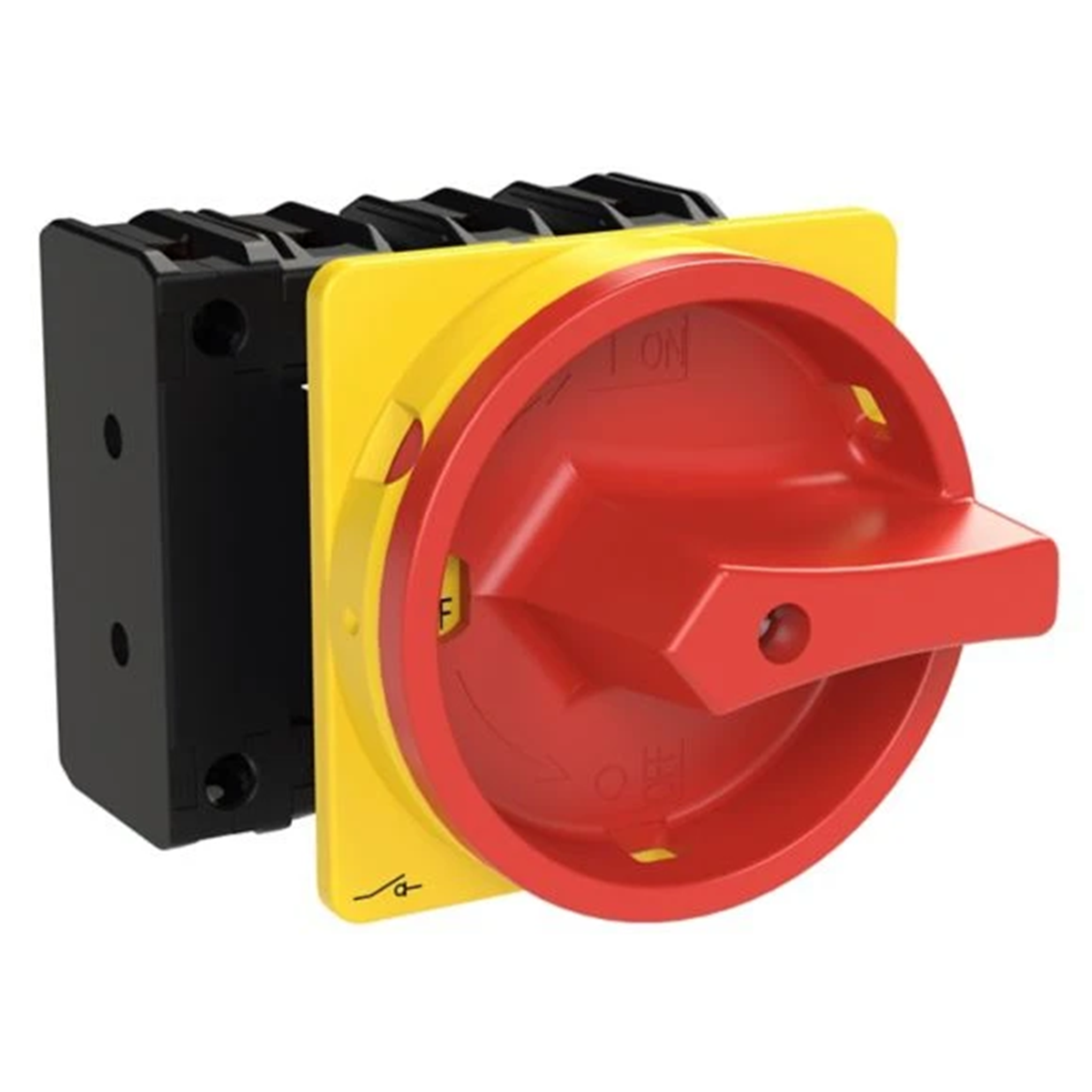

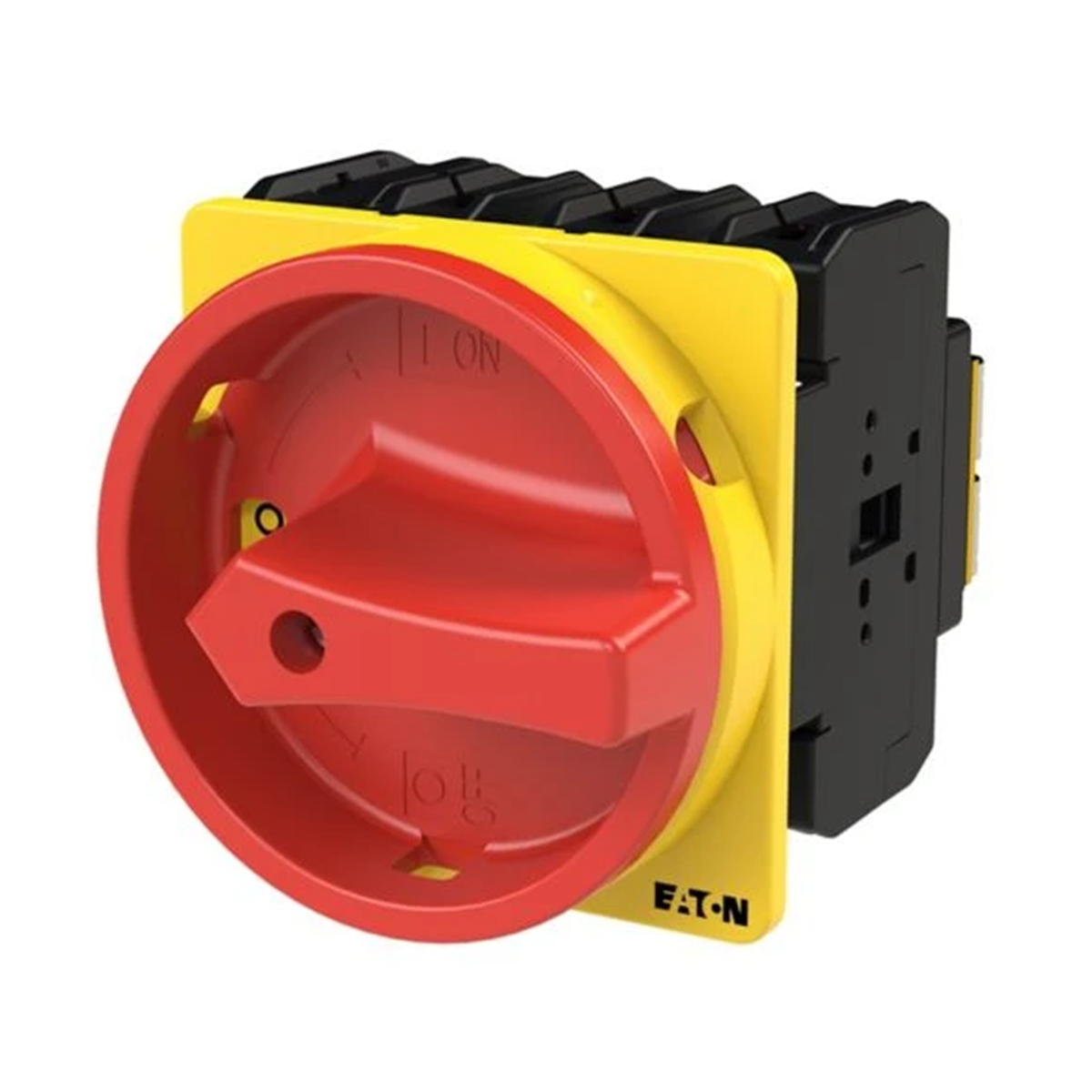

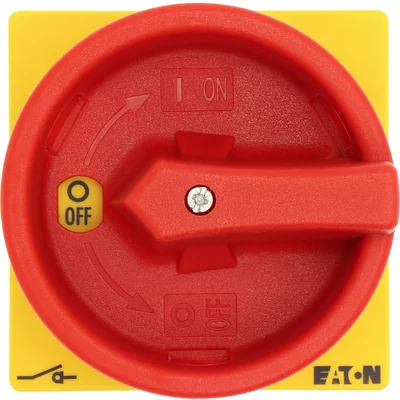

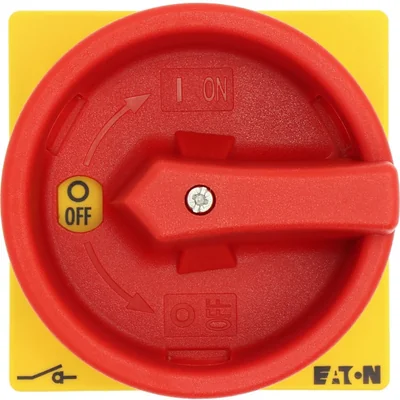

Main switch, 63A, P3-63/EA/SVB/N 010398

Index local:
ALK158MOEL
Numéro de catalogue:
010398
Code EAN:
4015080103981
Producteur: EATON
Power [kW]: 37
Main circuits: 3+N
Rated current [A]: 63
Prix:
159,63 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

On/Off switch In=63A P=37kaW

Données techniques

  • Power [kW]
    37
  • Rated current [A]
    63
  • Main circuits
    3+N

Autres données techniques

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    63 A
  • Rated permanent current at AC-21, 400 V
    63 A
  • Rated short-time withstand current lcw
    1.26 kA
  • Switching power at 400 V
    30 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    No
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No

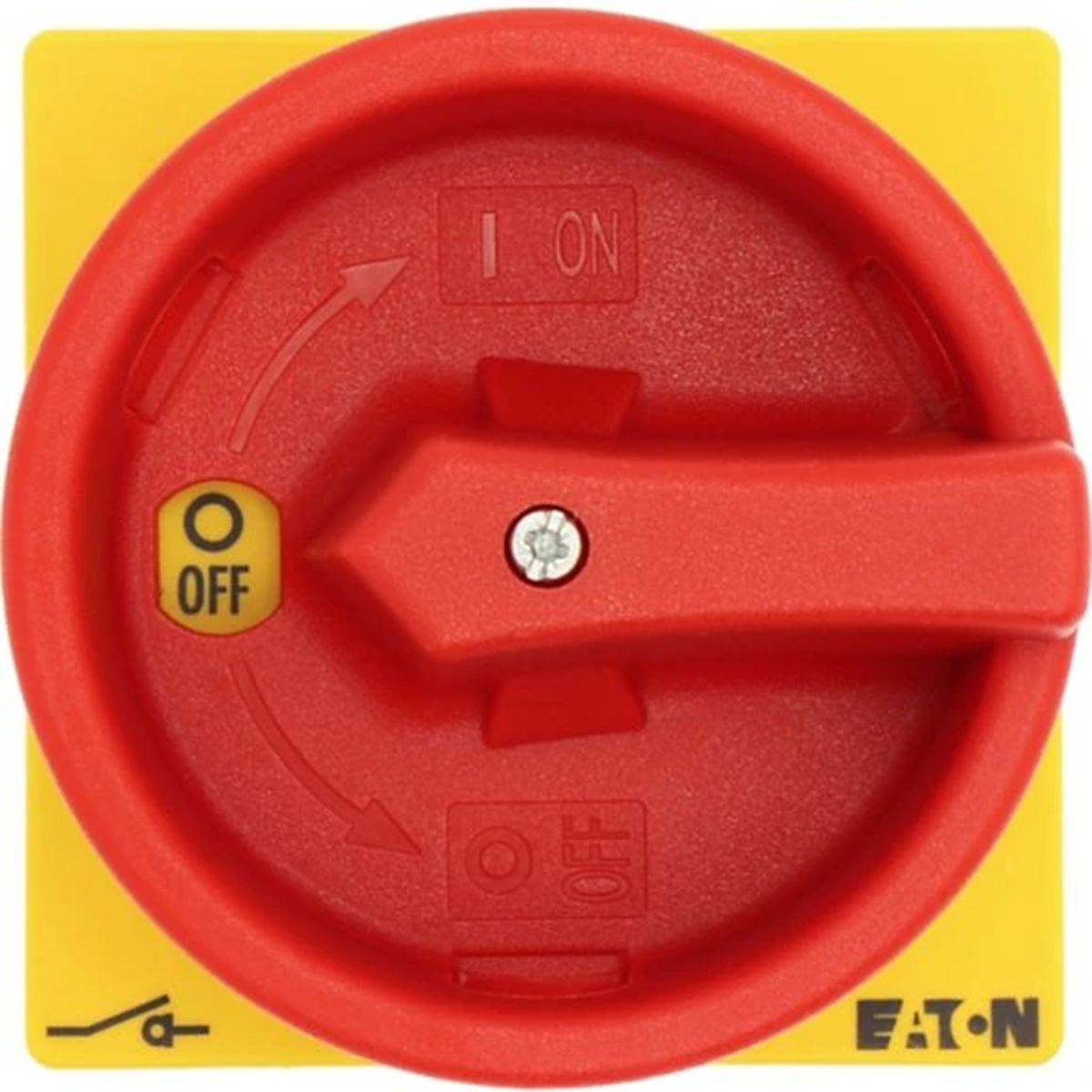

  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    1
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    63 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-23, 400 V
    30 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    Yes
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65

Détails du fabricant

  • Producteur
    Eaton Electric Sp. z o.o.
  • Adresse
    80-299 Gdańsk Galaktyczna 30 Polska

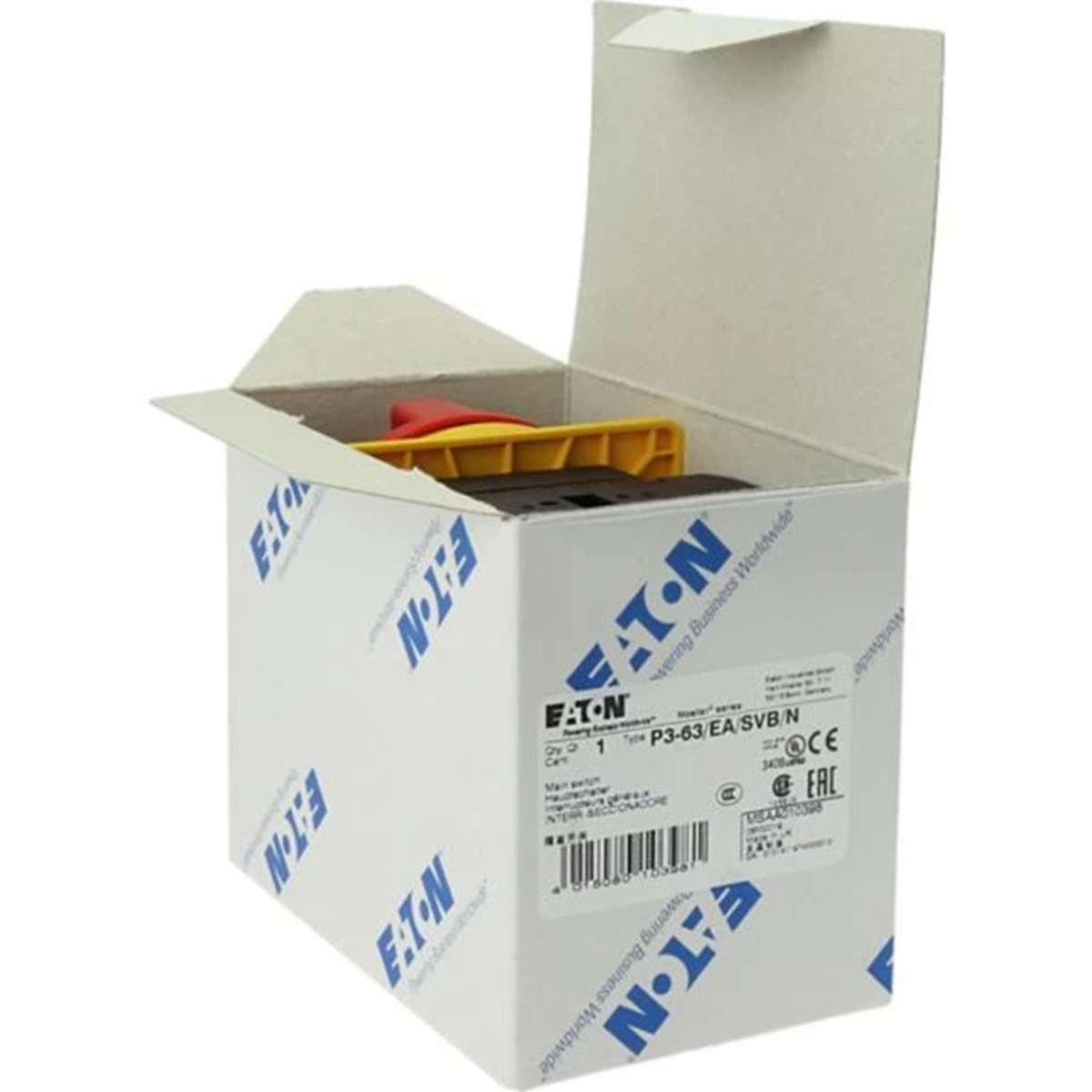

Emballage en vrac

Une sorte de paquet Skrzynia
Quantité 1 pcs.
poids (kg) 0,545
Volume (m3) 0,002
Largeur (m) 0,126
Longueur (m) 0,150
Profondeur (m) 0,106
