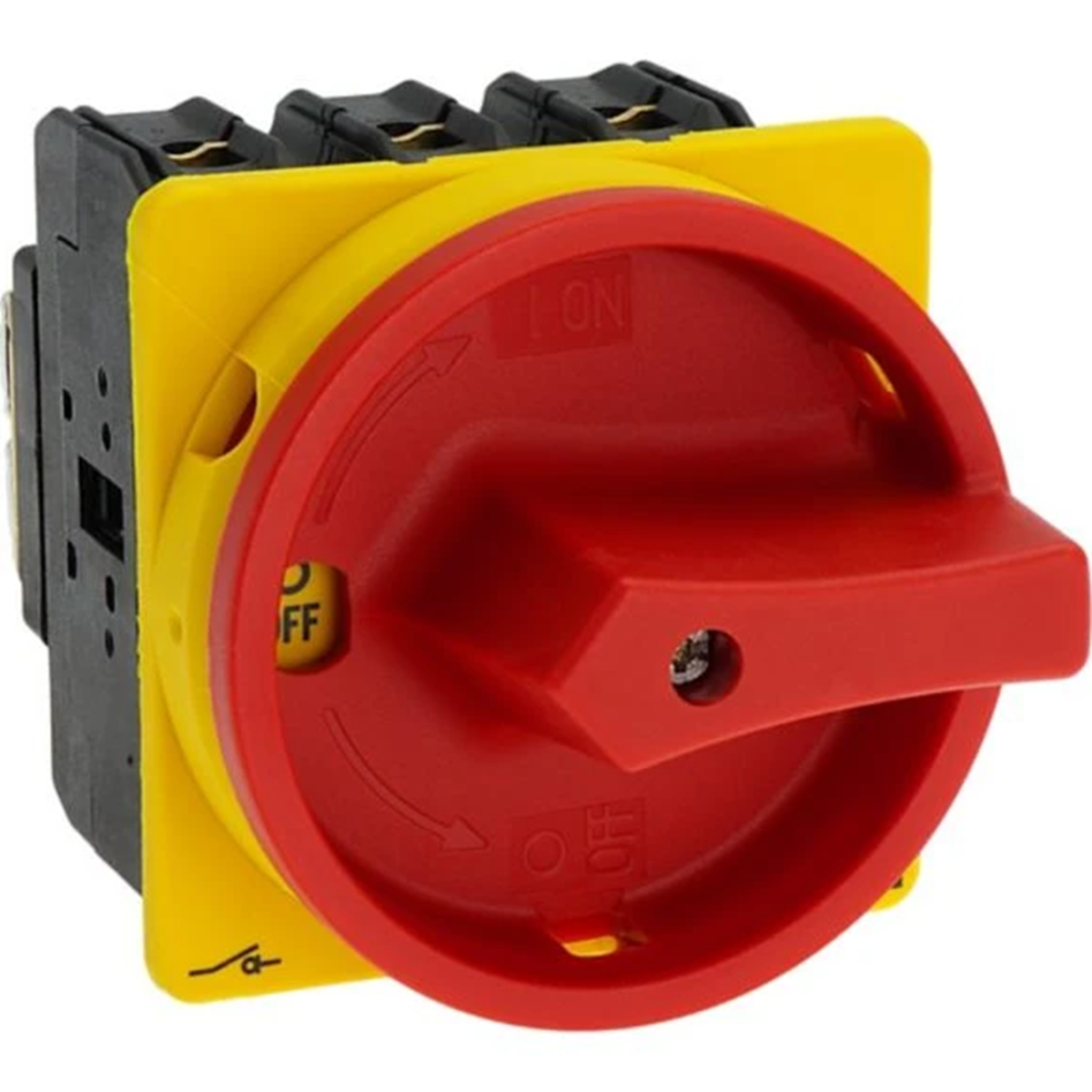

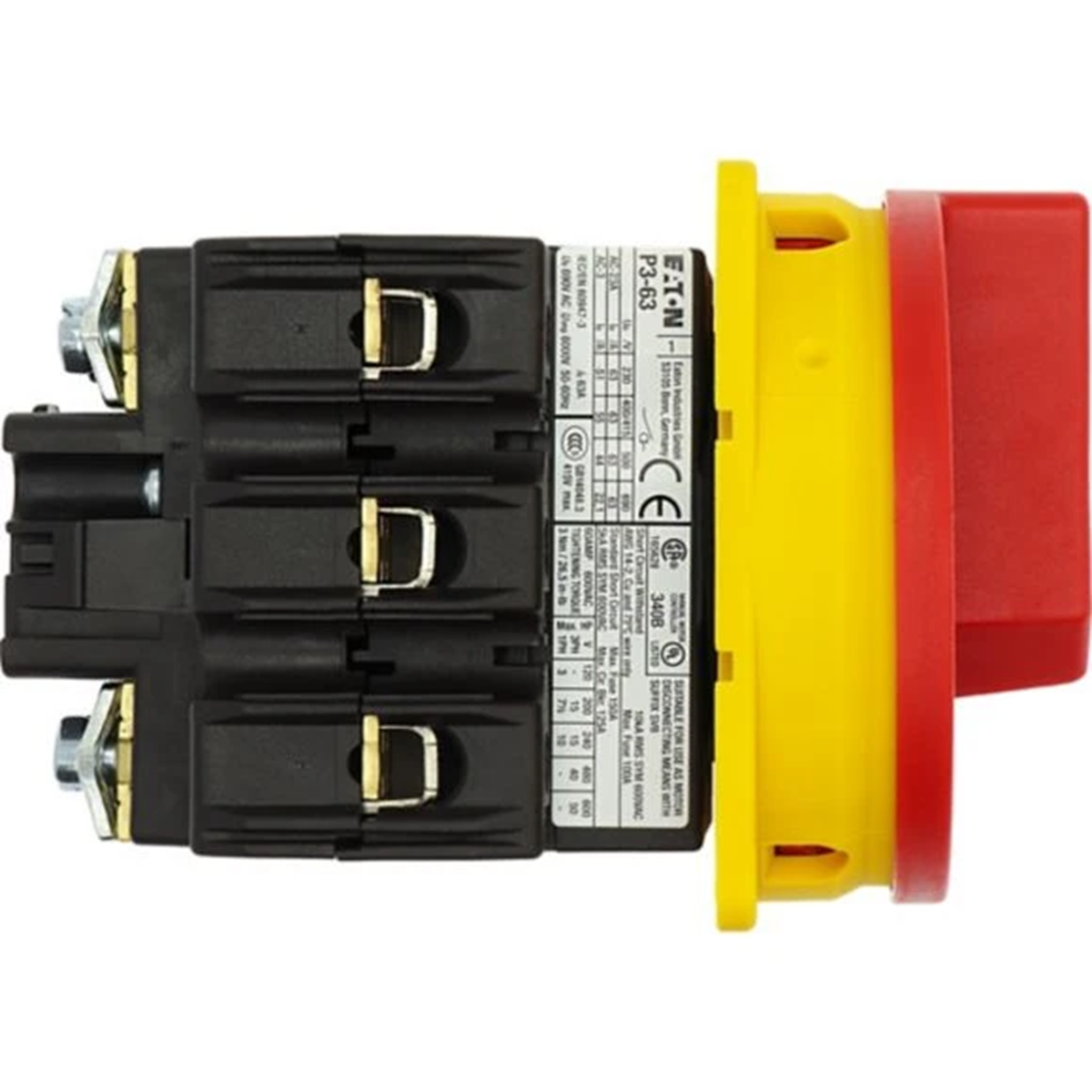

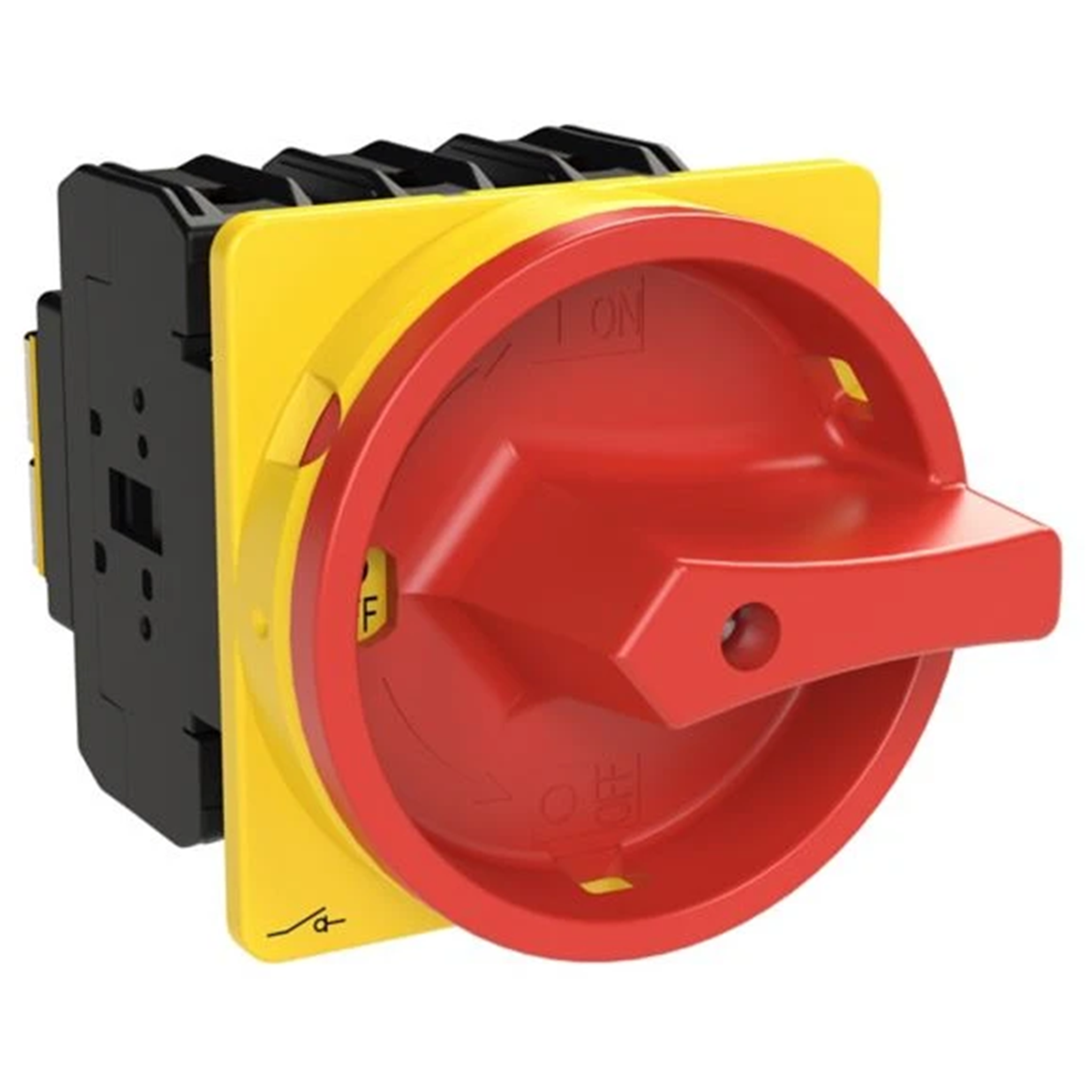

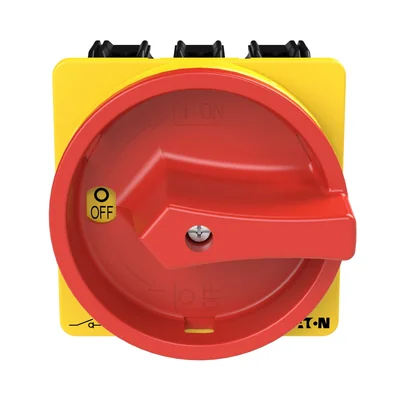

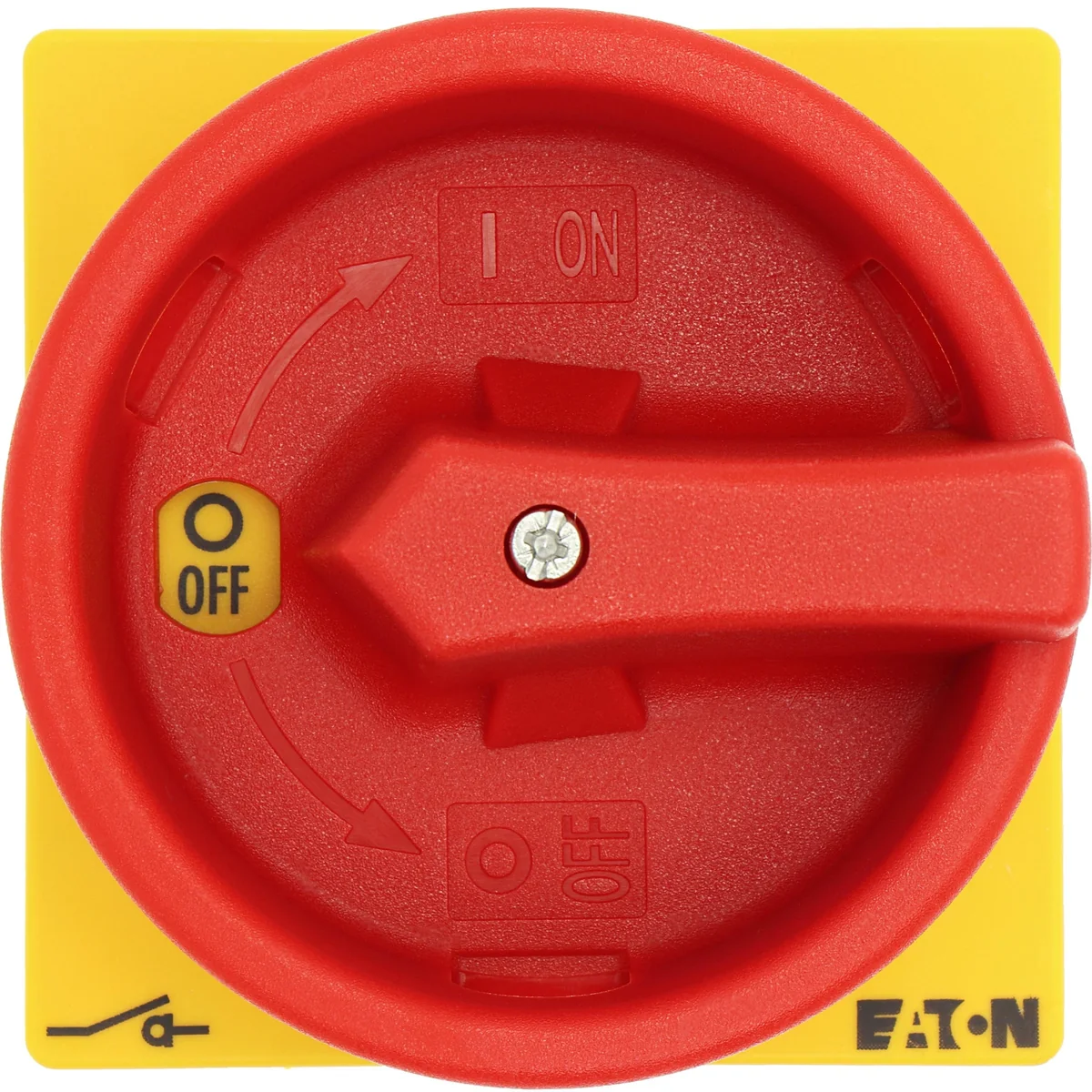

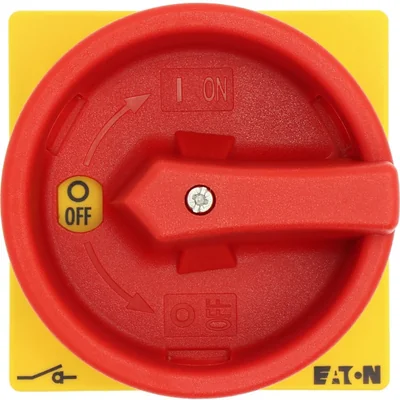

Main switch, 63A, P3-63/EA/SVB 031607
local index:
ALK156MOEL
Catalog number:
031607
EAN code:
4015080316077
Price:
490,20 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

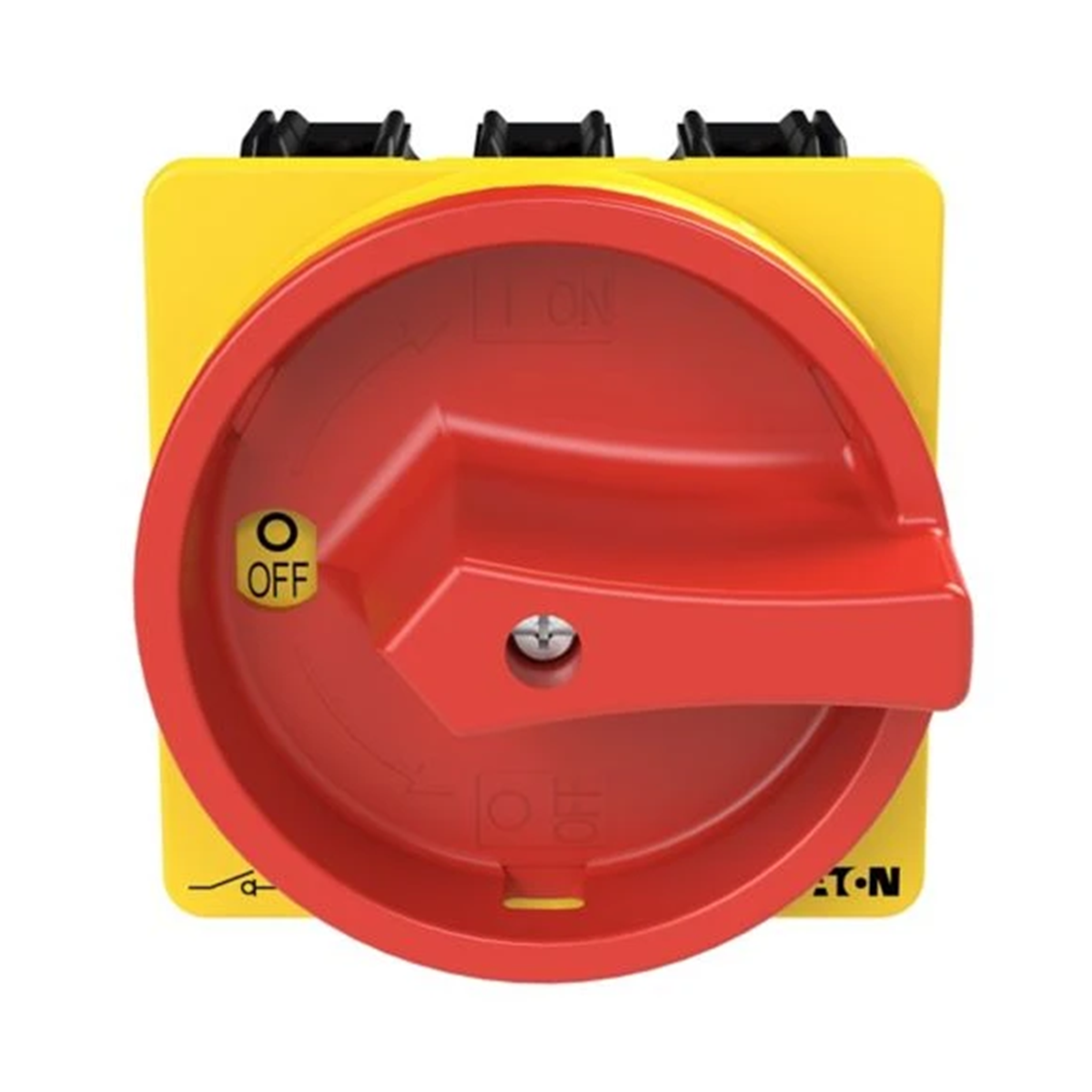

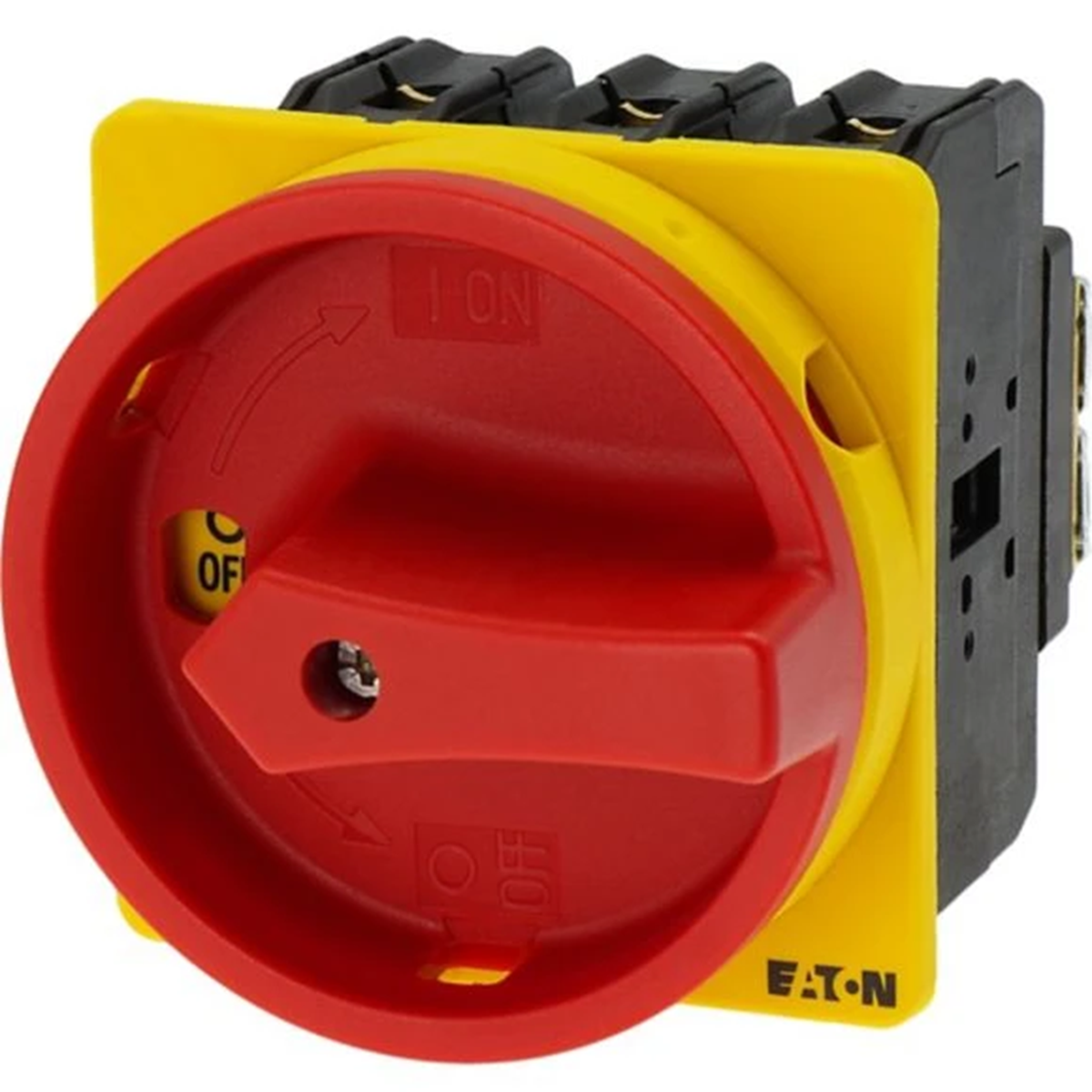

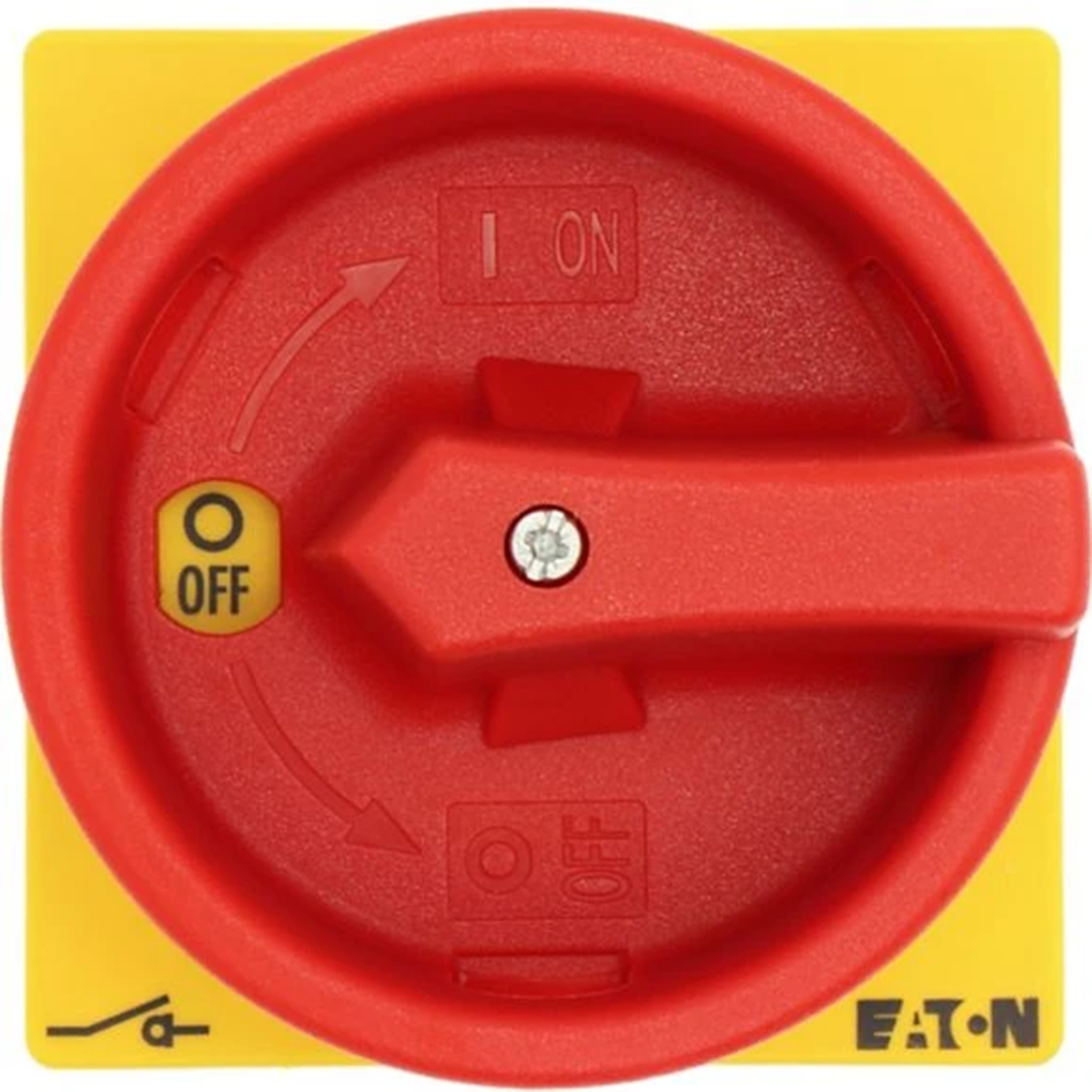

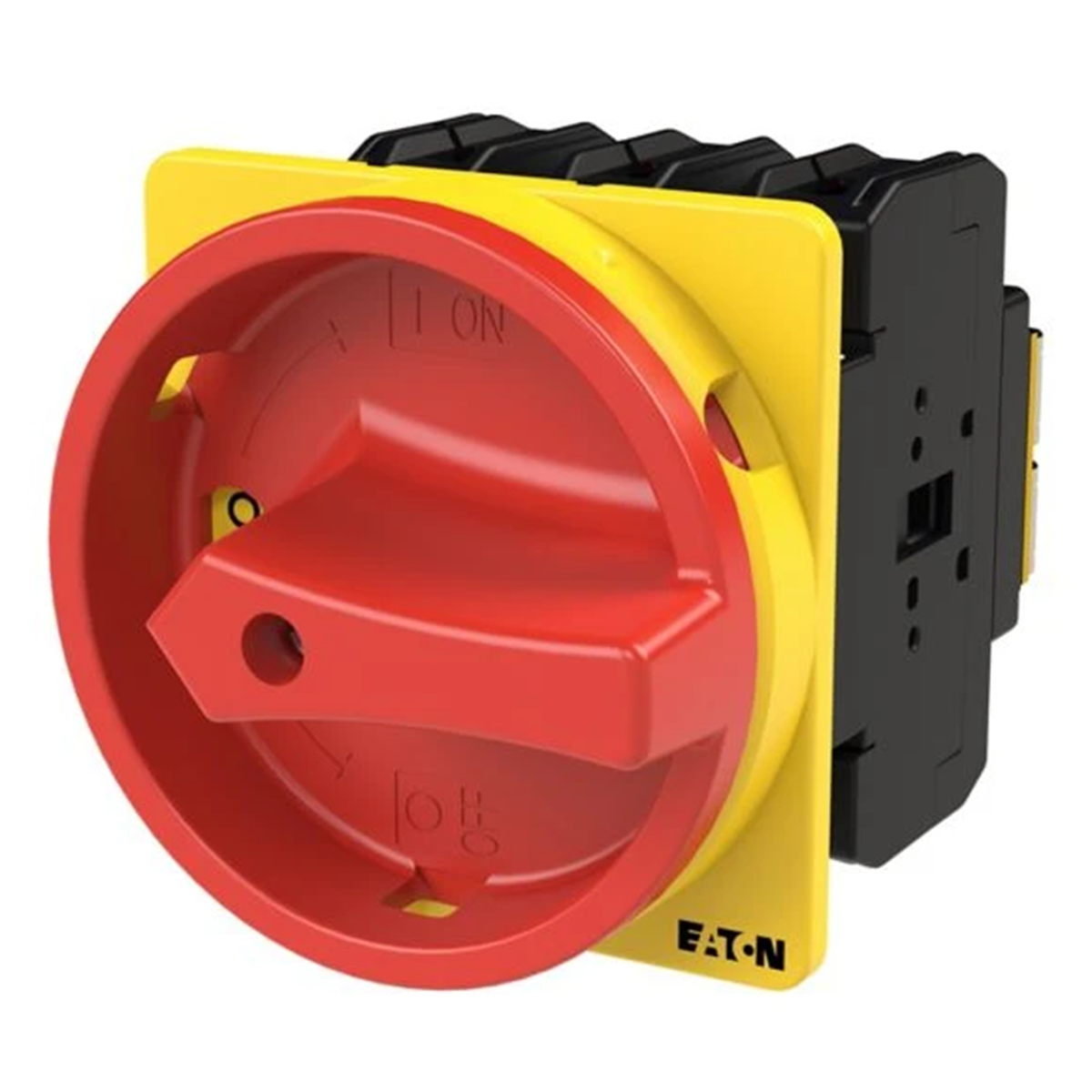

On/Off switch In=63A P=37kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113, part 1 Lockable in 0 position
Technical data
-
Power [kW]37
-
Rated current [A]63
-
Main circuits3z
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated short-time withstand current lcw1.26 kA
-
Switching power at 400 V30 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V63 A
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation power at AC-23, 400 V30 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEaton Electric Sp. z o.o.
-
Address80-299 Gdańsk Galaktyczna 30 Polska
-
E-mail
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,426 | 0,475 |
| Volume (m3) | 0,001 | 0,002 |
| Width (m) | 0,089 | 0,126 |
| Length (m) | 0,130 | 0,150 |
| Depth (m) | 0,104 | 0,106 |
