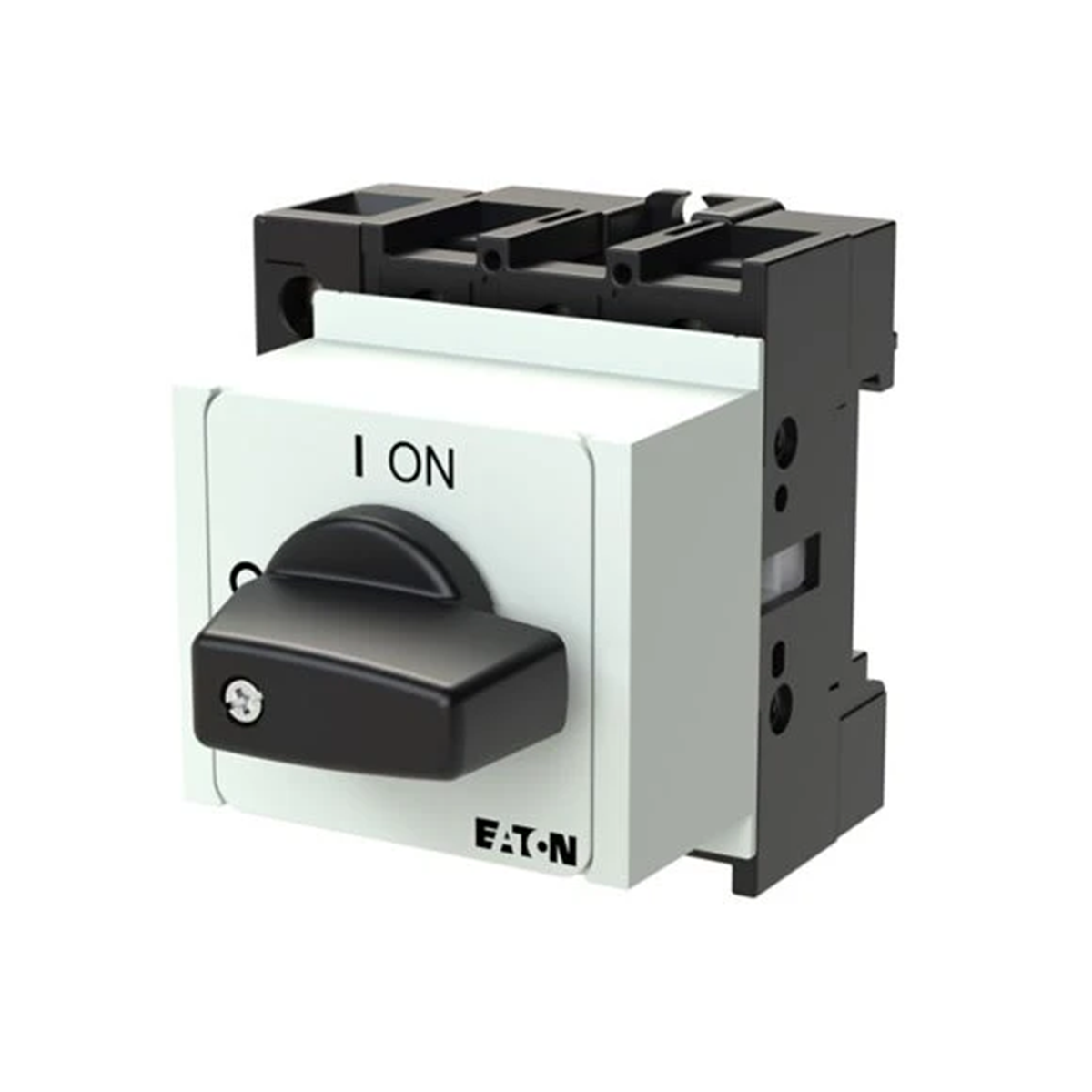

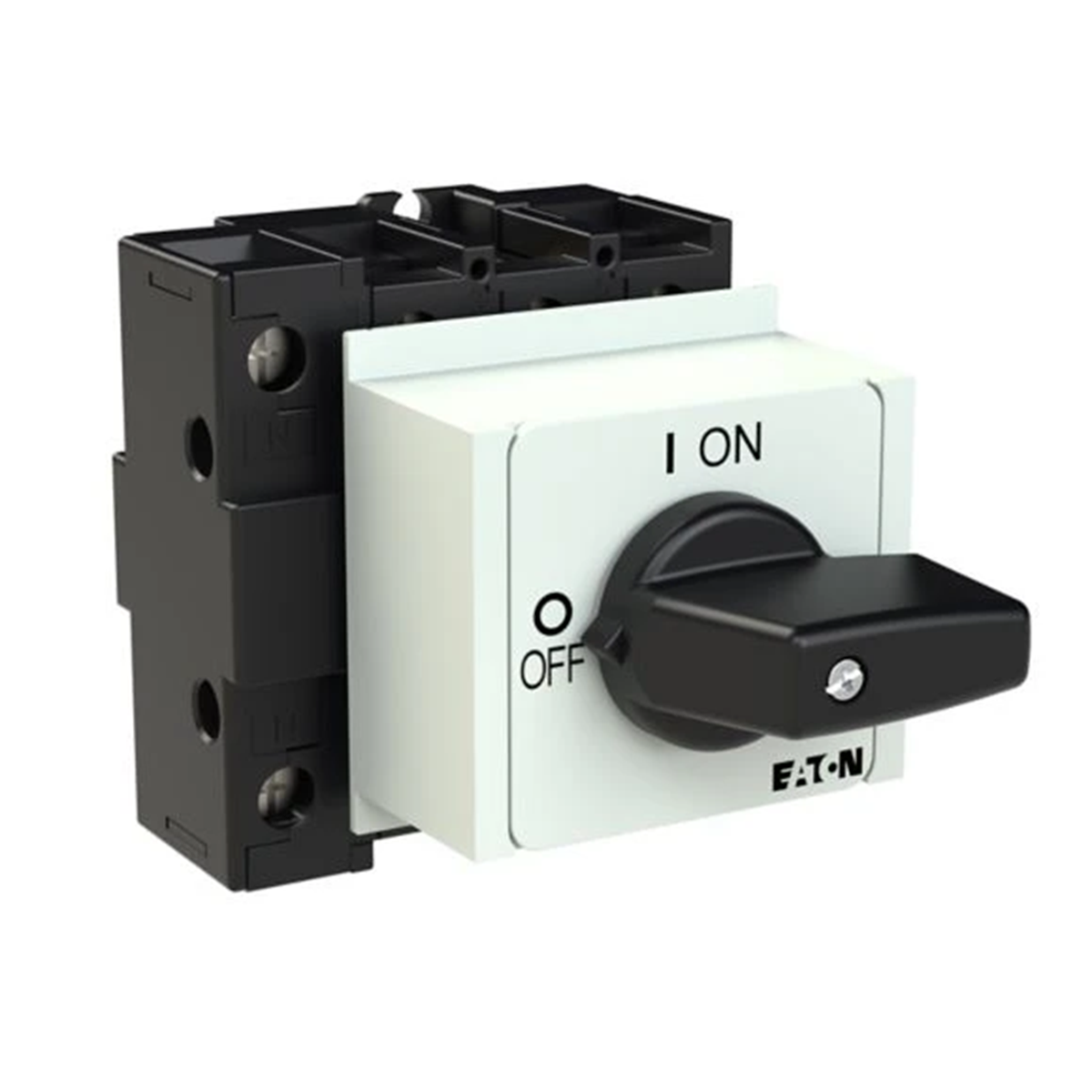

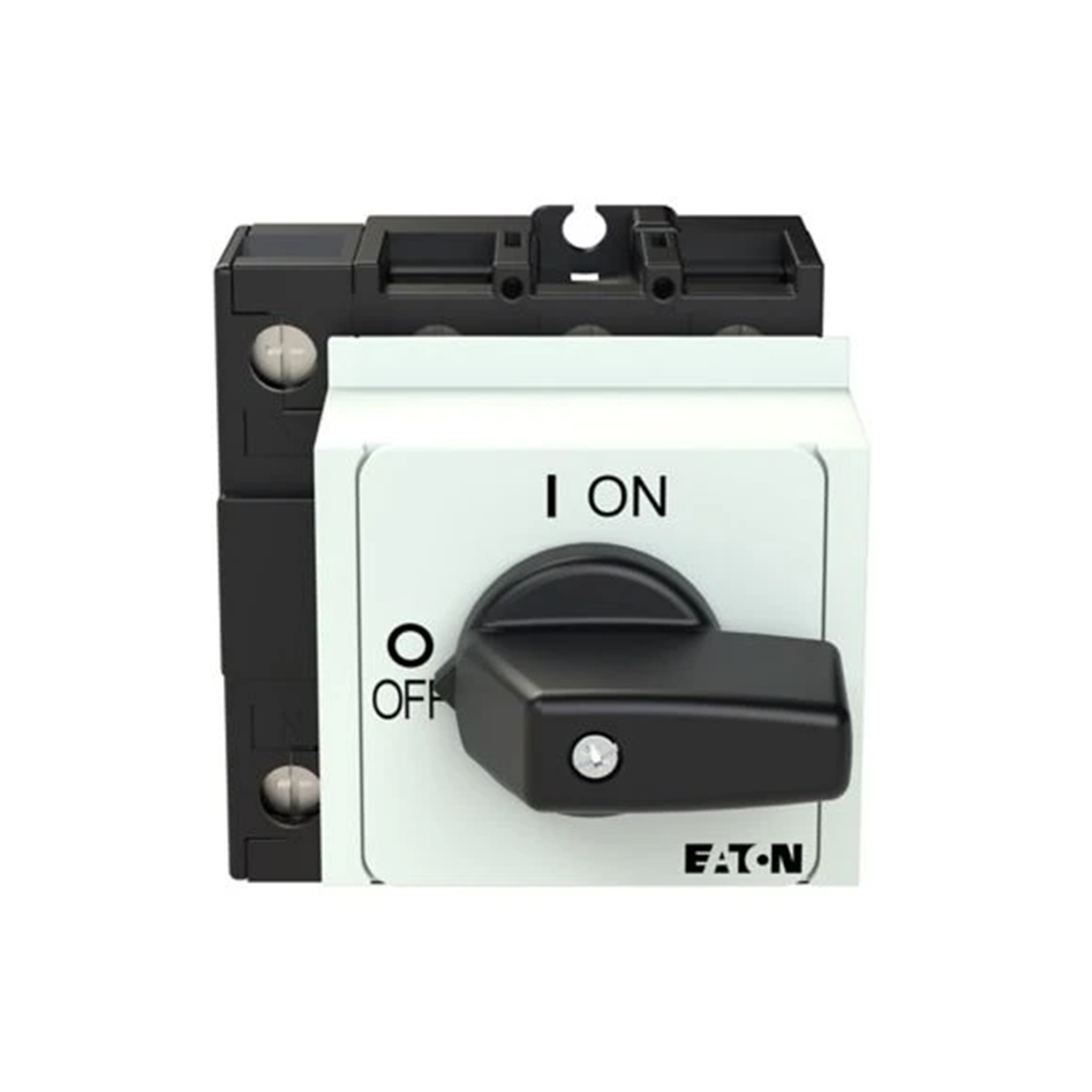

Main switch, 32A, P1-32/IVS/N 010402
local index:
ALK215MOEL
Catalog No:
010402
EAN code:
4015080104025
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
15
Main circuits:
3+N
Rated current [A]:
32
See full description
Price:
70,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
On/Off switch In=32A P=15kW
Technical data
Power [kW]
15
Rated current [A]
32
Main circuits
3+N
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
32 A
Rated permanent current at AC-21, 400 V
32 A
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
15 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
No
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
32 A
Rated operation power at AC-3, 400 V
13 kW
Rated operation power at AC-23, 400 V
15 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Black
Interlockable
No
Degree of protection (IP), front side
IP30
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,207
Volume (m3)
0,000
Width (m)
0,048
Length (m)
0,128
Depth (m)
0,048
