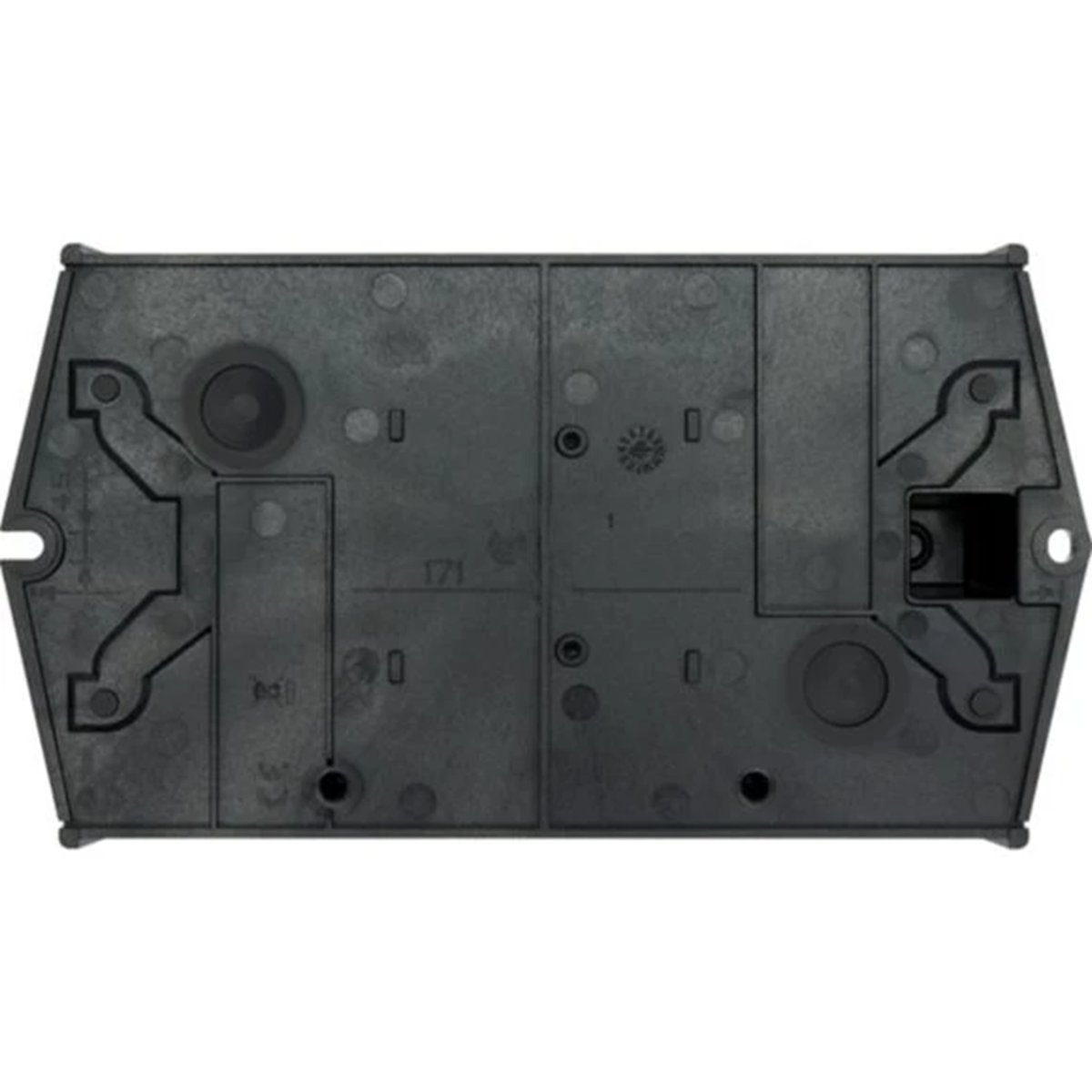

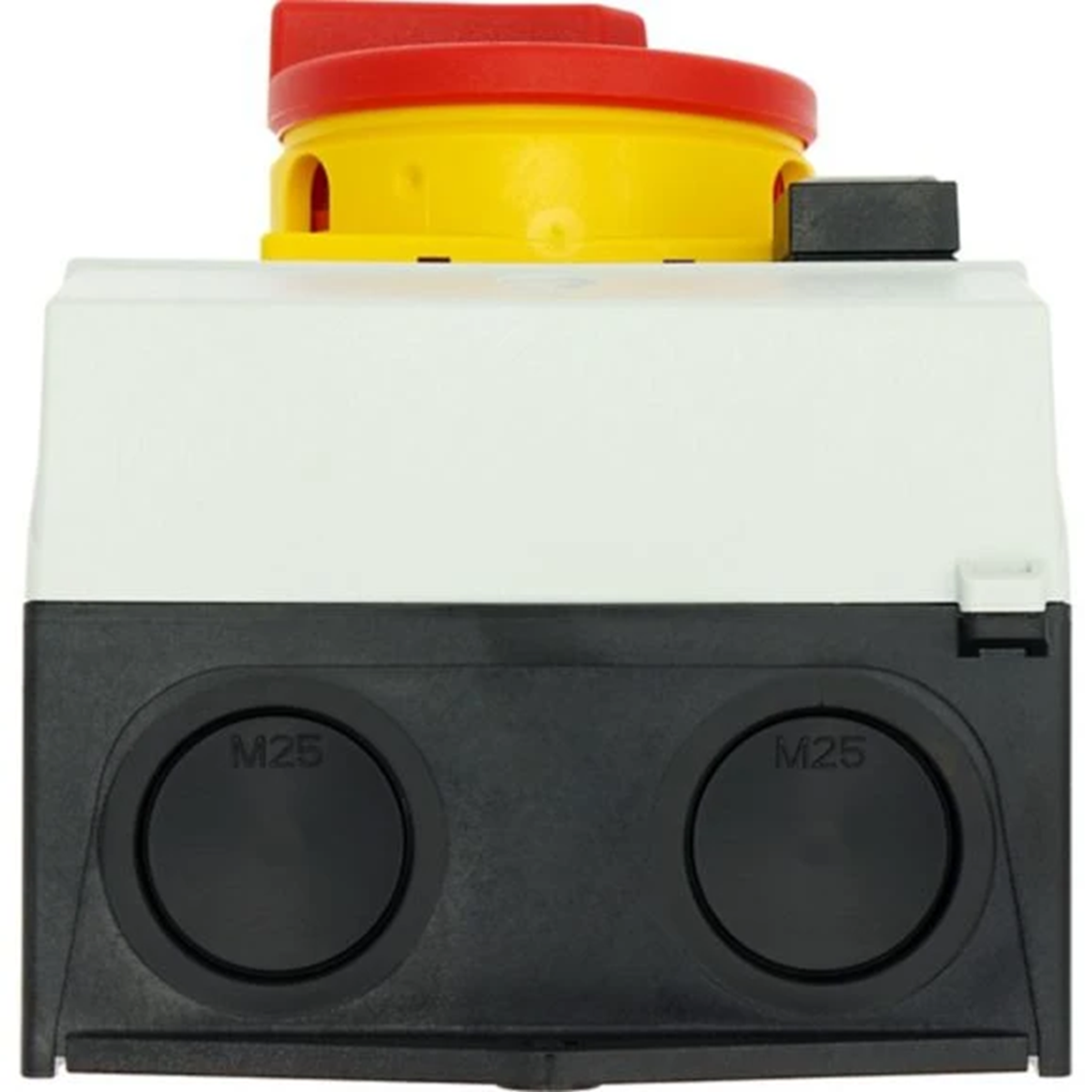

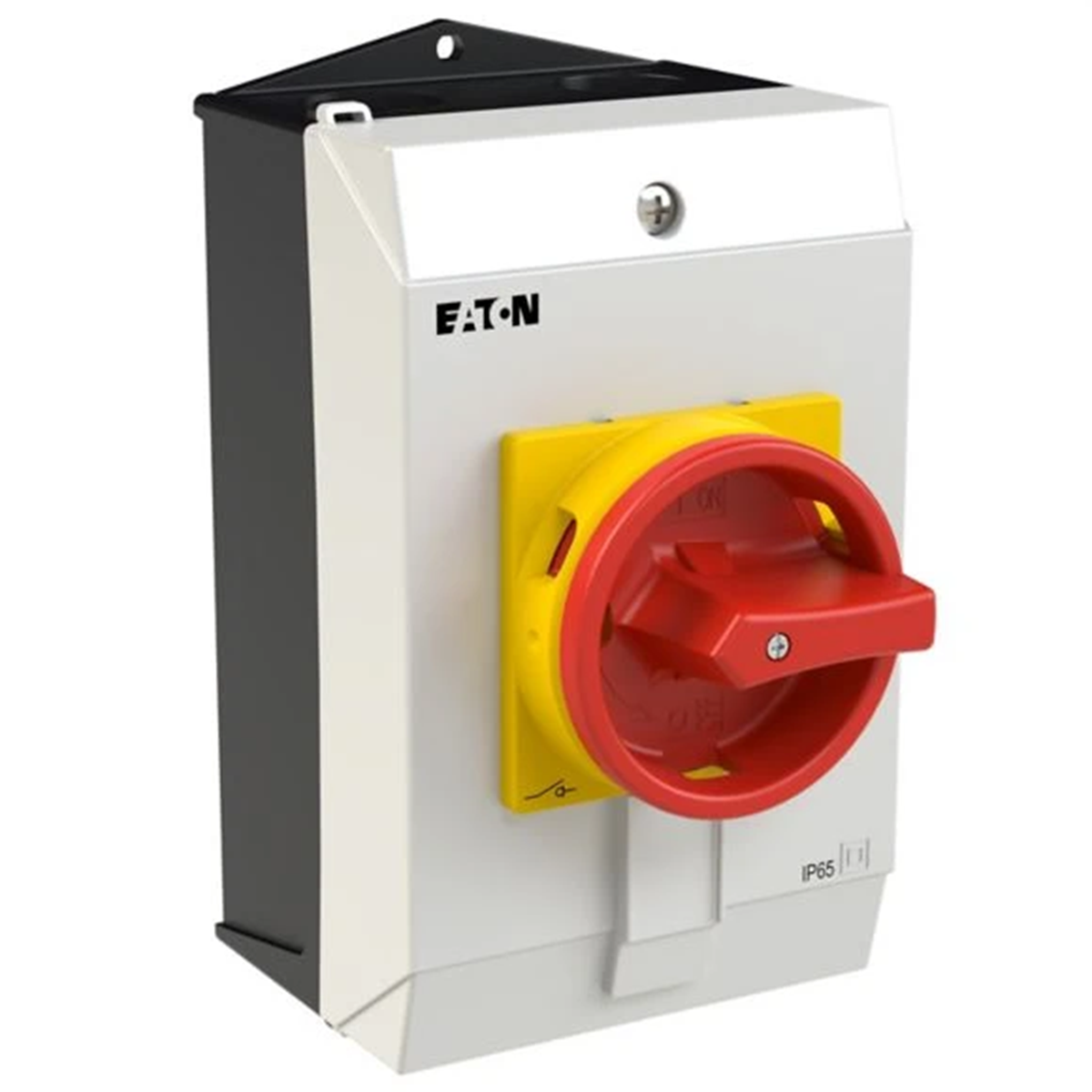

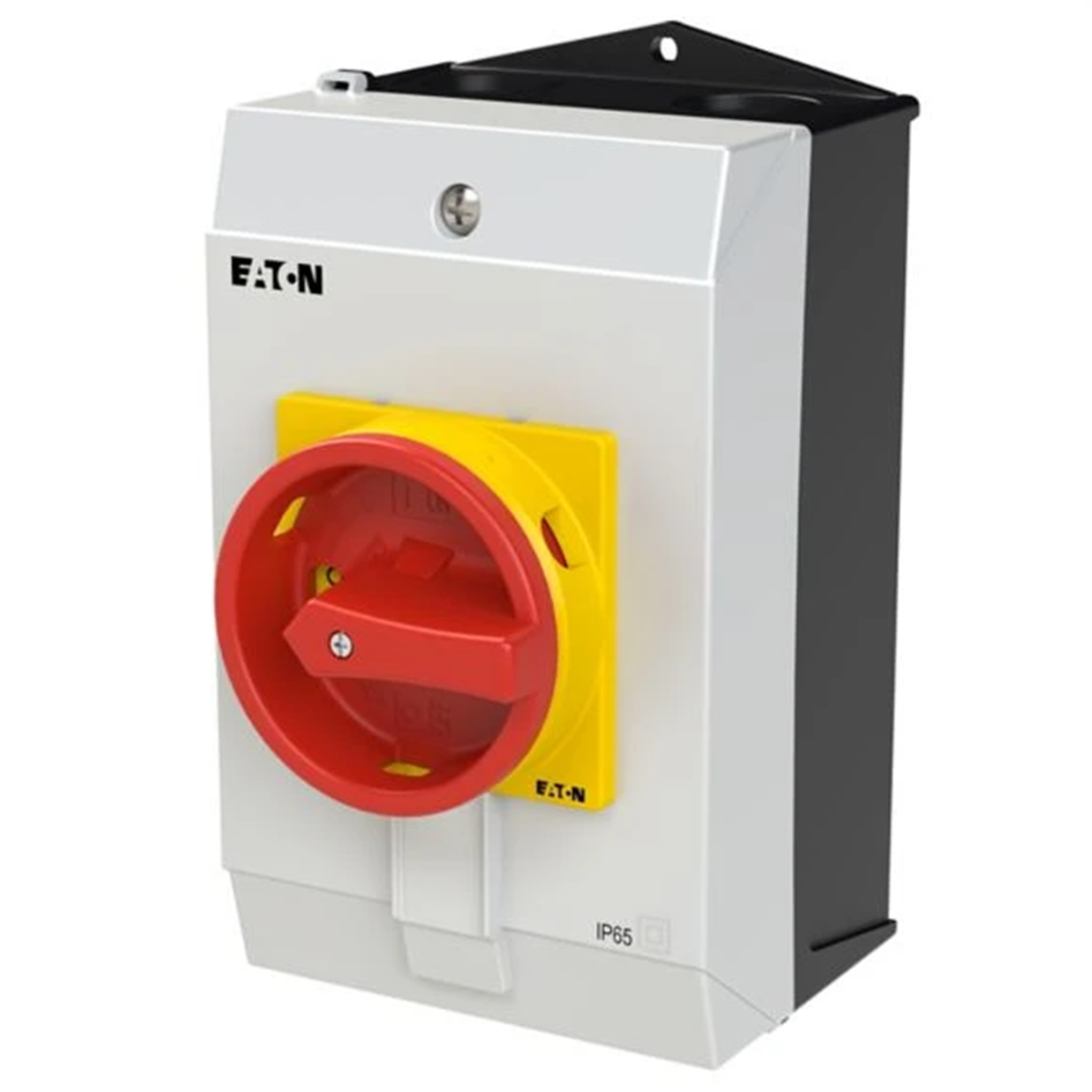

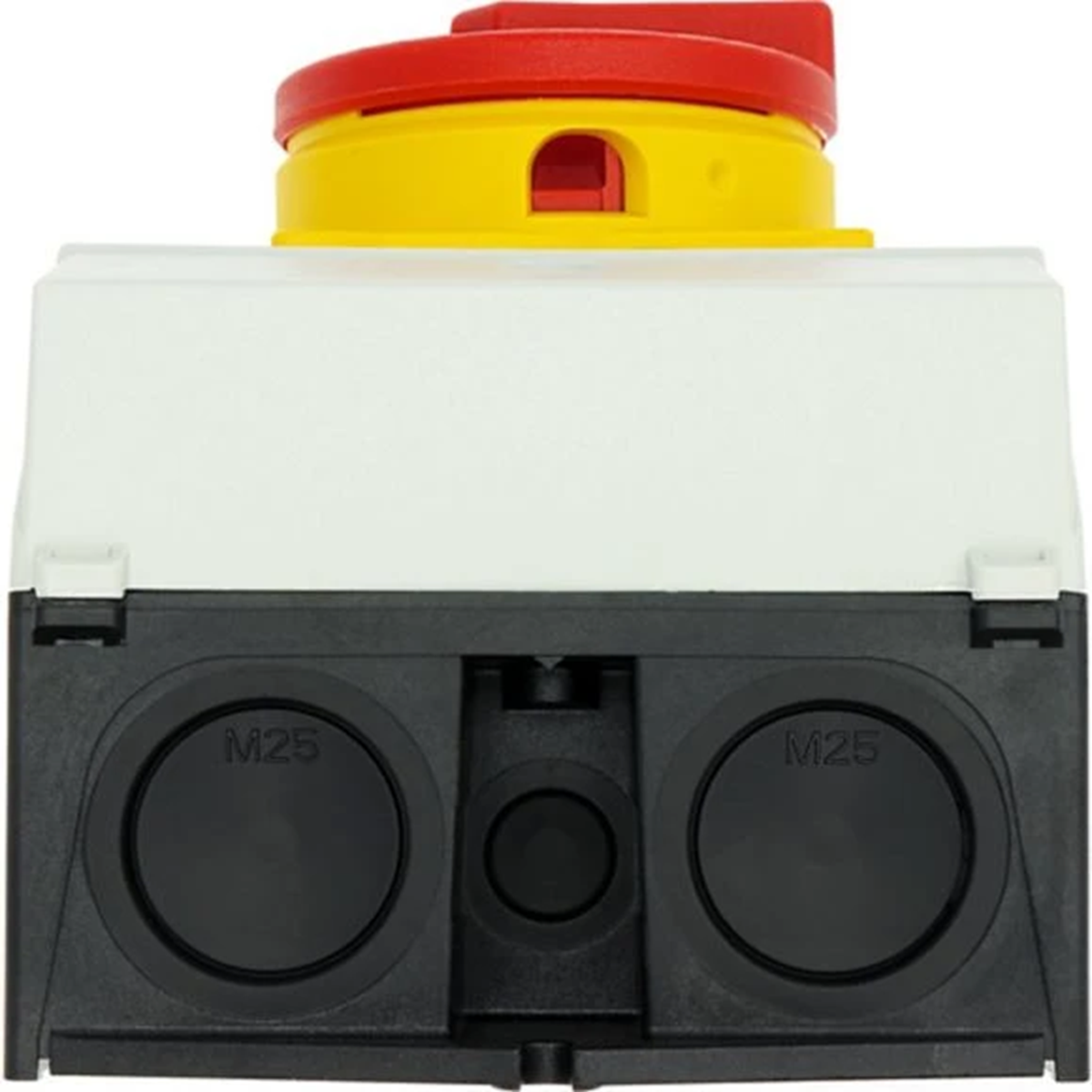

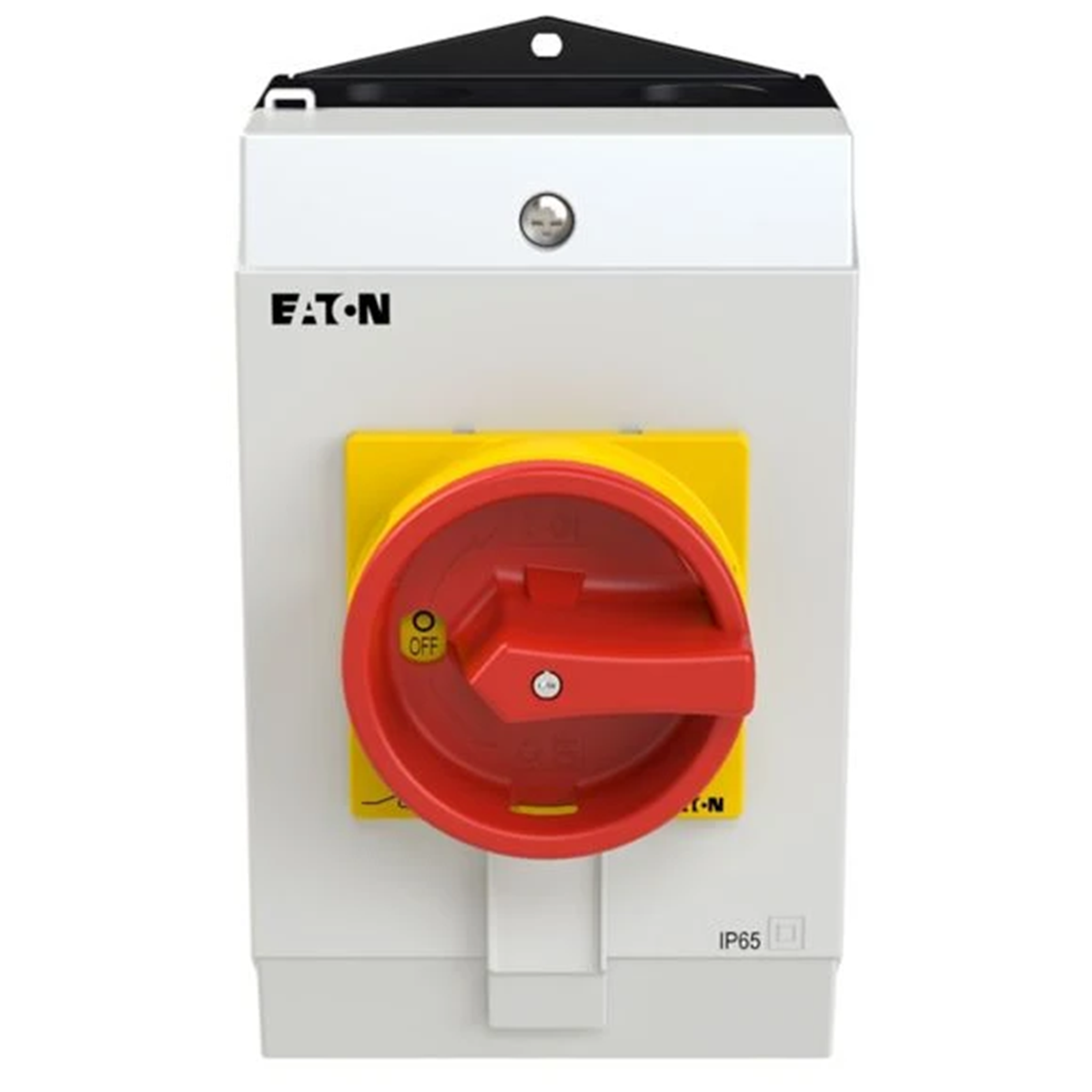

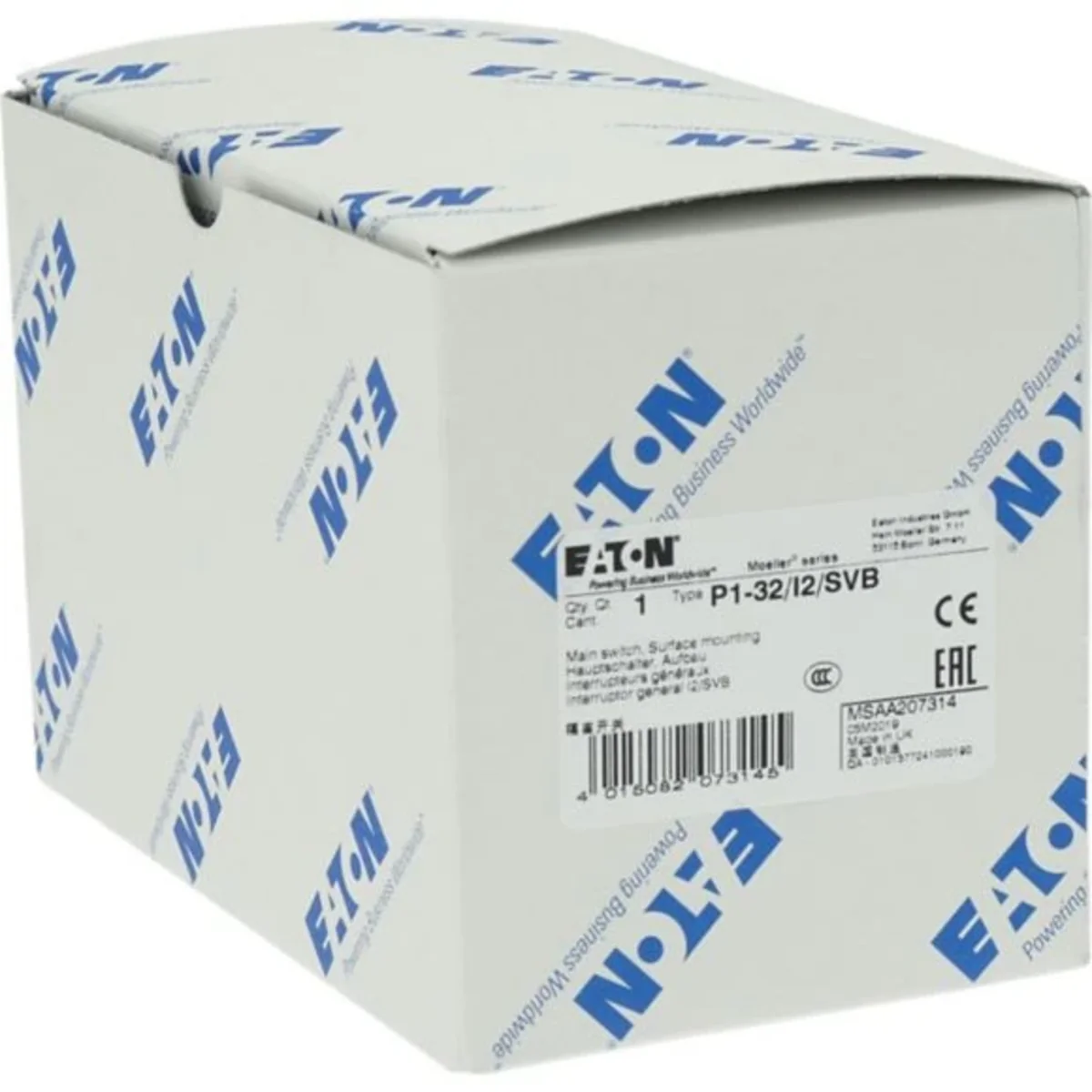

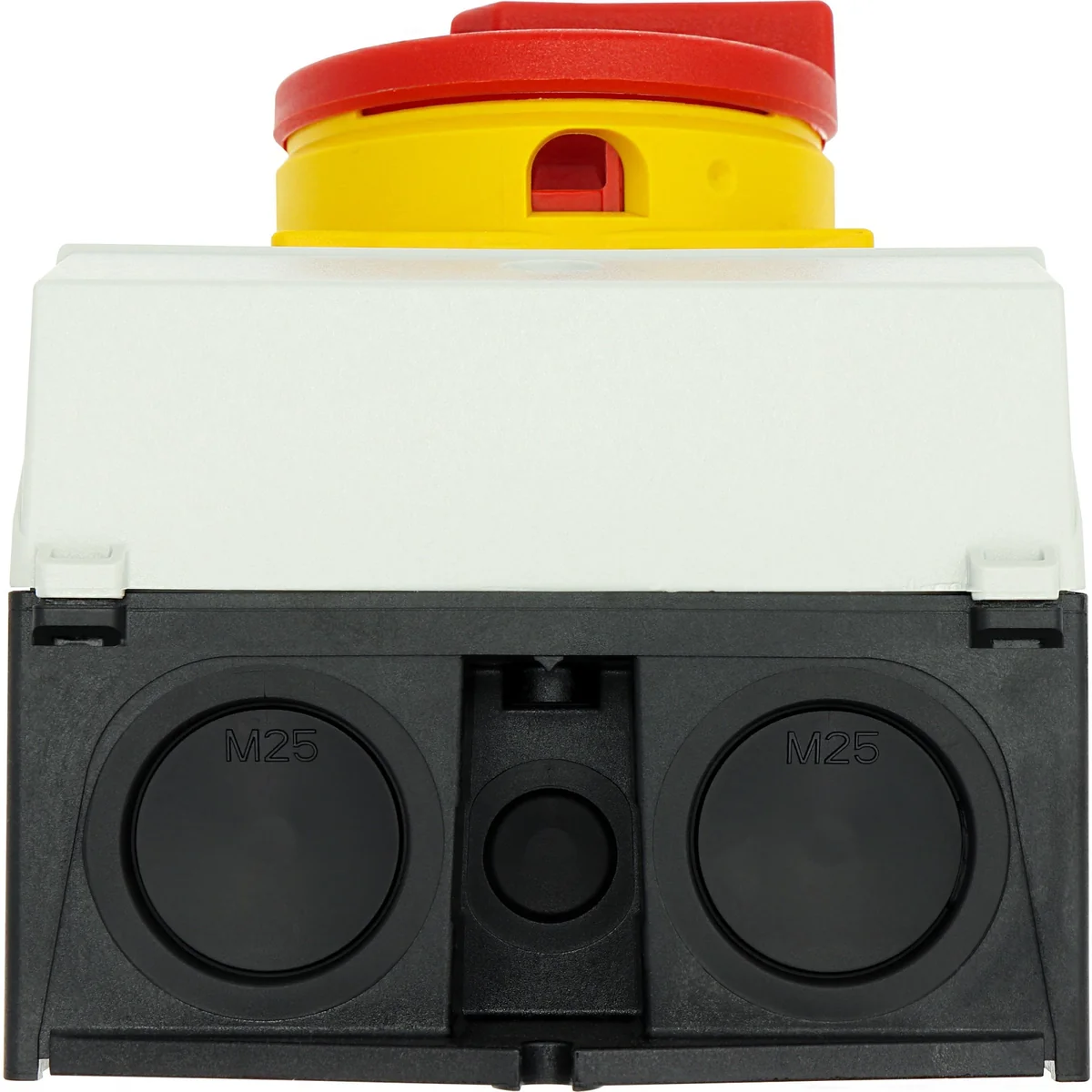

Main switch, 32A, P1-32/I2/SVB 207314
local index:
ALI032MOEL
Catalog No:
207314
EAN code:
4015082073145
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
15
Rated current [A]:
32
See full description
Price:
80,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
On/Off switch In=32A P=15kW
Technical data
Power [kW]
15
Rated current [A]
32
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
32 A
Rated permanent current at AC-21, 400 V
32 A
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
15 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
Yes
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
32 A
Rated operation power at AC-3, 400 V
13 kW
Rated operation power at AC-23, 400 V
15 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
No
Colour control element
Red
Interlockable
Yes
Degree of protection (IP), front side
IP65

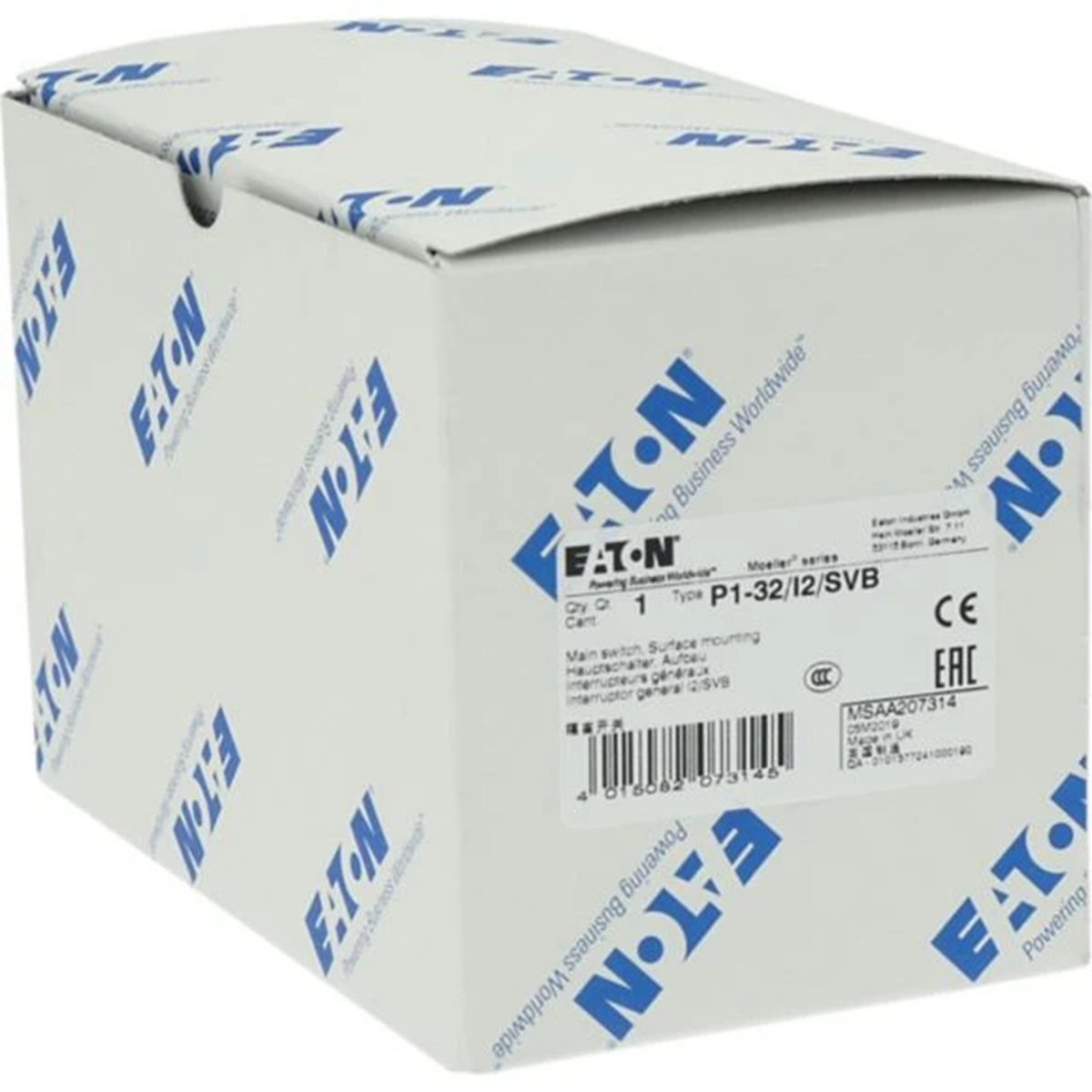

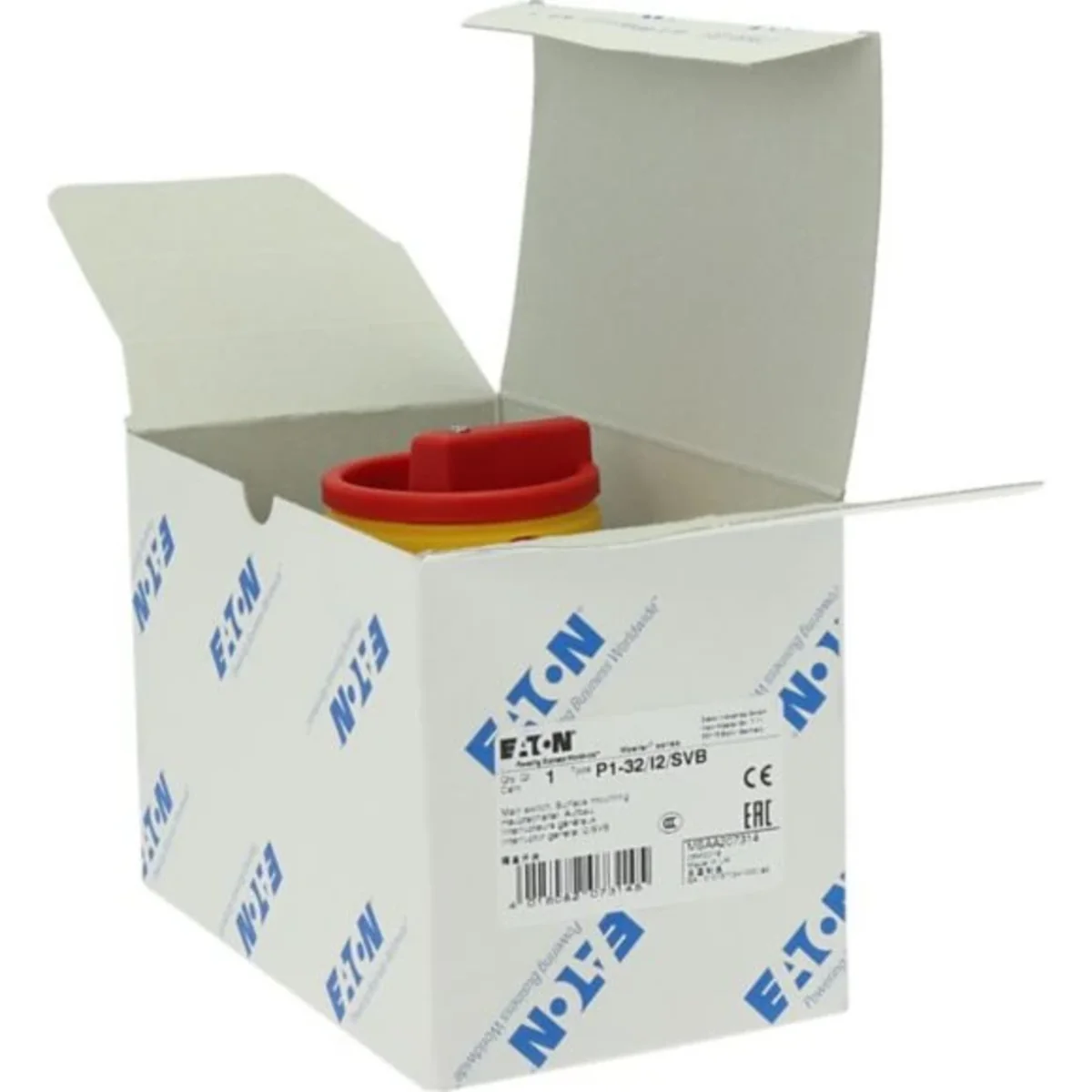

Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,492
Volume (m3)
0,002
Width (m)
0,104
Length (m)
0,180
Depth (m)
0,120
