Automation
Circuit breakers, disconnectors
Cam switches

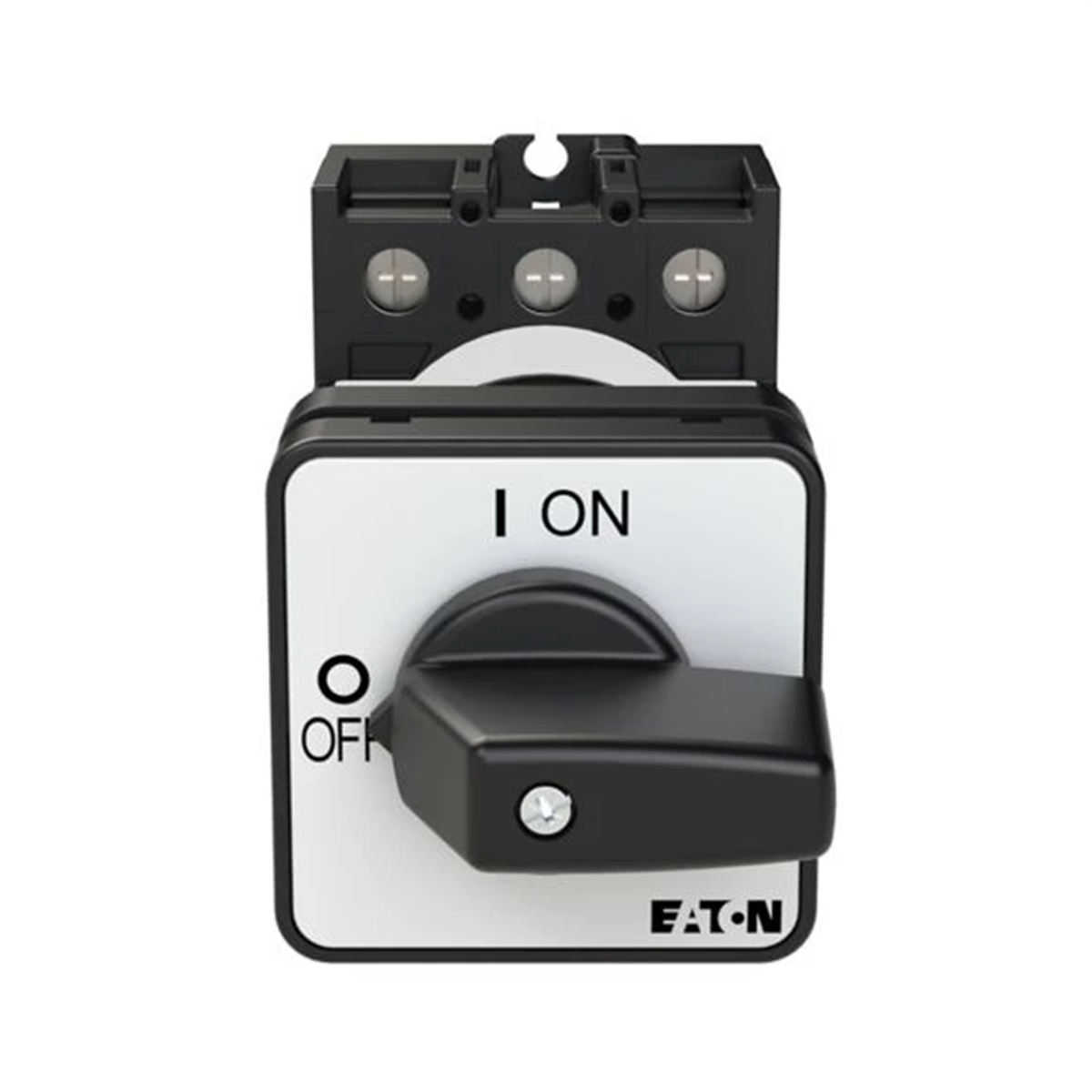

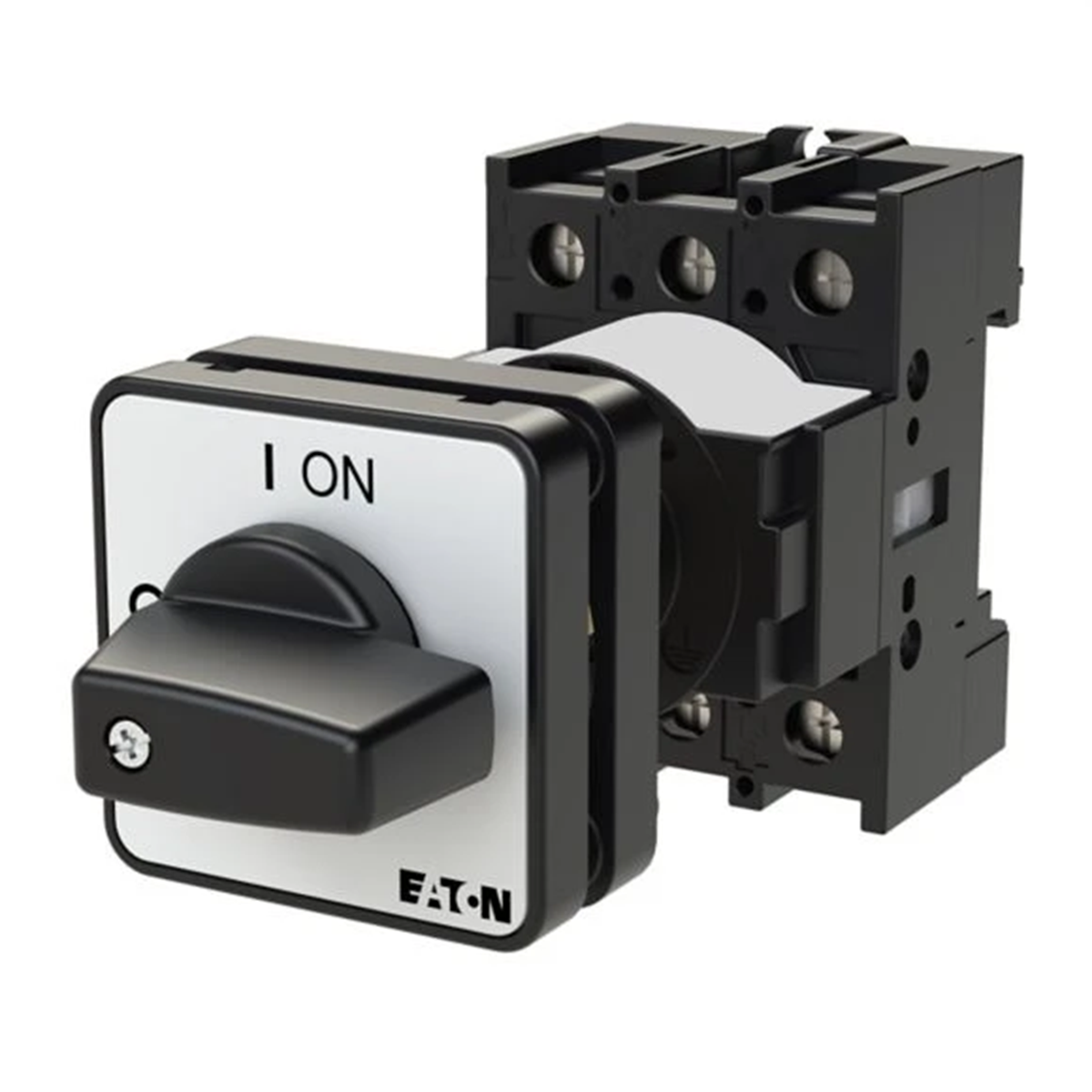

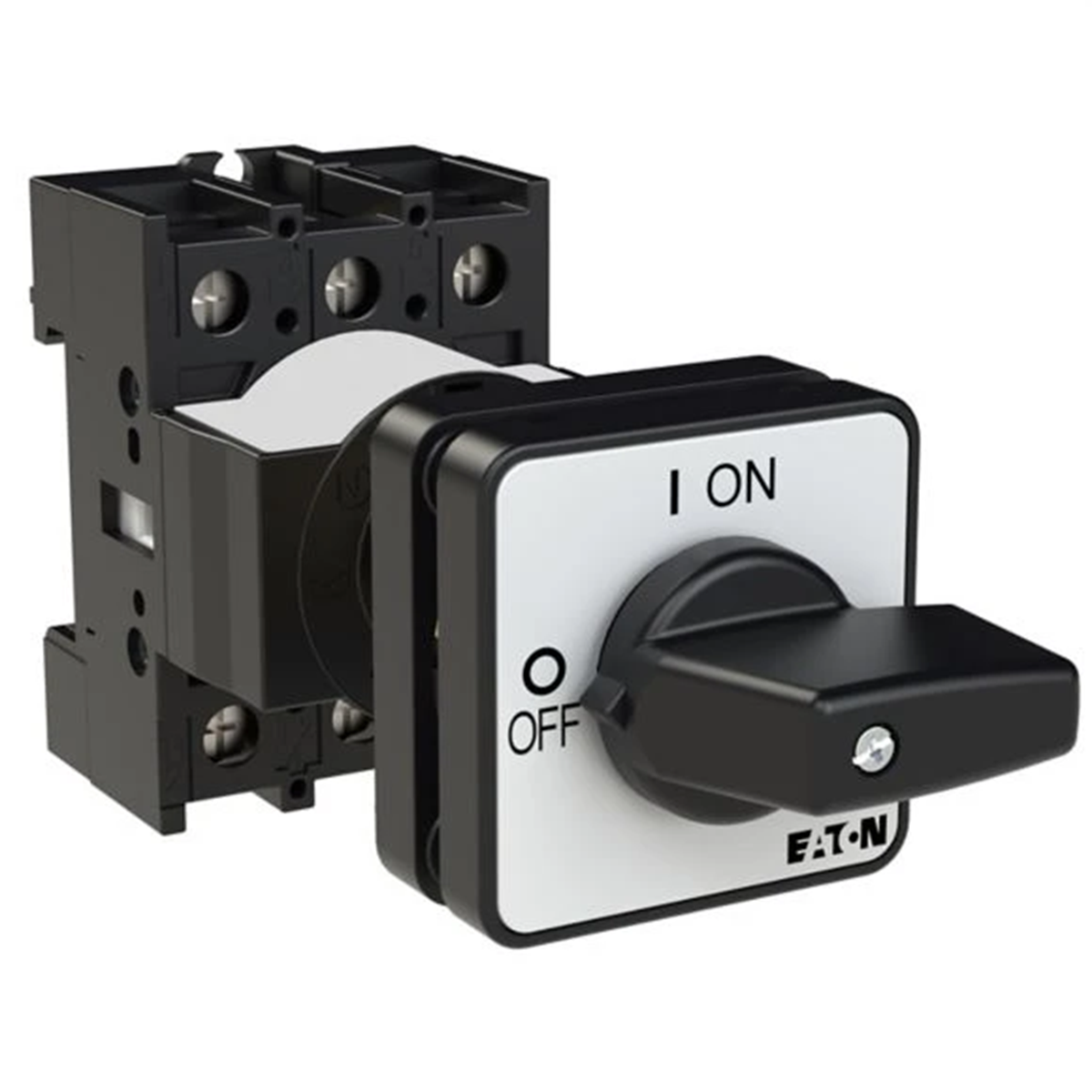

Main switch, 25A, P1-25/Z 057708
local index:
ALK025MOEL
Catalog No:
057708
EAN code:
4015080577089
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
13
Main circuits:
3z
Rated current [A]:
25
See full description
Price:
46,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
On/Off switch In=25A P=13kW. Without auxiliary circuits. With black knob and face plate
Technical data
Power [kW]
13
Rated current [A]
25
Main circuits
3z
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
25 A
Rated permanent current at AC-21, 400 V
25 A
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
13 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
Yes
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
No
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
25 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated operation power at AC-23, 400 V
13 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
No
Colour control element
Black
Interlockable
No
Degree of protection (IP), front side
IP65
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,180
Volume (m3)
0,000
Width (m)
0,048
Length (m)
0,106
Depth (m)
0,048
