el12
Automation
Circuit breakers, disconnectors
Cam switches

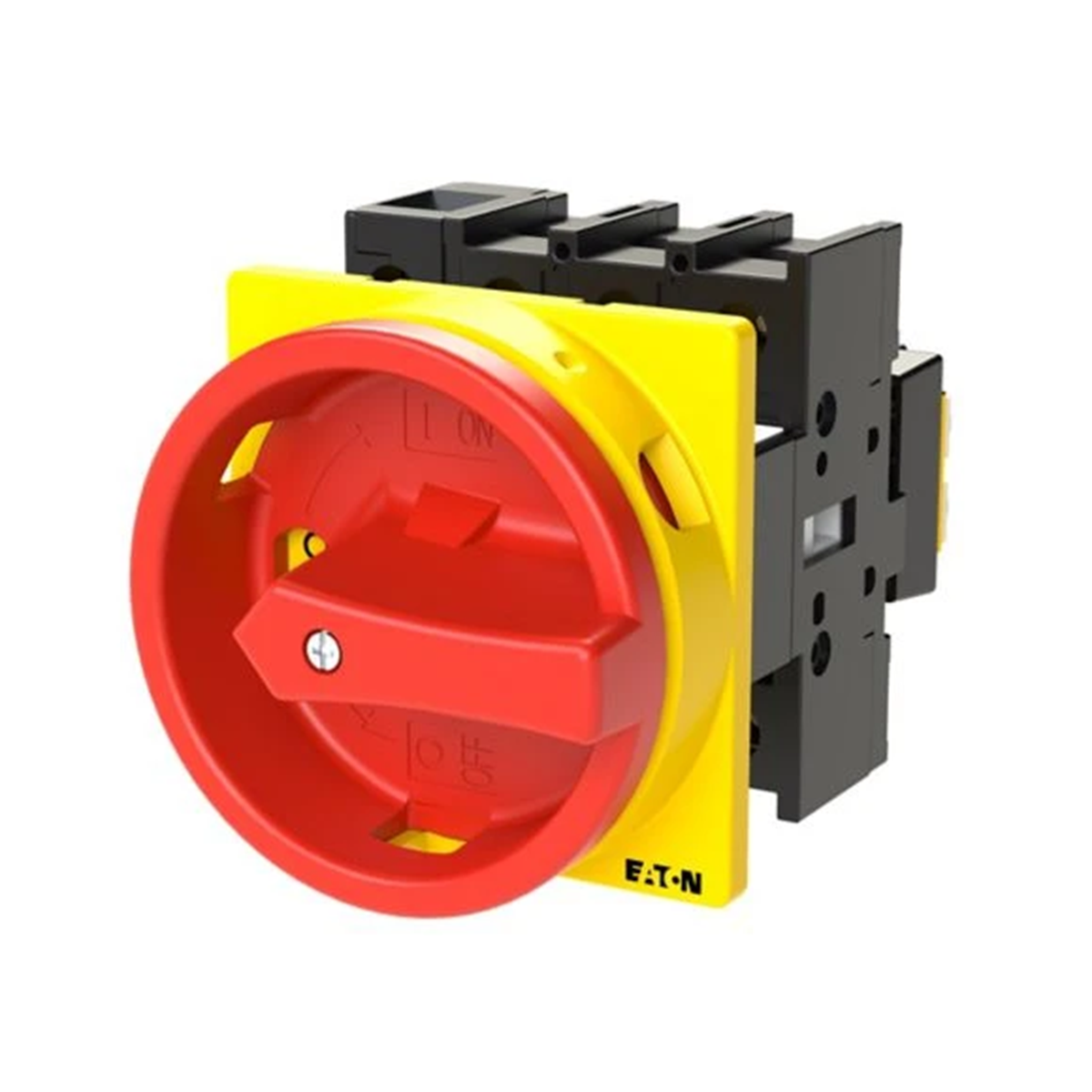

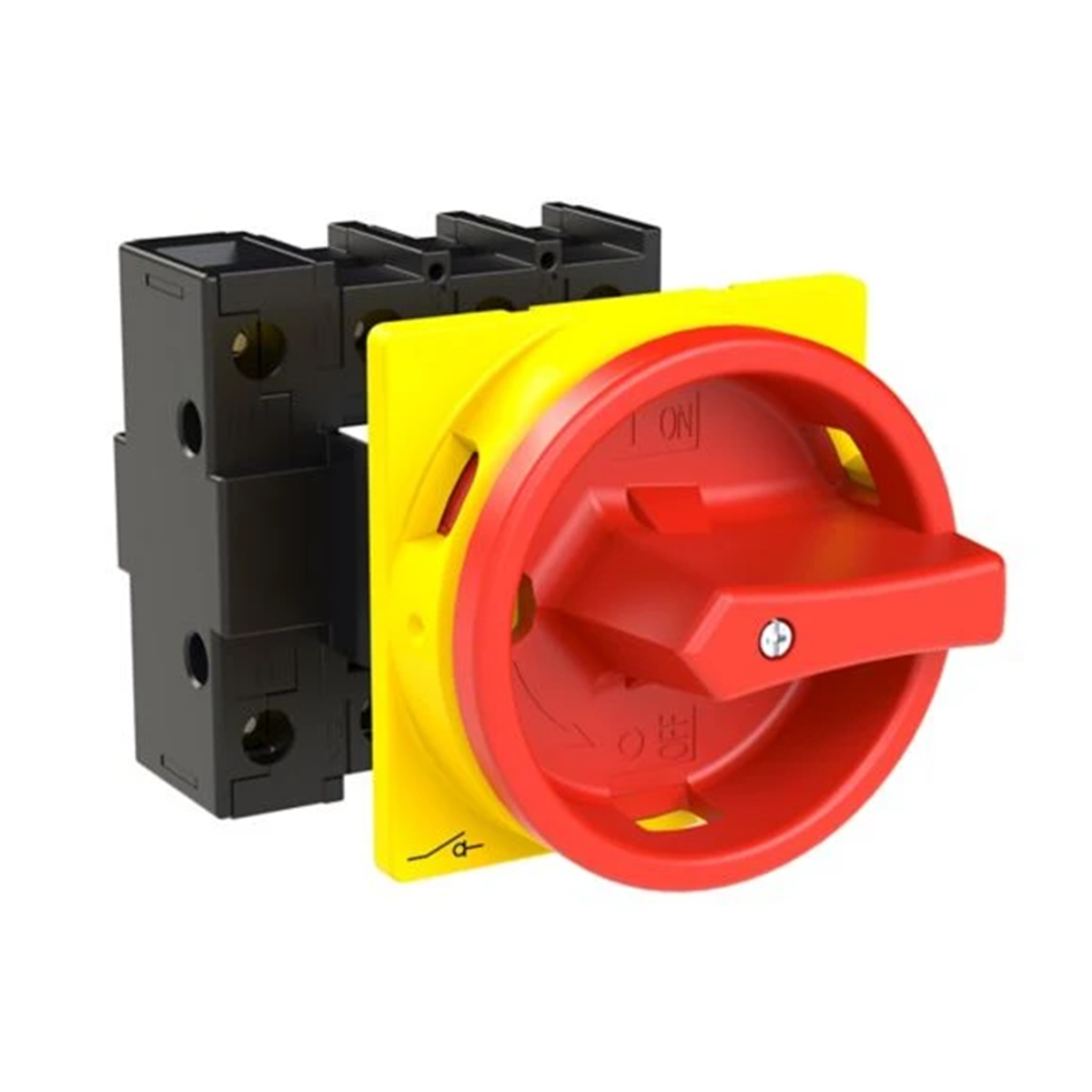

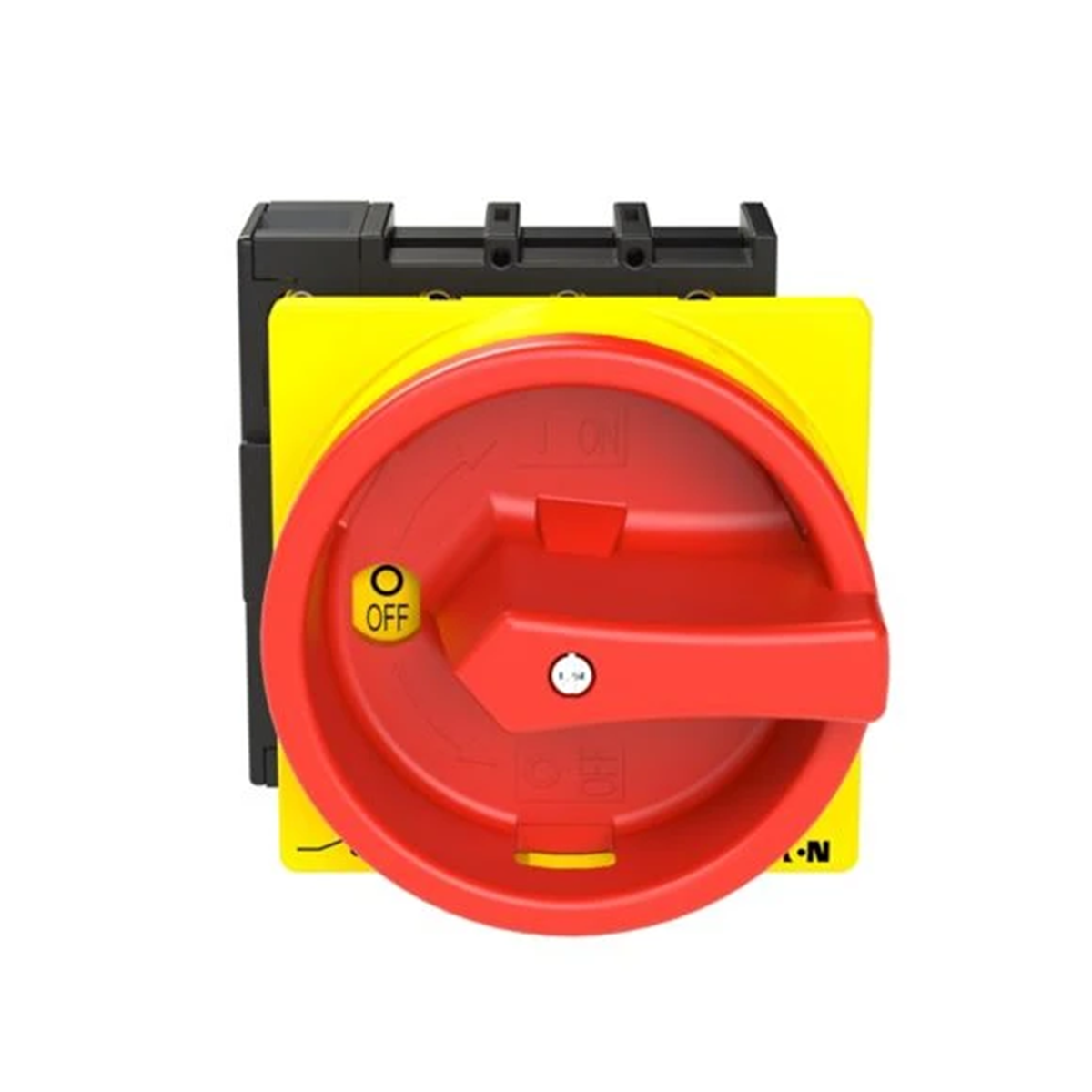

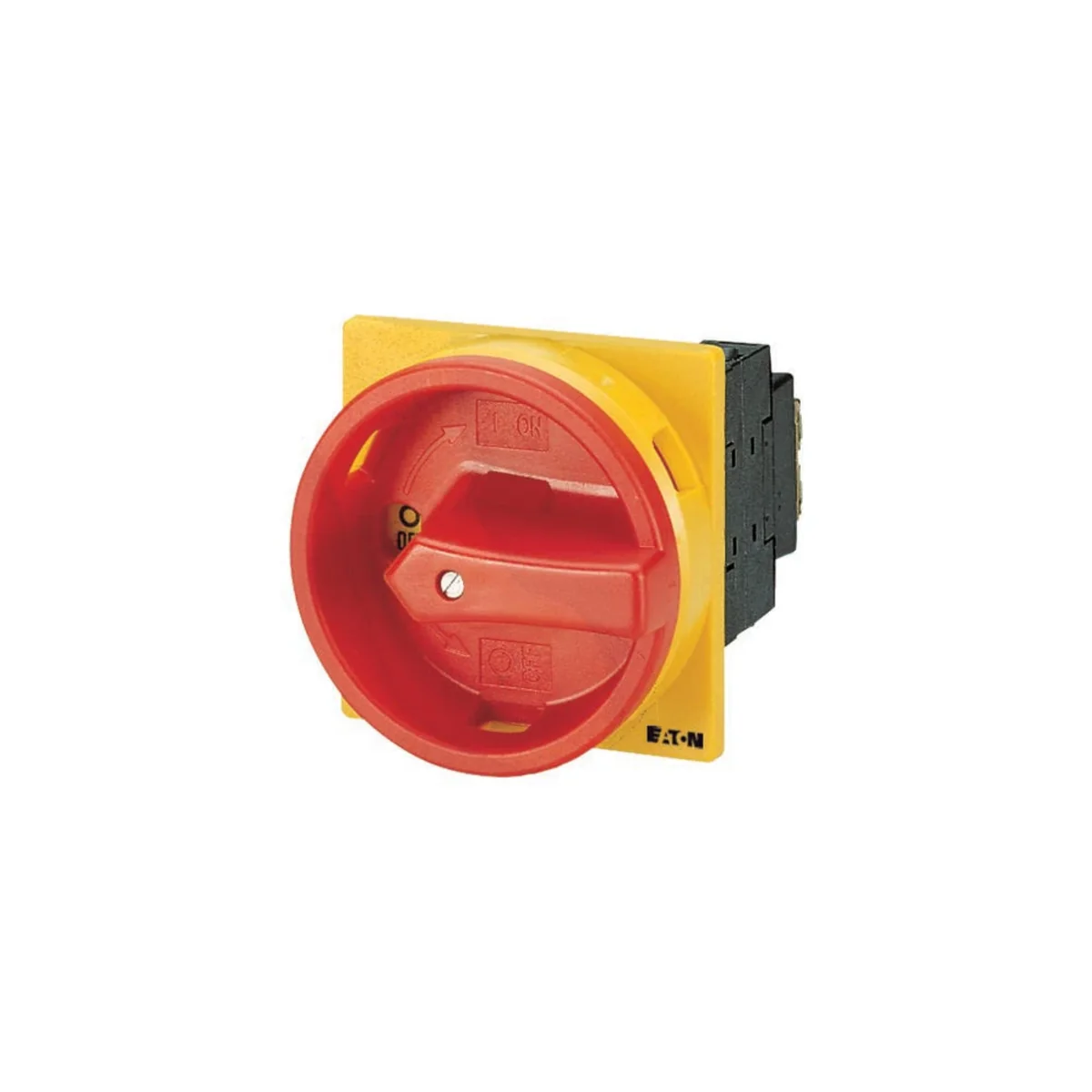

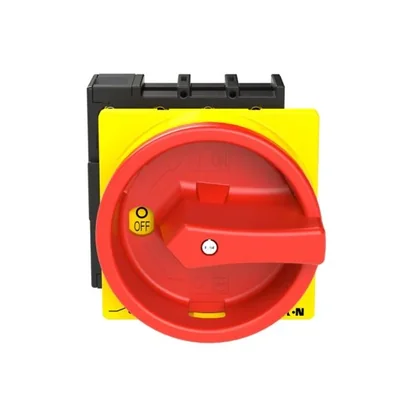

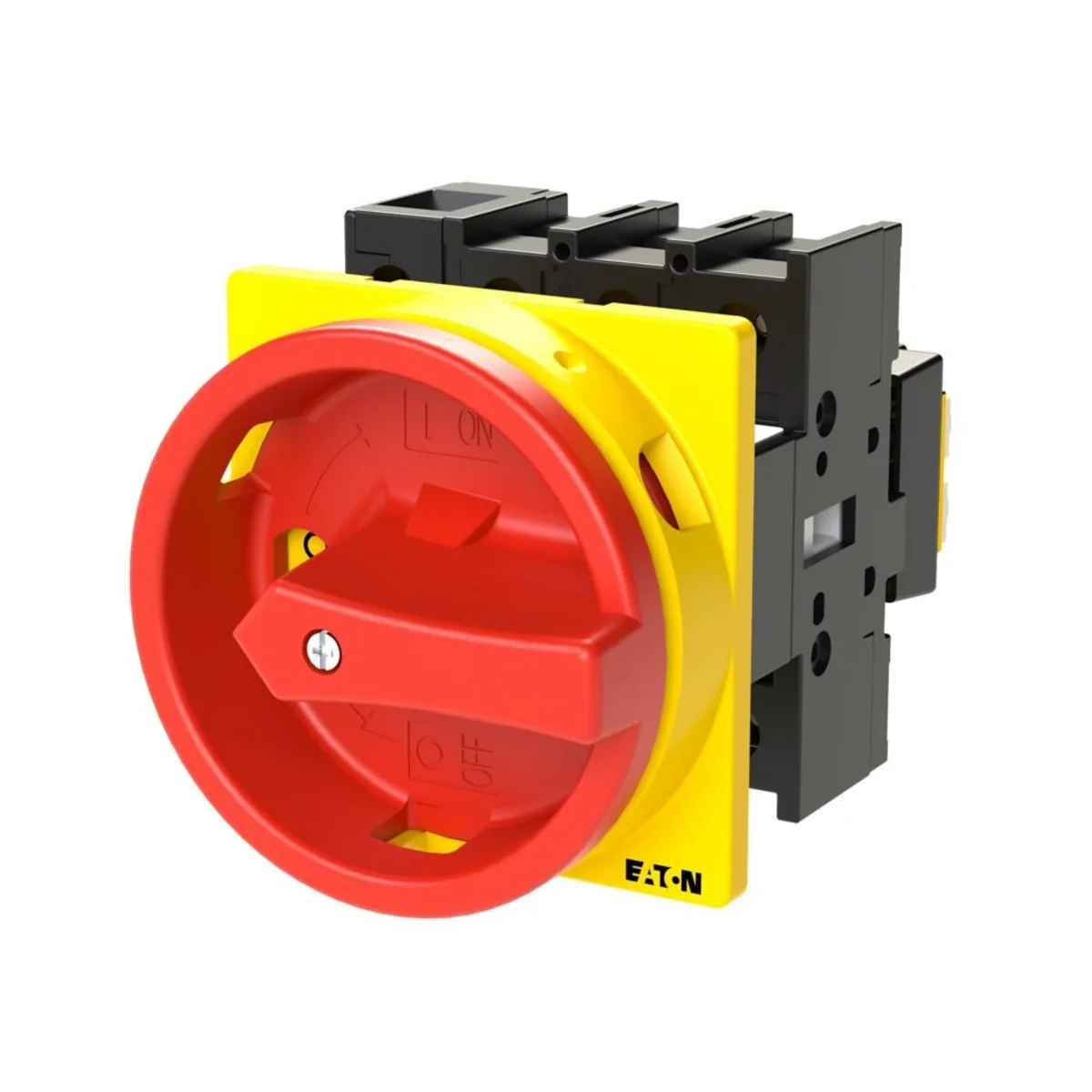

Main switch, 25A, P1-25/EA/SVB/N 081587
local index:
ALK029MOEL
Catalog No:
081587
EAN code:
4015080815877
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
13
Main circuits:
3+N
Rated current [A]:
25
See full description
Price:
66,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
On/Off switch In=25A P=13kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113 Part 1
Technical data
Power [kW]
13
Rated current [A]
25
Main circuits
3+N
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
25 A
Rated permanent current at AC-21, 400 V
25 A
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
13 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
Yes
Version as emergency stop installation
Yes
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
25 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated operation power at AC-23, 400 V
13 kW
Conditioned rated short-circuit current Iq
50 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
No
Colour control element
Red
Interlockable
Yes
Degree of protection (IP), front side
IP65
Manufacturer details
Manufacturer
EATON Electric Sp. z o.o.
Address
80-299 Gdańsk ul. Galaktyczna 30
E-mail
pl-gdansk@eaton.com
WWW
https://www.moeller.pl
Tax identification number
5841022327
GLN
5900009970944
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
1 pcs.
Weight (kg)
0,220
0,269
Volume (m3)
0,001
0,000
Width (m)
0,083
0,048
Length (m)
0,119
0,096
Depth (m)
0,065
0,048
