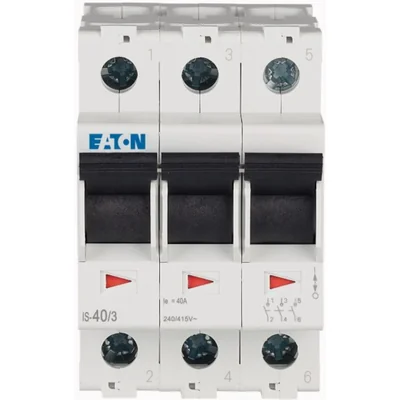

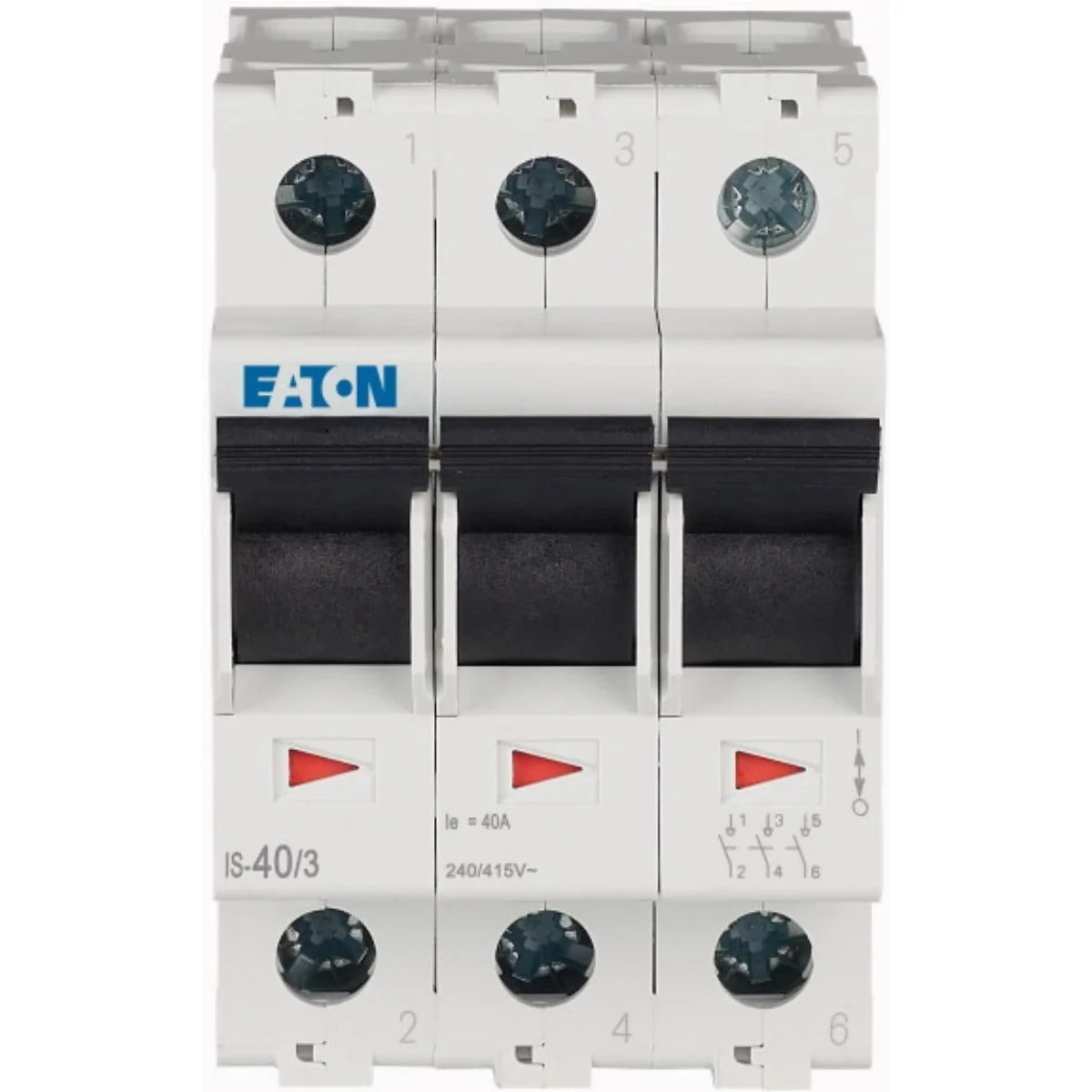

Main isolating switch, 40A, IS-40/3 276272
local index:
ALI113MOEL
Catalog No:
276272
EAN code:
4015082762728
Price:
28,13 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
• Version for standard rated currents
• For mounting on a standard rail
• Application in industrial switchboards and in housing
• For mounting on a standard rail
• Application in industrial switchboards and in housing
Technical data
-
Number of poles3
-
Rated current [A]40
Other technical data
-
Switching functionOther
-
Number of contacts as normally closed contact3
-
Number of poles3
-
Rated voltage415 V
-
Rated switching capacity12.5 kA
-
Voltage typeAC
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings3
-
Degree of protection (IP)IP40
-
Number of contacts as normally open contact3
-
Number of contacts as change-over contact0
-
Rated current40 A
-
Min. rated voltage240 V
-
Short-circuit breaking capacity (Icw)2 kA
-
With signal lampNo
-
Lamp typeOther
-
Max. lamp power0 W
-
Built-in depth69.5 mm
Bulk packaging
| A kind of package | Skrzynia | Karton |
| Quantity | 1 pcs. | 40 pcs. |
| Weight (kg) | 0,323 | 13,109 |
| Volume (m3) | 0,000 | 0,016 |
| Width (m) | 0,055 | 0,180 |
| Length (m) | 0,086 | 0,385 |
| Depth (m) | 0,075 | 0,230 |
