Main isolating switch 3P IS-20/3 276260

Name: Main isolating switch 3P IS-20/3
Brand: EATON
SKU: ALI069MOEL
Price: 30.12 PLN

local index:

ALI069MOEL

Catalog No:

276260

EAN code:

4015082762605

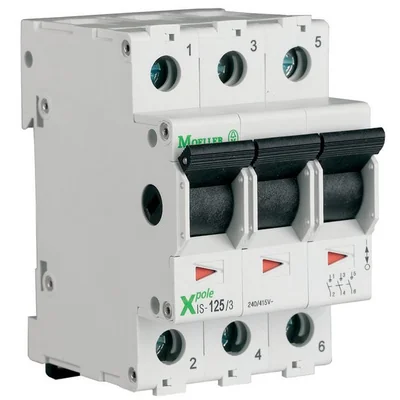

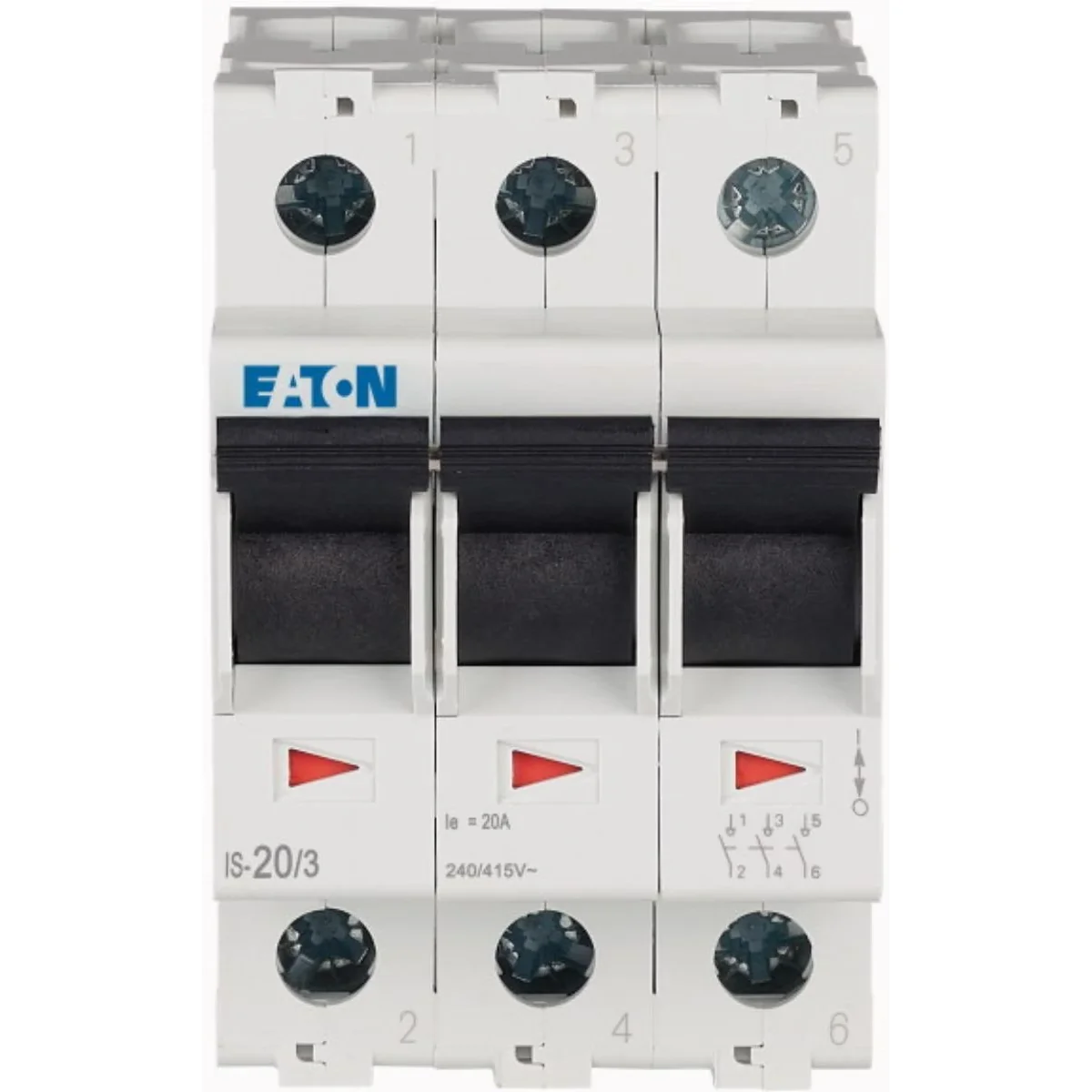

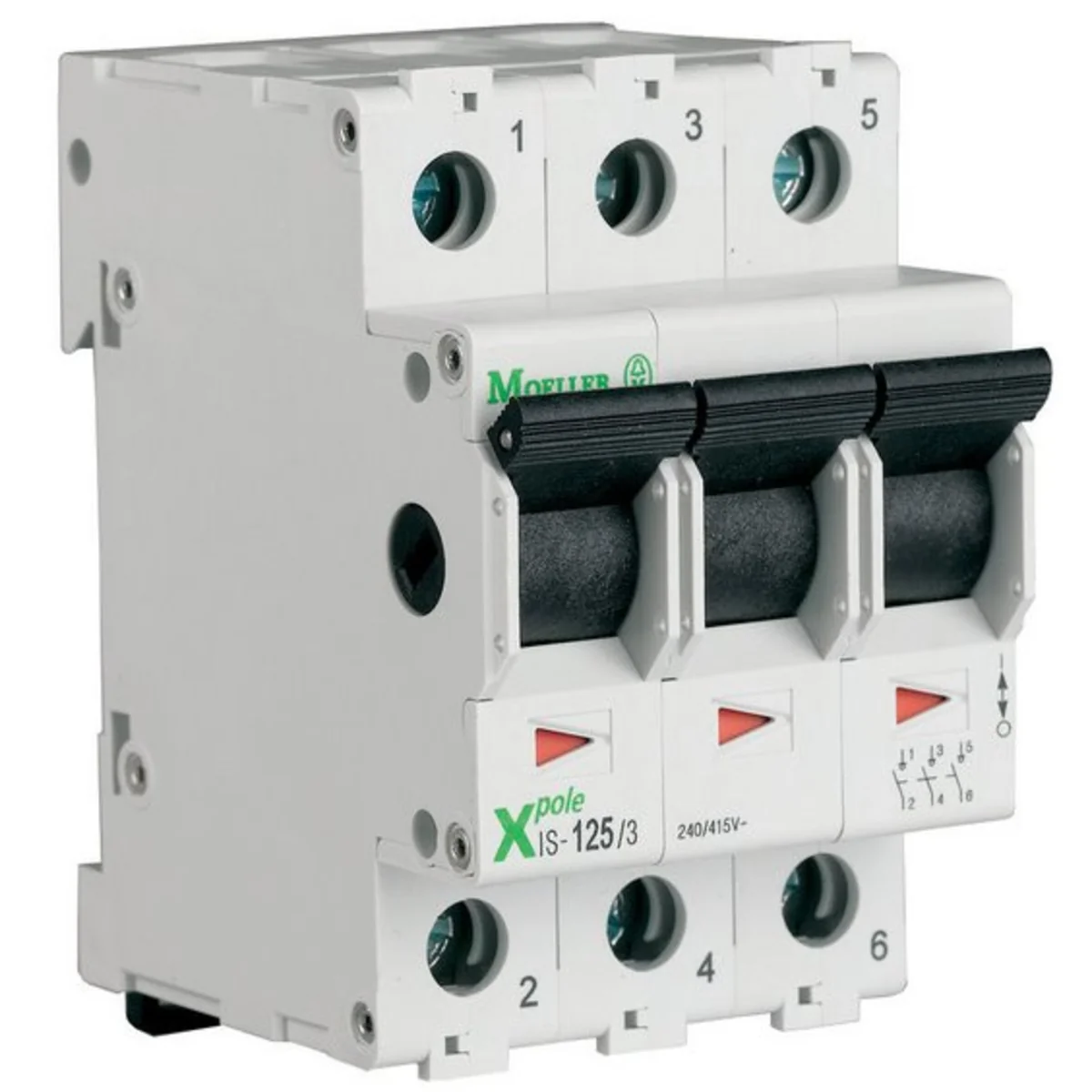

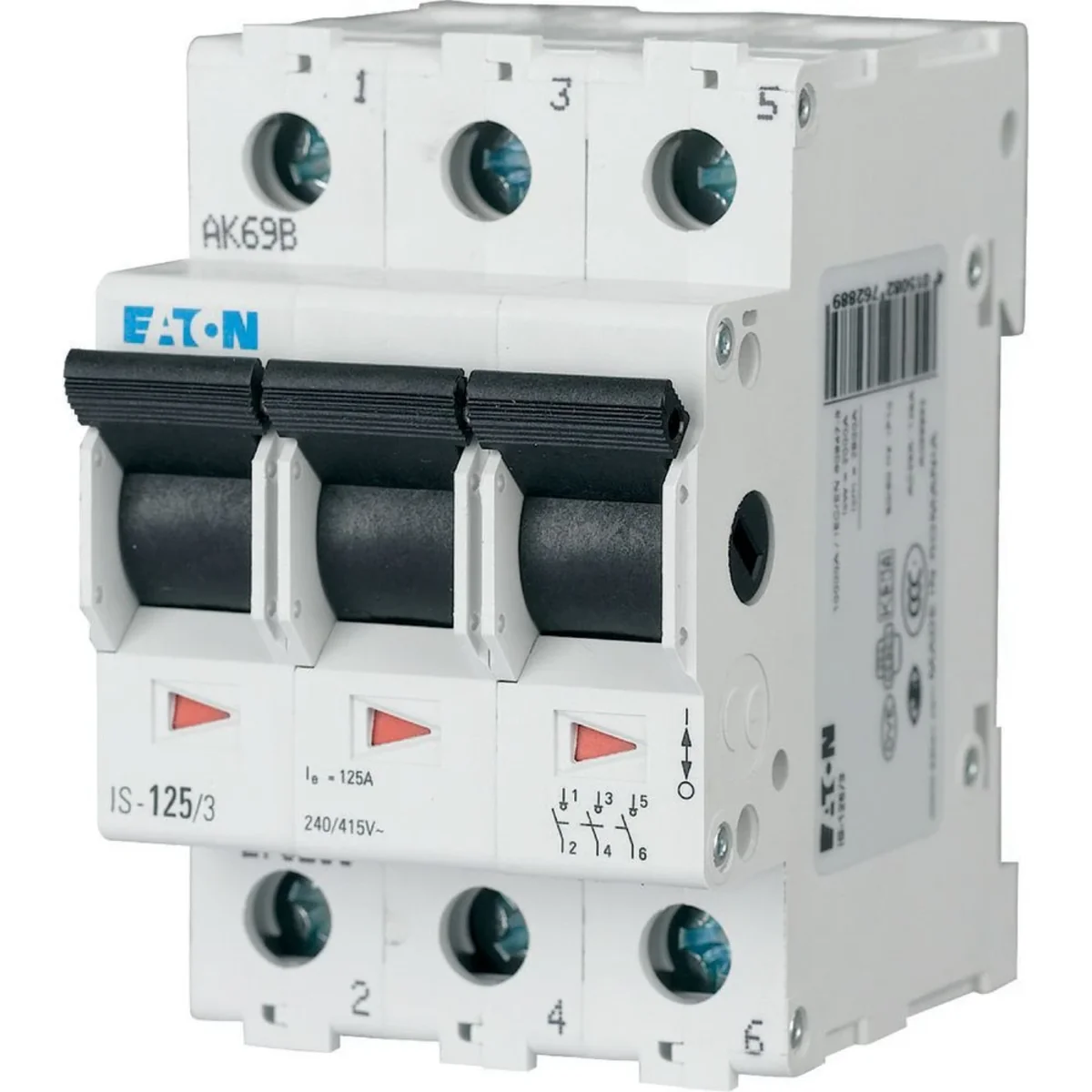

Click on the photo to enlarge

Manufacturer: EATON

Number of modules: 3

Number of poles: 3

Rated voltage [V]: 400

See full description

Price:

30,12 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

The main (insulating) switch of the IS series by EATON. It is used to disconnect the electrical installation and is used to disconnect individual electrical circuits and as the main power switch in buildings.

Technical data

Number of modules

3
Rated voltage [V]

400
Level of security

IP40

Number of poles

3
Rated current [A]

20
Rated short-circuit breaking capacity [kA]

6-12.5

Other technical data

Switching function

Other
Number of contacts as normally closed contact

3
Number of poles

3
Rated voltage

415 V
Rated switching capacity

12.5 kA
Voltage type

AC
Colour calotte

Other
Lamp socket

Other
Width in number of modular spacings

3
Degree of protection (IP)

IP40

Number of contacts as normally open contact

3
Number of contacts as change-over contact

0
Rated current

20 A
Min. rated voltage

240 V
Short-circuit breaking capacity (Icw)

2 kA
With signal lamp

No
Lamp type

Other
Max. lamp power

0 W
Built-in depth

69.5 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	40 pcs.
Weight (kg)	0,305	0,323	13,109
Volume (m3)	0,000	0,000	0,016
Width (m)	0,053	0,055	0,180
Length (m)	0,060	0,086	0,385
Depth (m)	0,080	0,075	0,230
