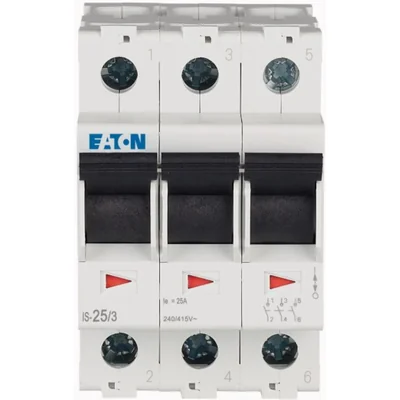

Main isolating switch, 25A, IS-25/3 276264

local index:
ALI125MOEL
Catalog No:
276264
EAN code:
4015082762643
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 25
Price:
30,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

• Version for standard rated currents
• For mounting on a standard rail
• Application in industrial switchboards and in housing

Technical data

  • Number of poles
    3
  • Rated current [A]
    25

Other technical data

  • Switching function
    Other
  • Number of contacts as normally closed contact
    3
  • Number of poles
    3
  • Rated voltage
    415 V
  • Rated switching capacity
    12.5 kA
  • Voltage type
    AC
  • Colour calotte
    Other
  • Lamp socket
    Other
  • Width in number of modular spacings
    3
  • Degree of protection (IP)
    IP40
  • Number of contacts as normally open contact
    3
  • Number of contacts as change-over contact
    0
  • Rated current
    25 A
  • Min. rated voltage
    240 V
  • Short-circuit breaking capacity (Icw)
    2 kA
  • With signal lamp
    No
  • Lamp type
    Other
  • Max. lamp power
    0 W
  • Built-in depth
    69.5 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 40 pcs.
Weight (kg) 0,323 13,109
Volume (m3) 0,000 0,016
Width (m) 0,055 0,180
Length (m) 0,086 0,385
Depth (m) 0,075 0,230
