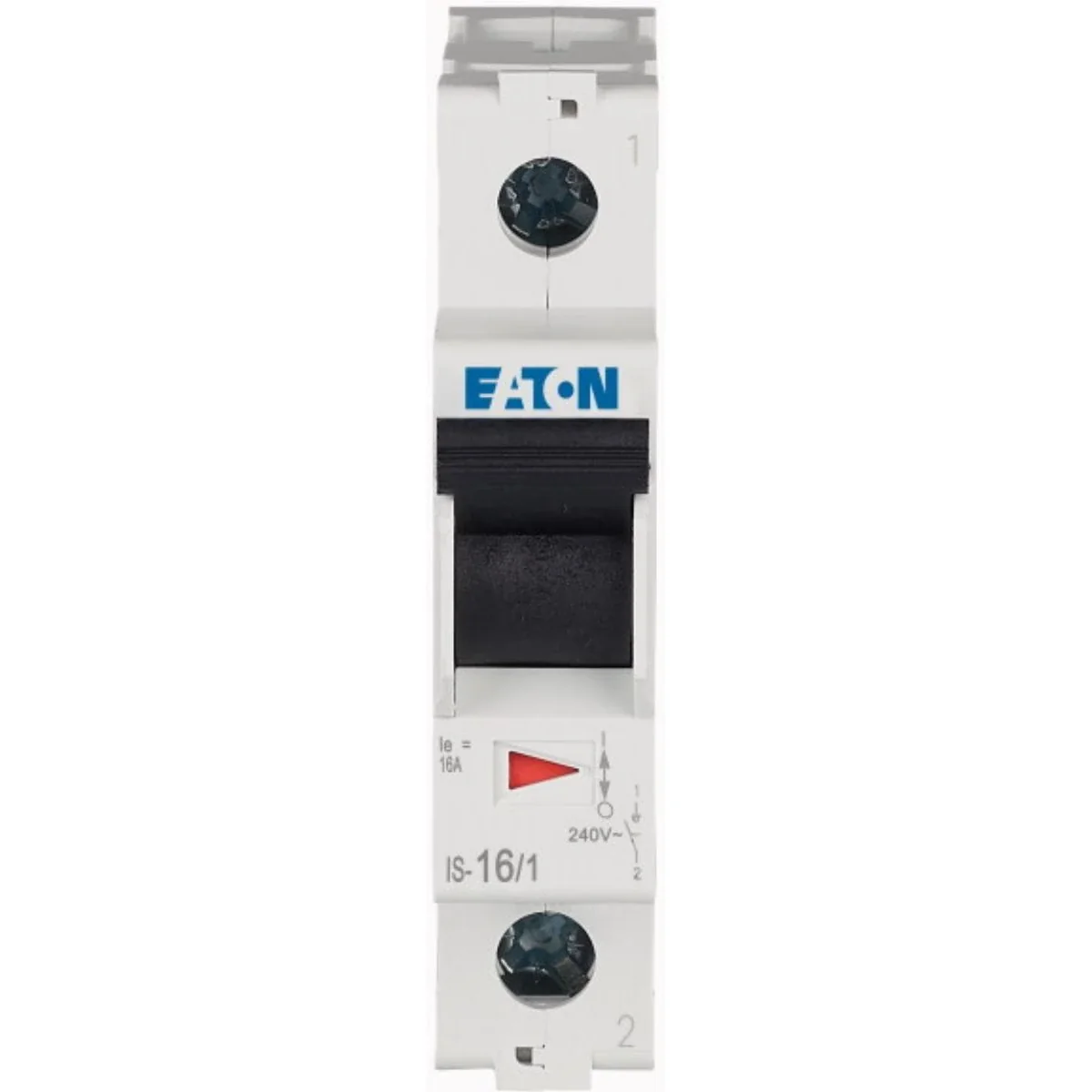

Main isolating switch, 16A, IS-16/1 276254
local index:
ALI091MOEL
Catalog No:
276254
EAN code:
4015082762544
Price:
13,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
12
)
Add to clipboard
Print
Ask about the product
Product description
• Version for standard rated currents
• For mounting on a standard rail
• Application in industrial switchboards and in housing
• For mounting on a standard rail
• Application in industrial switchboards and in housing
Technical data
-
Number of poles1
-
Rated current [A]16
Other technical data
-
Switching functionOther
-
Number of contacts as normally closed contact1
-
Number of poles1
-
Rated voltage240 V
-
Rated switching capacity12.5 kA
-
Voltage typeAC
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP40
-
Number of contacts as normally open contact1
-
Number of contacts as change-over contact0
-
Rated current16 A
-
Min. rated voltage240 V
-
Short-circuit breaking capacity (Icw)2 kA
-
With signal lampNo
-
Lamp typeOther
-
Max. lamp power0 W
-
Built-in depth69.5 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 120 pcs. |
| Weight (kg) | 0,100 | 0,104 | 1,246 | 12,664 |
| Volume (m3) | 0,000 | 0,000 | 0,001 | 0,016 |
| Width (m) | 0,018 | 0,020 | 0,218 | 0,180 |
| Length (m) | 0,060 | 0,062 | 0,086 | 0,385 |
| Depth (m) | 0,080 | 0,082 | 0,075 | 0,230 |
