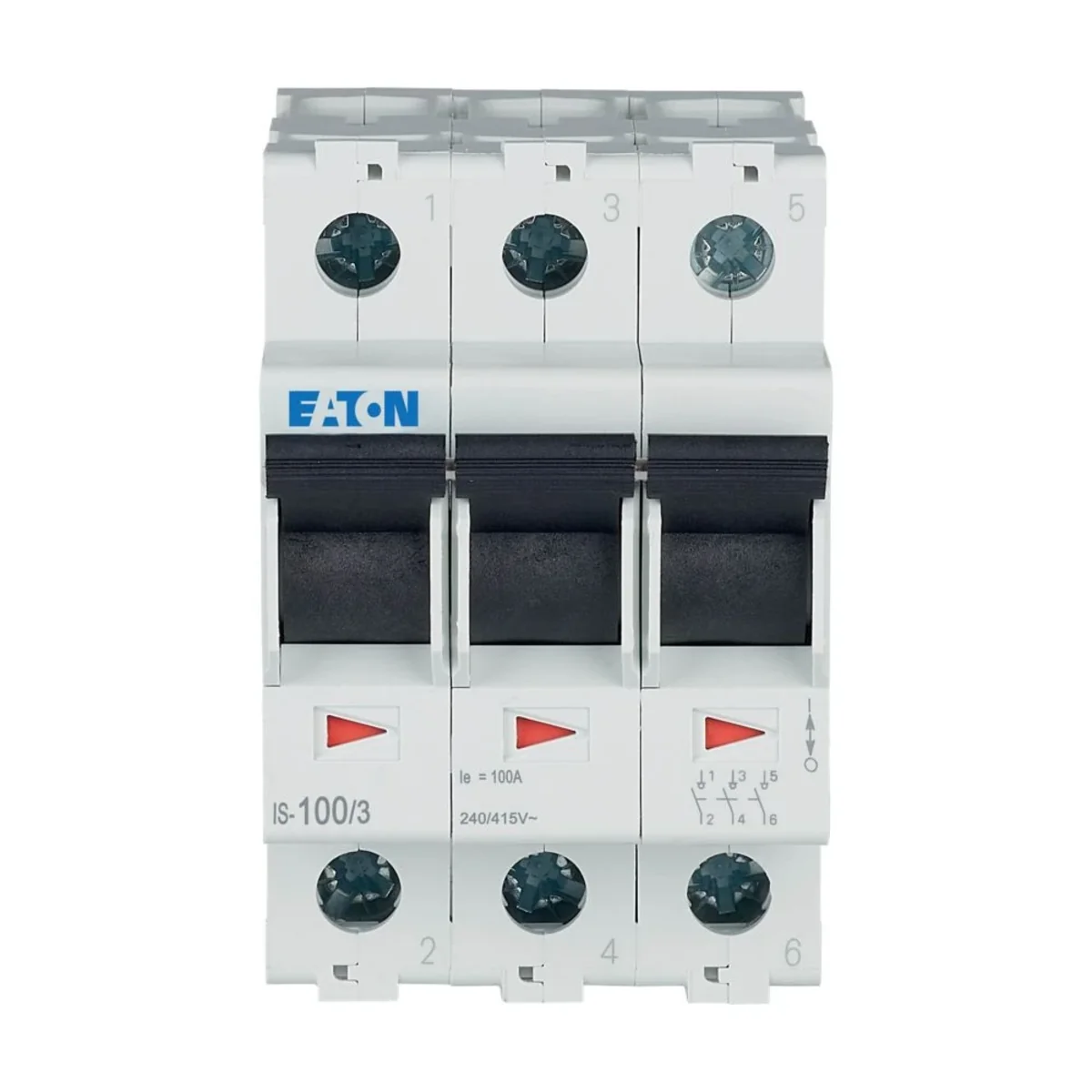

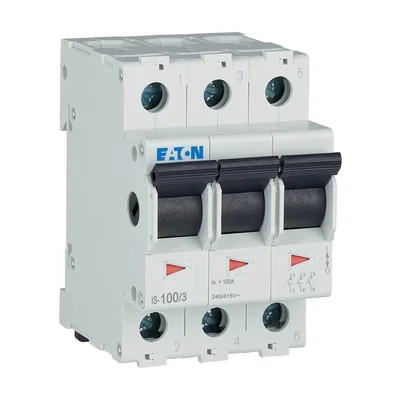

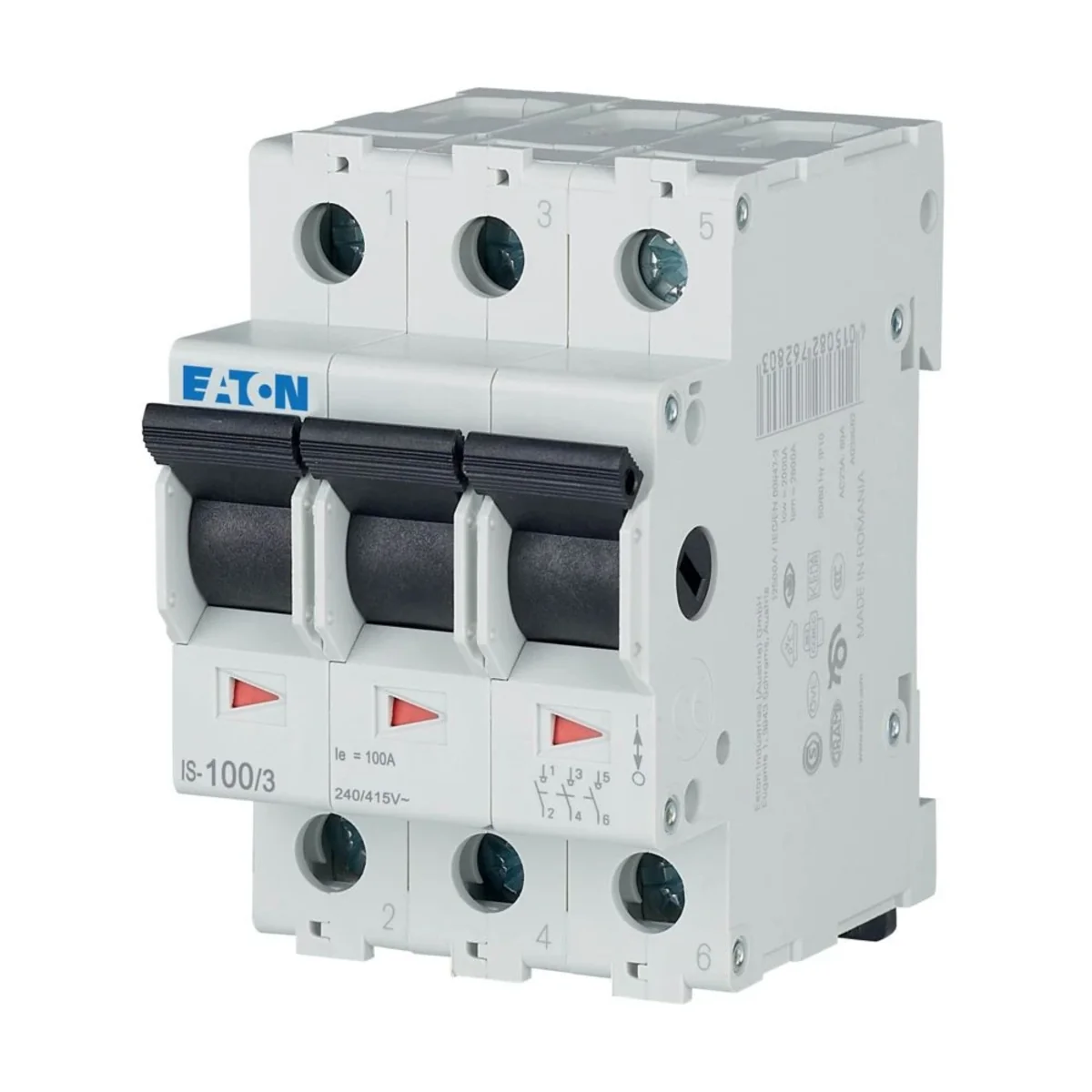

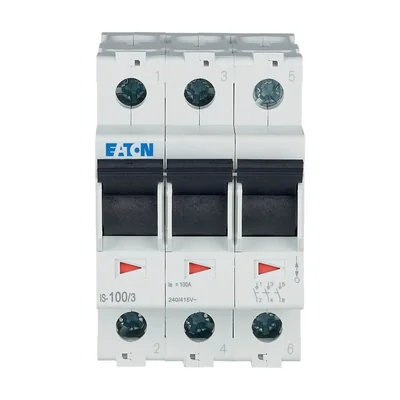

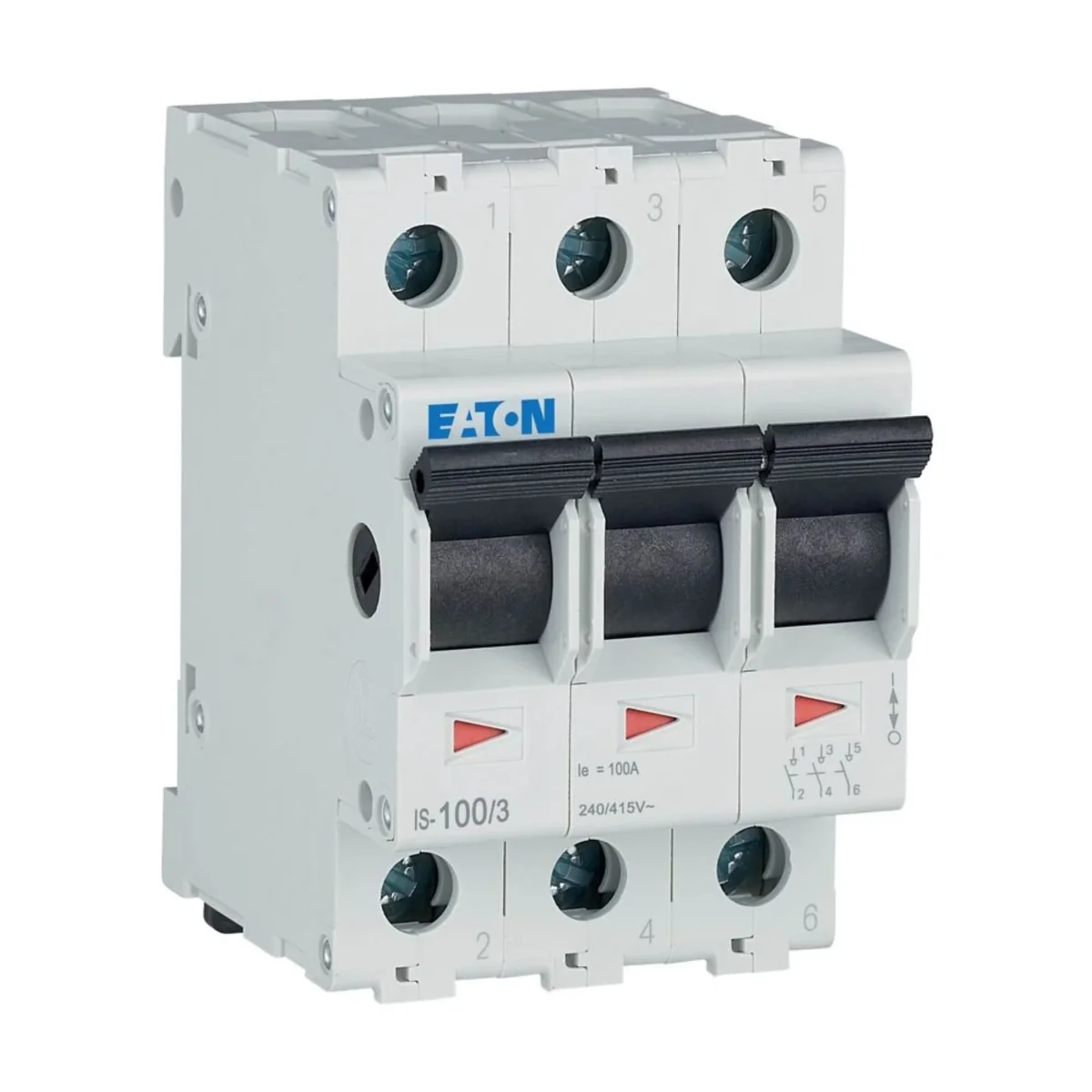

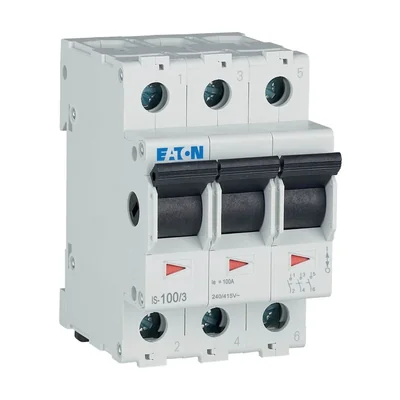

Main isolating switch, 100A, IS-100/3 276284

Name: Main isolating switch, 100A, IS-100/3
Brand: EATON
SKU: ALI094MOEL
Price: 20.00 PLN

local index:

ALI094MOEL

Catalog No:

276284

EAN code:

4015082762841

Click on the photo to enlarge

Manufacturer: EATON

Number of poles: 3

Rated current [A]: 100

See full description

Price:

20,00 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Technical data:

type: IS-100/3

number of poles: 3P

degree of protection (IP): IP40

voltage rated: 240V AC

rated current: 100 A

use category: AC22

width: 17.5mm (3 mod.)

section of connecting wires: 2.5-50 mm2

mounting: TS35 mm rail

Technical data

Number of poles

3
PKWIU

27.12.10.0

Rated current [A]

100

Other technical data

Switching function

Other
Number of contacts as normally closed contact

0
Number of poles

3
Rated voltage

415 V
Rated switching capacity

12.5 kA
Voltage type

AC
Colour calotte

Other
Lamp socket

Other
Width in number of modular spacings

3
Degree of protection (IP)

IP40

Number of contacts as normally open contact

0
Number of contacts as change-over contact

0
Rated current

100 A
Min. rated voltage

240 V
Short-circuit breaking capacity (Icw)

2 kA
With signal lamp

No
Lamp type

Other
Max. lamp power

0 W
Built-in depth

69.5 mm

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	40 pcs.
Weight (kg)	0,336	13,467
Volume (m3)	0,000	0,016
Width (m)	0,055	0,180
Length (m)	0,086	0,385
Depth (m)	0,075	0,230
