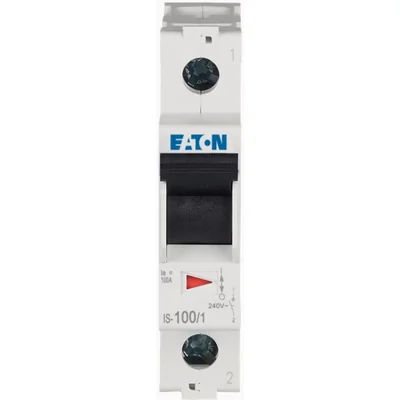

Main isolating switch, 100A, IS-100/1 276282

local index:
ALI092MOEL
Catalog No:
276282
EAN code:
4015082762827
Manufacturer: EATON
Number of poles: 1
Rated current [A]: 100
Price:
9,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
12
)
Add to clipboard
Print

Product description

• Version for standard rated currents
• For mounting on a standard rail
• Application in industrial switchboards and in housing

Technical data

  • Number of poles
    1
  • PKWIU
    27.12.10.0
  • Rated current [A]
    100

Other technical data

  • Switching function
    Other
  • Number of contacts as normally closed contact
    1
  • Number of poles
    1
  • Rated voltage
    240 V
  • Rated switching capacity
    10 kA
  • Voltage type
    AC
  • Colour calotte
    Other
  • Lamp socket
    Other
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP40
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Rated current
    100 A
  • Min. rated voltage
    240 V
  • Short-circuit breaking capacity (Icw)
    2 kA
  • With signal lamp
    No
  • Lamp type
    Other
  • Max. lamp power
    0 W
  • Built-in depth
    69.5 mm

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,105 1,256 12,755
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,218 0,180
Length (m) 0,082 0,086 0,385
Depth (m) 0,078 0,075 0,230
