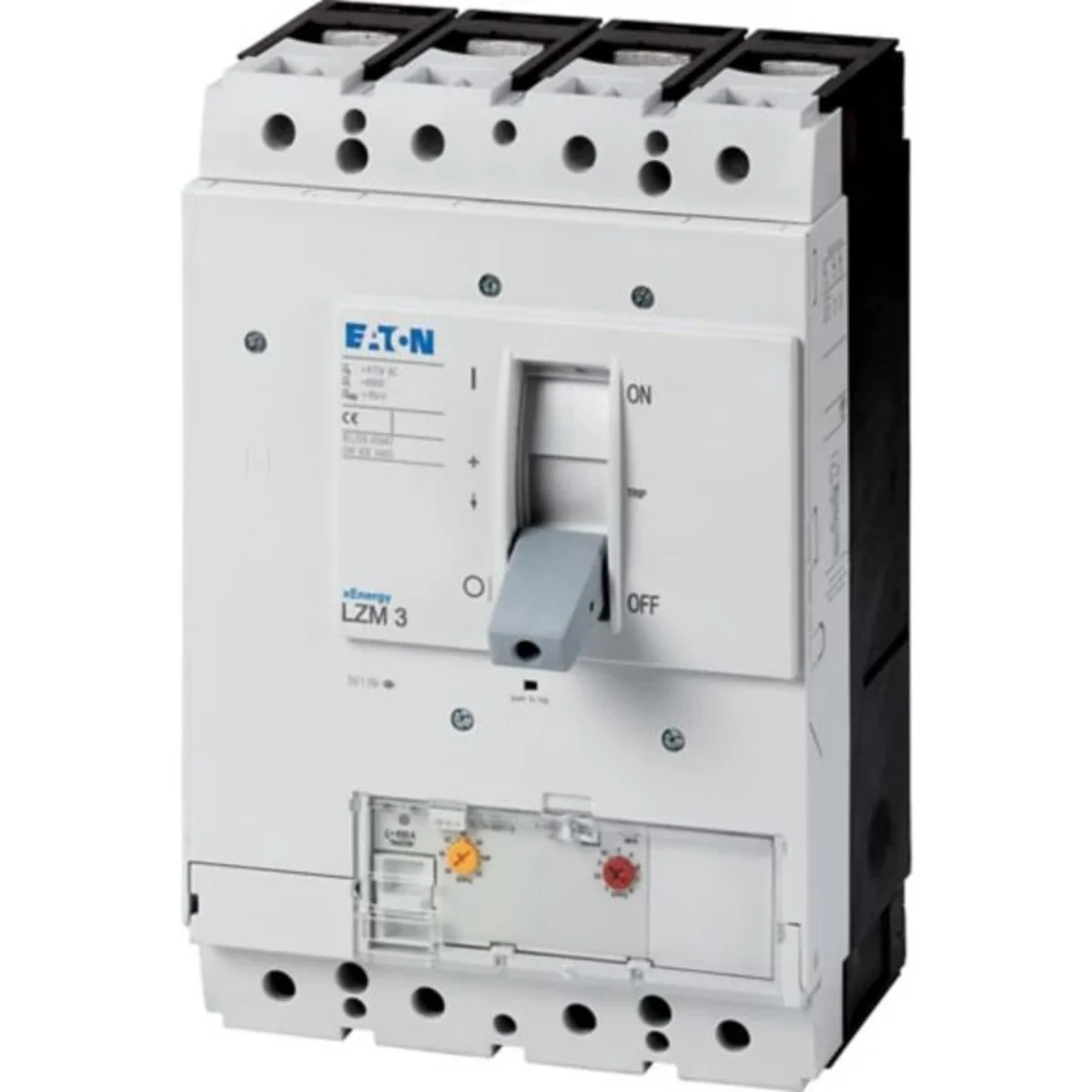

LZM3 power circuit breaker, 4-pole, Ir=250-320A 116473
local index:
ALP071MOEL
Catalog No:
116473
EAN code:
4015081162154
Price:
1287,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
LZM2 power circuit breaker, 4-pole, rated current 250-320A
Technical data
-
Number of poles4
-
Rated current [A]320
Other technical data
-
Rated permanent current Iu320 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalNo
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles4
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting250 ... 320 A
-
Adjustment range undelayed short-circuit release1920 ... 3200 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Z wyzwalaczem podnapięciowymNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 7,580 |
| Volume (m3) | 0,011 |
| Width (m) | 0,200 |
| Length (m) | 0,337 |
| Depth (m) | 0,165 |
