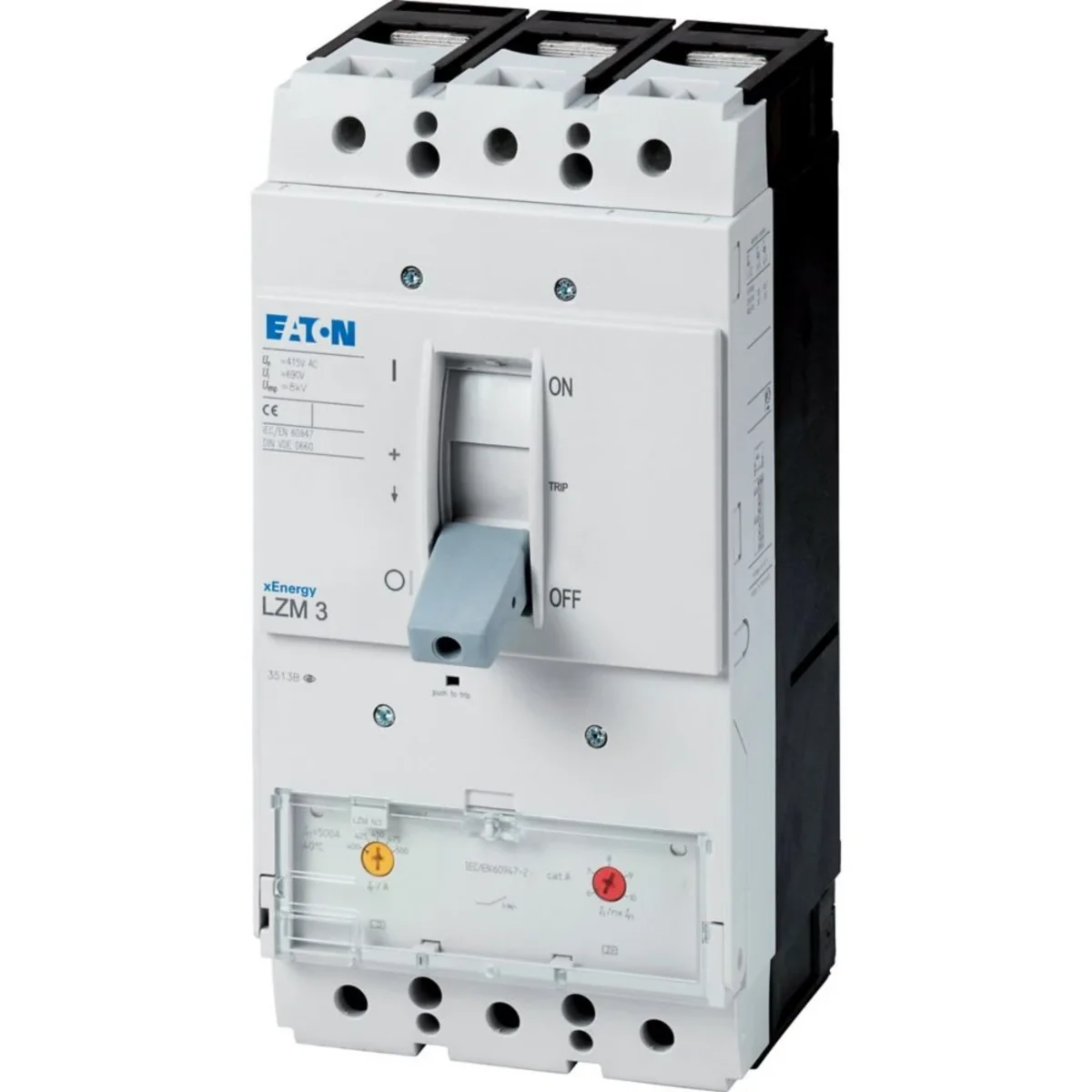

LZM3 power circuit breaker, 3-pole, 400-500A 111968

local index:
ALI128MOEL
Catalog No:
111968
EAN code:
4015081115167
Manufacturer: EATON
Number of poles: 3
Rated current [A]: 500
Current setting range [A] to: 500
Price:
1121,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LZM3 power circuit breaker, rated current 400-500A, 3-pole

Technical data

  • Number of poles
    3
  • Current setting range [A] to
    500
  • Rated current [A]
    500
  • Current setting range [A] from
    400

Other technical data

  • Rated permanent current Iu
    500 A
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50 kA
  • Adjustment range short-term delayed short-circuit release
    0 ... 0 A
  • Integrated earth fault protection
    No
  • Device construction
    Built-in device fixed built-in technique
  • DIN rail (top hat rail) mounting optional
    No
  • Number of auxiliary contacts as normally open contact
    0
  • With switched-off indicator
    No
  • Number of poles
    3
  • Type of control element
    Rocker lever
  • Motor drive integrated
    No
  • Degree of protection (IP)
    IP20
  • Rated voltage
    690 ... 690 V
  • Overload release current setting
    400 ... 500 A
  • Adjustment range undelayed short-circuit release
    3000 ... 5000 A
  • Type of electrical connection of main circuit
    Screw connection
  • Suitable for DIN rail (top hat rail) mounting
    No
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Z wyzwalaczem podnapięciowym
    No
  • Position of connection for main current circuit
    Front side
  • Complete device with protection unit
    Yes
  • Motor drive optional
    Yes

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 6,148
Volume (m3) 0,010
Width (m) 0,165
Length (m) 0,330
Depth (m) 0,180
