LZM2 power circuit breaker, 3-pole, 240-300A 111941
local index:
ALM251MOEL
Catalog No:
111941
EAN code:
4015081114894
Price:
730,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

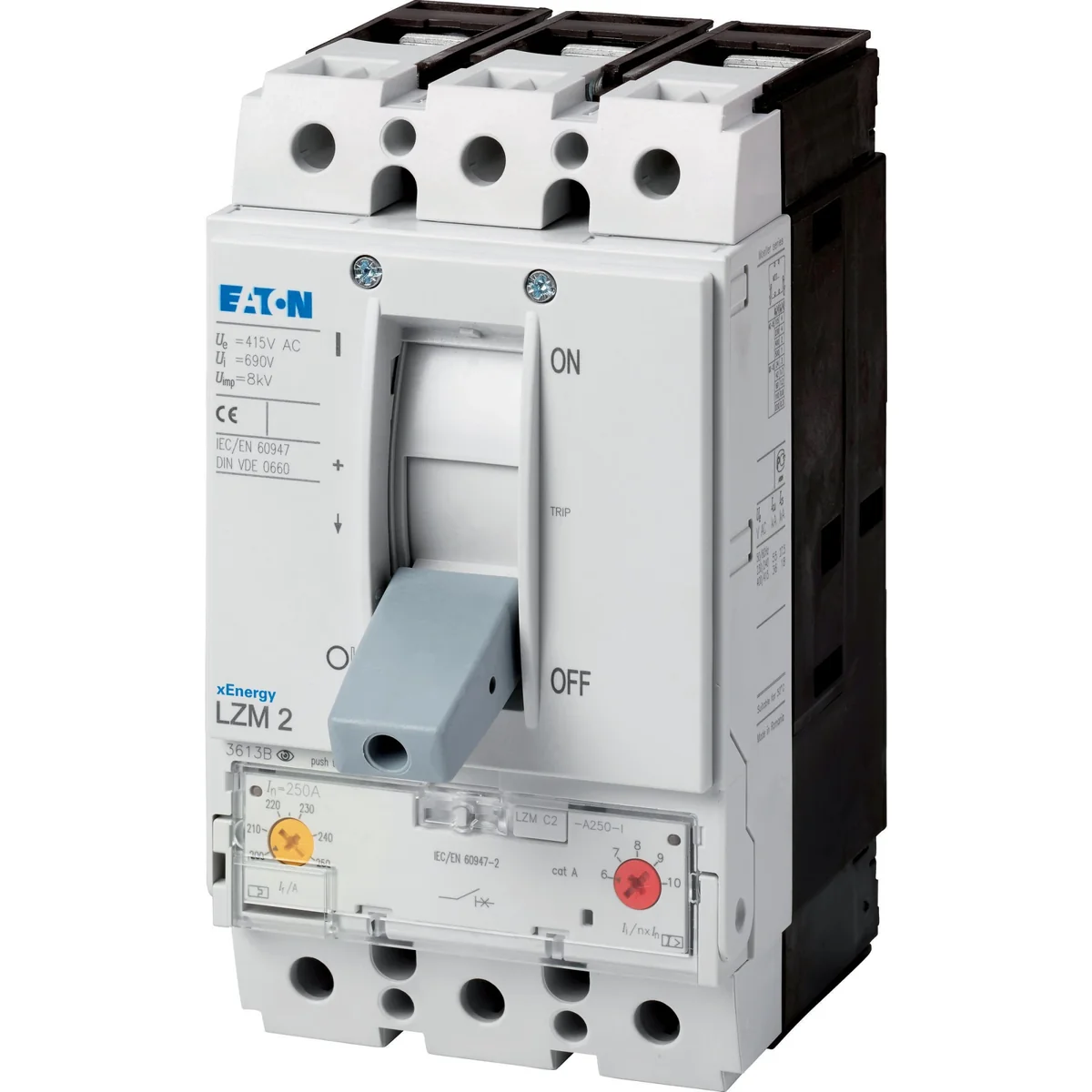

LZM2 power circuit breaker, rated current 240-300A, 3-pole
Technical data
-
Number of poles3
-
PKWIU27.40.12.0
-
Rated current [A]300
Other technical data
-
Rated permanent current Iu300 A
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz36 kA
-
Adjustment range short-term delayed short-circuit release0 ... 0 A
-
Integrated earth fault protectionNo
-
Device constructionBuilt-in device fixed built-in technique
-
DIN rail (top hat rail) mounting optionalYes
-
Number of auxiliary contacts as normally open contact0
-
With switched-off indicatorNo
-
Number of poles3
-
Type of control elementRocker lever
-
Motor drive integratedNo
-
Degree of protection (IP)IP20
-
Rated voltage690 ... 690 V
-
Overload release current setting240 ... 300 A
-
Adjustment range undelayed short-circuit release2000 ... 2500 A
-
Type of electrical connection of main circuitScrew connection
-
Suitable for DIN rail (top hat rail) mountingNo
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Z wyzwalaczem podnapięciowymNo
-
Position of connection for main current circuitFront side
-
Complete device with protection unitYes
-
Motor drive optionalYes
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 2,345 | 2,485 |
| Volume (m3) | 0,003 | 0,003 |
| Width (m) | 0,105 | 0,108 |
| Length (m) | 0,142 | 0,186 |
| Depth (m) | 0,185 | 0,148 |
