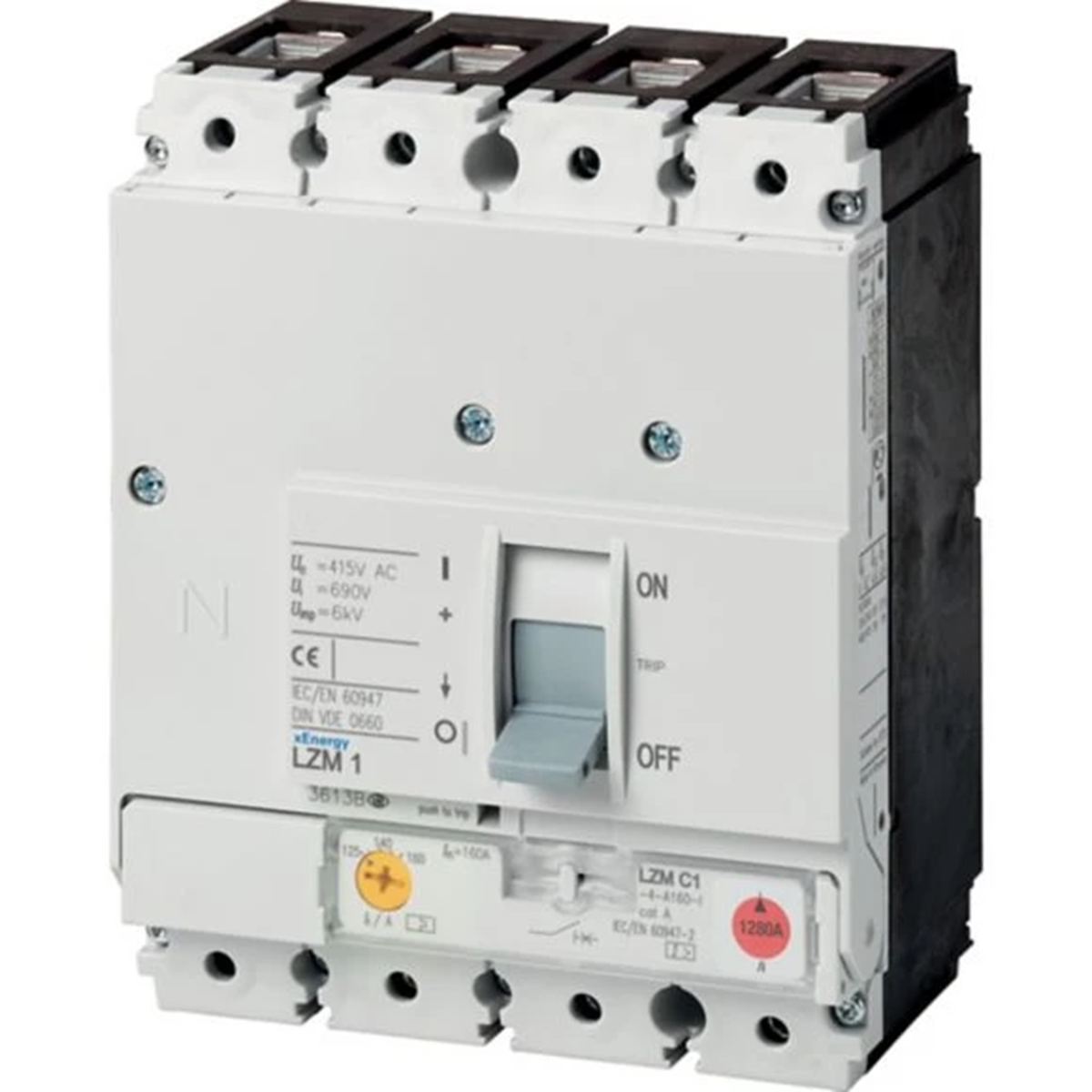

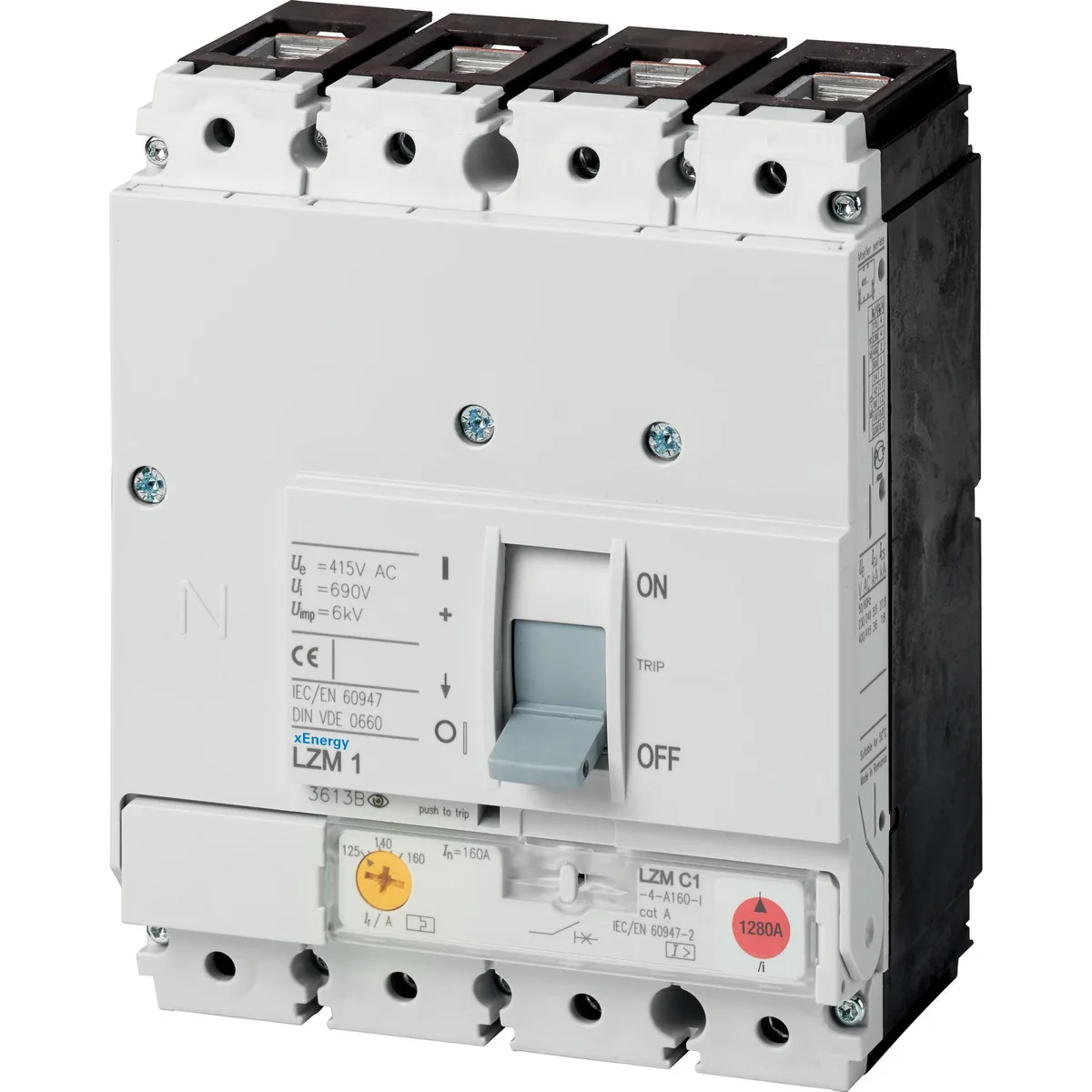

LZM1 power circuit breaker, 4-pole, 50-63A 111913
local index:
ALI368MOEL
Catalog No:
111913
EAN code:
4015081114610
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
4
Rated current [A]:
63
See full description
Price:
192,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
LZM1 power circuit breaker, rated current 40-63A, 4-pole
Technical data
Number of poles
4
PKWIU
25.11.23.0
Rated current [A]
63
Other technical data
Rated permanent current Iu
63 A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36 kA
Adjustment range short-term delayed short-circuit release
0 ... 0 A
Integrated earth fault protection
No
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally open contact
0
With switched-off indicator
No
Number of poles
4
Type of control element
Rocker lever
Motor drive integrated
No
Degree of protection (IP)
IP20
Rated voltage
690 ... 690 V
Overload release current setting
50 ... 63 A
Adjustment range undelayed short-circuit release
380 ... 630 A
Type of electrical connection of main circuit
Frame clamp
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Z wyzwalaczem podnapięciowym
No
Position of connection for main current circuit
Front side
Complete device with protection unit
Yes
Motor drive optional
No
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
1,384
Volume (m3)
0,002
Width (m)
0,121
Length (m)
0,146
Depth (m)
0,090
