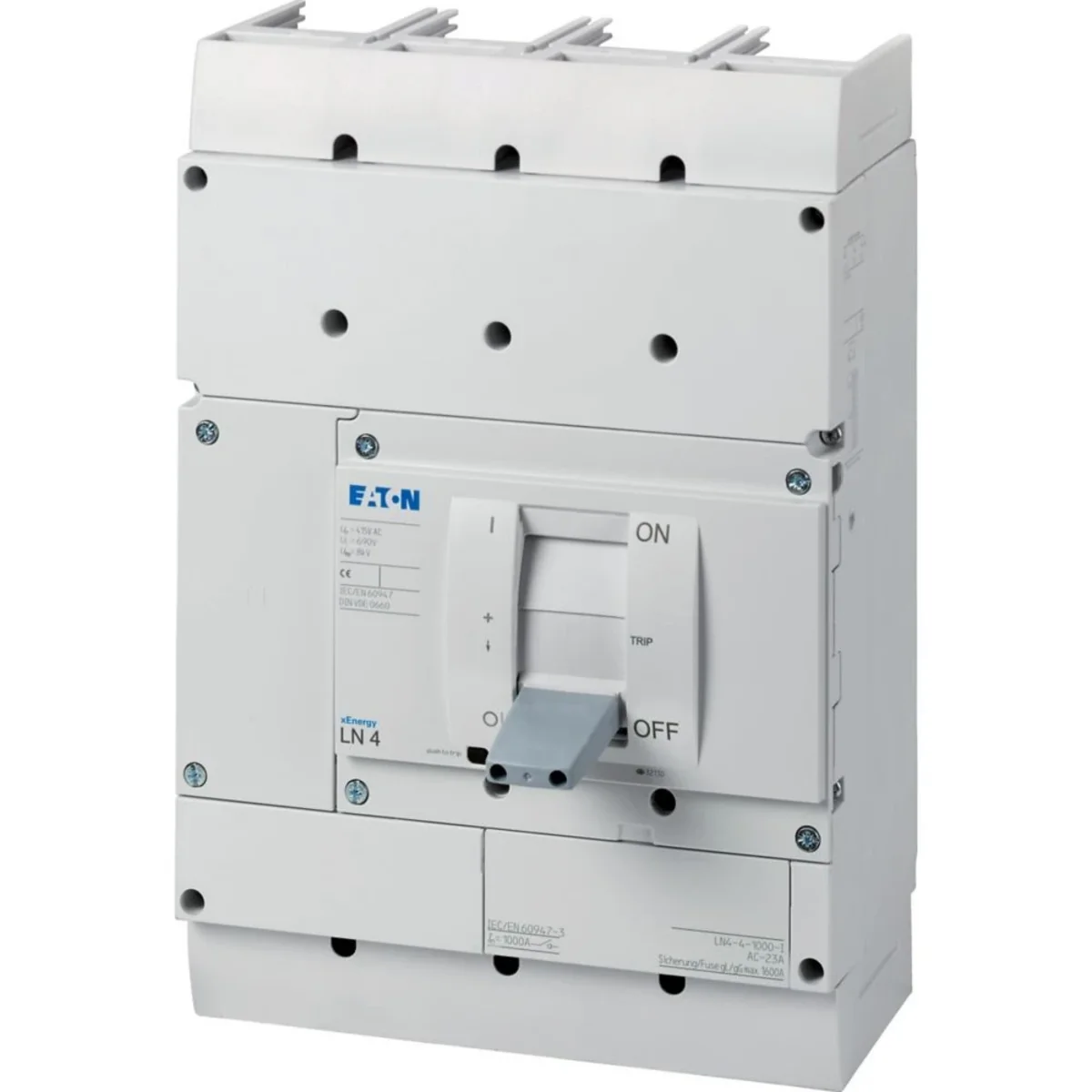

LN4 power switch, 4-pole, 800A 112016

local index:
ALM255MOEL
Catalog No:
112016
EAN code:
4015081115648
Manufacturer: EATON
Number of poles: 4
Rated current [A]: 800
Price:
2114,28 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

LN4 power circuit breaker, 800A rated current, 4 poles

Technical data

  • Number of poles
    4
  • PKWIU
    27.12.24.0
  • Rated current [A]
    800

Other technical data

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    25 kA
  • Switching power at 400 V
    0 kW
  • Number of poles
    4
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    Yes
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Rocker lever
  • Type of electrical connection of main circuit
    Bolt connection
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Max. rated operation voltage Ue AC
    400 V
  • Rated permanent current Iu
    800 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    450 kW
  • Conditioned rated short-circuit current Iq
    100 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    Yes
  • Colour control element
    Grey
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 23,628
Volume (m3) 0,023
Width (m) 0,280
Length (m) 0,401
Depth (m) 0,207
