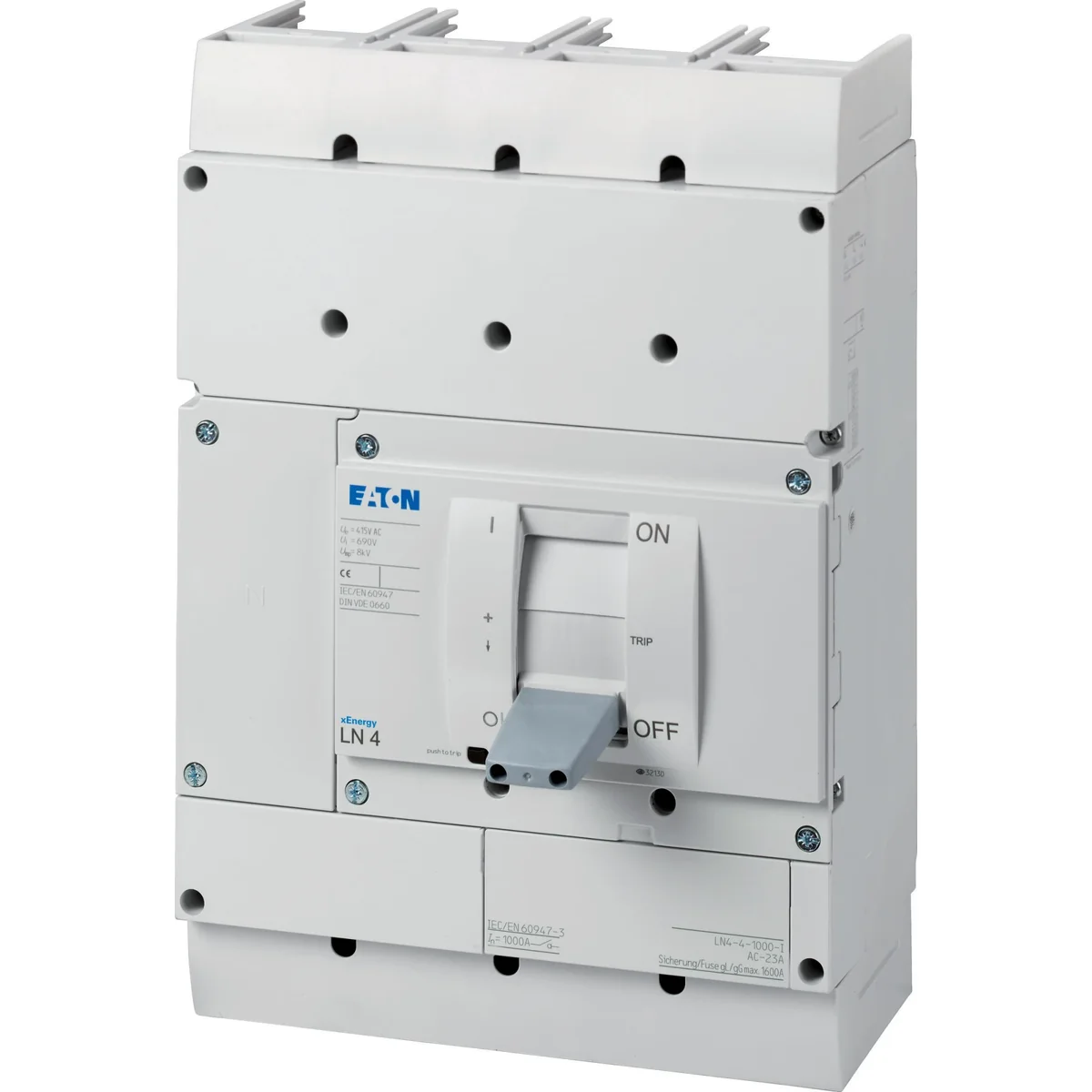

LN4 power switch, 4-pole, 1250A 112018
local index:
ALM257MOEL
Catalog No:
112018
EAN code:
4015081115662
Price:
3357,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
LN4 power circuit breaker, rated current 1250A, 4 poles
Technical data
-
Number of poles4
-
PKWIU27.12.24.0
-
Rated current [A]1250
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw25 kA
-
Switching power at 400 V0 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalYes
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementRocker lever
-
Type of electrical connection of main circuitBolt connection
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Max. rated operation voltage Ue AC400 V
-
Rated permanent current Iu1250 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V710 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementGrey
-
InterlockableYes
-
Degree of protection (IP), front sideIP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 22,000 | 23,628 |
| Volume (m3) | 0,023 | 0,023 |
| Width (m) | 0,280 | 0,280 |
| Length (m) | 0,401 | 0,401 |
| Depth (m) | 0,207 | 0,207 |
