Automation
Circuit breakers, disconnectors
Switches above 160A

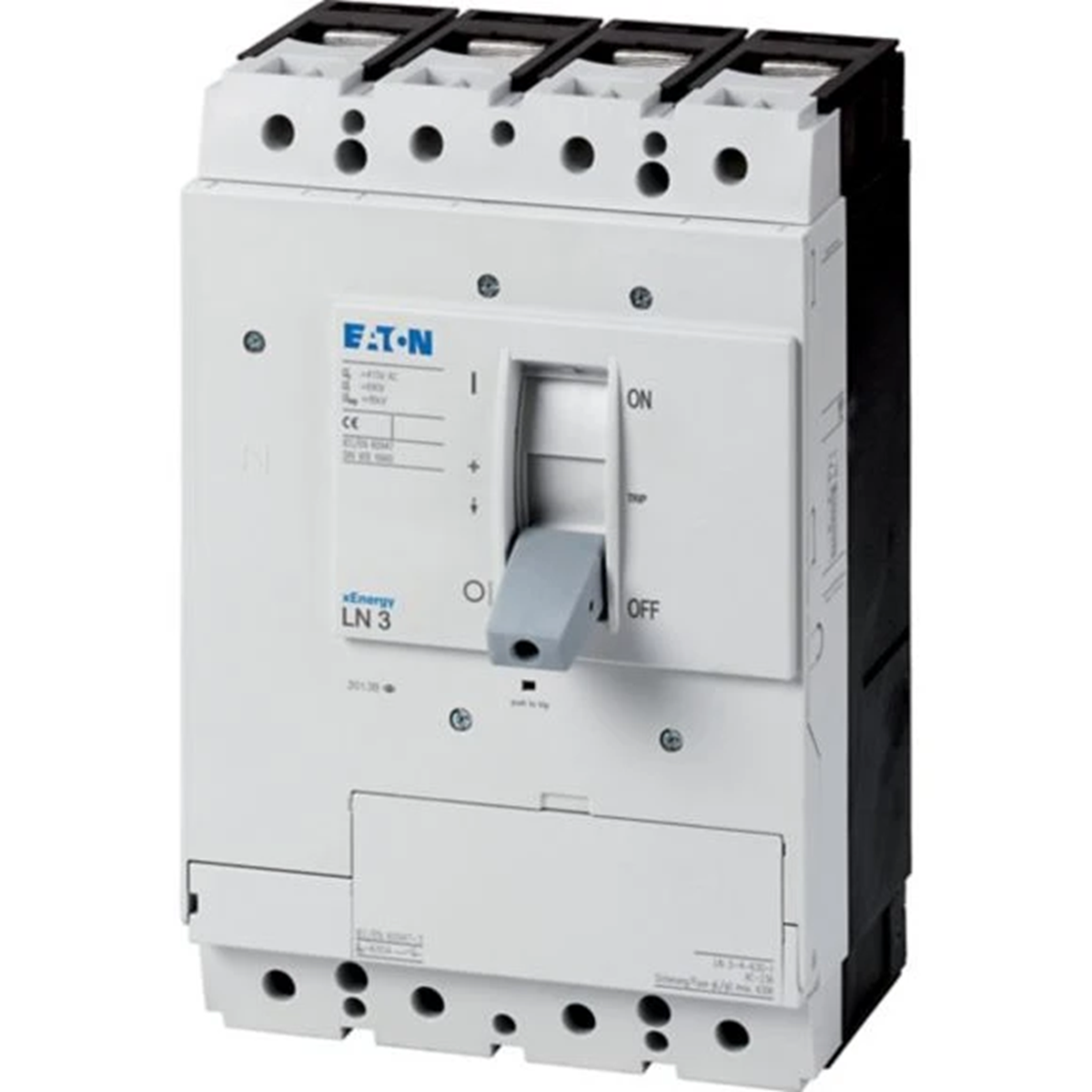

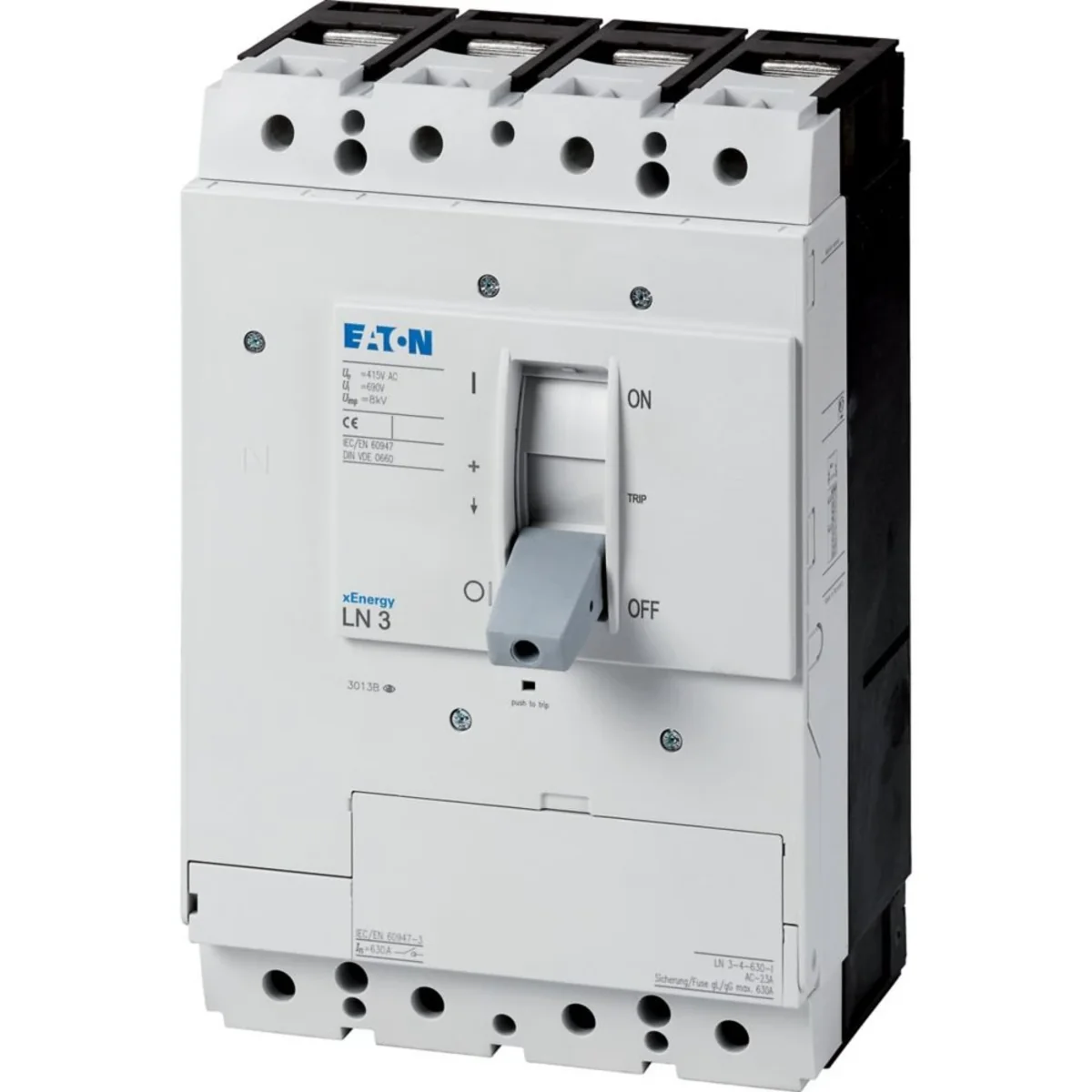

LN3 power switch, 4-pole, 630A 112011
local index:
ALM253MOEL
Catalog No:
112011
EAN code:
4015081115594
Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
4
Rated current [A]:
630
See full description
Price:
1214,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
LN3 power circuit breaker, rated current 630A, 4 poles
Technical data
Number of poles
4
PKWIU
27.33.14.0
Rated current [A]
630
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-21, 400 V
0 A
Rated short-time withstand current lcw
12 kA
Switching power at 400 V
0 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
Yes
Voltage release optional
Yes
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
Yes
Type of control element
Rocker lever
Type of electrical connection of main circuit
Screw connection
Version as maintenance-/service switch
Yes
Version as emergency stop installation
Yes
Max. rated operation voltage Ue AC
400 V
Rated permanent current Iu
630 A
Rated operation power at AC-3, 400 V
0 kW
Rated operation power at AC-23, 400 V
315 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Grey
Interlockable
Yes
Degree of protection (IP), front side
IP20
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
6,545
Volume (m3)
0,013
Width (m)
0,210
Length (m)
0,340
Depth (m)
0,180
