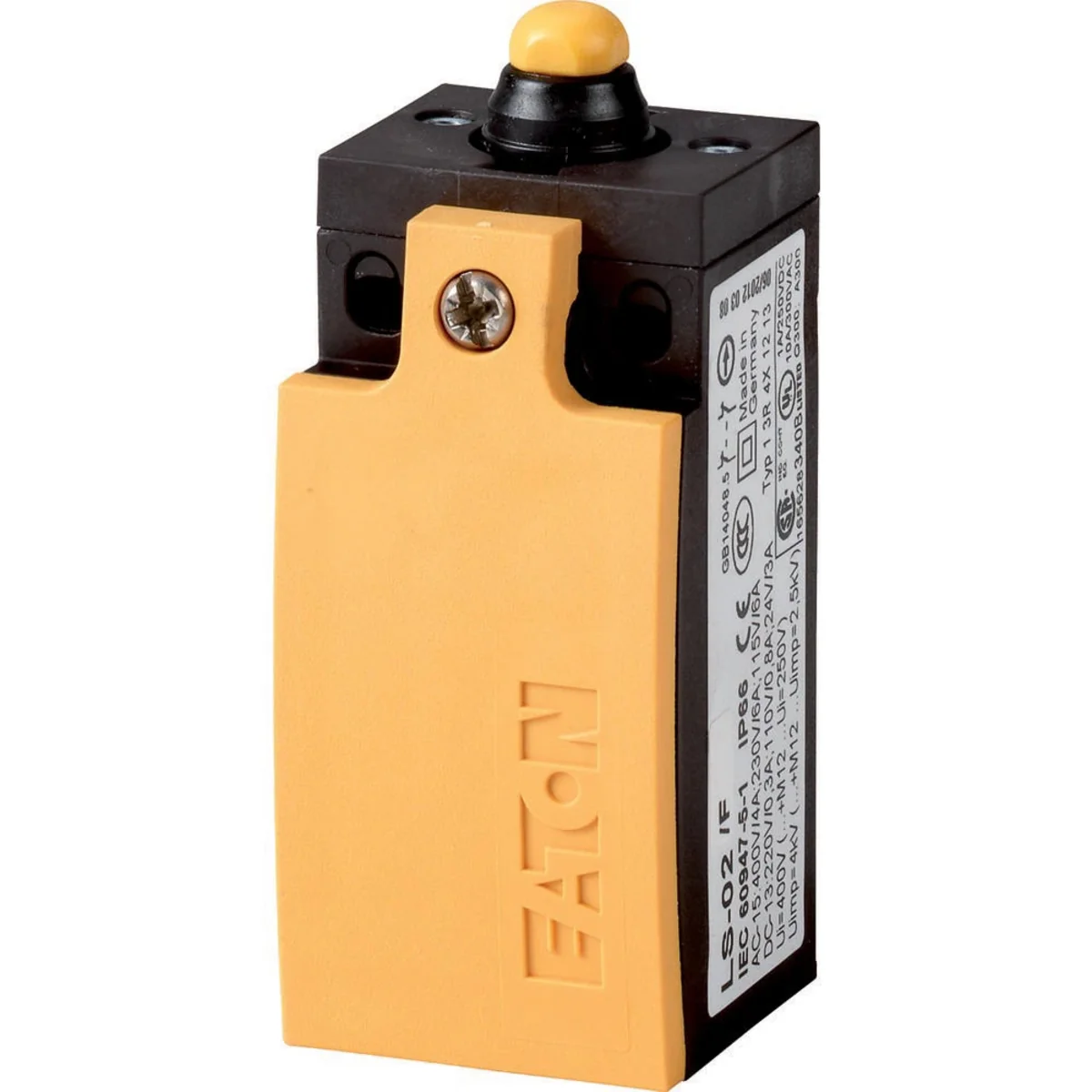

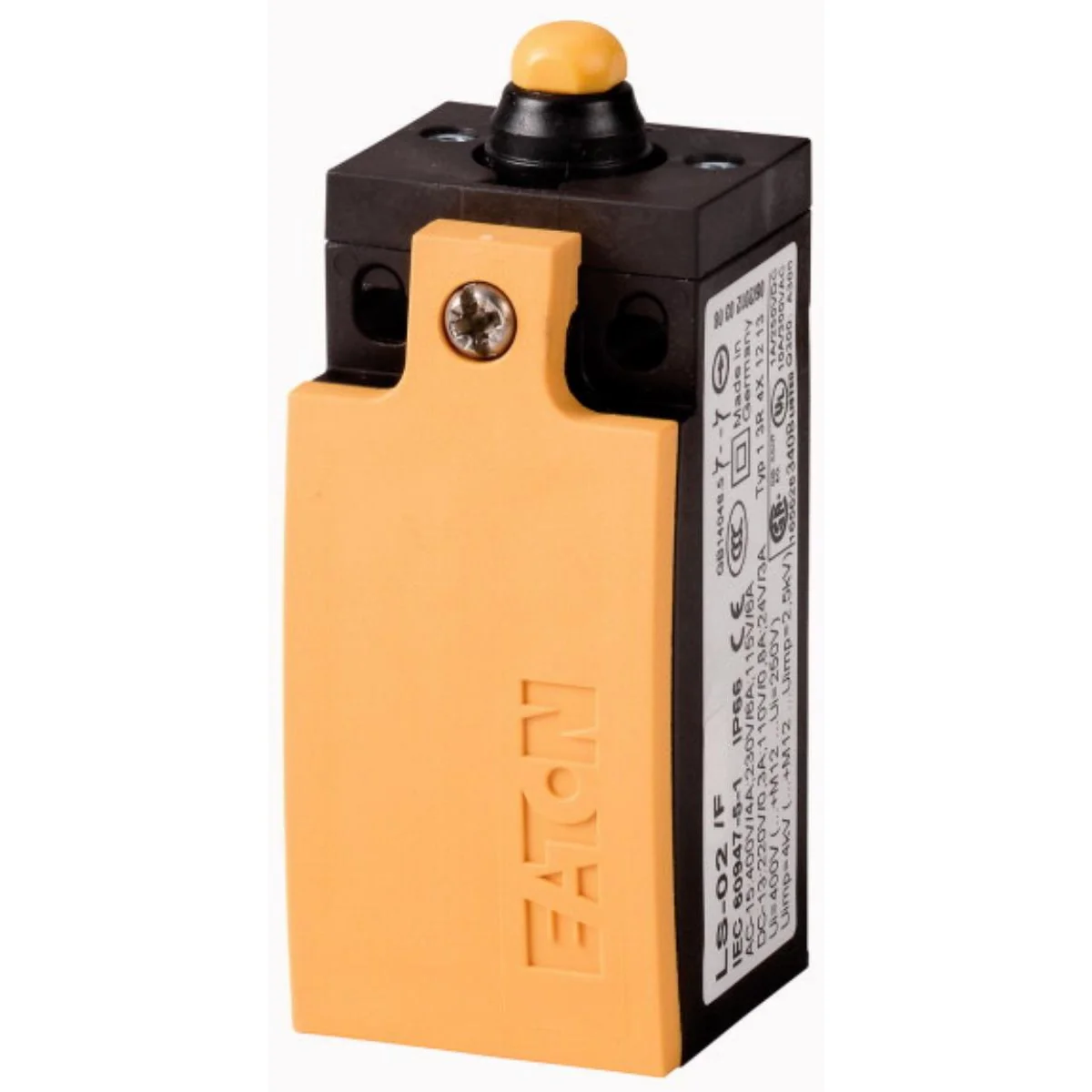

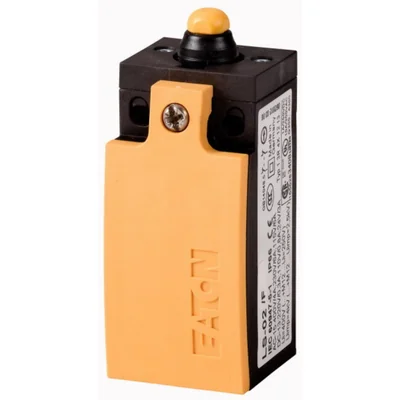

Limit switch without extensions with LSM-11S/F drive head 292374
local index:
ALC033MOEL
Catalog No:
292374
EAN code:
4015082923747
Price:
58,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Complete sets. Dome pusher, IP66, IP67 (faceplate mount), without drive head extension. The drive head can be repositioned in 90° increments to match the desired drive direction.
Technical data
-
Number of contacts1NO 1NC
-
How to connectCage-Clamp
-
CaseMetal
Other technical data
-
Width sensor31 mm
-
Height of sensor61 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionQuick-break switch
-
Output electronicNo
-
Number of safety auxiliary contacts0
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementRoller cam straight
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.5 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialMetal
-
Type of control elementPlunger
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66/IP67
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,165 |
| Volume (m3) | 0,000 |
| Width (m) | 0,065 |
| Length (m) | 0,068 |
| Depth (m) | 0,075 |
