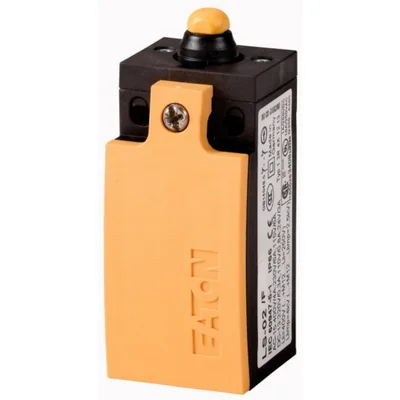

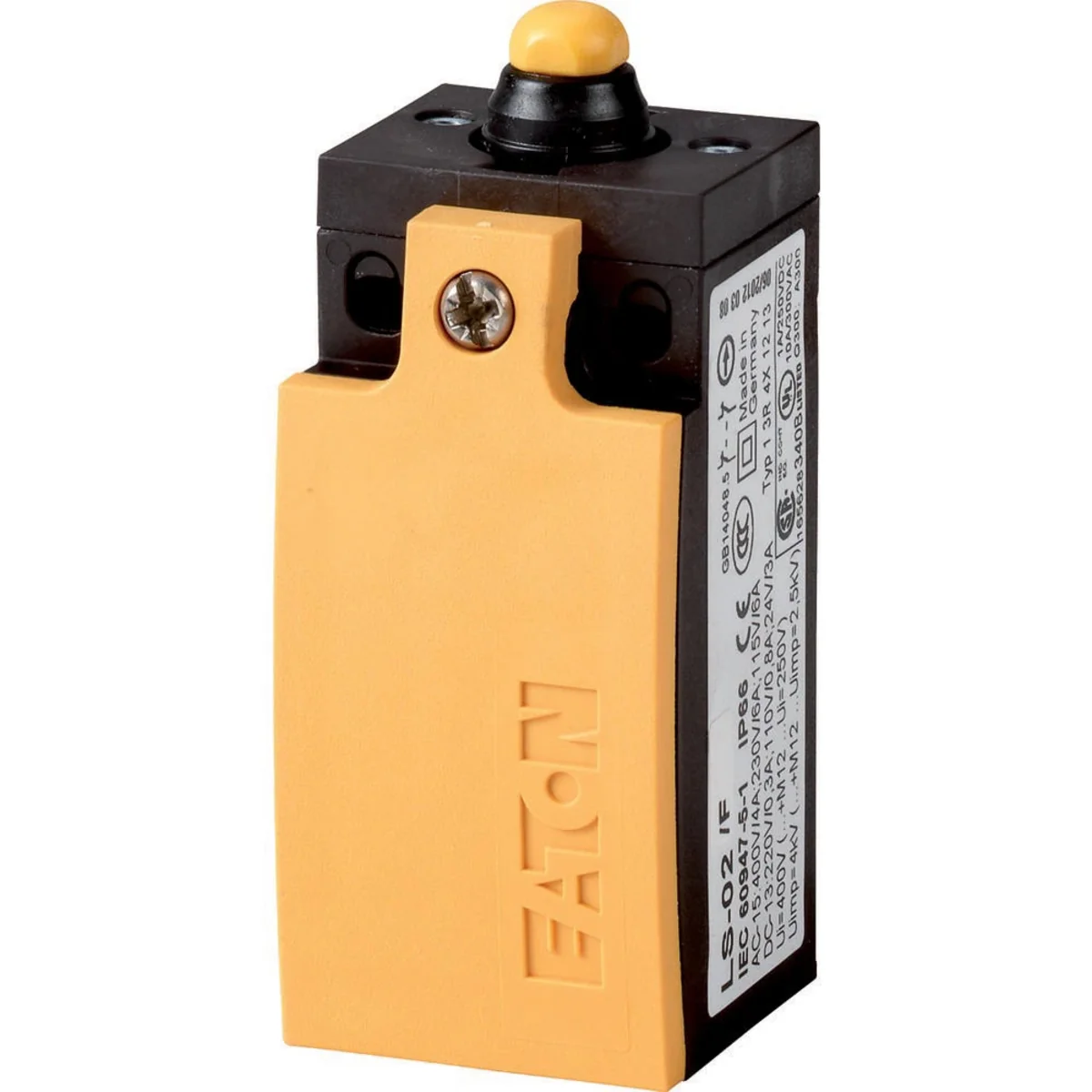

Limit switch without extensions with LSM-11/F drive head 292372

Index local:

ALC008MOEL

Numéro de catalogue:

292372

Code EAN:

4015082923723

Limit switch without extensions with LSM-11/F drive head

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Number of contacts: 1NO 1NC

Case: Material

How to connect: Cage-Clamp

Voir la description complète

249

zł

gross / pcs. (y compris la TVA 23%)

Dostępne jusqu'à 2 semaines

Sur commande

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Complete sets. Dome pusher, IP66, IP67 (faceplate mount), without drive head extension. The drive head can be repositioned in 90° increments to match the desired drive direction.

Données techniques

Number of contacts

1NO 1NC
How to connect

Cage-Clamp

Case

Material

Autres données techniques

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Metal
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

Yes
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	CS	CS
Quantité	1 pcs.	1 pcs.
poids (kg)	0,165	0,165
Volume (m3)	0,000	0,000
Largeur (m)	0,065	0,065
Longueur (m)	0,068	0,068
Profondeur (m)	0,075	0,075
