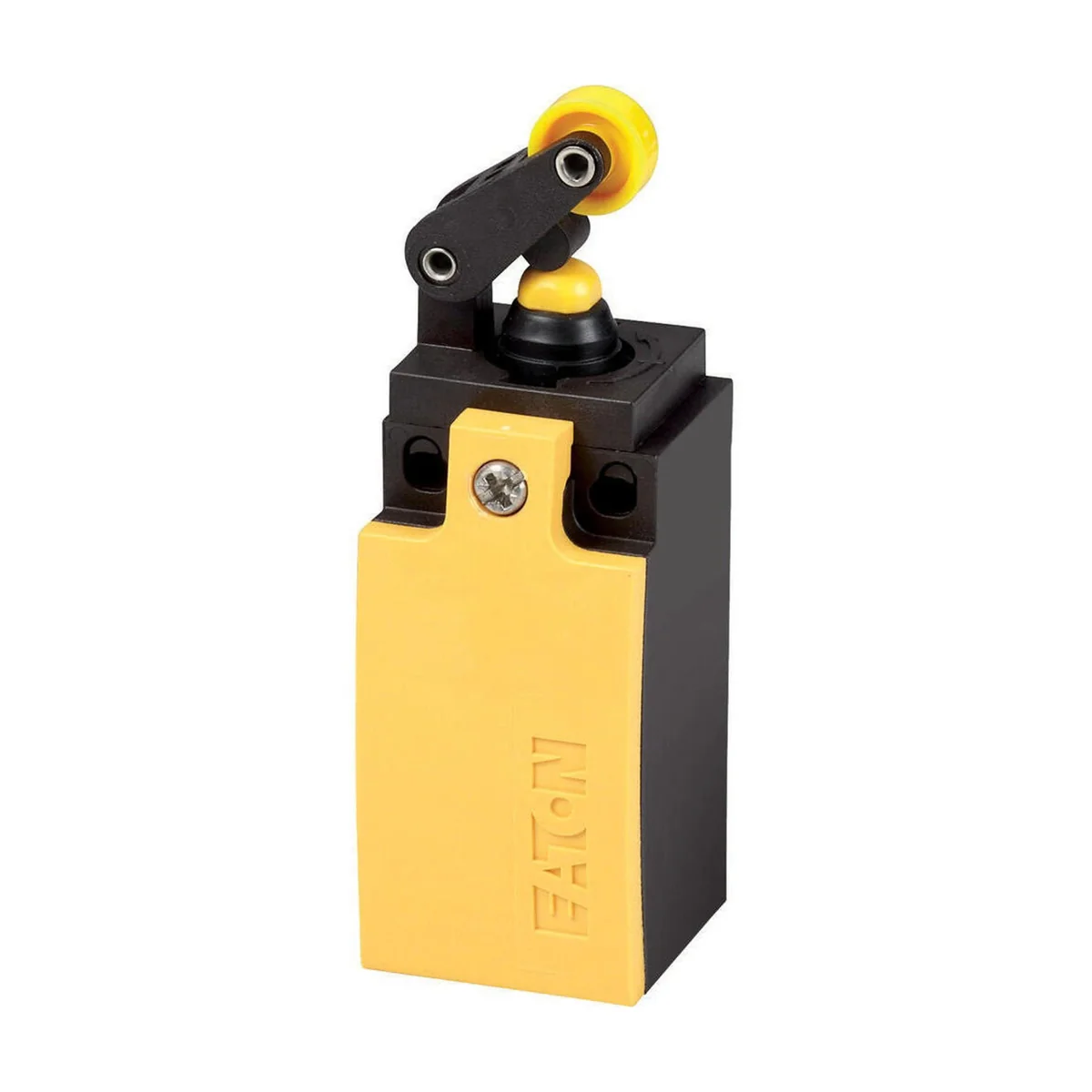

Limit switch with roller LS-S11/L 106785
local index:
ALC028MOEL
Catalog No:
106785
EAN code:
4015081065523
Price:
45,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Roller lever IP66, IP67, long.
Technical data
-
Number of contacts1NO 1NC
-
Casematerial EN 50047 type E
-
Flap colorYellow
-
How to connectClamps with a screw
Other technical data
-
Width sensor31 mm
-
Height of sensor61 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionSlow-action switch
-
Output electronicNo
-
Number of safety auxiliary contacts1
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.5 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementRoller lever
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66/IP67
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 2 pcs. |
| Weight (kg) | 0,055 | 0,067 | 0,134 |
| Volume (m3) | 0,000 | 0,000 | 0,001 |
| Width (m) | 0,031 | 0,033 | 0,064 |
| Length (m) | 0,034 | 0,036 | 0,073 |
| Depth (m) | 0,096 | 0,098 | 0,115 |
