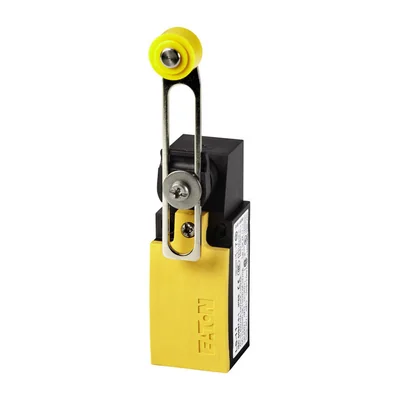

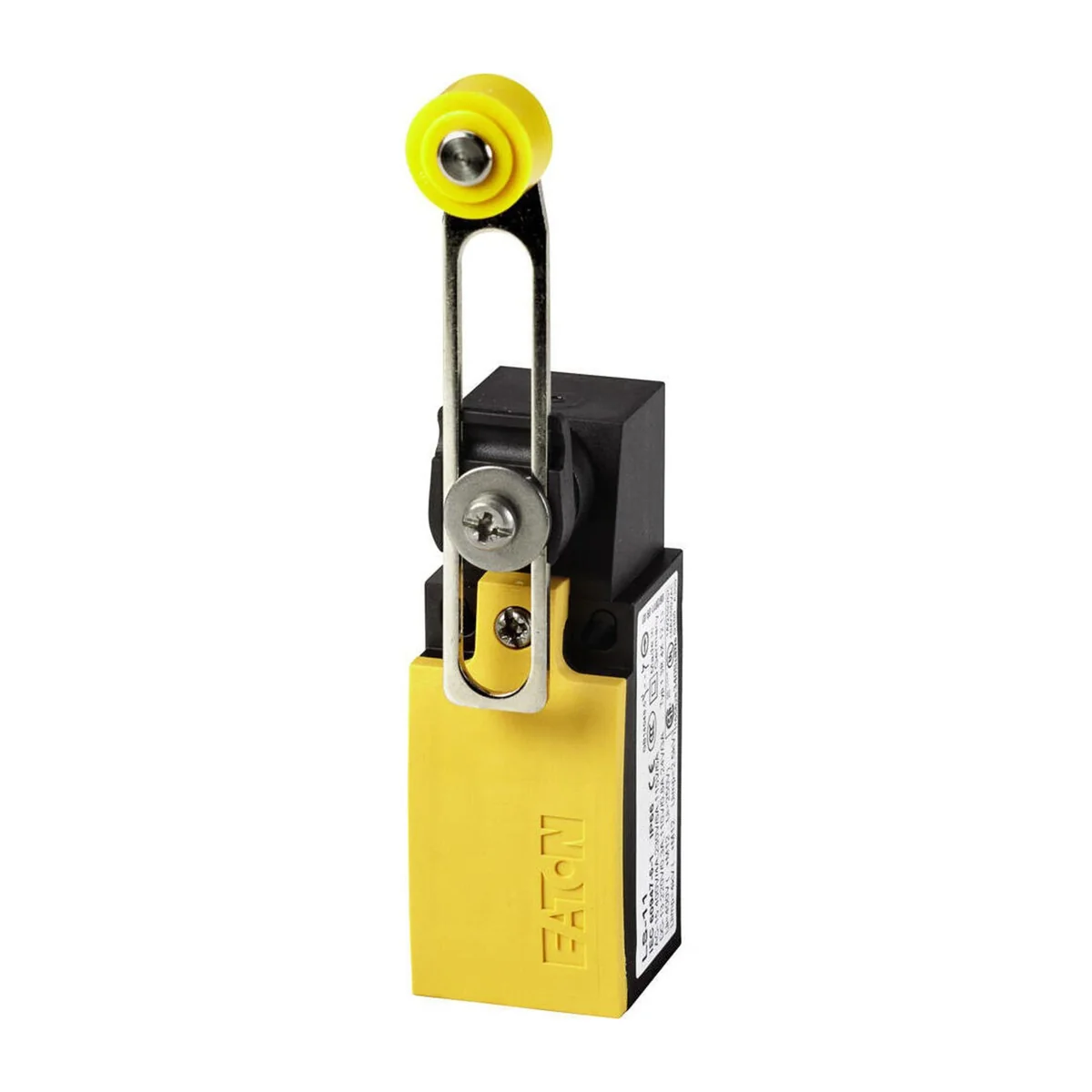

Limit switch with lever LS-11S/RLA 266119
local index:
ALC086MOEL
Catalog No:
266119
EAN code:
4015082661199
Price:
75,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print
Ask about the product
Product description
Length-adjustable roller lever IP66, IP67
Technical data
-
Number of contacts1NO 1NC
-
CaseMaterial
-
Flap colorYellow
-
How to connectCage-Clamp
Other technical data
-
Width sensor31 mm
-
Height of sensor61 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionQuick-break switch
-
Output electronicNo
-
Number of safety auxiliary contacts1
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementRoller cam crossed
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.5 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementAdjustable rotary lever
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66/IP67
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Skrzynia | Karton |
| Quantity | 1 pcs. | 2 pcs. | 1 pcs. | 2 pcs. |
| Weight (kg) | 0,120 | 0,241 | 0,120 | 0,241 |
| Volume (m3) | 0,000 | 0,001 | 0,000 | 0,001 |
| Width (m) | 0,033 | 0,054 | 0,033 | 0,054 |
| Length (m) | 0,036 | 0,073 | 0,036 | 0,073 |
| Depth (m) | 0,122 | 0,154 | 0,122 | 0,154 |
