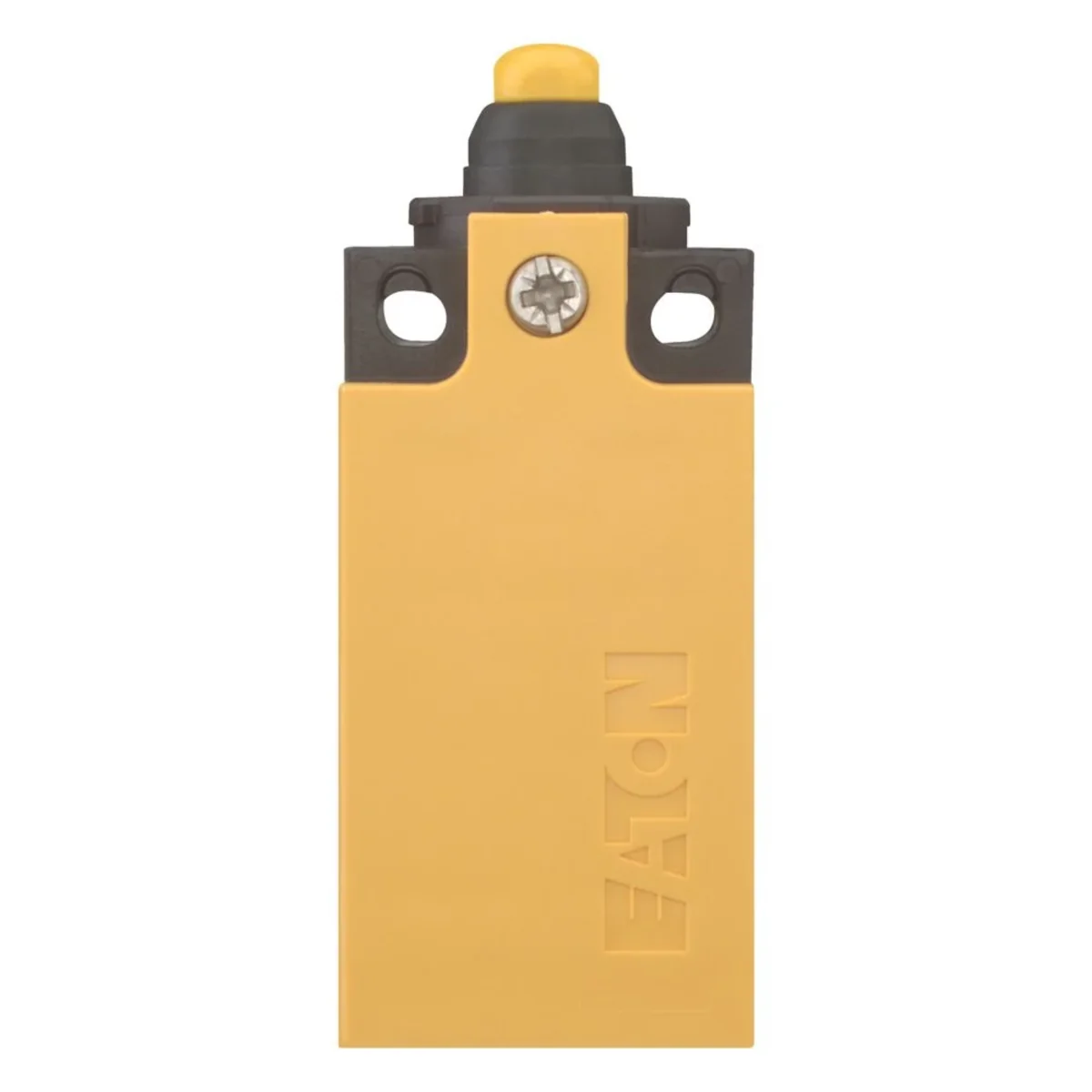

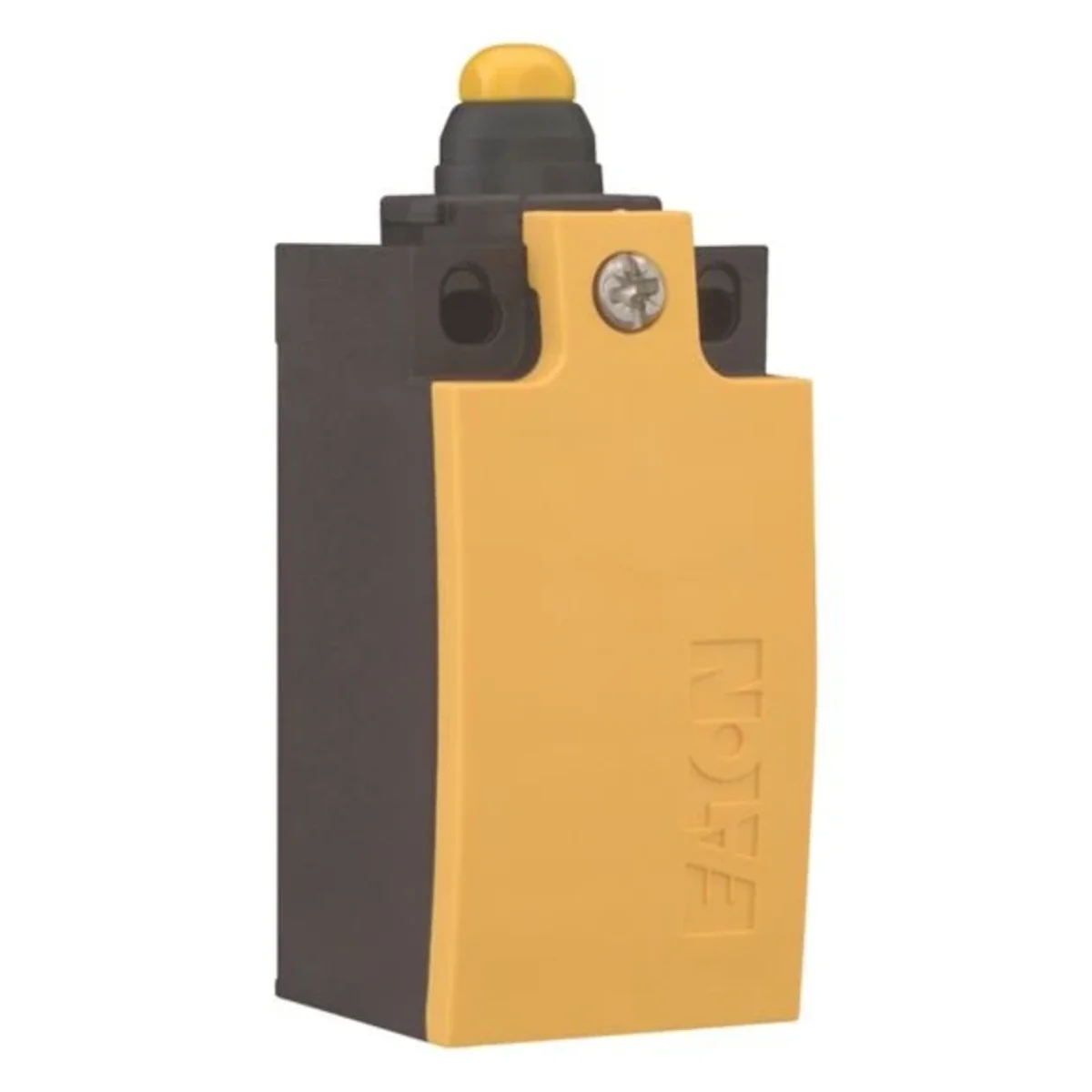

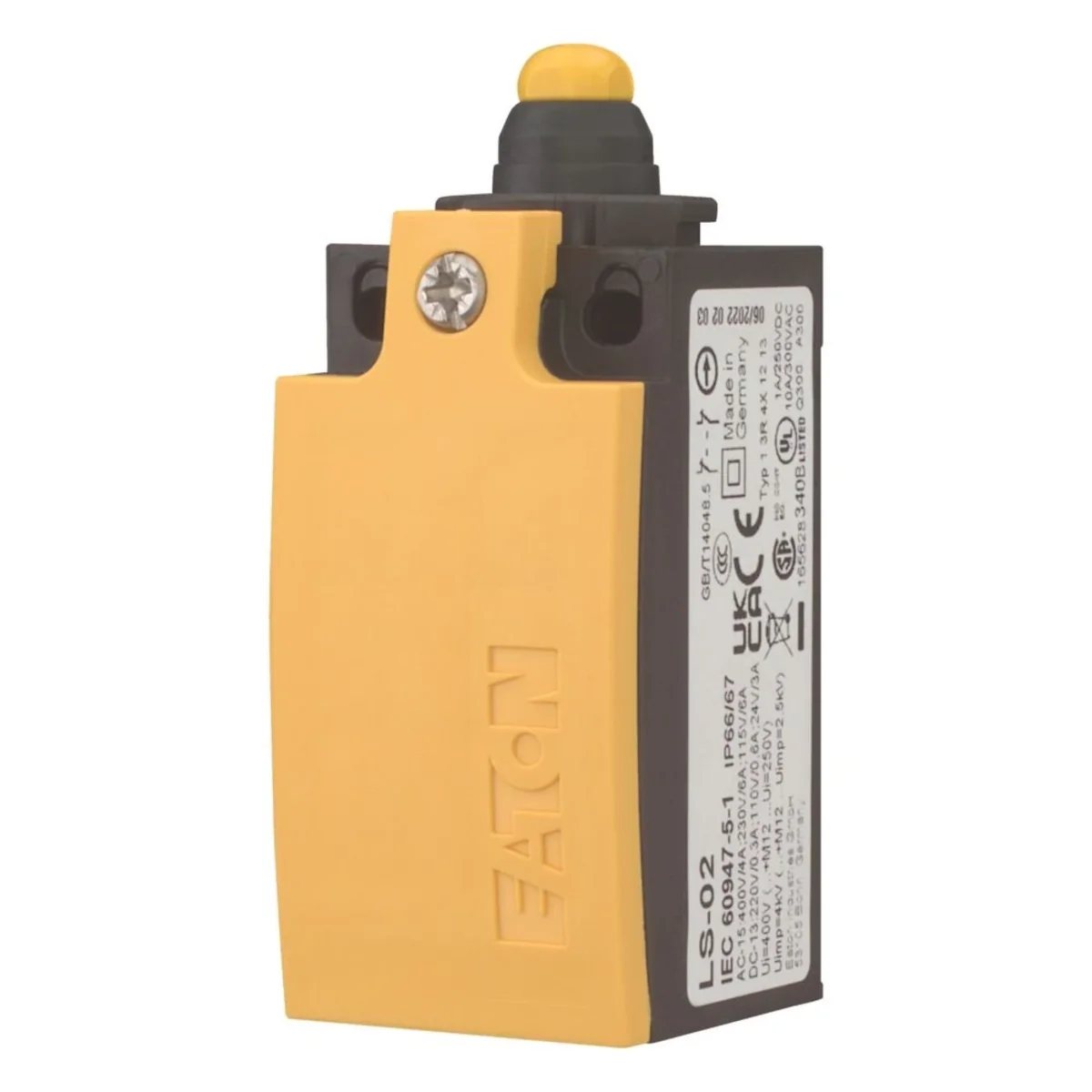

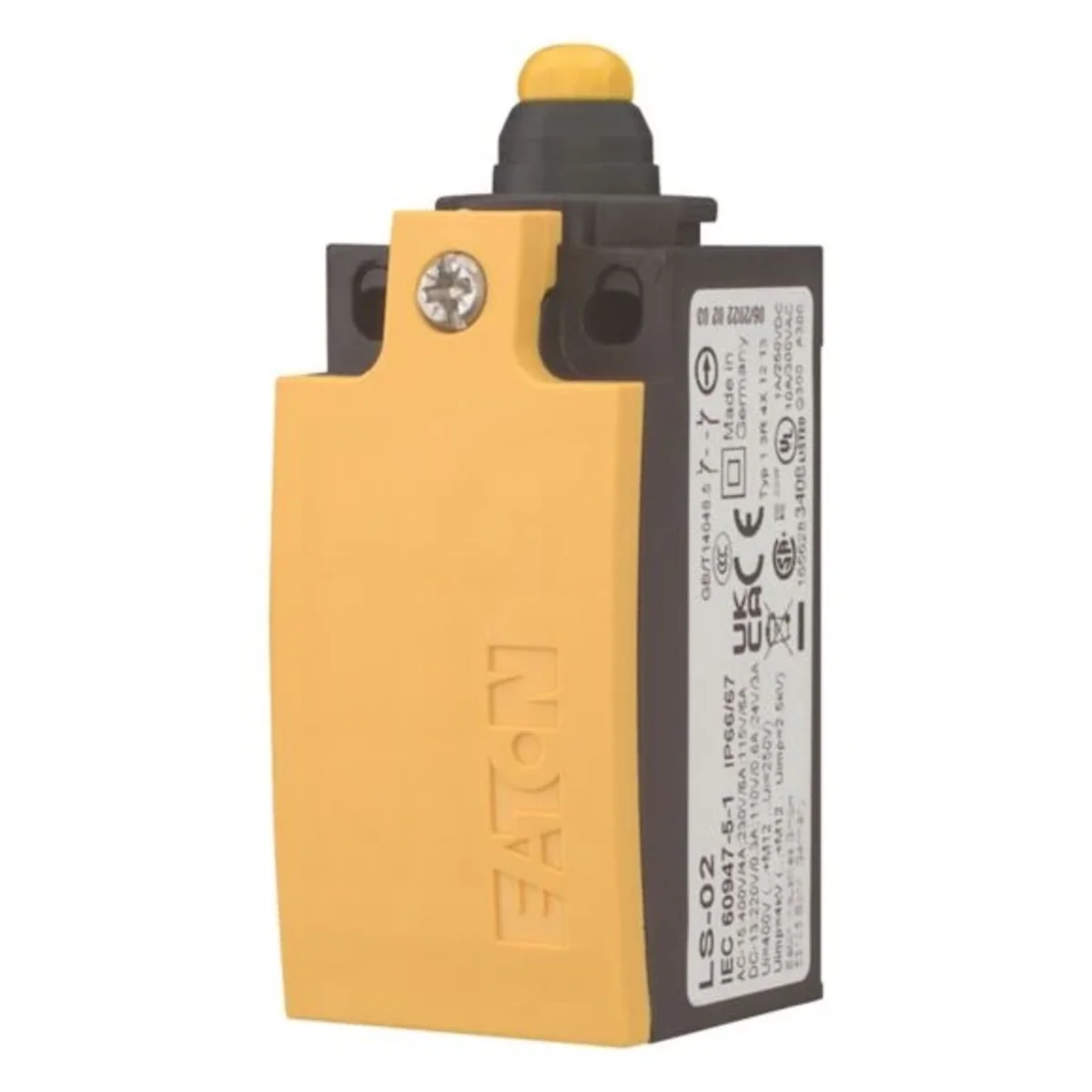

Limit switch with drive head extension LS-S02 106729

local index:
ALB008MOEL
Catalog No:
106729
EAN code:
4015081064960
Manufacturer: EATON
Number of contacts: 0NO 2NC
Flap color: Yellow
Case: Material
Price:
35,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
10
)
Add to clipboard
Print

Product description

Dome pusher, IP66, IP67.

Technical data

  • Number of contacts
    0NO 2NC
  • Case
    Material
  • Flap color
    Yellow
  • How to connect
    Clamps with a screw

Other technical data

  • Width sensor
    31 mm
  • Height of sensor
    61 mm
  • Rated operation current Ie at AC-15, 24 V
    6 A
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Rated operation current Ie at DC-13, 125 V
    0.8 A
  • Switching function
    Slow-action switch
  • Output electronic
    No
  • Number of safety auxiliary contacts
    2
  • Number of contacts as normally open contact
    0
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Alignment of the control element
    Roller cam straight
  • With status indication
    No
  • Explosion safety category for gas
    None
  • Ambient temperature during operating
    -25 ... 70 °C
  • Degree of protection (NEMA)
    Other
  • Diameter sensor
    0 mm
  • Length of sensor
    33.5 mm
  • Rated operation current Ie at AC-15, 125 V
    6 A
  • Rated operation current Ie at DC-13, 24 V
    3 A
  • Rated operation current Ie at DC-13, 230 V
    0.3 A
  • Switching function latching
    No
  • Forced opening
    Yes
  • Number of contacts as normally closed contact
    2
  • Number of contacts as change-over contact
    0
  • Type of interface for safety communication
    None
  • Housing material
    Plastic
  • Type of control element
    Plunger
  • Type of electric connection
    Cable entry metrical
  • Suitable for safety functions
    Yes
  • Explosion safety category for dust
    None
  • Degree of protection (IP)
    IP66/IP67

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 10 pcs.
Weight (kg) 0,054 0,539
Volume (m3) 0,000 0,001
Width (m) 0,033 0,066
Length (m) 0,036 0,076
Depth (m) 0,079 0,171
