Limit switch with a rod lever LS-11S/RR 266106

local index:

ALC080MOEL

Catalog No:

266106

EAN code:

4015082661069

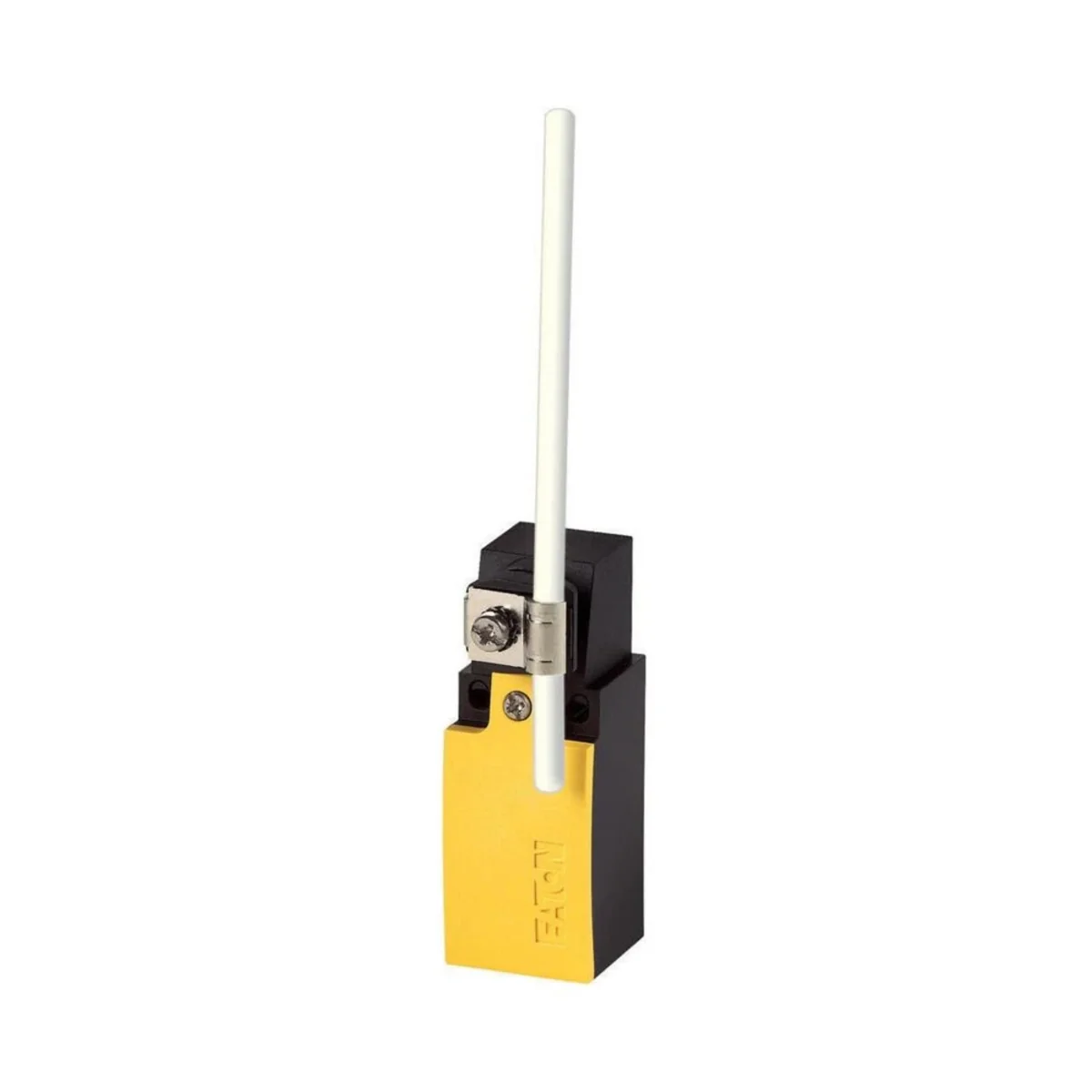

Limit switch with a rod lever LS-11S/RR

Limit switch with a rod lever LS-11S/RR

Click on the photo to enlarge

Manufacturer: EATON

Number of contacts: 1NO 1NC

Flap color: Yellow

Case: Material

See full description

Price:

63,30 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

4

)

Add to clipboard

Add to clipboard

Print

Ask about the product

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Bar lever IP66, IP67

Technical data

Number of contacts

1NO 1NC
Case

Material

Flap color

Yellow
How to connect

Cage-Clamp

Other technical data

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Quick-break switch
Output electronic

No
Number of safety auxiliary contacts

1
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam crossed
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Actuating rod
Type of electric connection

Cable entry metrical
Suitable for safety functions

Yes
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Manufacturer details

Manufacturer

EATON ELECTRIC SP. Z O.O.
Address

80-299 UL. GALAKTYCZNA 30
E-mail

pl-zamowienia@eaton.com
Tax identification number

5841022327

Bulk packaging

A kind of package	Skrzynia	Karton	Skrzynia	Karton
Quantity	1 pcs.	4 pcs.	1 pcs.	4 pcs.
Weight (kg)	0,084	0,338	0,084	0,338
Volume (m3)	0,000	0,001	0,000	0,001
Width (m)	0,033	0,059	0,033	0,059
Length (m)	0,036	0,068	0,036	0,068
Depth (m)	0,142	0,197	0,142	0,197
