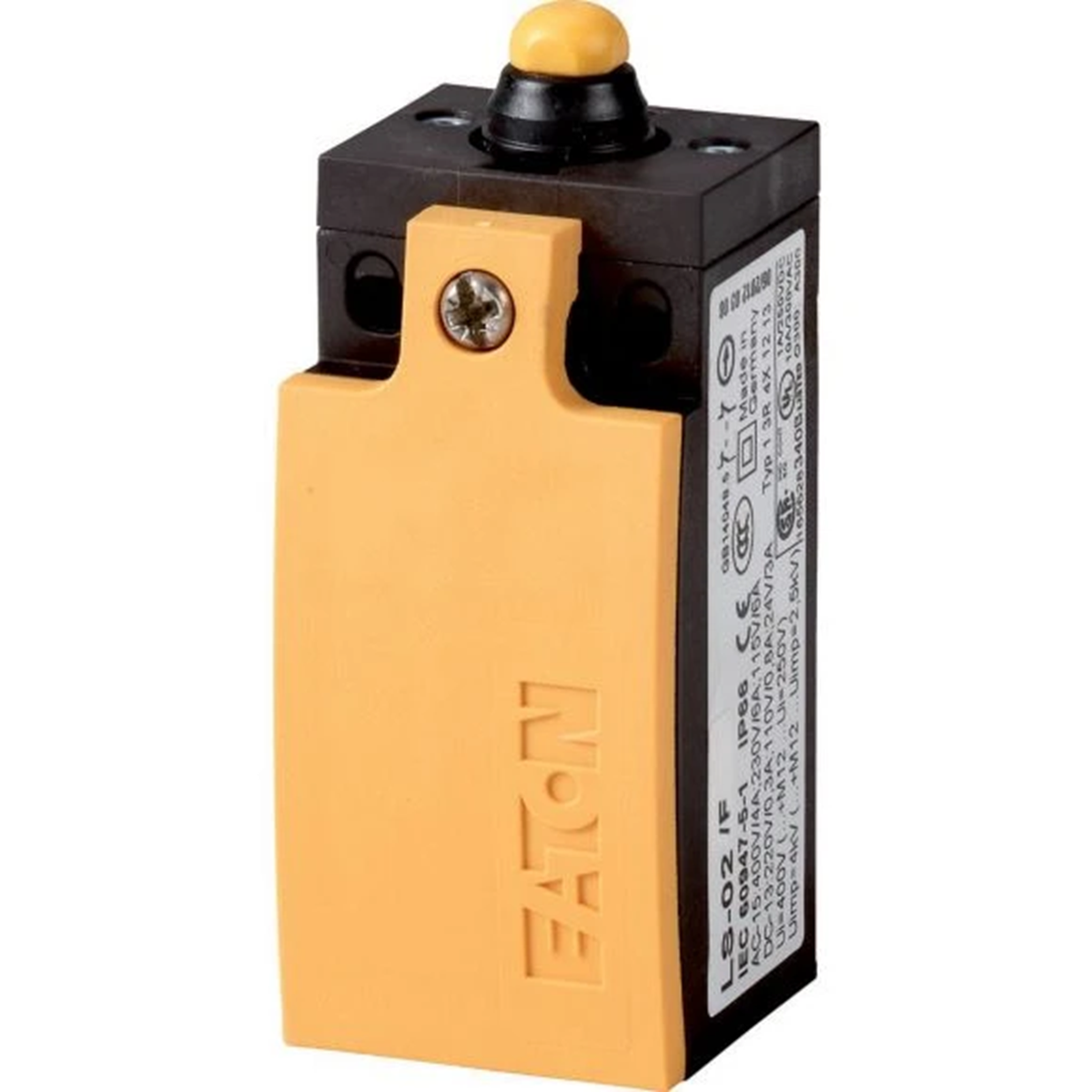

Limit switch, 2ZZ, shaped pusher, basic unit, not expandable 106809
local index:
ALC049MOEL
Catalog No:
106809
EAN code:
4015081065769
Manufacturer:
EATON
Level of security: IP66, IP67
Equipment: Shaped pusher, Basic device, not expandable
contact: 2 make contact
Price:
55,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Limit switch, Basic function: Limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Protection degree: IP66, IP67, Equipment: Basic device, not expandable, Ambient temperature: -25 - + 70 °C, Contact equipment Z = NO contact: 2 NO contacts, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminals, Standards and regulations: IEC/EN 60947
Technical data
-
Level of securityIP66, IP67
-
contact2 make contact
-
EquipmentShaped pusher, Basic device, not expandable
Other technical data
-
Width sensor31 mm
-
Height of sensor61 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionSlow-action switch
-
Output electronicNo
-
Number of safety auxiliary contacts0
-
Number of contacts as normally open contact2
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementRoller cam straight
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.5 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingNo
-
Number of contacts as normally closed contact0
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementPlunger
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsNo
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66/IP67
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,050 | 0,065 |
| Volume (m3) | 0,000 | 0,000 |
| Width (m) | 0,031 | 0,065 |
| Length (m) | 0,034 | 0,068 |
| Depth (m) | 0,076 | 0,075 |
