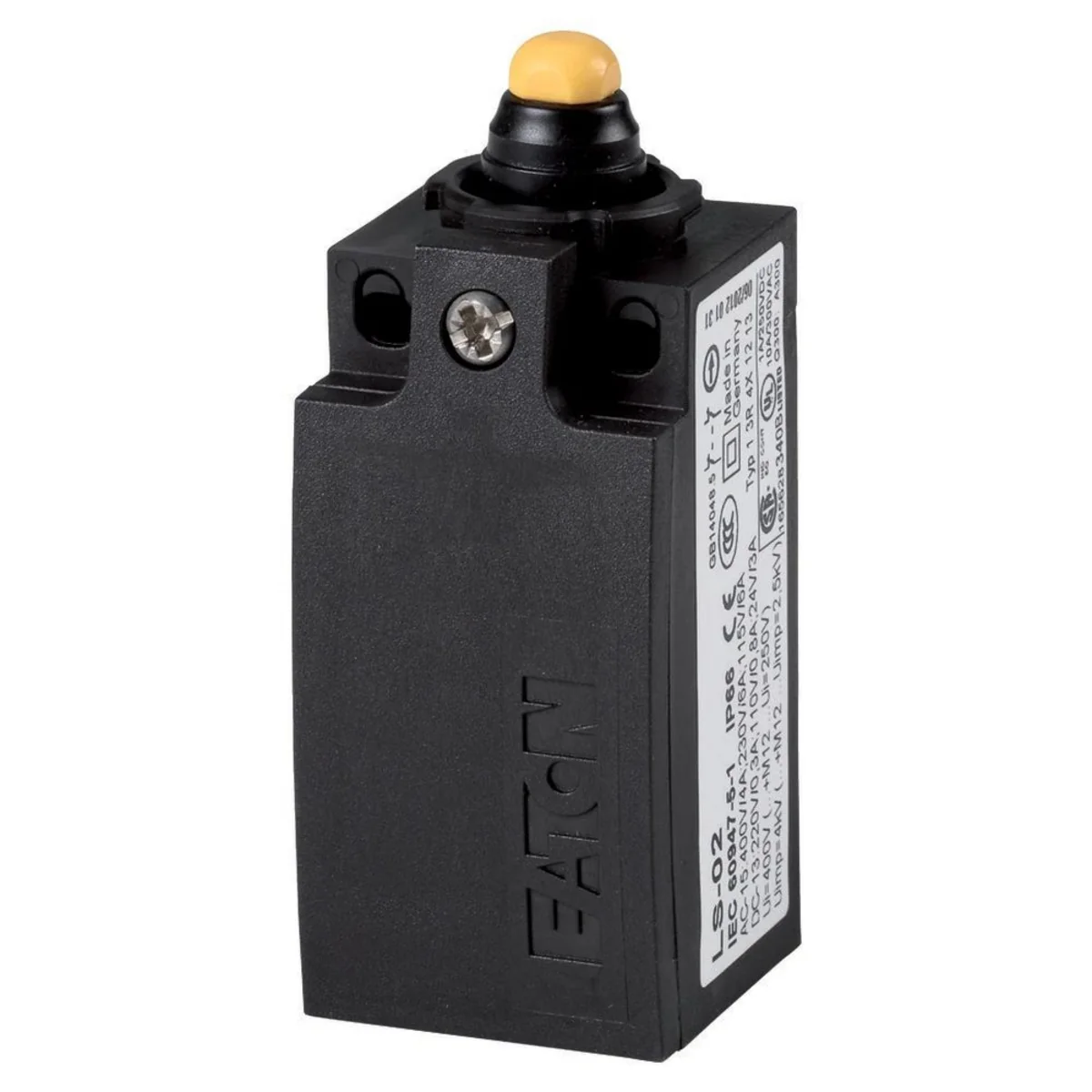

Limit switch, 2ZZ, shaped pusher, basic unit, expandable, black 106812

Name: Limit switch, 2ZZ, shaped pusher, basic unit, expandable, black
Brand: EATON
SKU: ALC053MOEL
Price: 186.07 PLN
Availability: BackOrder

Index local:

ALC053MOEL

Numéro de catalogue:

106812

Code EAN:

4015081065790

Limit switch, 2ZZ, shaped pusher, basic unit, expandable, black

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Color: Black

Level of security: IP66, IP67

Equipment: Shaped pusher, basic apparatus, with the possibility of expansion

Voir la description complète

Prix:

186,07 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 4 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Limit switch, Basic function: Limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Degree of protection: IP66, IP67, Equipment: Basic device, expandable, Ambient temperature: -25 - + 70 °C, Contact equipment Z = NO contact: 2 NO contacts, Color Housing cover: black, Housing: Plastic, Connection method: screw terminals, Standards and regulations: IEC/EN 60947

Données techniques

Color

Black
Equipment

Shaped pusher, basic apparatus, with the possibility of expansion
PKWIU

27.12.40.0

Level of security

IP66, IP67
contact

2 make contact

Autres données techniques

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

2
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

No
Number of contacts as normally closed contact

0
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	10 pcs.
poids (kg)	0,051	0,549
Volume (m3)	0,000	0,001
Largeur (m)	0,033	0,066
Longueur (m)	0,036	0,076
Profondeur (m)	0,079	0,171
