Limit switch, 2ZZ, shaped pusher, basic unit, expandable 106808

Name: Limit switch, 2ZZ, shaped pusher, basic unit, expandable
Brand: EATON
SKU: ALC048MOEL
Price: 193.70 PLN
Availability: BackOrder

local index:

ALC048MOEL

Catalog number:

106808

EAN code:

4015081065752

Limit switch, 2ZZ, shaped pusher, basic unit, expandable

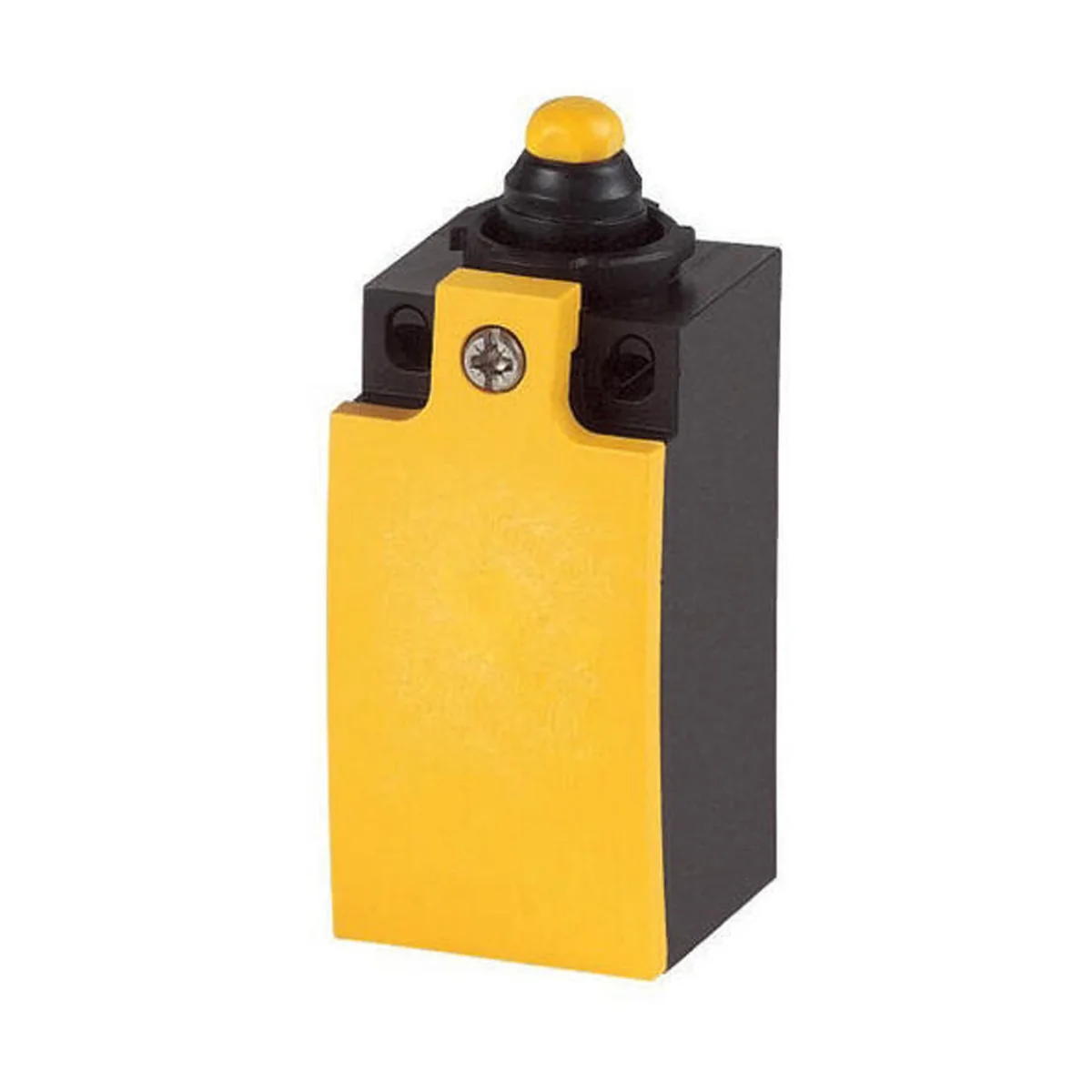

Click on the photo to enlarge

Manufacturer: EATON

Level of security: IP66, IP67

Equipment: Shaped pusher, basic apparatus, expandable

contact: 2 make contact

See full description

Price:

193,70 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Limit switch, Basic function: Limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Degree of protection: IP66, IP67, Equipment: Basic device, expandable, Ambient temperature: -25 - + 70 °C, Contact configuration Z = NO contact: 2 NO contacts, Color Housing cover: yellow, Housing: Plastic, Connection method: screw connection, Standards and regulations: IEC/EN 60947

Technical data

Level of security

IP66, IP67
contact

2 make contact

Equipment

Shaped pusher, basic apparatus, expandable

Other technical data

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

2
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

No
Number of contacts as normally closed contact

0
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,051	0,066
Volume (m3)	0,000	0,000
Width (m)	0,033	0,065
Length (m)	0,036	0,068
Depth (m)	0,079	0,075
