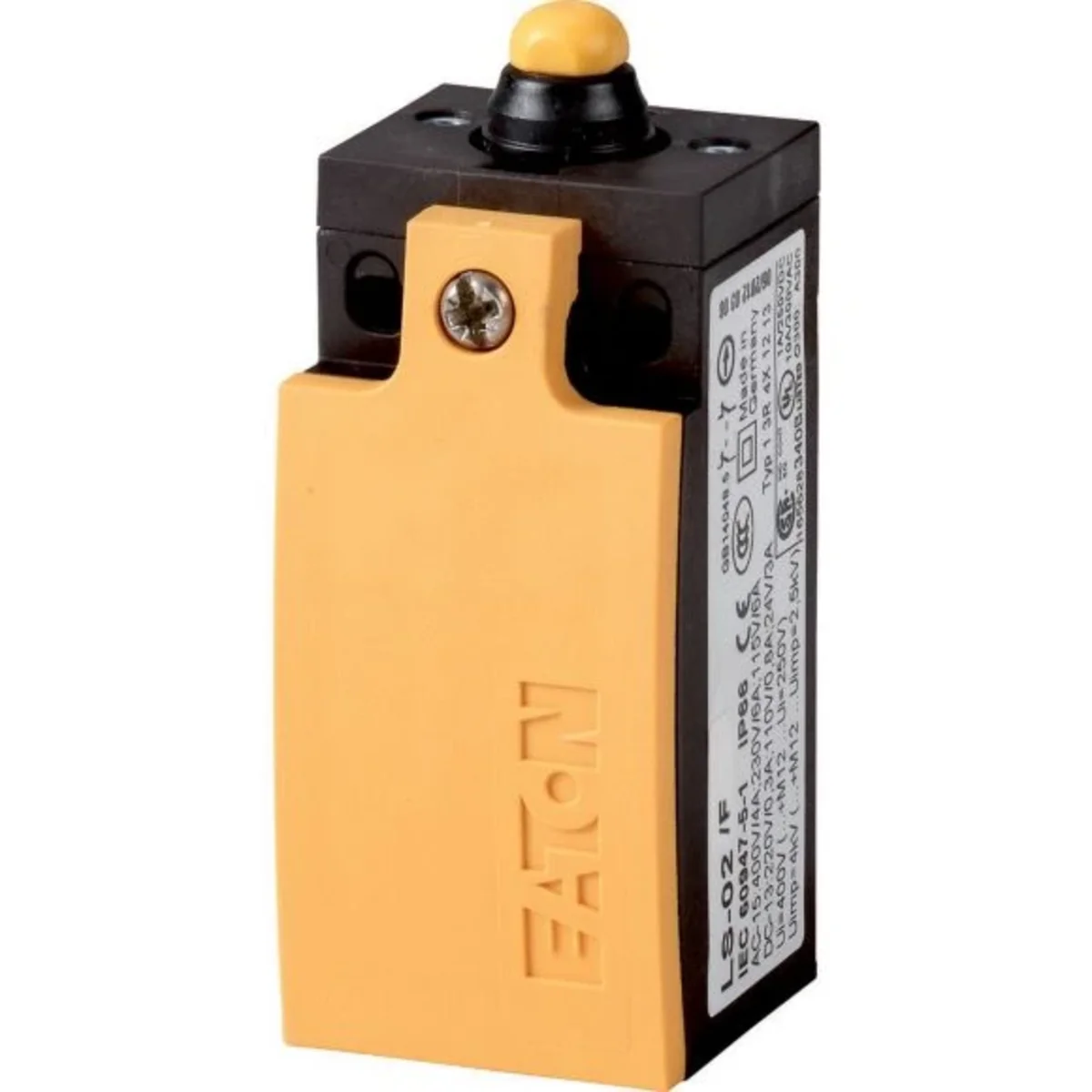

Limit switch, 1zz+1zr, shaped pusher 106799

local index:
ALC044MOEL
Catalog No:
106799
EAN code:
4015081065660
Manufacturer: EATON
Level of security: IP66, IP67
Equipment: Shaped pusher, Basic device, not expandable
contact: 1 make contact
Price:
48,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Degree of protection: IP66, IP67, Equipment: Basic device, not expandable, Ambient temperature: -25 - +70 °C, Contact configuration Z = NO contact: 1 NO contact, Contact configuration R = NC contacts: 1 N/C, Note: = Safe operation due to positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminals, Standards and regulations: IEC/EN 60947

Technical data

  • Level of security
    IP66, IP67
  • contact
    1 make contact
  • Equipment
    Shaped pusher, Basic device, not expandable

Other technical data

  • Width sensor
    31 mm
  • Height of sensor
    61 mm
  • Rated operation current Ie at AC-15, 24 V
    6 A
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Rated operation current Ie at DC-13, 125 V
    0.8 A
  • Switching function
    Quick-break switch
  • Output electronic
    No
  • Number of safety auxiliary contacts
    1
  • Number of contacts as normally open contact
    1
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Alignment of the control element
    Roller cam straight
  • With status indication
    No
  • Explosion safety category for gas
    None
  • Ambient temperature during operating
    -25 ... 70 °C
  • Degree of protection (NEMA)
    Other
  • Diameter sensor
    0 mm
  • Length of sensor
    33.5 mm
  • Rated operation current Ie at AC-15, 125 V
    6 A
  • Rated operation current Ie at DC-13, 24 V
    3 A
  • Rated operation current Ie at DC-13, 230 V
    0.3 A
  • Switching function latching
    No
  • Forced opening
    Yes
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Type of interface for safety communication
    None
  • Housing material
    Plastic
  • Type of control element
    Plunger
  • Type of electric connection
    Cable entry metrical
  • Suitable for safety functions
    Yes
  • Explosion safety category for dust
    None
  • Degree of protection (IP)
    IP66/IP67

Manufacturer details

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,050 0,065
Volume (m3) 0,000 0,000
Width (m) 0,031 0,065
Length (m) 0,034 0,068
Depth (m) 0,076 0,075
