Limit switch, 1zz+1zr, shaped pusher 106792

Name: Limit switch, 1zz+1zr, shaped pusher
Brand: EATON
SKU: ALC039MOEL
Price: 220.39 PLN
Availability: BackOrder

Lokaler Index:

ALC039MOEL

Katalognummer:

106792

EAN-Code:

4015081065592

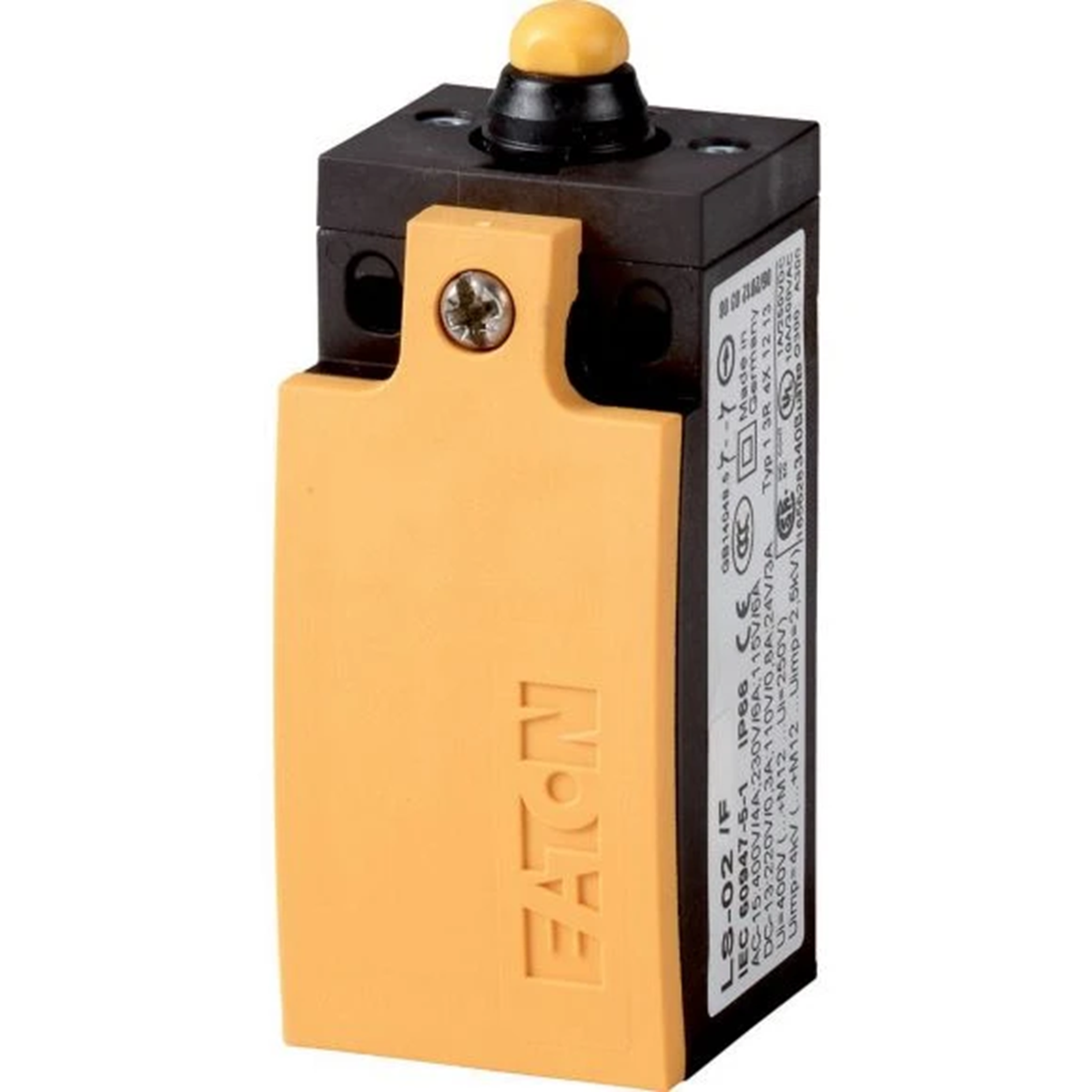

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: EATON

Level of security: IP66, IP67

Equipment: Shaped pusher, Basic device, not expandable

contact: 1 make contact

Siehe vollständige Beschreibung

Preis:

220,39 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 4 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Degree of protection: IP66, IP67, Equipment: Basic device, not expandable, Ambient temperature: -25 - +70 °C, Contact configuration Z = NO contact: 1 NO contact, Contact configuration R = NC contacts: 1 N/C, Note: = Safe operation due to positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminals, Standards and regulations: IEC/EN 60947

Technische Daten

Level of security

IP66, IP67
contact

1 make contact

Equipment

Shaped pusher, Basic device, not expandable

Weitere technische Daten

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

1
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

Yes
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Hersteller-Details

Hersteller

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-Mail

wsparcietech@eaton.com

Großpackungen

Eine Art Paket	Skrzynia	Karton
Menge	1 stk.	1 stk.
Gewicht (kg)	0,050	0,065
Volumen (m3)	0,000	0,000
Breite (m)	0,033	0,065
Länge (m)	0,036	0,068
Tiefe (m)	0,079	0,075
