Limit switch, 1zz+1zr, shaped pusher 106791

Name: Limit switch, 1zz+1zr, shaped pusher
Brand: EATON
SKU: ALC038MOEL
Price: 36.06 PLN

local index:

ALC038MOEL

Catalog No:

106791

EAN code:

4015081065585

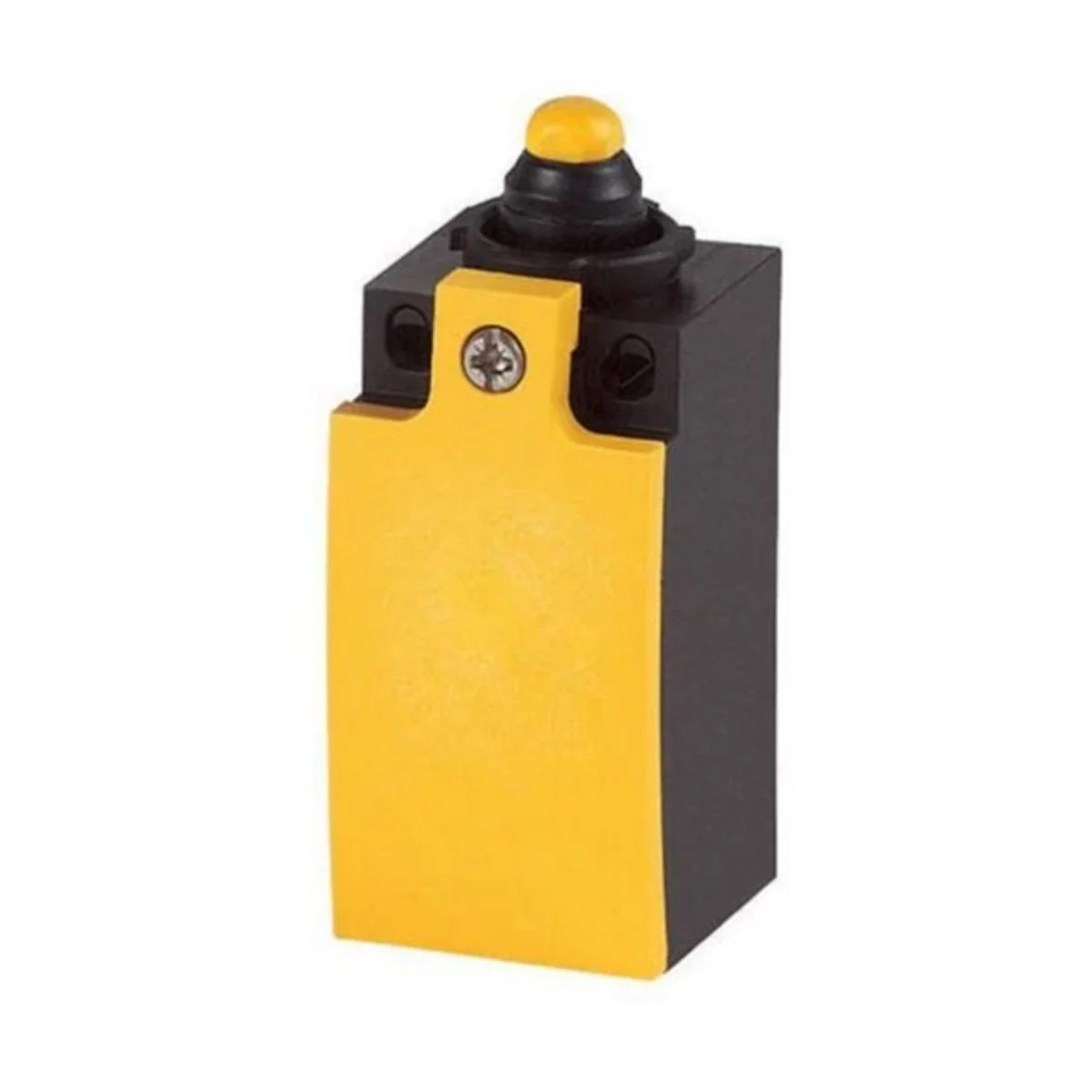

Click on the photo to enlarge

Manufacturer: EATON

Level of security: IP66, IP67

Equipment: Shaped pusher, basic apparatus, expandable

contact: 1 make contact

See full description

Price:

36,06 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS(M)-…, Range: Shaped pusher, Protection rating: IP66, IP67, Equipment: Basic device, expandable, Ambient temperature: -25 - +70 °C, Contact configuration Z = NO contact: 1 NO contact, Contact configuration R = NC contacts: 1 N/C, Note: = Safe operation due to positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminal, Standards and regulations: IEC/EN 60947

Technical data

Level of security

IP66, IP67
contact

1 make contact

Equipment

Shaped pusher, basic apparatus, expandable

Other technical data

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

1
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

Yes
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,053	0,057	0,569
Volume (m3)	0,000	0,000	0,001
Width (m)	0,031	0,033	0,066
Length (m)	0,034	0,036	0,076
Depth (m)	0,076	0,079	0,171
