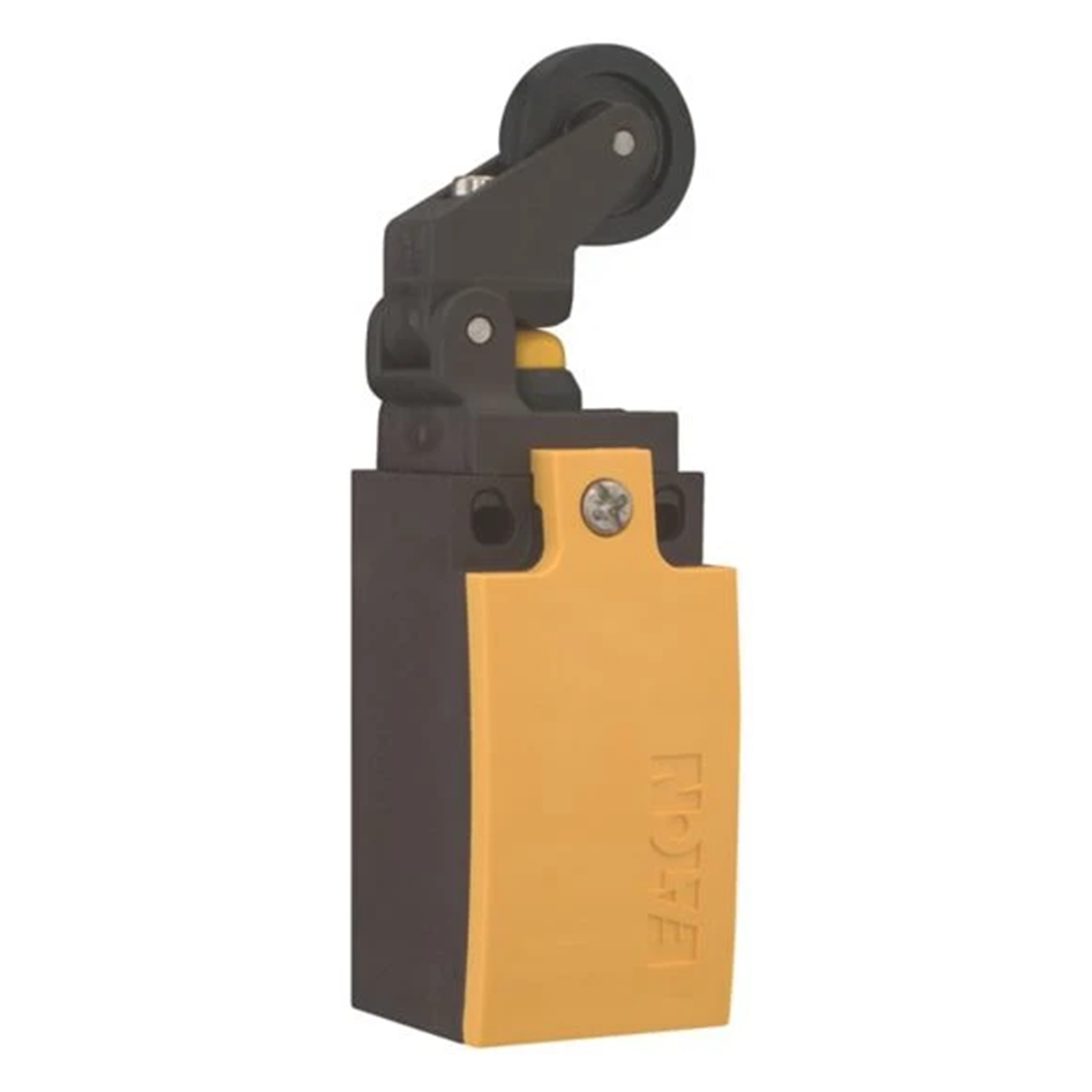

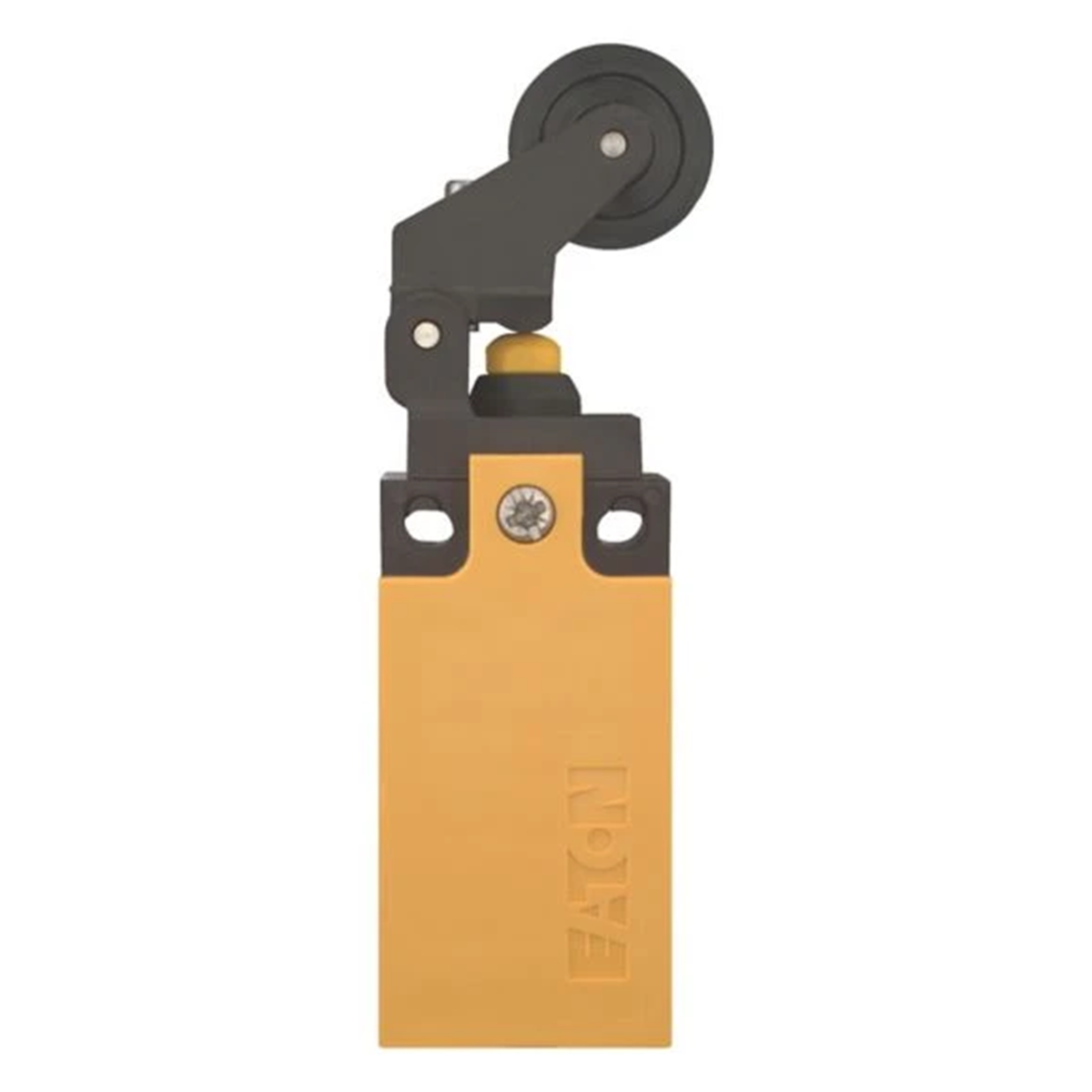

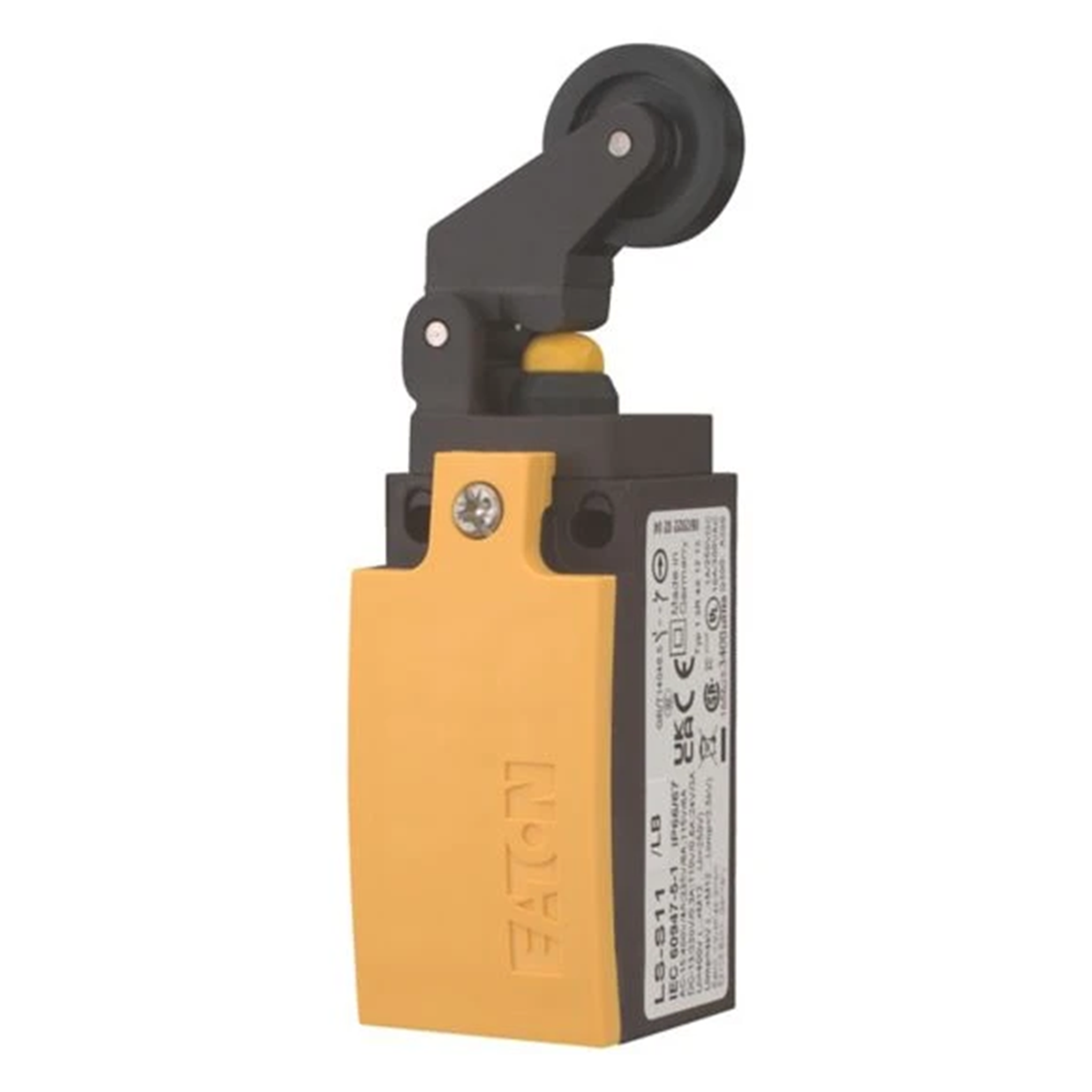

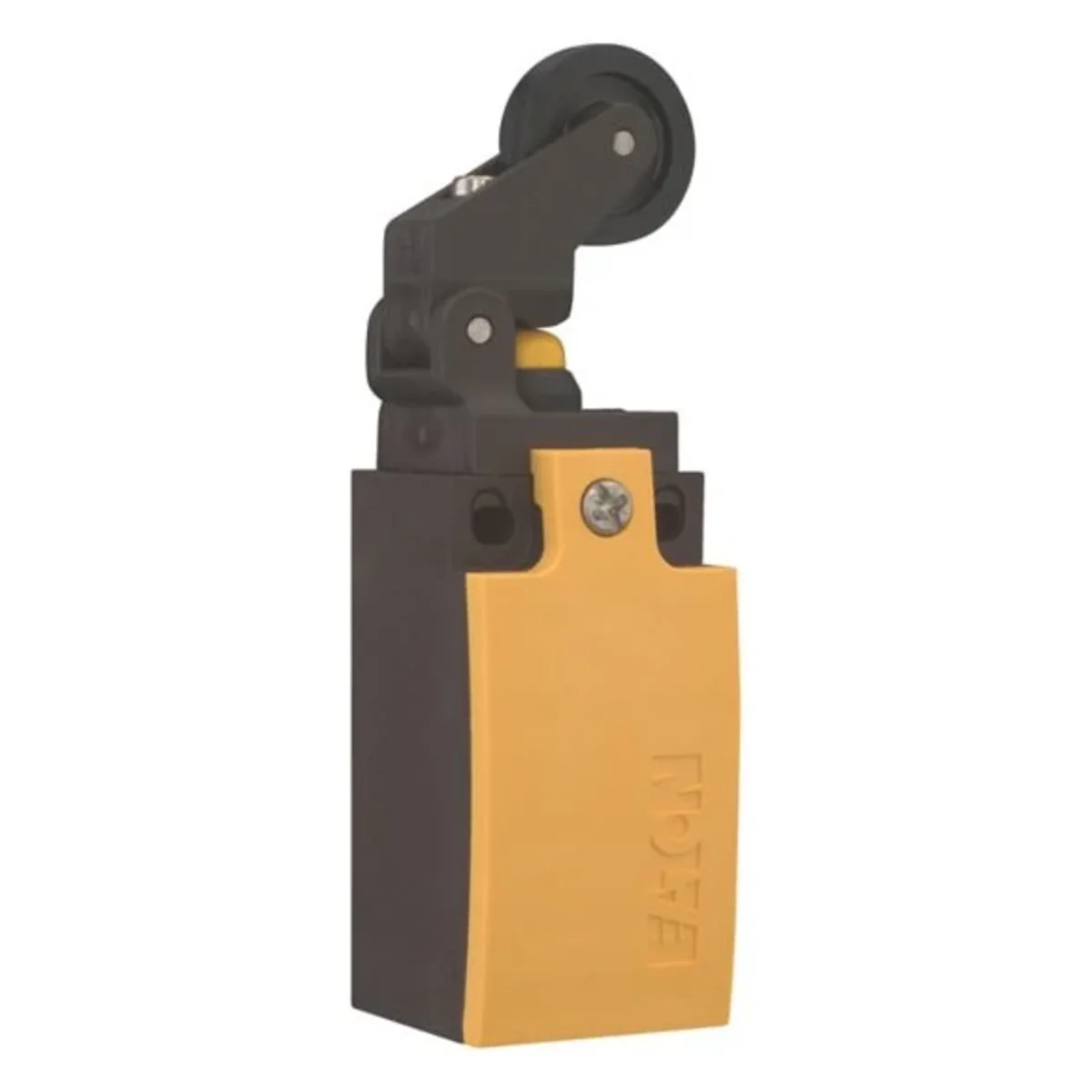

Limit switch, 1zz+1zr, large roller lever 106786

Name: Limit switch, 1zz+1zr, large roller lever
Brand: EATON
SKU: ALC018MOEL
Price: 51.05 PLN

local index:

ALC018MOEL

Catalog No:

106786

EAN code:

4015081065530

Limit switch, 1zz+1zr, large roller lever

Click on the photo to enlarge

Manufacturer: EATON

Level of security: IP66, IP67

Equipment: roller lever, complete devices

contact: 1 make contact

See full description

Price:

51,05 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS(M)-…, Product range: roller lever, Degree of protection: IP66, IP67, Equipment: Complete devices, Ambient temperature: -25 - + 70 °C, Designation: large, Contact configuration Z = NO contact: 1 NO contact, Contact configuration R = NC contacts: 1 C, Note: = Operational reliability due to positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminal, Standards and regulations: IEC/EN 60947

Technical data

Level of security

IP66, IP67
contact

1 make contact

Equipment

roller lever, complete devices

Other technical data

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

1
Number of contacts as normally open contact

1
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Other
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

Yes
Number of contacts as normally closed contact

1
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Plastic
Type of control element

Roller lever
Type of electric connection

Cable entry metrical
Suitable for safety functions

Yes
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67
