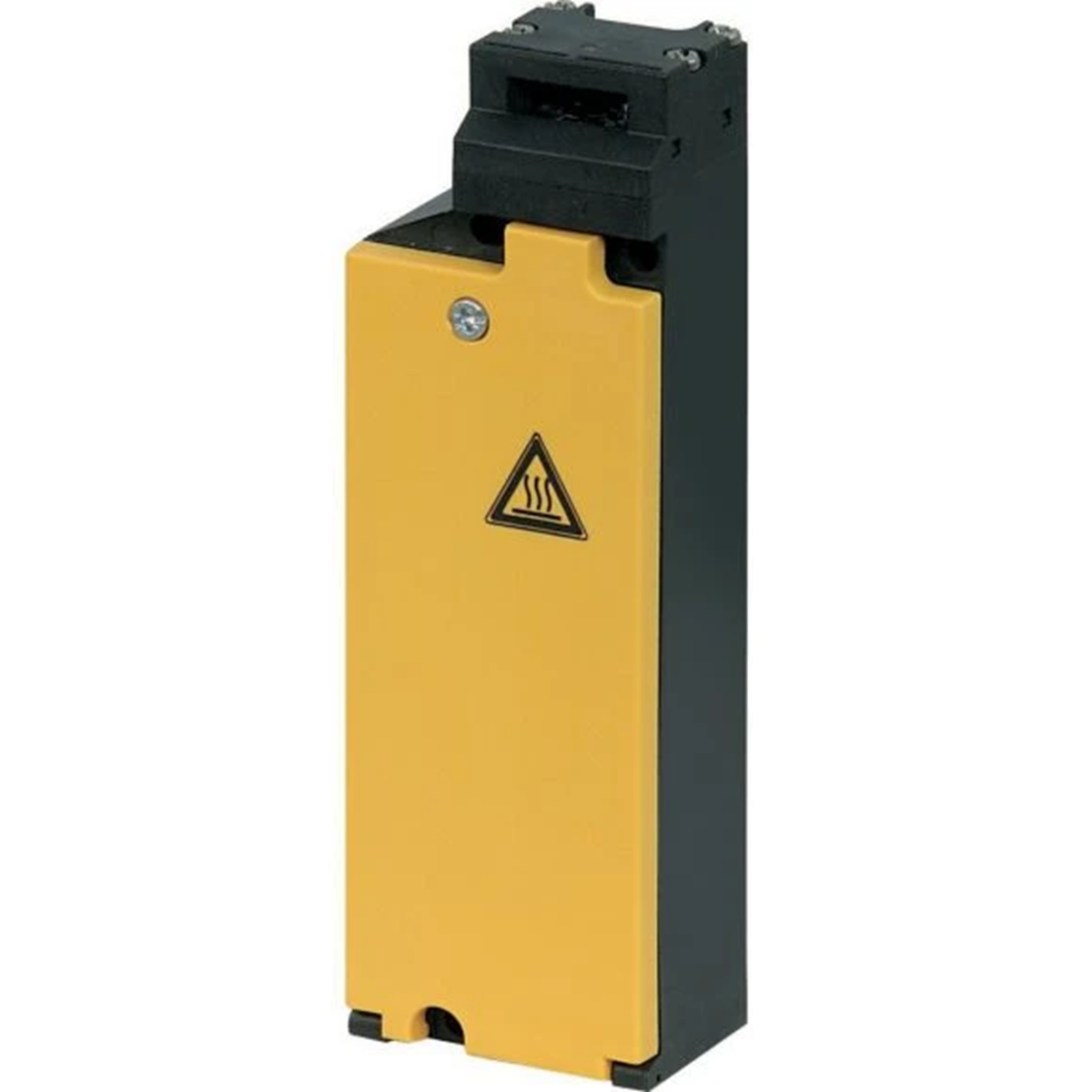

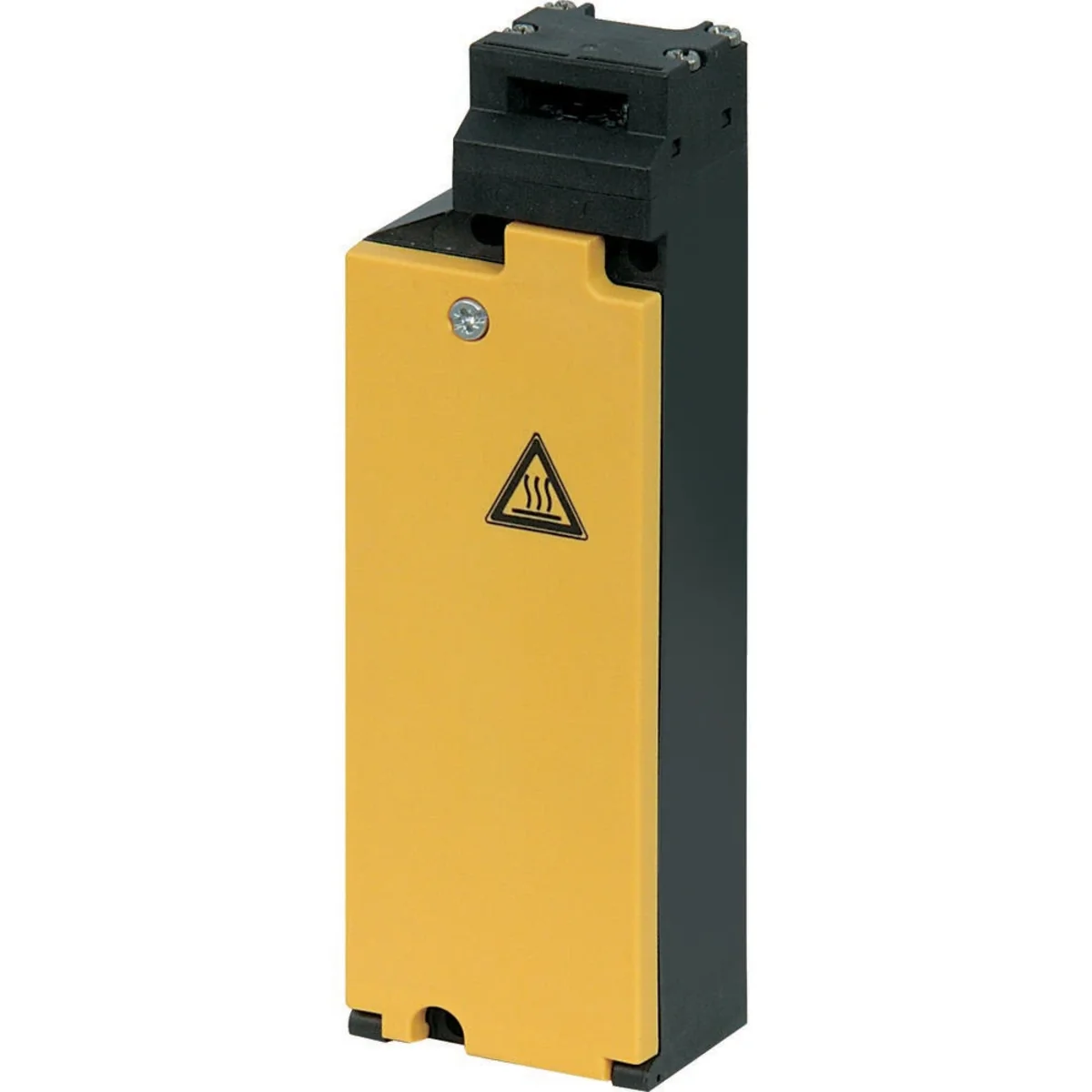

Limit switch, 1ZZ+1ZR, basic, magnetic lock 106828

Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS…ZBZ/X, Range: Basic devices with magnetic lock (close-circuit current principle), Degree of protection: IP65, Equipment: Basic device, with the possibility of expansion, Ambient temperature: -25 - +40 °C, Description: with locking monitoring, Door position monitoring: continuous, Time control, unlocking possible with ESR5-NV3-30, Contact configuration Z = NO contact: 1 NO contact, Accessories w contacts R = NC contacts: 1 R, Note: = Operational reliability due to positive opening according to IEC/EN 60947-5-1, Supply voltage for measuring the control voltage of the magnetic drive: Us= 230 V 50/60 Hz V, Housing: Plastic, Connection method: Screw terminal, Standards and regulations: IEC/EN 60947
