Limit switch, 1z+1zr with delay, +cam follower 100051

Name: Limit switch, 1z+1zr with delay, +cam follower
Brand: EATON
SKU: ALC007MOEL
Price: 46.49 PLN

local index:

ALC007MOEL

Catalog No:

100051

EAN code:

4015081000418

Limit switch, 1z+1zr with delay, +cam follower

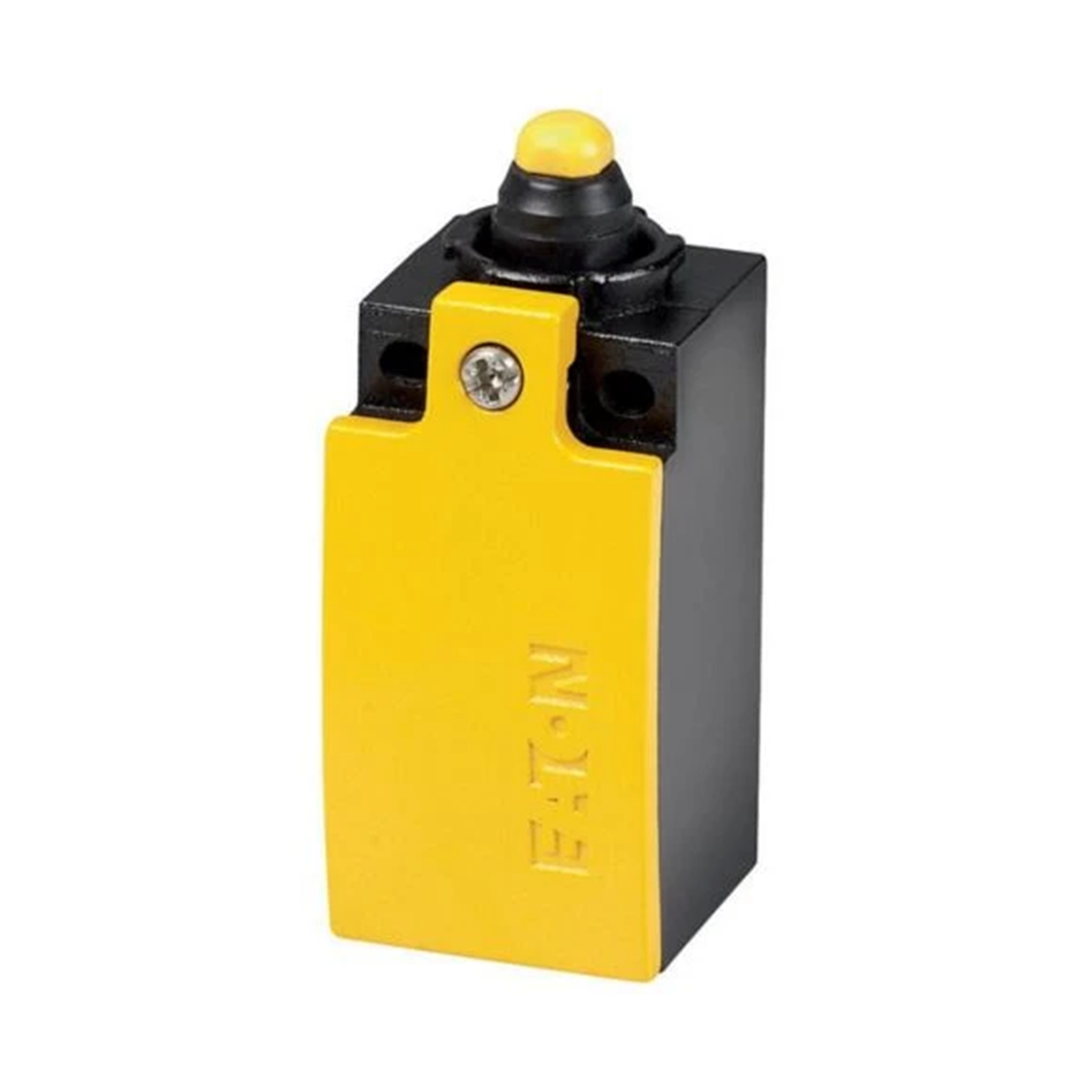

Click on the photo to enlarge

Manufacturer: EATON

Case: Metal

Level of security: IP66, IP67

Equipment: Shaped pusher, basic apparatus, expandable

See full description

Price:

46,49 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Limit switch, Basic function: Limit switch, Type identifier: LS(M)-…, Product range: Shaped pusher, Degree of protection: IP66, IP67, Equipment: Basic device, expandable, Ambient temperature: -25 - + 70 °C, Contact equipment Z = NO contact: 2 NO contacts, Color Housing cover: yellow, Housing: metal, Connection method: Cage-Clamp, Cage-Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden., Connection accessories Cage-Clamp from Wago: plug-in bridge, grey, order no. Wago 264-402, Standards and regulations: IEC/EN 60947

Technical data

Case

Metal
Equipment

Shaped pusher, basic apparatus, expandable

Level of security

IP66, IP67
contact

2 make contact

Other technical data

Width sensor

31 mm
Height of sensor

61 mm
Rated operation current Ie at AC-15, 24 V

6 A
Rated operation current Ie at AC-15, 230 V

6 A
Rated operation current Ie at DC-13, 125 V

0.8 A
Switching function

Slow-action switch
Output electronic

No
Number of safety auxiliary contacts

0
Number of contacts as normally open contact

2
Type of interface

None
Construction type housing

Cuboid
Coating housing

Other
Alignment of the control element

Roller cam straight
With status indication

No
Explosion safety category for gas

None
Ambient temperature during operating

-25 ... 70 °C
Degree of protection (NEMA)

Other

Diameter sensor

0 mm
Length of sensor

33.5 mm
Rated operation current Ie at AC-15, 125 V

6 A
Rated operation current Ie at DC-13, 24 V

3 A
Rated operation current Ie at DC-13, 230 V

0.3 A
Switching function latching

No
Forced opening

No
Number of contacts as normally closed contact

0
Number of contacts as change-over contact

0
Type of interface for safety communication

None
Housing material

Metal
Type of control element

Plunger
Type of electric connection

Cable entry metrical
Suitable for safety functions

No
Explosion safety category for dust

None
Degree of protection (IP)

IP66/IP67

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

Bulk packaging

A kind of package		Skrzynia	Karton
Quantity	1 pcs.	1 pcs.	2 pcs.
Weight (kg)	0,147	0,154	0,309
Volume (m3)	0,000	0,000	0,000
Width (m)	0,031	0,033	0,065
Length (m)	0,034	0,036	0,068
Depth (m)	0,076	0,079	0,075
