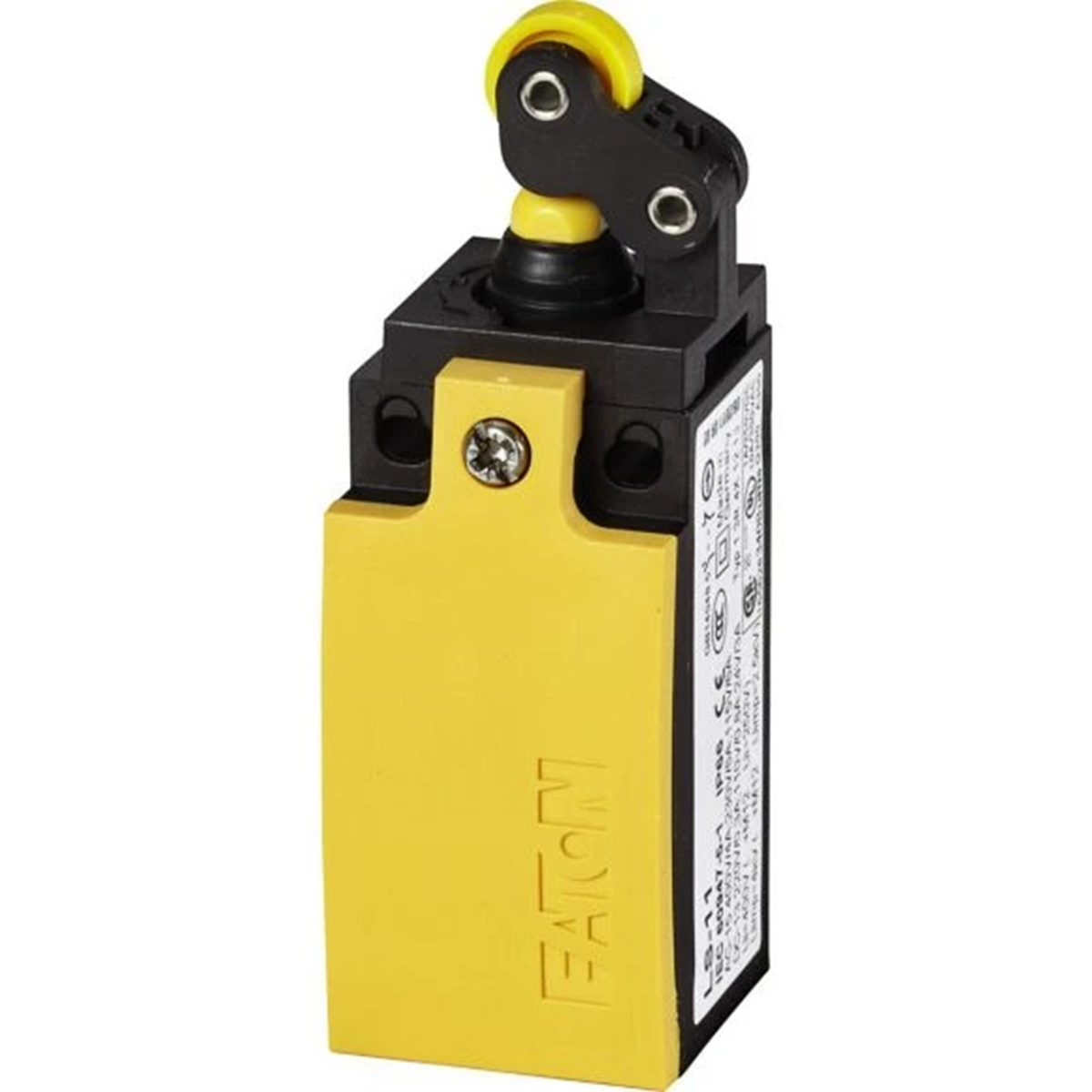

Limit switch, 1z+1zr, roller lever short 106787
local index:
ALC019MOEL
Catalog No:
106787
EAN code:
4015081065547
Manufacturer:
EATON
Level of security: IP66, IP67
Equipment: roller lever, complete devices
contact: 1 make contact
Price:
40,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Limit switch, Basic function: Limit switch, safety limit switch, Type identifier: LS(M)-…, Product range: roller lever, Protection rating: IP66, IP67, Equipment: Complete devices, Ambient temperature: -25 - + 70 °C, Designation: short, Contact configuration Z = NO contact: 1 NO contact, Contact configuration R = NC contacts: 1 C, Note: = Operational reliability due to positive opening according to IEC/EN 60947-5-1, Positive opening (ZW): yes, Color Housing cover: yellow, Housing: Plastic, Connection method: screw terminal, Standards and regulations: IEC/EN 60947
Technical data
-
Level of securityIP66, IP67
-
contact1 make contact
-
Equipmentroller lever, complete devices
Other technical data
-
Width sensor31 mm
-
Height of sensor61 mm
-
Rated operation current Ie at AC-15, 24 V6 A
-
Rated operation current Ie at AC-15, 230 V6 A
-
Rated operation current Ie at DC-13, 125 V0.8 A
-
Switching functionSlow-action switch
-
Output electronicNo
-
Number of safety auxiliary contacts1
-
Number of contacts as normally open contact1
-
Type of interfaceNone
-
Construction type housingCuboid
-
Coating housingOther
-
Alignment of the control elementOther
-
With status indicationNo
-
Explosion safety category for gasNone
-
Ambient temperature during operating-25 ... 70 °C
-
Degree of protection (NEMA)Other
-
Diameter sensor0 mm
-
Length of sensor33.5 mm
-
Rated operation current Ie at AC-15, 125 V6 A
-
Rated operation current Ie at DC-13, 24 V3 A
-
Rated operation current Ie at DC-13, 230 V0.3 A
-
Switching function latchingNo
-
Forced openingYes
-
Number of contacts as normally closed contact1
-
Number of contacts as change-over contact0
-
Type of interface for safety communicationNone
-
Housing materialPlastic
-
Type of control elementRoller lever
-
Type of electric connectionCable entry metrical
-
Suitable for safety functionsYes
-
Explosion safety category for dustNone
-
Degree of protection (IP)IP66/IP67
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,084 |
| Volume (m3) | 0,001 |
| Width (m) | 0,064 |
| Length (m) | 0,073 |
| Depth (m) | 0,115 |
