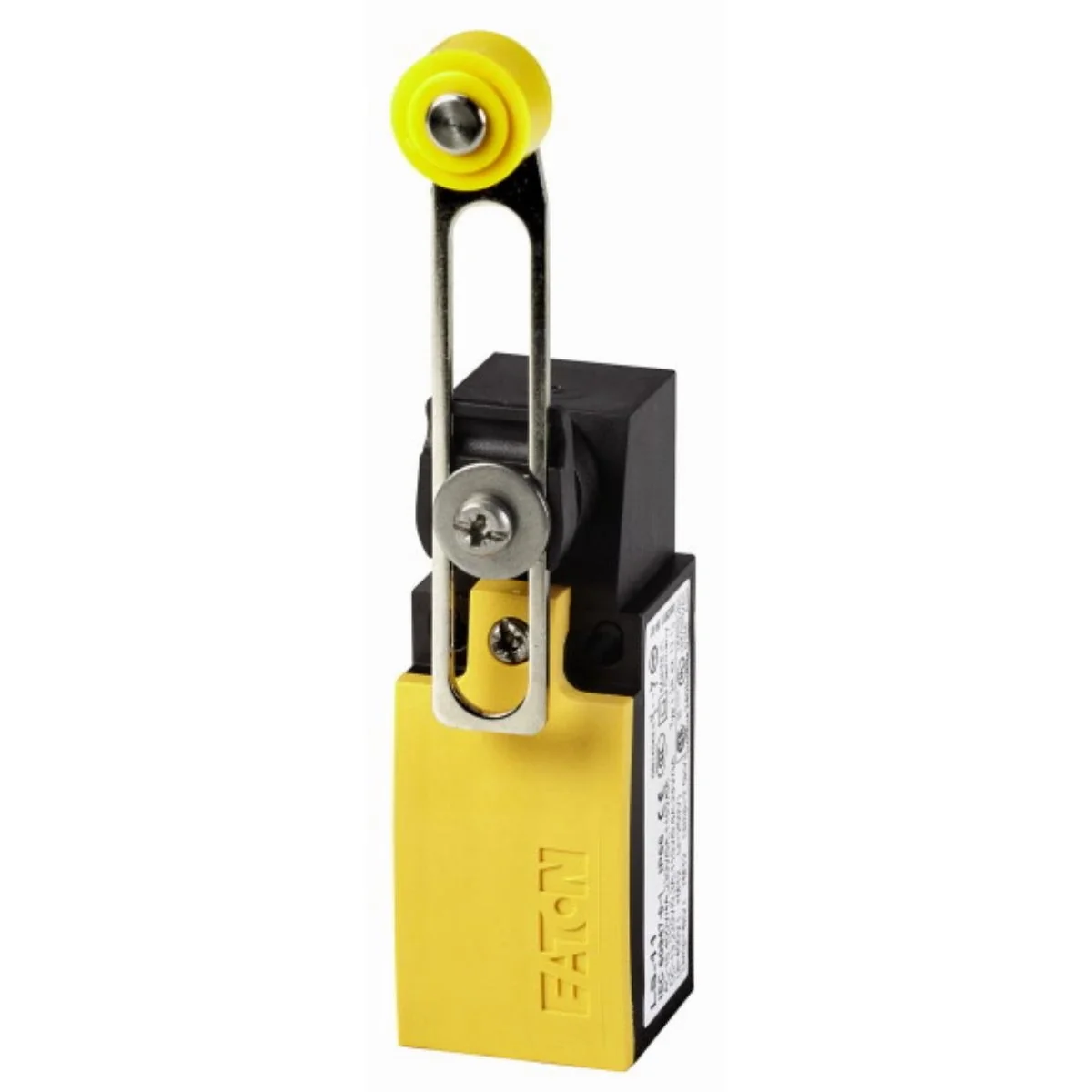

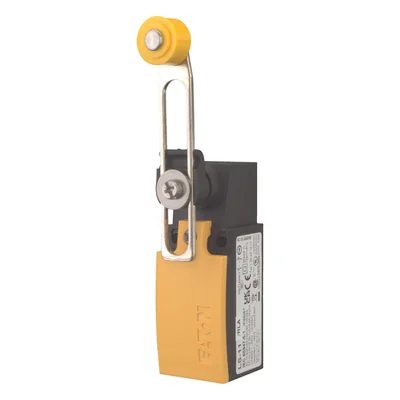

Length-adjustable roller lever, LS-11/RLA 266113

local index:
ALC005MOEL
Catalog No:
266113
EAN code:
4015082661137
Manufacturer: EATON
Number of contacts: 1NO 1NC
Case: Material
How to connect: Cage-Clamp
Price:
63,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Print

Product description

Complete sets. Length adjustable roller lever IP66, IP68. The drive head can be repositioned in 90° increments to match the desired drive direction.

Technical data

  • Number of contacts
    1NO 1NC
  • How to connect
    Cage-Clamp
  • Case
    Material

Other technical data

  • Width sensor
    31 mm
  • Height of sensor
    61 mm
  • Rated operation current Ie at AC-15, 24 V
    6 A
  • Rated operation current Ie at AC-15, 230 V
    6 A
  • Rated operation current Ie at DC-13, 125 V
    0.8 A
  • Switching function
    Slow-action switch
  • Output electronic
    No
  • Number of safety auxiliary contacts
    1
  • Number of contacts as normally open contact
    1
  • Type of interface
    None
  • Construction type housing
    Cuboid
  • Coating housing
    Other
  • Alignment of the control element
    Roller cam crossed
  • With status indication
    No
  • Explosion safety category for gas
    None
  • Ambient temperature during operating
    -25 ... 70 °C
  • Degree of protection (NEMA)
    Other
  • Diameter sensor
    0 mm
  • Length of sensor
    33.5 mm
  • Rated operation current Ie at AC-15, 125 V
    6 A
  • Rated operation current Ie at DC-13, 24 V
    3 A
  • Rated operation current Ie at DC-13, 230 V
    0.3 A
  • Switching function latching
    No
  • Forced opening
    Yes
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Type of interface for safety communication
    None
  • Housing material
    Plastic
  • Type of control element
    Adjustable rotary lever
  • Type of electric connection
    Cable entry metrical
  • Suitable for safety functions
    Yes
  • Explosion safety category for dust
    None
  • Degree of protection (IP)
    IP66/IP67

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 2 pcs.
Weight (kg) 0,120 0,241
Volume (m3) 0,000 0,001
Width (m) 0,033 0,054
Length (m) 0,036 0,073
Depth (m) 0,122 0,154
