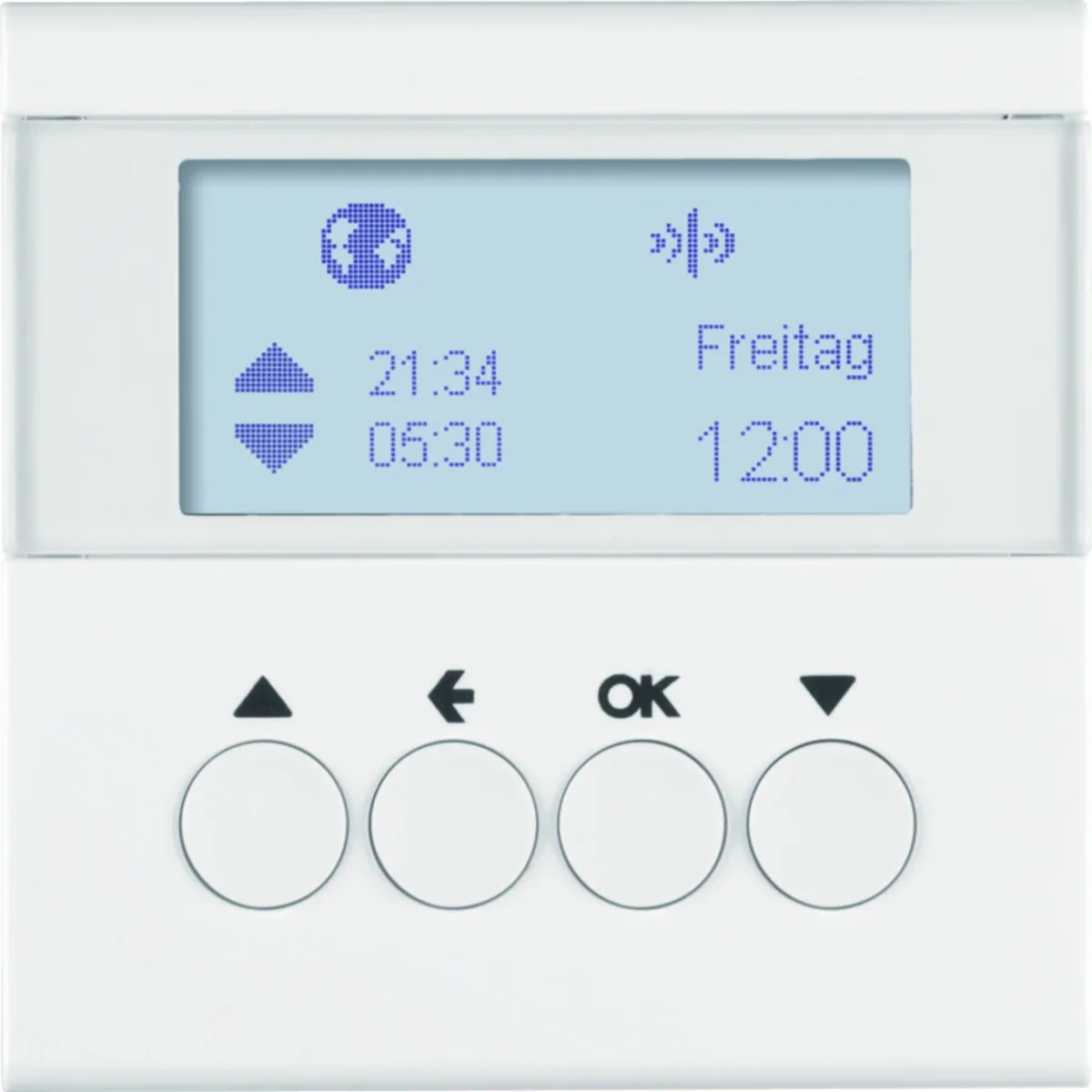

KNX RF QUICKLINK S.1/B.3/B.7 Blind time switch glossy white 85745189

local index:
AIK101BERK
Catalog No:
85745189
EAN code:
4011334375258
Manufacturer: BERKER
Switching time [s]: < 0.6s
Surface: Gloss
Family: KNX RF QUICKLINK
Price:
243,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Louver time switch from the KNX RF quicklink series. Main design line: Berker S.1/B.3/B.7.

Features:

  • Additional ETS features: +6 scenes , operating mode, status indicator, 2x alarm
  • reset function (factory settings)
  • with button lock
  • party function, automatic commands, radio and extension commands are not executed (blocked)
  • option to configure transmitter and/or receiver functions;
  • option to remember slat position for a given scene
  • recalling scenes using KNX radio devices
  • quicklink functions for including single, group and central control of blinds/roller shutters into the system
  • quicklink functions: blinds, 2 scenes, forced control, up/down button switch
  • manual/automatic toggle

Controls and indicators:

  • indicate attachment/mechanism compatibility on display
  • adjustable contrast of the LCD display
  • LCD display illuminated during operation

Detection:

  • sun protection and twilight function in combination with a radio illuminance sensor

Connection:

  • integration with the KNX system -TP via KNX radio network/TP surface-mounted gateway

Settings:

  • with automatic winter/summer time changeover (optional disconnection)
  • Astronomy program for sunrise/sunset switching with city/country input and customization
  • Standalone radio commands and extensions are not executed
  • holiday program causing random selection of travel times in automatic mode

Series characteristics:

KNX quicklink is a wireless alternative to the intelligent technology system building. An innovative wireless control system using radio communication in the KNX RF standard, without the need for complex cable routing. It has an extremely simple programming method.

  • installation in places where cable installation is not possible (e.g. glass walls),
  • the possibility of supplementing the traditional installation with additional functionality using a radio control system without high costs,
  • the ability to control electrical receivers using remote controls,
  • the ability to create light scenes and group and central control functions.

Technical data

  • Switching time [s]
    < 0.6s
  • Family
    KNX RF QUICKLINK
  • Operating temperature range [°C]
    from -5 to 45
  • Number of radio channels
    1
  • Minimum slat adjustment time [ms]
    250
  • Radio protocol
    KNX
  • Relative humidity (no condensation) [%]
    0 - 65 (non-condensing)
  • Radio transmitter range (in open area) [m]
    100
  • Surface
    Gloss
  • Level of security
    IP20
  • Radio transmitter/receiver frequency [MHz]
    868.3
  • Number of quicklinks
    up to 20 transmitters/receivers
  • Radio transmitter power [mA]
    <10
  • Power reserve [h]
    24
  • Range of the radio transmitter (in the building) [m]
    thirty
  • PKWIU
    26.52.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Weekly program
    Yes
  • Astro program
    Yes
  • Width in number of modular spacings
    0
  • Number of channels
    2
  • Presence simulation
    No
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    No
  • Autonomy
    0 h
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    Yes
  • Annual program
    No
  • Mounting method
    Flush-mounted
  • External programming
    Yes
  • Number of outputs
    1
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,069 0,094 3,649 136,758
Width (m) 0,056 0,084 0,300 0,800
Length (m) 0,030 0,070 0,225 1,050
Depth (m) 0,056 0,085 0,400 1,200
