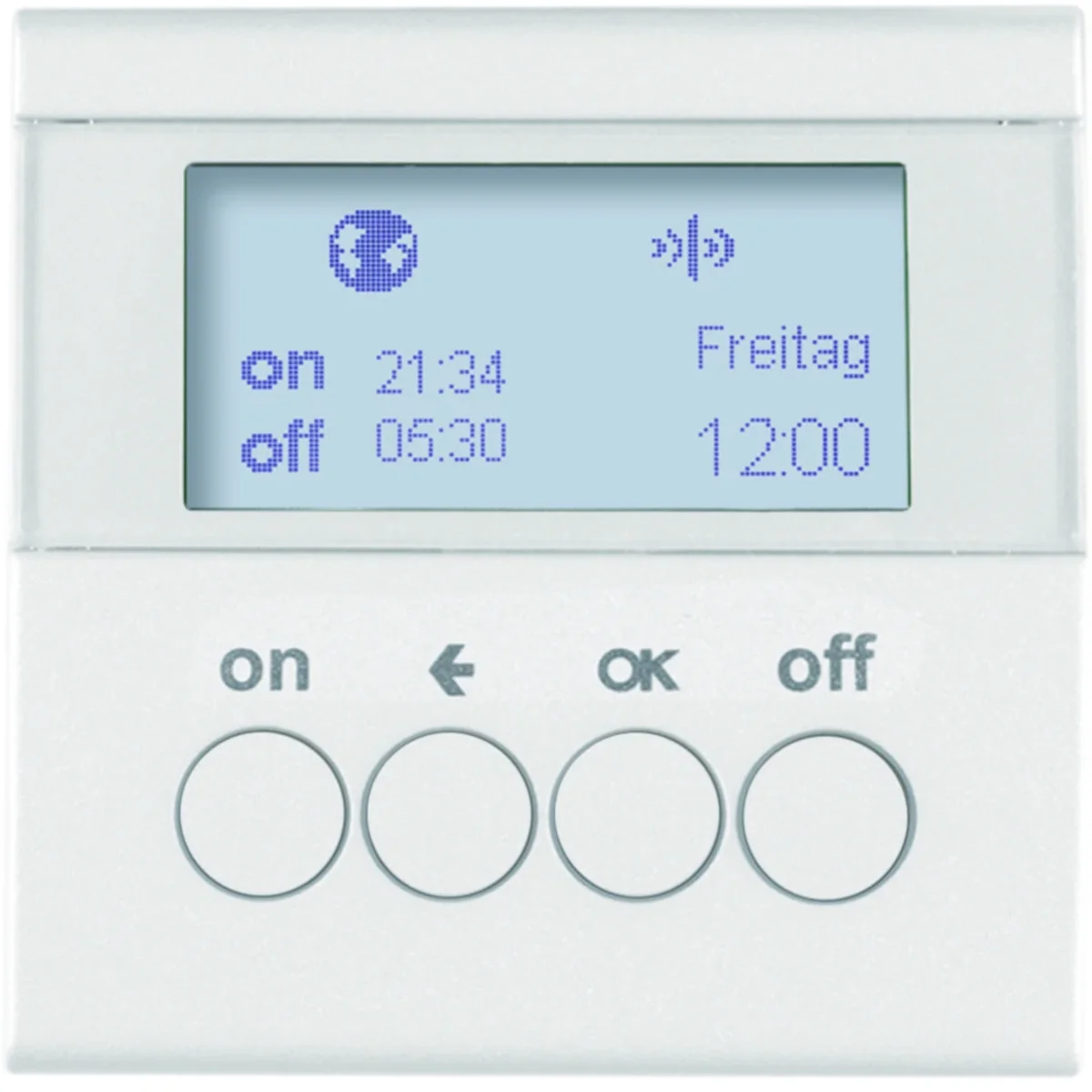

KNX RF Quicklink time switch for controlling blinds and mechanical curtains, white 85745289

local index:
AIK145BERK
Catalog No:
85745289
EAN code:
4011334375296
Manufacturer: BERKER
Color: White
Accurate color: Snow-white glossy
Price:
248,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Product features:
  • Power reserve: 24h
  • Random generator: ± 15mn
  • Astronomical time offset: ± 2h
  • Reset function (to factory settings); the ability to configure the functions of the transmitter and/or receiver; party function, automatic commands, radio commands and extension commands are not executed (switching block); button lock
  • Low power requirement
  • Astronomy program for sunrise/sunset switching with city/country input and individual adjustment; commands of standalone programs sent by radio and from extensions are not implemented; holiday program randomly selecting switching times in automatic mode
  • Automatic winter/summer time switch (can be disconnected)
  • LCD display backlit during operation; indication of cap/mechanism compatibility on display; adjustable LCD contrast
  • Toggle manual/automatic mode
  • 2 independent customizable preset memories
  • Quicklink functions: switching, 2 scenes, time control, push button switch (make contact), forced control
  • service in German, English and French

Technical data

  • Color
    White
  • PKWIU
    26.52.24.0
  • Accurate color
    Snow-white glossy

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Weekly program
    Yes
  • Astro program
    Yes
  • Width in number of modular spacings
    0
  • Number of channels
    1
  • Presence simulation
    No
  • Radio-controlled (DCF77)
    No
  • With bus connection
    Yes
  • Days off programmable
    No
  • Autonomy
    0 h
  • Bus system KNX-RF (Radio Frequent)
    Yes
  • Bus system LON
    No
  • Other bus systems
    None
  • Daily program
    Yes
  • Annual program
    No
  • Mounting method
    Flush-mounted
  • External programming
    Yes
  • Number of outputs
    1
  • Summer-/winter switchover
    Yes
  • GPS (global positioning system)
    No
  • With memory card
    No
  • Sub-clocks controllable over bus-system
    No
  • Degree of protection (IP)
    IP20

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,067 0,092 3,577 134,454
Width (m) 0,056 0,084 0,300 0,800
Length (m) 0,030 0,070 0,225 1,050
Depth (m) 0,056 0,085 0,400 1,200
