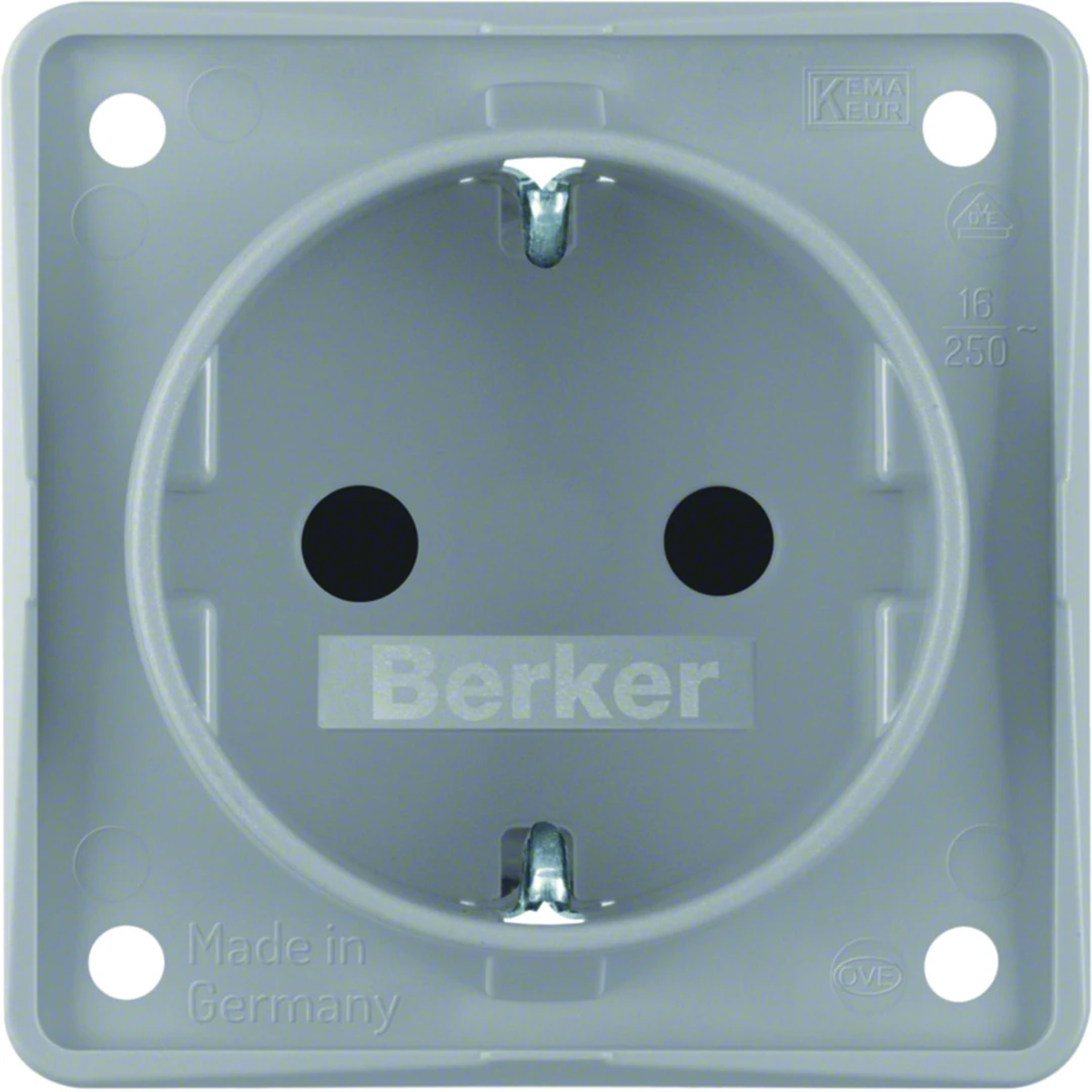

INTEGRO FLOW SCHUKO socket with increased contact protection, matt gray 947792506
local index:
MEE220BERK
Catalog No:
947792506
EAN code:
4011334051558
Price:
8,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket with earthing SCHUKO, with increased contact protection, from the Berker Integro Flow series, which, thanks to its minimalist design, quick and easy installation, is an ideal solution for use in furniture kitchens, in the sanitary industry and wherever a compact design and versatile functionality are required. It is characterized by small dimensions adapted to be installed in furniture, technical vehicles, caravans and boats. Main design line: Berker Integro modular mechanisms.
Connection:
- with plug-in terminals,
Technical data
-
Number of sockets1
-
ShapeRound
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyINTEGRA FLOW
-
TypeFlush-mounted
-
Degree of mechanical protectionIK05
-
Accurate colorlight gray
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorGray
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP44
-
Groundschuko
-
Surface finishmatte
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialThermoplastic
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourGrey
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodBuilt-in installation
-
MaterialPlastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 50 Hz
-
Impact strengthIK05
-
Device height55.5 mm
-
Min. depth of built-in installation box32 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units1
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)7038
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP44
-
Device width55.5 mm
-
Device depth41.5 mm
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 70 pcs. | 4000 pcs. |
| Weight (kg) | 0,029 | 0,370 | 3,020 | 148,000 |
| Width (m) | 0,056 | 0,140 | 0,315 | 0,800 |
| Length (m) | 0,041 | 0,070 | 0,220 | 1,050 |
| Depth (m) | 0,056 | 0,265 | 0,360 | 1,200 |
