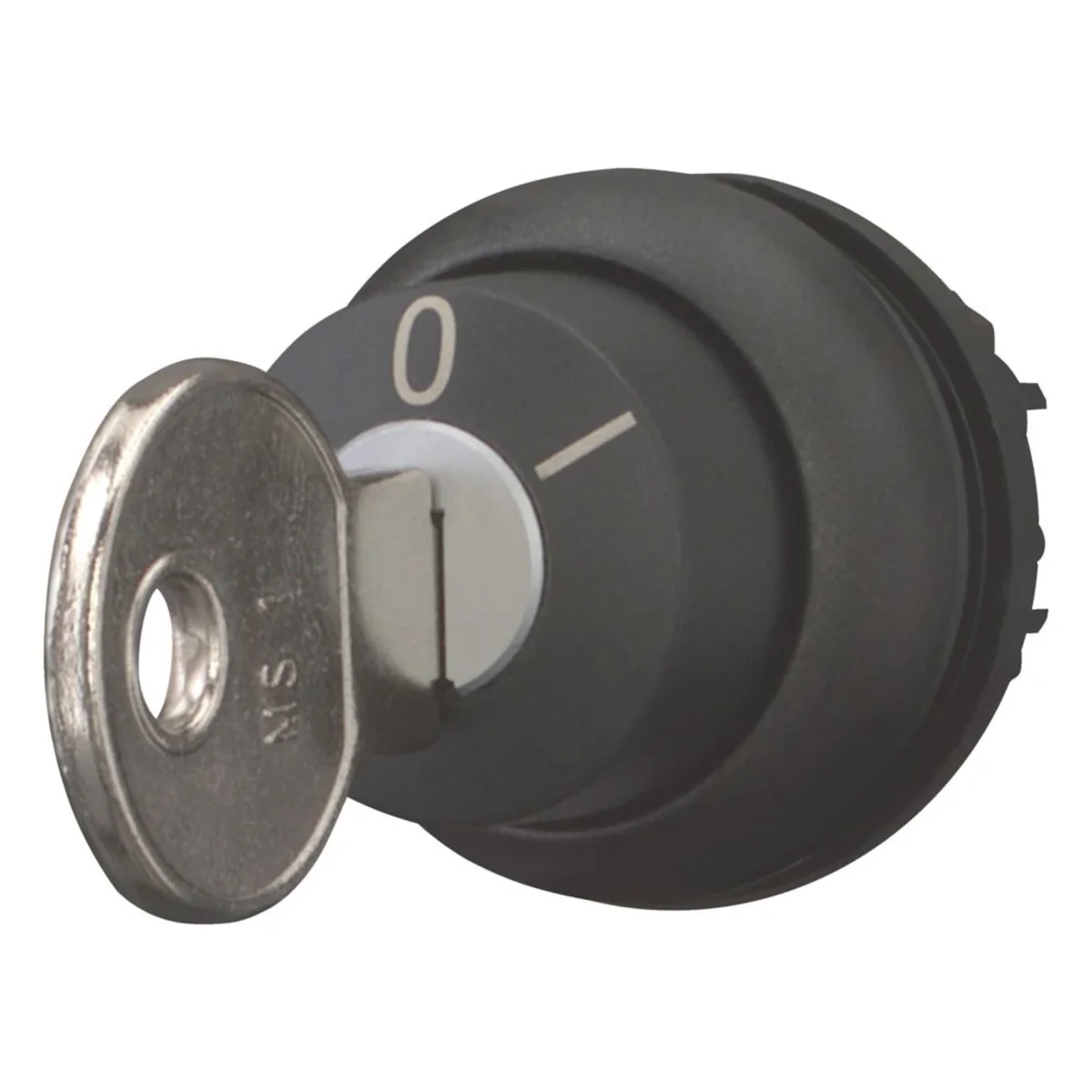

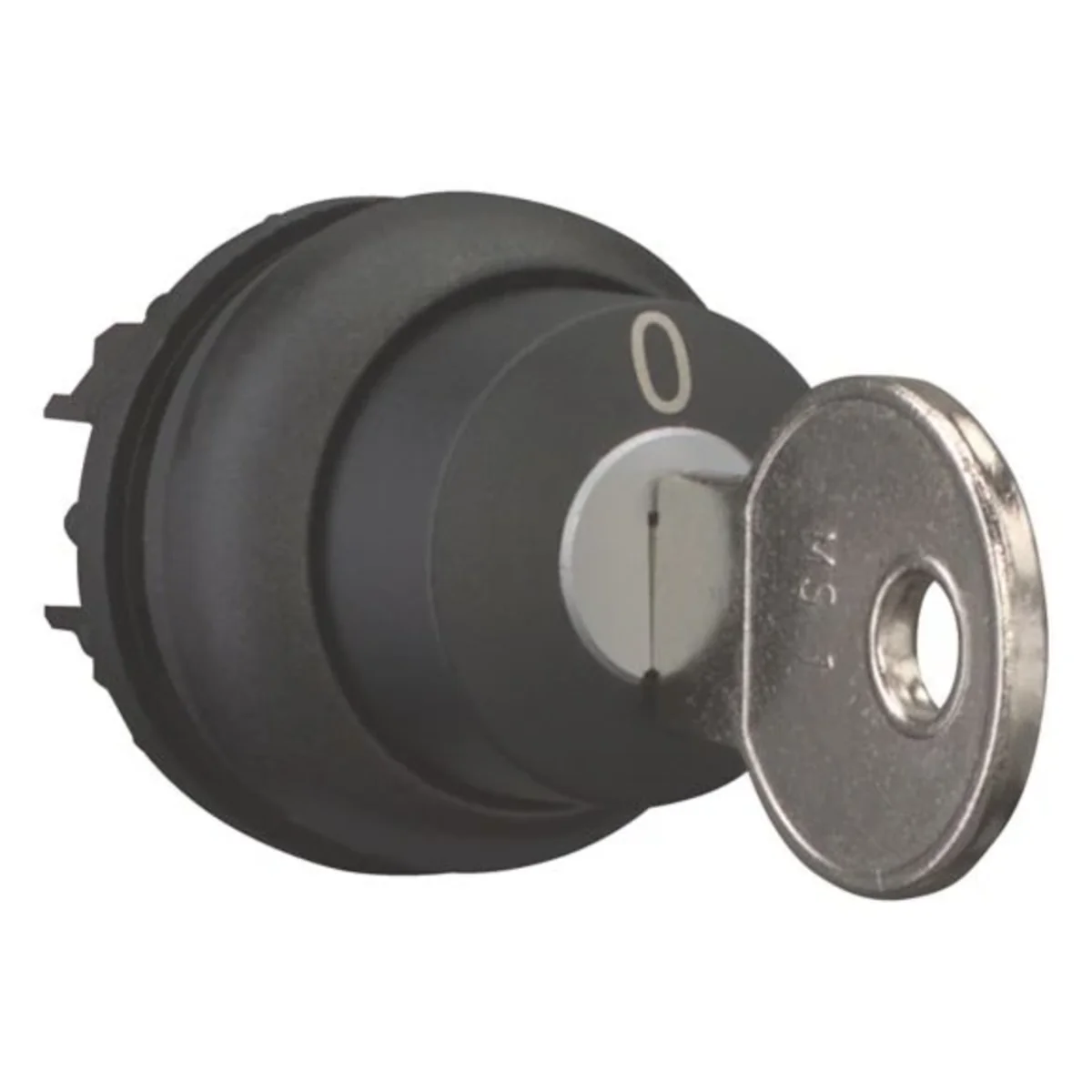

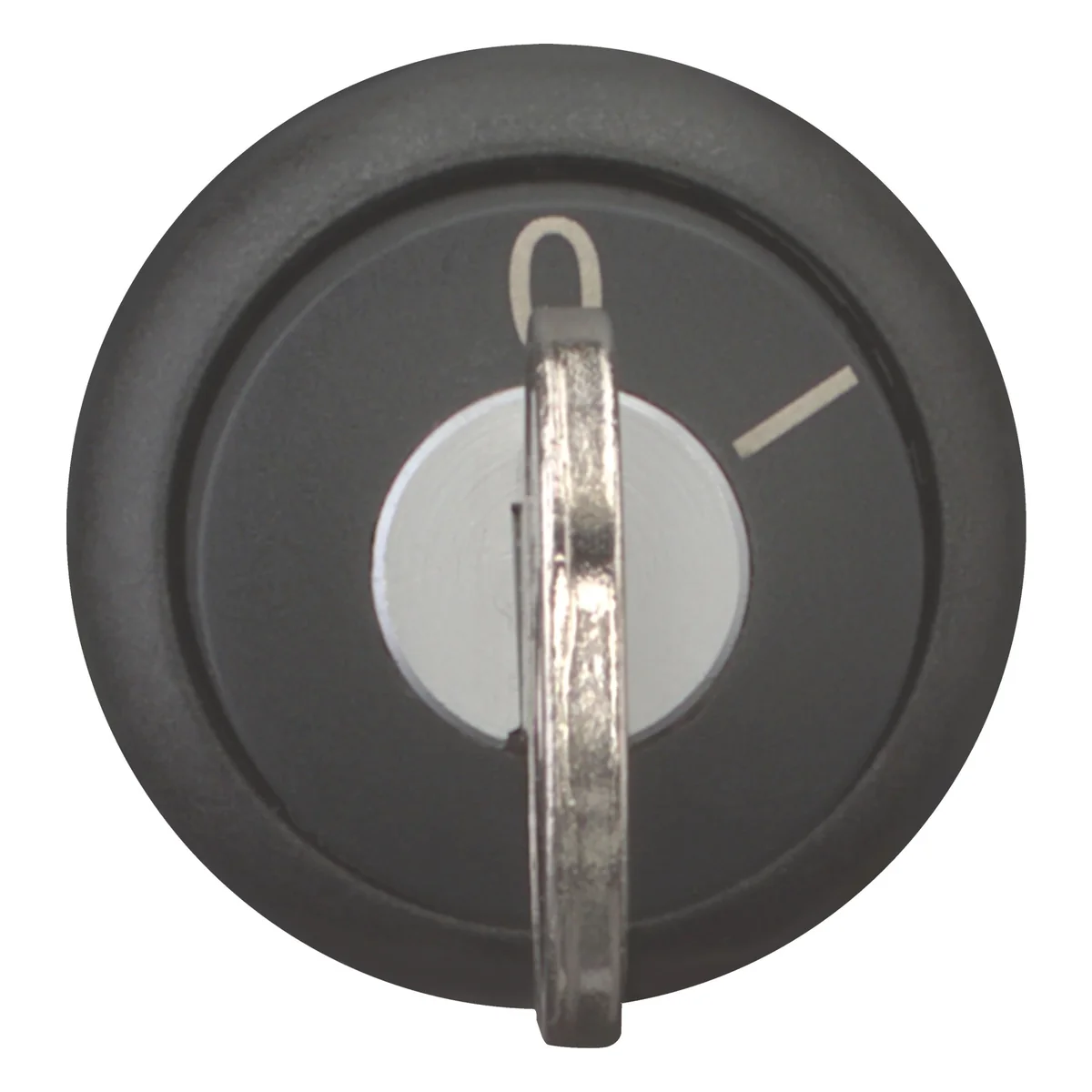

Key switch actuator 3 position, M22S-WS 216882

local index:
ALA042MOEL
Catalog No:
216882
EAN code:
4015082168827
Manufacturer: EATON
Face ring color: Black
Lock: MS-1
Price:
44,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Key switch actuator 3 positions. Key removable in position 0

Technical data

  • Face ring color
    Black
  • Lock
    MS-1

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    No
  • Colour indicator light cap
    Other
  • Hole diameter
    22.5 mm
  • Height opening
    0 mm
  • Spring-return
    Yes
  • Material front ring
    Plastic
  • Degree of protection (IP), front side
    IP66
  • Type of control element
    Key
  • Colour control element
    Black
  • Construction type lens
    Round
  • Width opening
    0 mm
  • Switching function latching
    No
  • With front ring
    Yes
  • Colour front ring
    Black

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,042
Volume (m3) 0,000
Width (m) 0,048
Length (m) 0,059
Depth (m) 0,046
