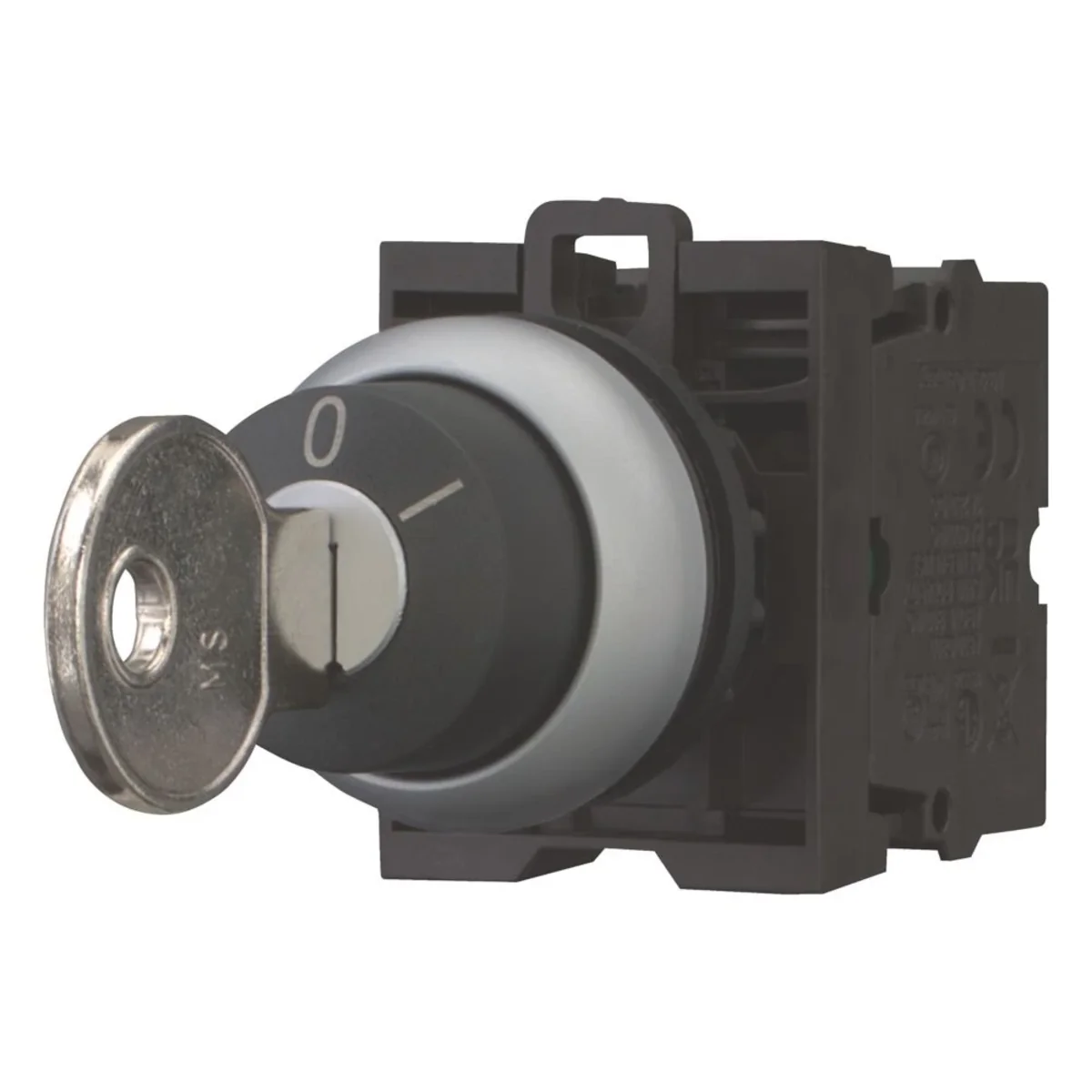

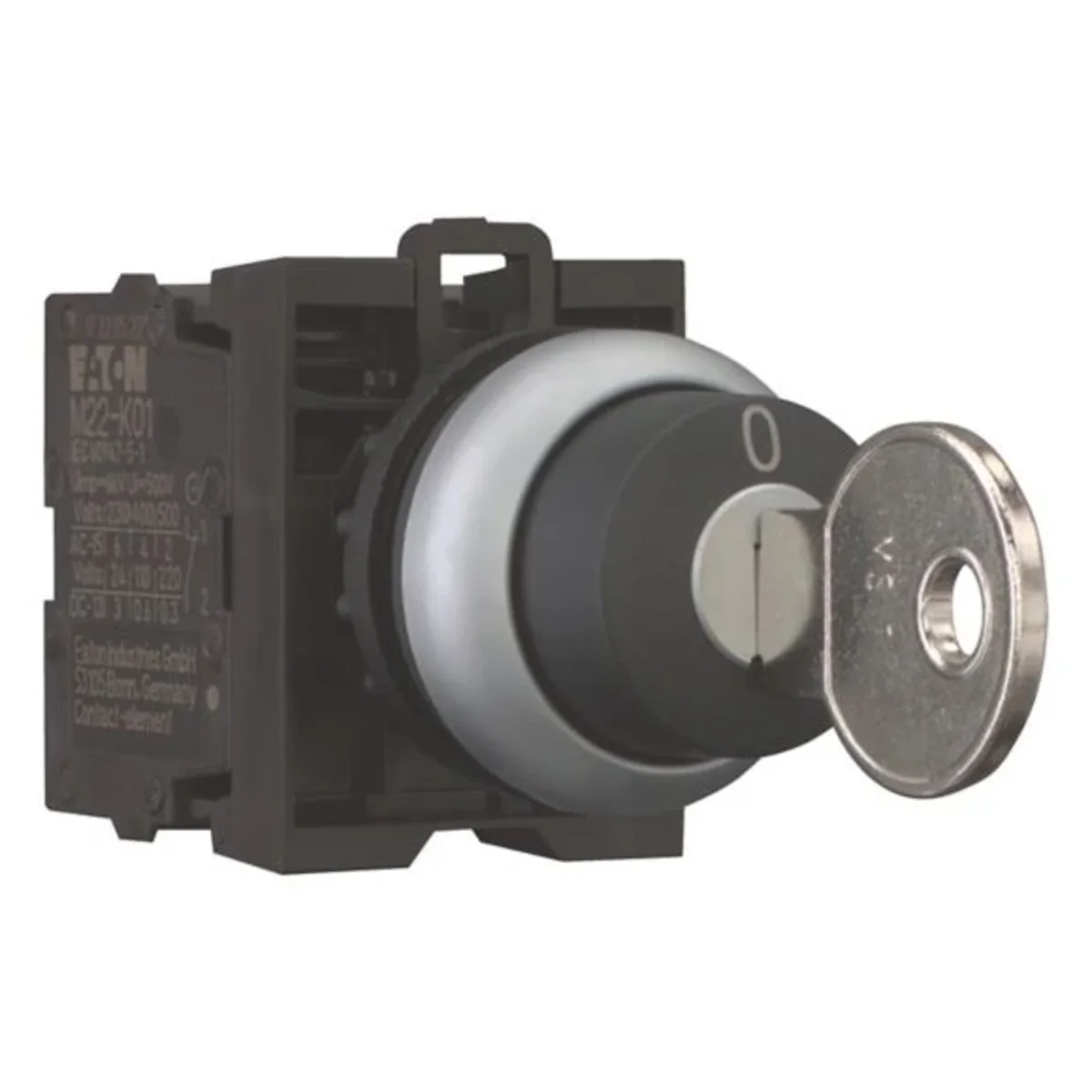

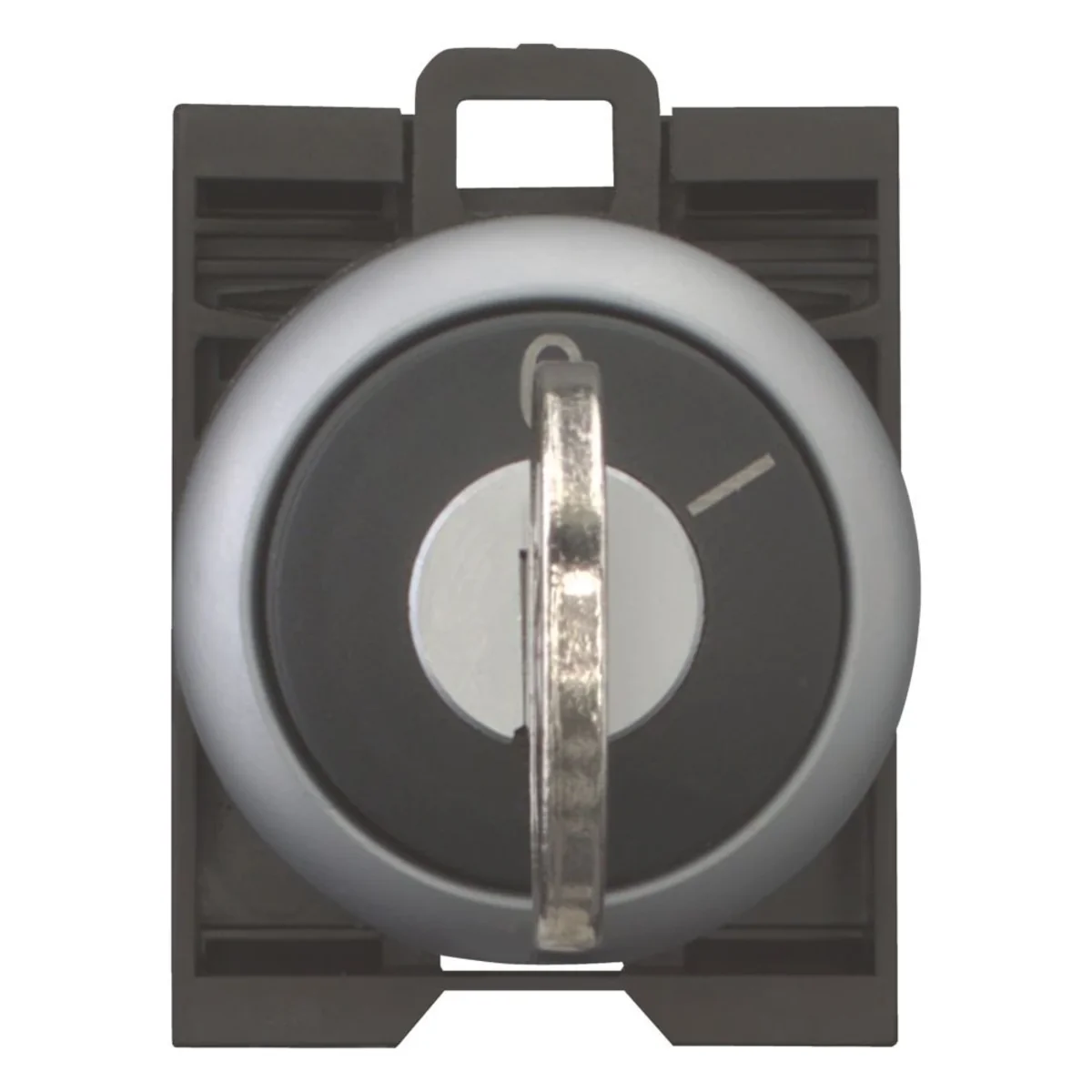

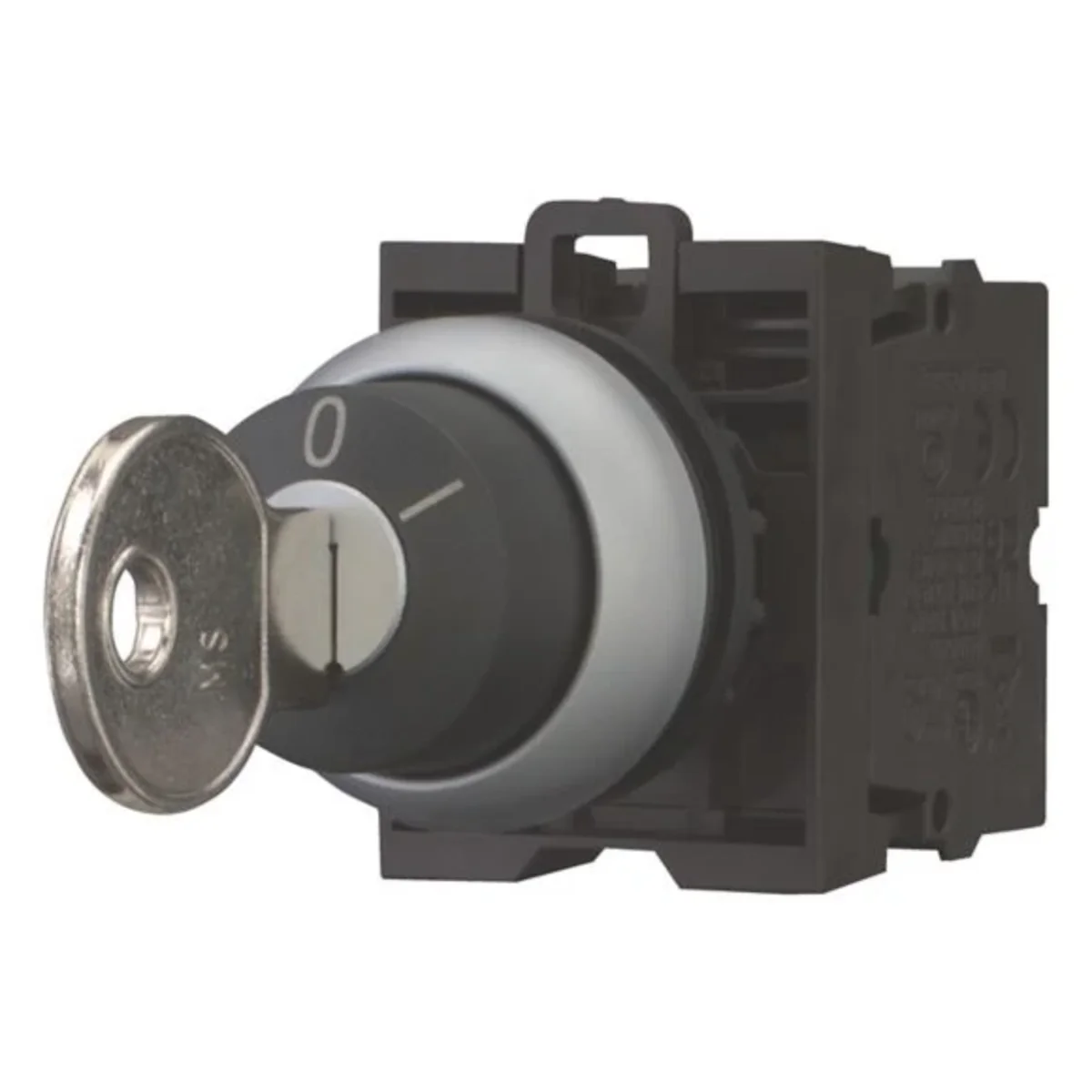

Key switch actuator 1Z1R 2 p, M22-WRS/K11 216517

local index:
ALA109MOEL
Catalog No:
216517
EAN code:
4015082165178
Manufacturer: EATON
Contact: 1Z 1R
Lock: MS-1
Price:
56,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
5
)
Add to clipboard
Print

Product description

Mode of operation (momentary / spring return) and key removal. 2 positions, no return. MS1 lock, with 1 key

Technical data

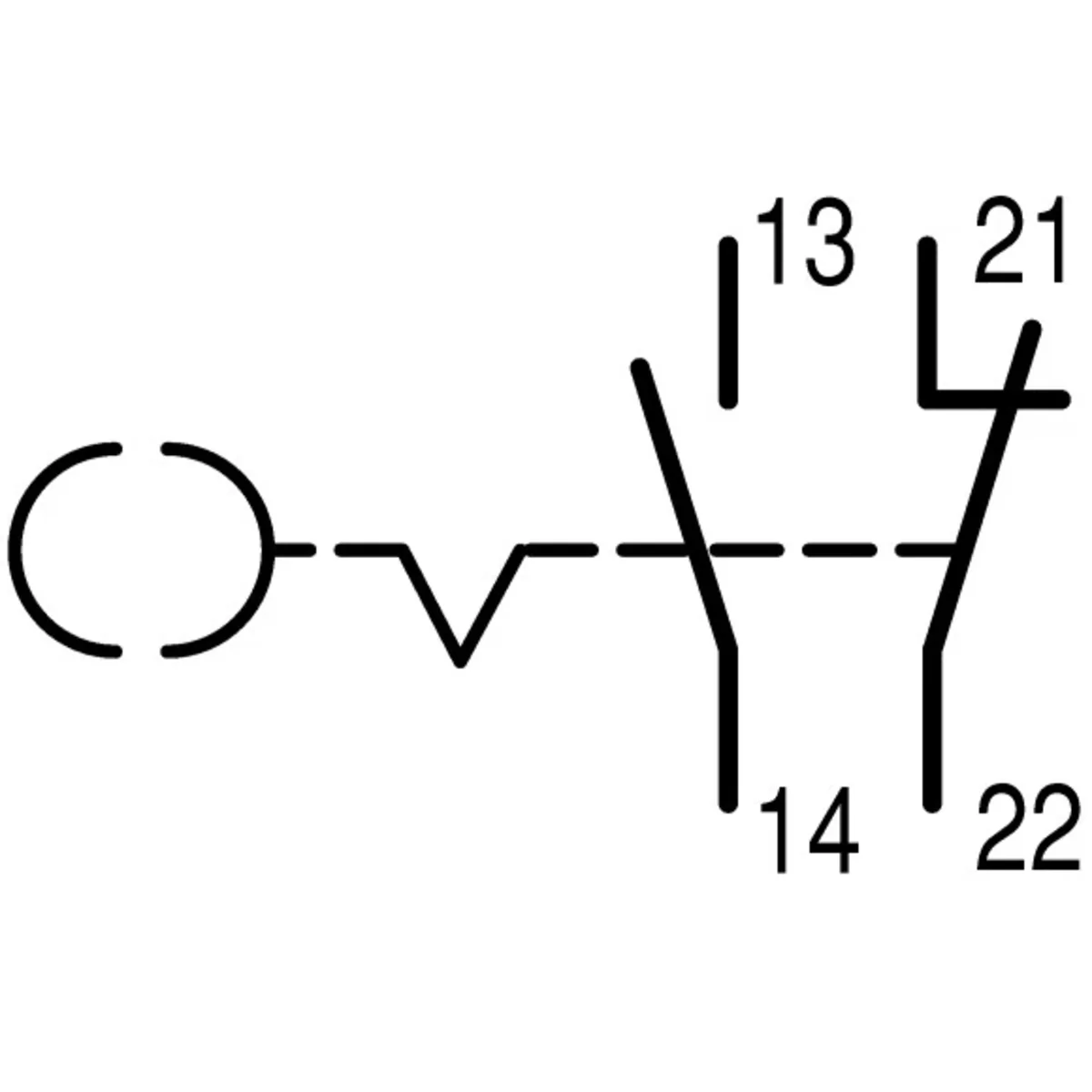

  • Contact
    1Z 1R
  • Lock
    MS-1

Other technical data

  • Number of switch positions
    2
  • Suitable for illumination
    No
  • Colour button
    Black
  • Width opening
    0 mm
  • Switching function latching
    No
  • Degree of protection (IP)
    IP66
  • Supply voltage
    0 ... 0 V
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Type of control element
    Key
  • With light source
    No
  • Hole diameter
    22 mm
  • Height opening
    0 mm
  • Spring-return
    No
  • Degree of protection (NEMA)
    4X
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • With front ring
    No
  • Colour front ring
    Chrome

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 5 pcs.
Weight (kg) 0,060 0,299
Volume (m3) 0,000 0,001
Width (m) 0,032 0,073
Length (m) 0,132 0,115
Depth (m) 0,032 0,064
