Interface Relay 24V DC 1P AgNi 16A / 250V AC 864848

local index:
APE374RELP
Catalog No:
864848
EAN code:
5900005272103
Manufacturer: RELPOL
Depth [mm]: 75.8
Color: Gray
Installation: On the TH-35 rail
Price:
13,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

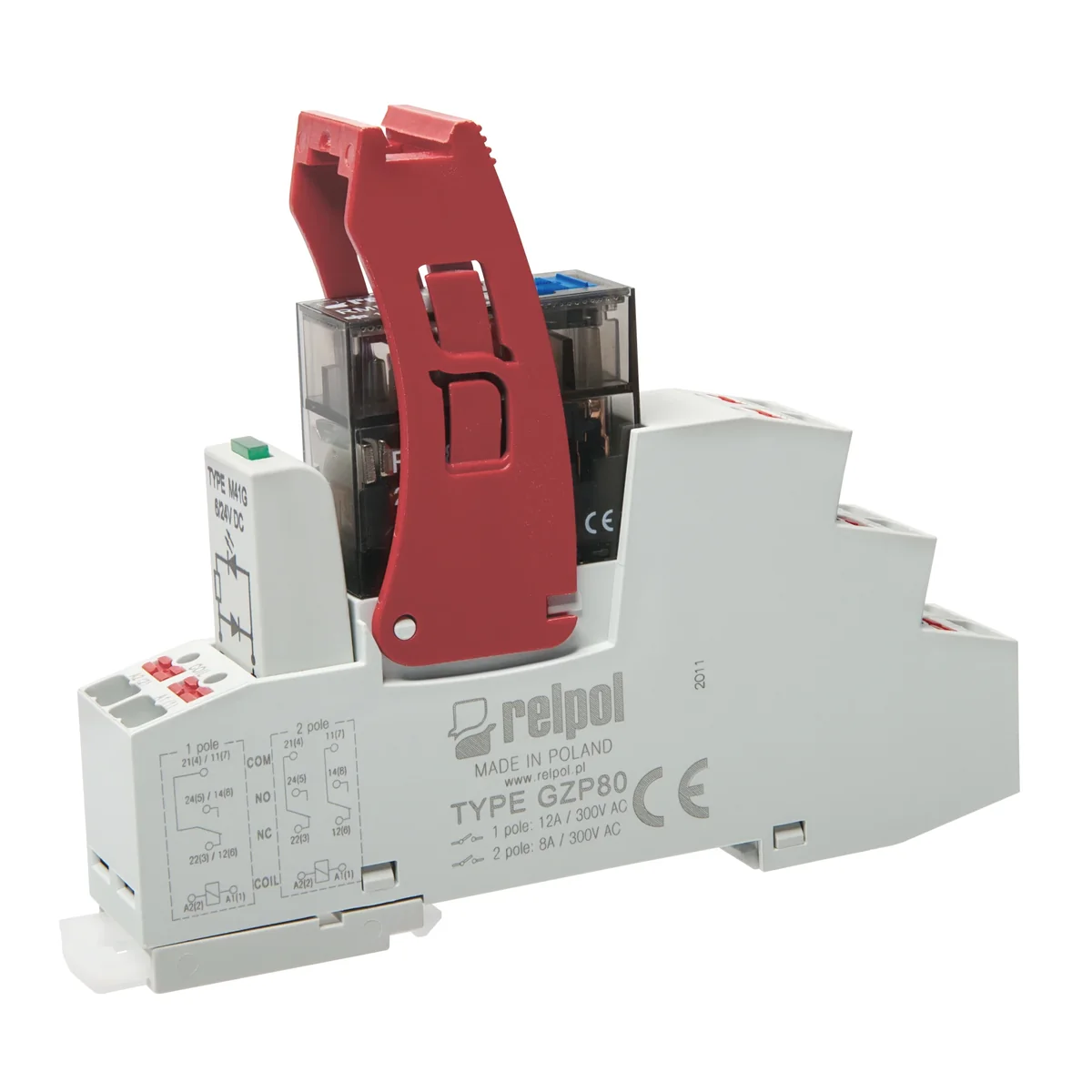

PUSH-IN interface relay: 1P - one changeover contact, supply voltage Un - 24V DC, contact material AgNi.

  • AC1 - 16A / 250V AC;
  • Dimensions: 97 x 15.9 x 75.8mm.
  • Mounting on a 35 mm rail or on a mounting plate with one M3 screw.
  • Adjusted to work with comb connectors type ZGZP.
  • The set includes: GZP80 push-in socket, RMP85 relay, GZP80-0400 ejection clamp and M41G surge protection module (green LED + D suppression diode, N polarity: +A1/-A2)

Technical data

  • Depth [mm]
    75.8
  • Installation
    On the TH-35 rail
  • Height [mm]
    97
  • Color
    Gray
  • Width [mm]
    15.9
  • Terminal type
    Spring clamps
