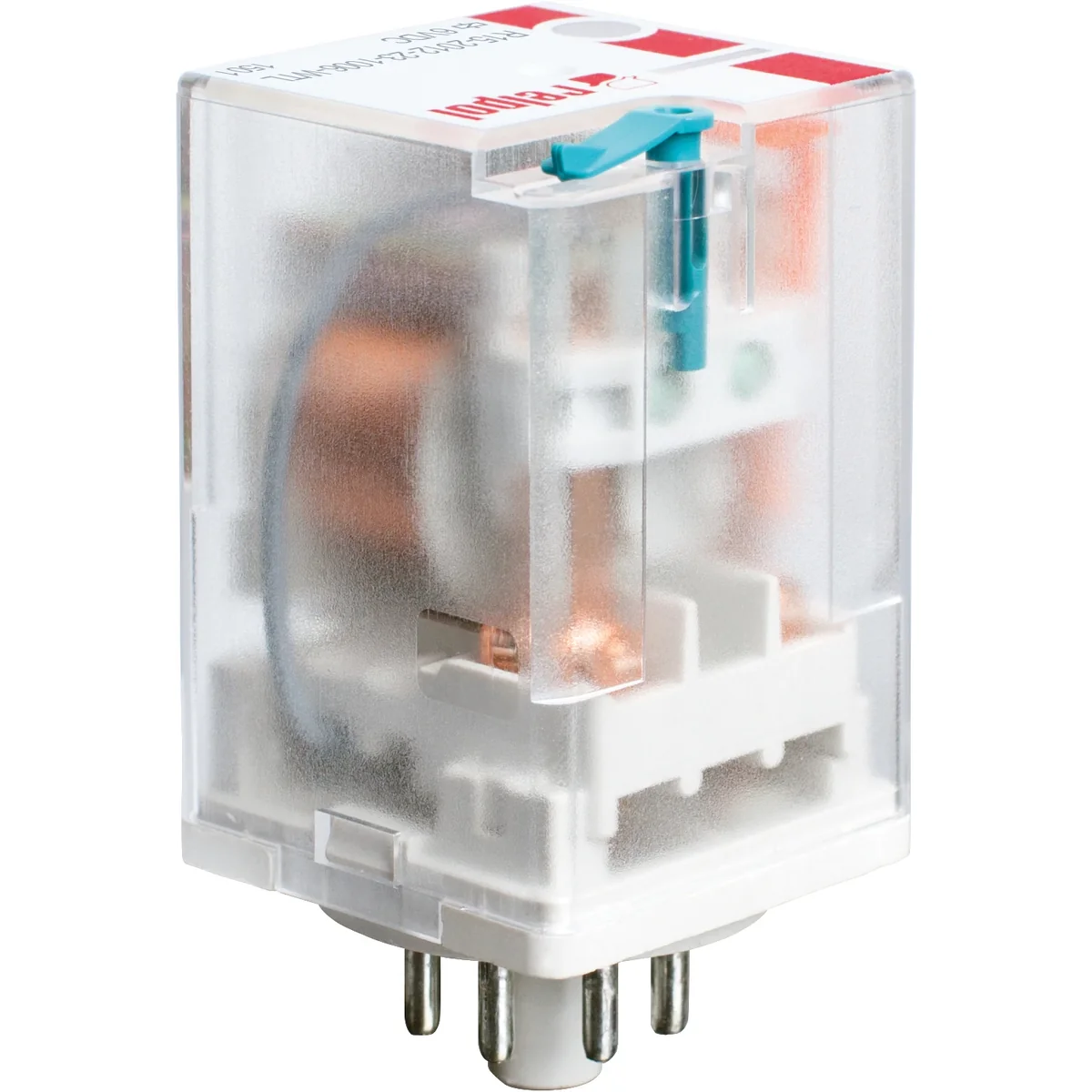

Electromagnetic relay, industrial - small size, for plug socket R15-2013-23-1024-WTLD 804611

local index:
APE175RELP
Catalog No:
804611
Manufacturer: RELPOL
Level of security: IP40
Price:
17,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electromagnetic relay, industrial - small size, for plug socket.
Width 35 mm.
Output: 3P - three changeover contacts - terminals: 11(1)-12(4)-14(3); 21(6)-22(5)-24(7); 31(11)-32(8)-34(9); AC1 - 10A / 250V; DC1 - 10 A / 24 V.
Input / coil - terminals: (+)A1(2) - (-)A2(10), supply voltage Un - 24 V DC.
Mechanical indicator W,
test button T - with contact blocking function,
red LED indicator L,
surge suppression diode D.
Dimensions: 35 x 35 x 54, 4 mm. IP 40.
Contact material: AgNi.
Dimensions of the R15 3P set + PS11 (or PZ11) socket + PZ11 0031 clamp: 68, 2 x 38 x 82, 6 mm. Set - IP 20.
Dimensions of other sets are indicated in the description of the selected socket.

Technical data

  • Level of security
    IP40

Other technical data

  • Type of electric connection
    Plug-in connection
  • Rated control supply voltage AC 60 Hz
    0 ... 0 V
  • Voltage type for actuating
    DC
  • Drive, switching attitude
    Mono stable
  • Number of contacts as normally open contact
    0
  • Type of switch contact
    Single contact
  • Degree of protection (IP)
    IP40
  • Height
    35 mm
  • Rated control supply voltage AC 50 Hz
    0 ... 0 V
  • Rated control supply voltage DC
    24 ... 24 V
  • Drive, polarization
    Polarity free
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    3
  • Complete with socket
    No
  • Width
    35 mm
  • Depth
    54.4 mm
