Industrial relay R4N-2014-23-5240-WT 863610

local index:
APE650RELP
Catalog No:
863610
Manufacturer: RELPOL
Family: R2N | R3N | R4N | R15 2P | R15 3P
Price:
10,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

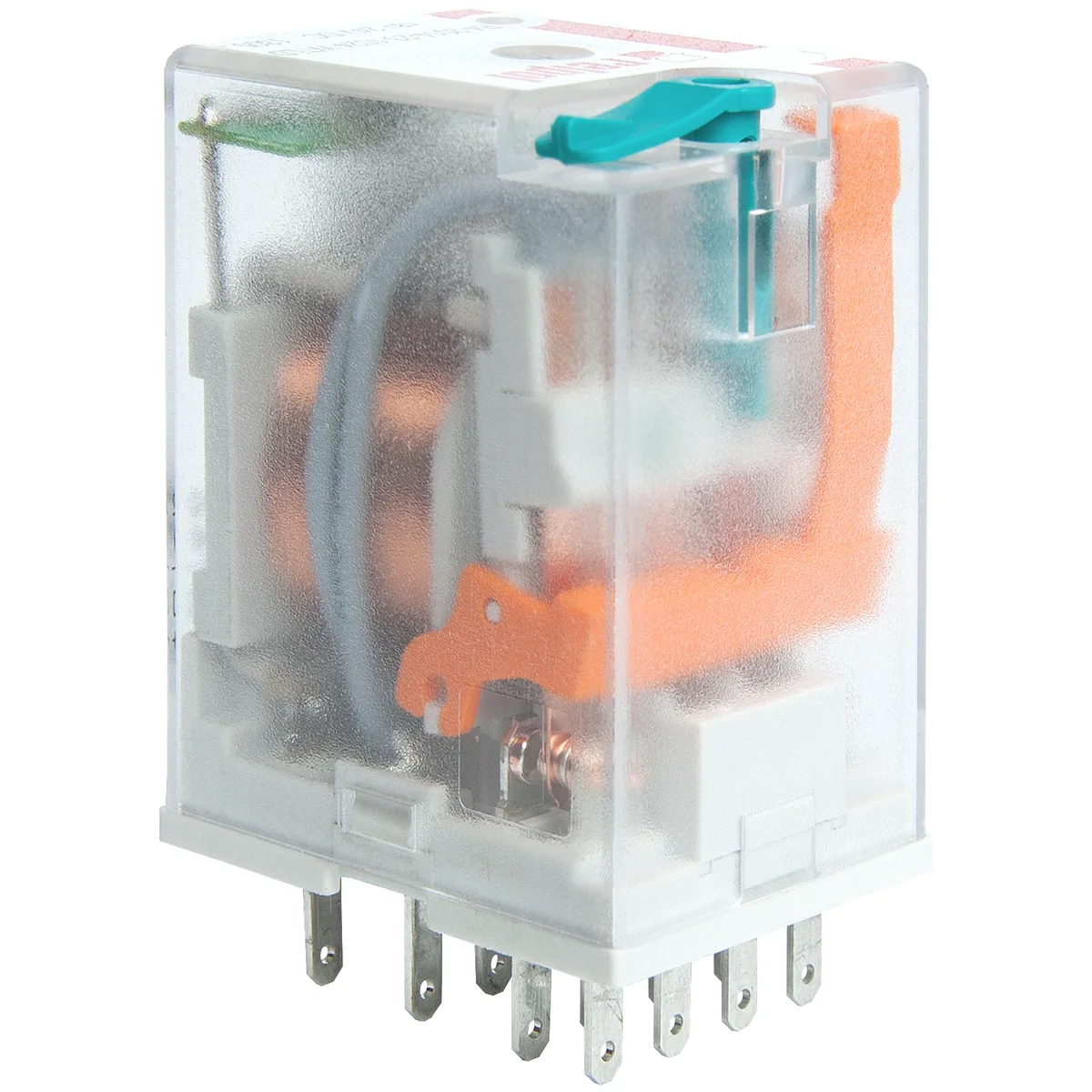

Electromagnetic relay, industrial - miniature, for plug socket. Width 21.2mm. Output: 4P - four changeover contacts - terminals: 11(9), 12(1), 14(5); 21(10), 22(2), 24(6); 31(11), 32(3), 34(7); 41(12), 42(4), 44(8); AC1 - 6A / 250V; DC1 - 6 A / 24 V. Input / coil - terminals: A1(13) - A2(14), supply voltage Un - 240 V AC. Mechanical indicator W, test button T with locking function. Dimensions: 27.5 x 21.2 x 35.6mm. IP 40. Contact material: AgNi. Dimensions of the R4N set + plug socket + clamp: are indicated in the description of the selected socket.

Technical data

  • Family
    R2N R3N R4N R15 2P R15 3P
