Relay;modular;pulse;1NC;+;1R;16A;120V;AC 202382304000
local index:
APE089FIND
Catalog number:
202382304000
EAN code:
8012823267104
Manufacturer:
FINDER
Pin configuration: SPST-NO + SPST-NC
Maximum switching voltage [V]: 400
Contact material: AgSnO2
115
23
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne 27 pcs.
Check
Odbiór!
Odbierz w godzinę!
Details
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

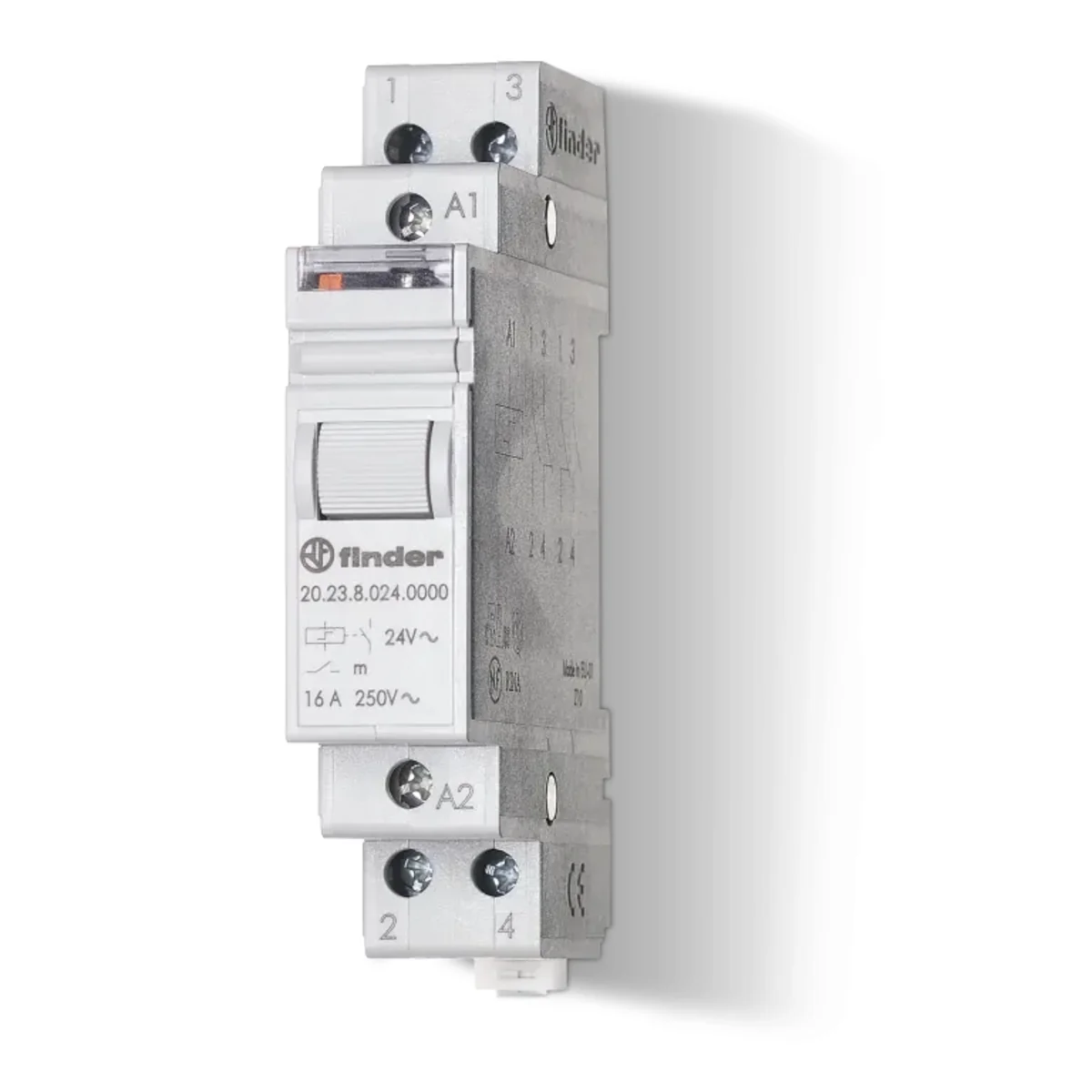

Pulse relay for DIN rail mounting
- Test button with mechanical indicator
- 6 switching programs
- AC or DC control
- A place for a description plate
- After installing the 026.00 capacitor, it is possible to work with illuminated push-buttons
- Cadmium-free contact material
- Italian patent
Technical data
-
Pin configurationSPST-NO + SPST-NC
-
Contact materialAgSnO2
-
Rated voltage [V]230
-
Switching current [A]thirty
-
Level of securityIP20
-
Maximum switching voltage [V]400
-
InstallationOn the TH-35 rail
-
Power consumption [W]5
-
Rated current [A]16
-
Number of contacts1Z+1R
Manufacturer details
-
ManufacturerFinder S.p.A. con unico socio
-
Address10040 Almese Via Drubiaglio 14 Włochy
-
E-mail
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 5 pcs. | 1 pcs. |
| Weight (kg) | 0,581 | 0,108 |
| Width (m) | 0,130 | 0,025 |
| Length (m) | 0,075 | 0,069 |
| Depth (m) | 0,100 | 0,095 |
