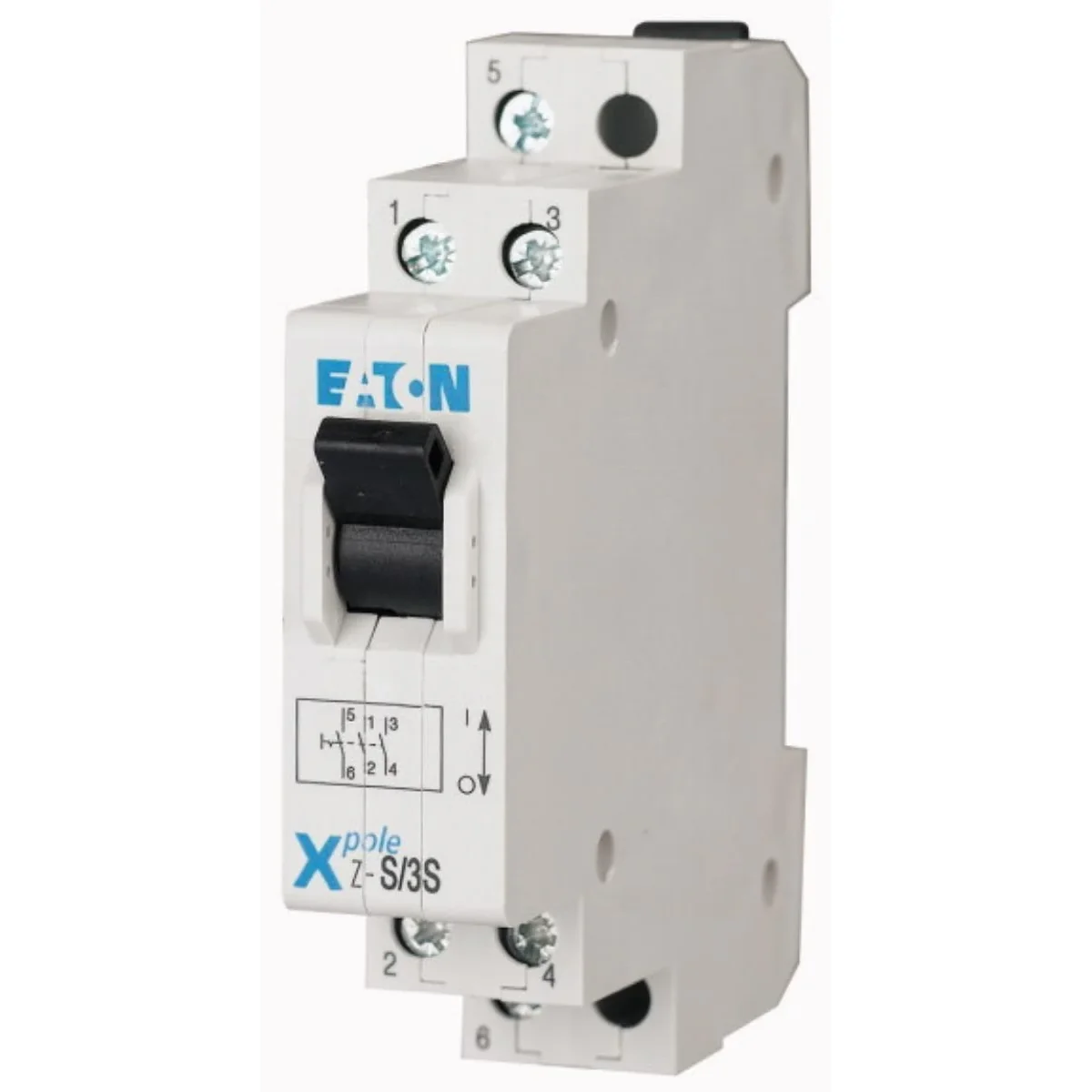

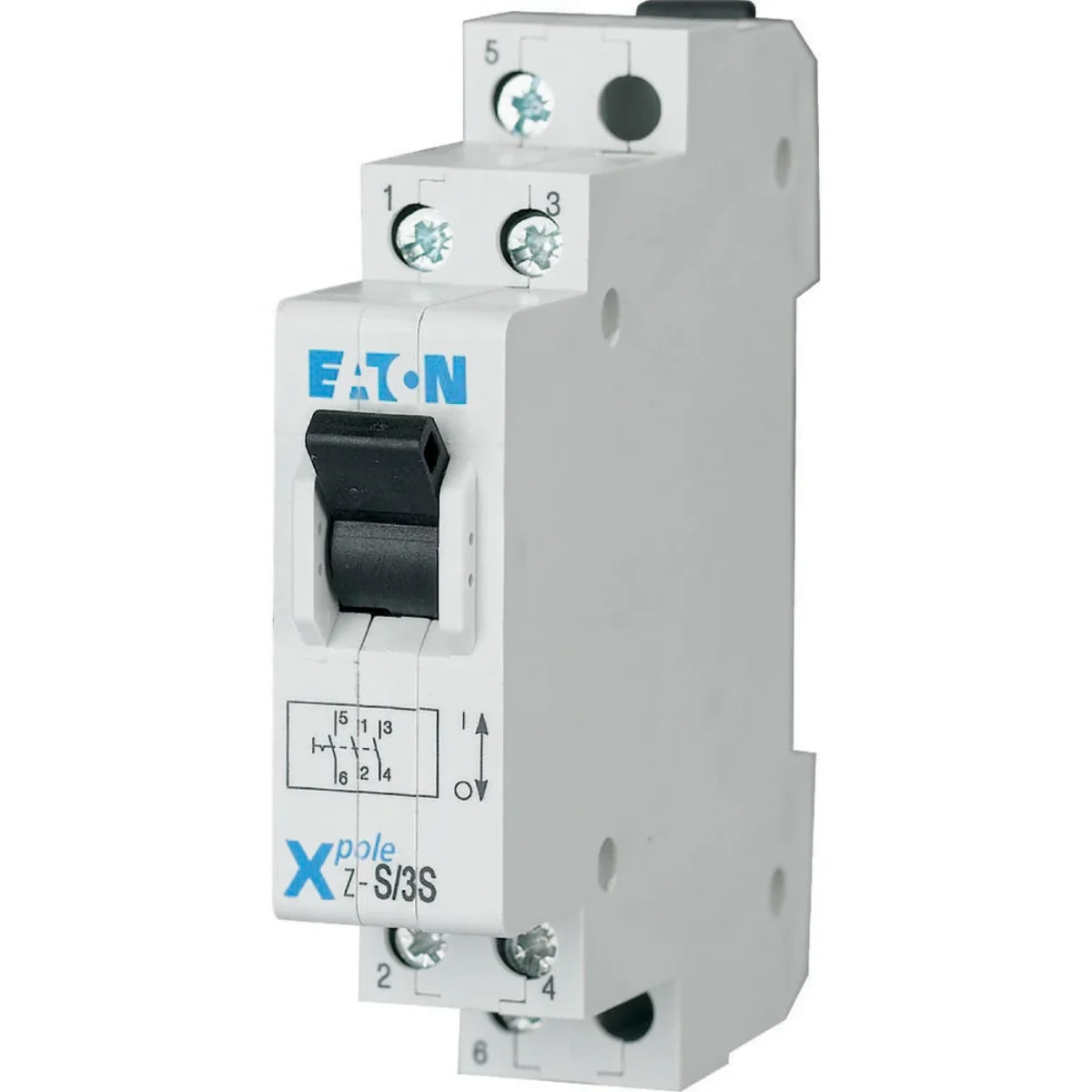

Impulse relay 16A AC 3Z Z-S/3S 248334
local index:
ALA196MOEL
Catalog No:
248334
EAN code:
4015082483340
Price:
30,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Impulse relay 16A AC 3Z Z-S/3S. control switch.
Technical data
-
Number of contacts3NO 0NC
-
Rated current [A]16
-
Rated short-circuit capacity [kA]20
-
Voltage [V]230
-
Width in modules1
-
Number of NO contacts3
Other technical data
-
Switching functionControl switch
-
Number of contacts as normally closed contact0
-
Number of poles3
-
Rated voltage240 V
-
Rated switching capacity0.025 kA
-
Voltage typeAC
-
Colour calotteOther
-
Lamp socketOther
-
Width in number of modular spacings1
-
Degree of protection (IP)IP40
-
Number of contacts as normally open contact3
-
Number of contacts as change-over contact0
-
Rated current20 A
-
Min. rated voltage0 V
-
Short-circuit breaking capacity (Icw)10 kA
-
With signal lampNo
-
Lamp typeOther
-
Max. lamp power0 W
-
Built-in depth80 mm
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 12 pcs. | 120 pcs. |
| Weight (kg) | 0,075 | 0,079 | 0,946 | 9,659 |
| Volume (m3) | 0,000 | 0,000 | 0,001 | 0,016 |
| Width (m) | 0,018 | 0,020 | 0,218 | 0,180 |
| Length (m) | 0,080 | 0,082 | 0,086 | 0,385 |
| Depth (m) | 0,075 | 0,077 | 0,075 | 0,230 |
