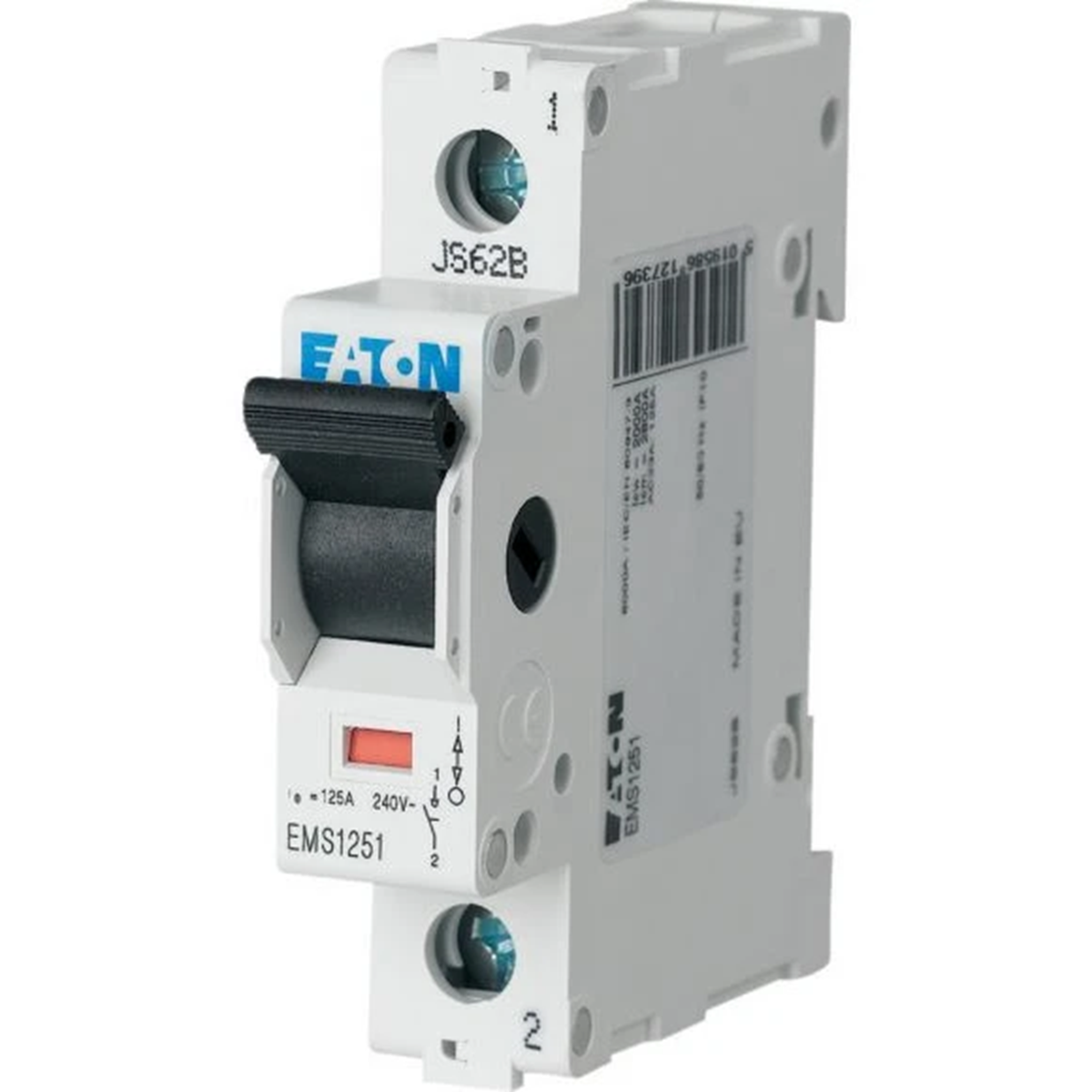

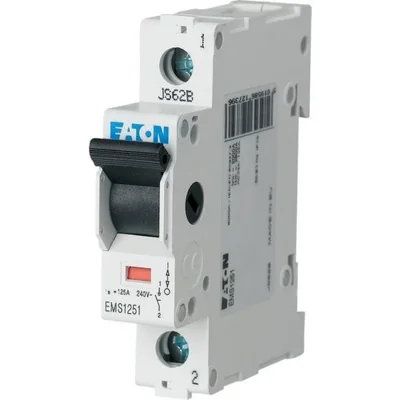

HIS-100/1 1P 100A 230V AC IP20 switch disconnector 142828

local index:
ALI381MOEL
Catalog No:
142828
EAN code:
4015081395286
Manufacturer: EATON
Depth [mm]: 69.5
Number of poles: 1
Installation: For TH-35 rail
Price:
9,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 72 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

HIS-100/1 1P 100A 230V AC IP20 switch disconnector

Technical data

  • Depth [mm]
    69.5
  • Installation
    For TH-35 rail
  • Rated current [A]
    100
  • Level of security
    IP20
  • Short-circuit strength [kA]
    2
  • Number of poles
    1
  • Rated voltage [V]
    230
  • Type of voltage
    AC
  • Width [number of modules]
    1

Other technical data

  • Switching function
    Off switch
  • Number of contacts as normally closed contact
    0
  • Number of poles
    1
  • Rated voltage
    240 V
  • Rated switching capacity
    0 kA
  • Voltage type
    AC
  • Colour calotte
    Other
  • Lamp socket
    Other
  • Width in number of modular spacings
    1
  • Degree of protection (IP)
    IP20
  • Forced segregation according to DIN VDE 0113
    No
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • Rated current
    100 A
  • Min. rated voltage
    240 V
  • Short-circuit breaking capacity (Icw)
    2 kA
  • With signal lamp
    No
  • Lamp type
    Other
  • Max. lamp power
    0 W
  • Built-in depth
    69.5 mm
  • Imprint/indication
    Symbol "arrows"

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 12 pcs. 120 pcs.
Weight (kg) 0,105 1,256 12,755
Volume (m3) 0,000 0,001 0,016
Width (m) 0,020 0,218 0,180
Length (m) 0,082 0,086 0,385
Depth (m) 0,078 0,075 0,230
